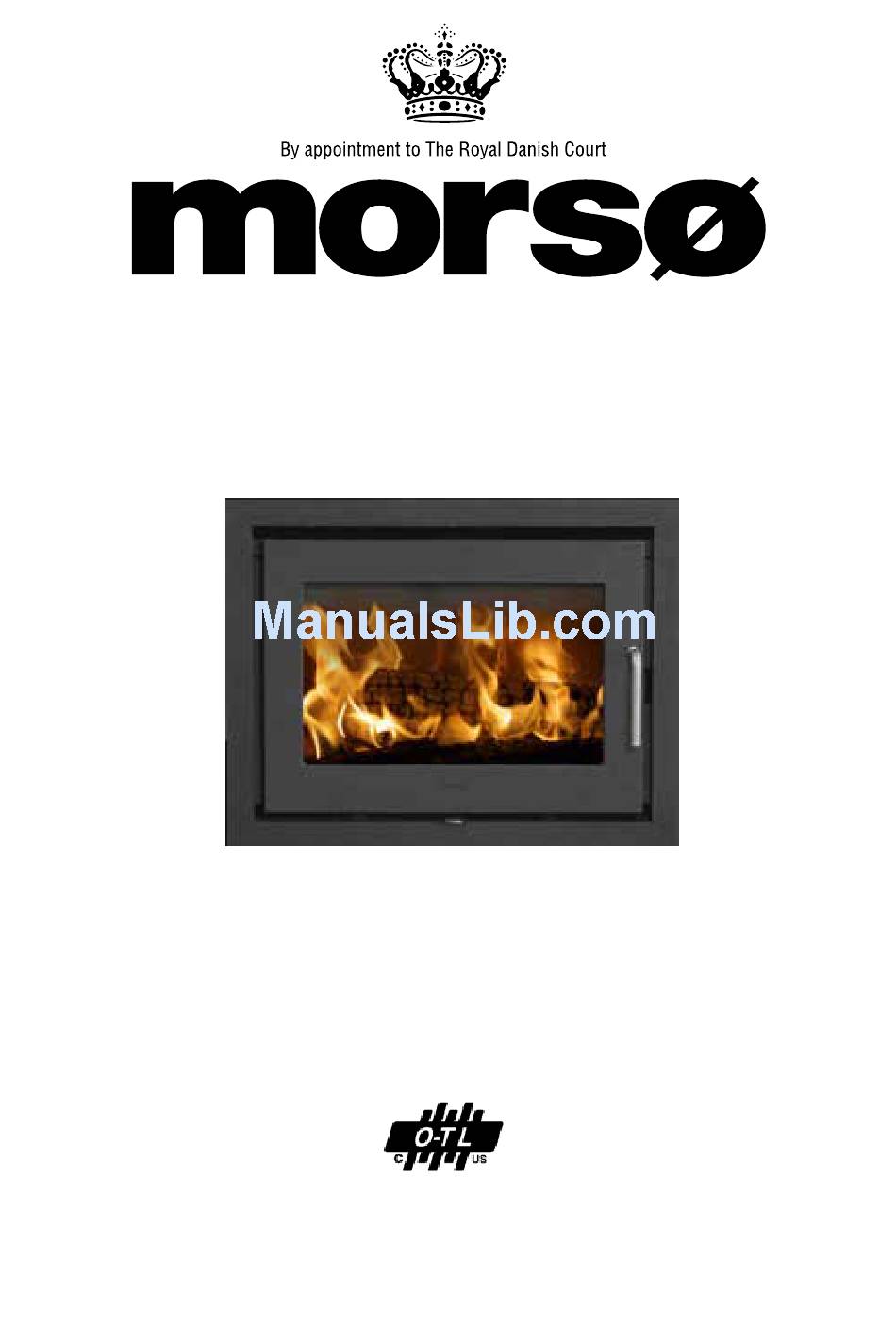

Installation and Operating Instructions

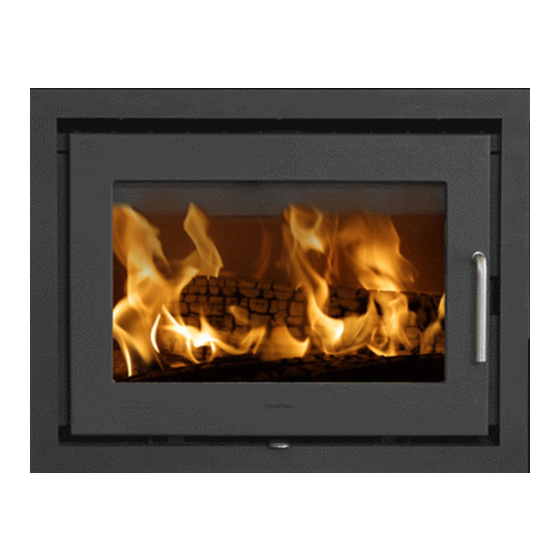

5660 Standard Insert
Read this entire manual before you install and use your new room heater. If this room heater is
not properly installed, a house fire may result. To reduce the risk of fire, follow the installation
instructions. Failure to follow instructions may result in property damage, bodily injury, or
even death.
Contact local building officials about restrictions and installation/inspection-requirements
in your area.
MORSØ JERNSTØBERI A/S . DK-7900 NYKØBING MORS
E-Mail: stoves@morsoe.com · Website: www.morsoe.com
A French version of the manual can be downloaded at www.morsona.com
For use in North America
Save these instructions
Tested &
Listed By
OMNI-Test Laboratories, Inc.
Report No.: 192-S-14c-2
Portland
Oregon USA
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 5660 Standard Insert and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Morso 5660 Standard Insert

Summary of Contents for Morso 5660 Standard Insert

  • Page 1: Installation And Operating Instructions

    Installation and Operating Instructions 5660 Standard Insert For use in North America Read this entire manual before you install and use your new room heater. If this room heater is not properly installed, a house fire may result. To reduce the risk of fire, follow the installation instructions.

  • Page 2: Table Of Contents

    July 1, 1990 Maintenance The Morsø 5660 Standard Insert have been tested by OMNI-Test Laboratories, Inc. The test Exterior maintenance standards are UL 1482-2010 for the United States and ULC-S627-M93 for Canada.

  • Page 3: Installation Of Your Morsø Stove

    Minimum Masonry fireplace size 1.0 Installation of your Morsø stove Height (A) Depth (B) Width (C) Installation of woodburning stoves must be safe and legal. If your Morsø stove is not installed correctly, it may cause a house fire. To reduce Inches/mm.
  • Page 4 Your Morsø 5660 Std Fireplace Insert is fully assembled Baffle plate/secondary air supply when you receive it. This ensures optimum protection during The baffle plate is mounted with four M8 bolts. transportation. The baffle plate is heavy (30lbs.) therefore, it is However, in order to connect the stove to your chimney difficult to hold it in place over the four threaded installation, it is necessary to dismantle the stove’s flue...

  • Page 5: The Chimney / Flue System

    1.1 The chimney / flue system Combustion chamber Position and level the convection box into the Note that the flue system must be independently secured and must not rely on the stove for fireplace opening. Allen-head leveling bolts support. can be accessed at the base of the combustion chamber (under the base liners).

  • Page 6: Flue Connection

    1.2 Flue Connection The stove is supplied from the factory with a flue collar fitted to the top plate. High Temperature prefabricated chimney cap High Temperature top plate The flue collar is from the factory prepared for fitting the enlosed 6 inche adapter. Use a 24 MSG black or blue chimney connector or listed double wall chimney connector.

  • Page 7: Positioning The Stove

    1.4 Positioning the stove The hearth requirements are summed up in the following table. Floor protection requirements CLEARANCE REQUIREMENTS TO COMBUSTIBLE SURFACES The Morsø 5660 Standard NA is approved in the US and Canada for installation into the fol- Distance from floor to the Greater than 6”...

  • Page 8: Operation

    In principle 2.0 Operation Your stove has three air supplies: Primary air is controlled by the air controller beneath the door. The air from here passes through 2.1 Before you start firing internal channels and eventually washes at high speed down the back face of the door glass. This super-heated air helps with the combustion of volatile gases produced by the fire.

  • Page 9: Maintenance

    CAUTION 3.0 MAINTENANCE Never allow the fire to rest directly on the glass. The logs should always be spaced at least one inch from the glass to allow for proper air flow within the stove. When perfoming maintenance on your stove, always protect yourself, using safety goggles and gloves.

  • Page 10: Cleaning The Stove And The Flue

    3.3 Cleaning the Stove and the Flue 1. Detatch the door (See page 6) off its hinges an place face-down on a sheet of cardboards or other nonabrasive fabric. Check for soot above the baffle plate and around the flue outlet every month or so to start with. If the stove suddenly becomes sluggish, check for a soot fall around the flue collar or in the flue/ 2.

  • Page 11: Leaving The Stove For Extended Periods

    3.5 Parts diagram for the model Morsø 5660 Standard Insert Annual maintenance Before the heating season, perform a thorough cleaning, inspection and repair: Thoroughly clean the chimney and chimney connector. Inspect the chimney for damage and deterioration. Replace weak sections of prefabricated chimney.

  • Page 12: Parts List

    3.6 Parts list for the model Morsø 5660 Standard Insert 3.6 Parts list for the model Morsø 5660 Standard Insert Pos. No. Description Itemno. Pos. No. Description Itemno. Bottom plate 5600 44565021 Screw 73861800 Front frame 5600 44560221 Axis for handle...
  • Page 13 Morsø Jernstøberi A/S - 19.08.2013 - 72561400...
