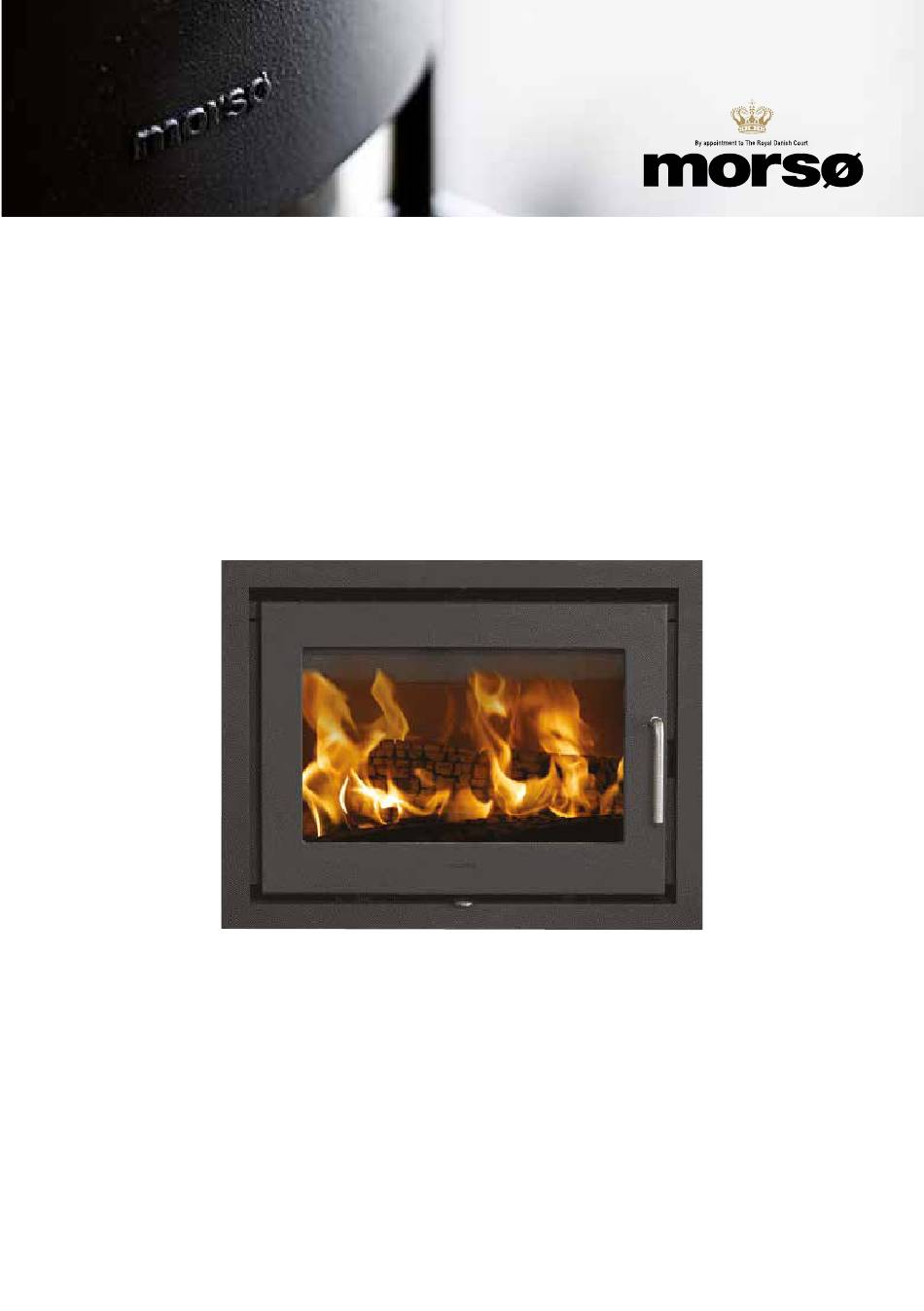

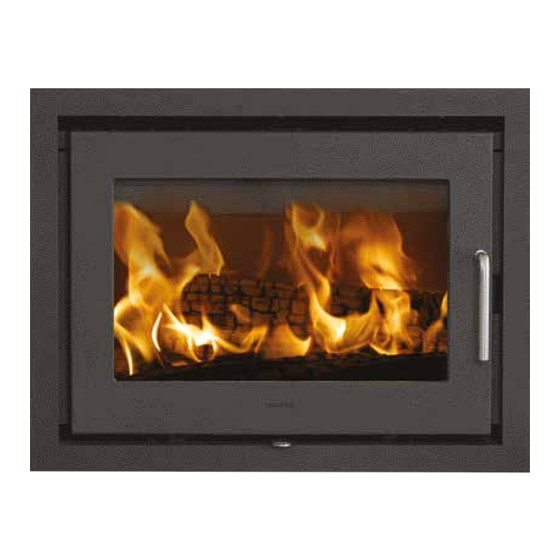

- Page 1 Installation and Operating Instructions Morsø 5660 B Standard For use in North America MORSØ JERNSTØBERI A/S . DK-7900 NYKØBING MORS E-Mail: stoves@morsoe.com · Website: www.morsoe.com...
-
Page 2: Table Of Contents
Morsø, which is the largest supplier for the Dan- ish market, has manufactured stoves of the highest The Morsø 5660 B Standard insert has been certified by PFS TECO. The test standards are UL 1482-2011 (R2015)for the United States and ULC-S628-93 (R2016) for Canada. -
Page 3: Installation Of Your Morsø Stove
1.0 Installation of your Morsø stove Minimum masonry fireplace size Height (A) Depth (B) Width (C) Inches/mm 211⁄4” / 540 mm 191⁄4” / 490 mm 283⁄4” / 730 mm Installation of woodburning stoves must be safe and legal. If your Morsø stove is not installed correctly, it may cause a house fire. To reduce the The stainless steel connector must be at least 8 feet in length. - Page 4 Your Morsø 5660 Std Fireplace Insert is fully assembled when Baffle plate/secondary air supply you receive it. This ensures optimum protection during trans- The baffle plate is mounted with four M8 bolts. portation. The baffle plate is heavy (30lbs.) therefore, it is difficult to However, in order to connect the stove to your chimney in- hold it in place over the four threaded holes.
-
Page 5: The Chimney / Flue System
1.1 The chimney / flue system Combustion chamber 1. Position and level the convection box into the fireplace open- Note that the flue system must be independently secured and must not rely on the stove ing. Allen-head leveling bolts can be accessed at the base of for support. -
Page 6: Flue Connection
1.2 Flue Connection The stove is supplied from the factory with a flue collar fitted to the top plate. High Temperature prefabricated chimney cap The flue collar is from the factory prepared for fitting the enlosed 6 inche adapter. High Temperature top plate Use a 24 MSG black or blue chimney connector or listed double wall chimney connector. -
Page 7: Positioning The Stove
1.4 Positioning the stove The hearth requirements are summed up in the following table. CLEARANCE REQUIREMENTS TO COMBUSTIBLE SURFACES Floor protection requirements The Morsø 5660 Standard NA is approved in the US and Canada for installation into the fol- Distance from floor to the Greater than 6”... -
Page 8: Operation
In principle 2.0 Operation Your stove has three air supplies: Primary air is controlled by the air controller beneath the door. The air from here passes through internal channels and eventually washes at high speed down the back face of the 2.1 Before you start firing door glass. - Page 9 Moved all to the right is the high burn rate. Mid range be- 9. After a few minutes, adjust the primary air supply to suit tween these two positions is the recommended your heating requirements. medium burn rate Make sure that there is always enough air to sustain clear, enduring flames when you reduce the amount of combus- 3.
-
Page 10: Maintenance
1. Detatch the door (See page 6) off its hinges an place face-down on a sheet of cardboards 3.0 Maintenance or other nonabrasive fabric. 2. Unscrew the six bolts that secure the glass. (In the event that a bolt sheers off when be- When perfoming maintenance on your stove, always protect yourself, using safety gog- ing unscrewed, remove the remaining body of the bolt by drilling down its center with gles and gloves. -
Page 11: Cleaning The Stove & The Flue
3.3 Cleaning the Stove and the Flue Annual maintenance Before the heating season, perform a thorough cleaning, inspection and repair: Check for soot above the baffle plate and around the flue outlet every month or so to start Thoroughly clean the chimney and chimney connector. with. -
Page 12: Parts Diagram
3.5 Parts diagram for model Morsø 5660 Standard 3.6 Parts list for model Morsø 5660 Standard Pos. No. Parts SKU no. Bottom plate 5600 44565021 Front frame 5600 44560221 Door 5600 44560321 Rear plate 5600 44560400 Top plate 5600 44560521 Top plate Inclined 5600 44560800 Side plate right 5600 EN... - Page 13 3.6 Parts list for model Morsø 5660 Standard Pos. No. Parts SKU no. Axis for handle 71562061 Door handle, stainless steel 75263600 Hinge pin 541082 Screw M6x06 Iso4029 MSP-45H 73960700 Closing plate 71562100 Washer 6mm DIN 125A - brass 746006 Stone Bottom, left 5600 79562100 Adhesive fiber gasket for door glass...
- Page 14 Guarantee Product Registration MORSØ 10 YEAR GUARANTEE CERTIFICATE Behind every Morsø stove is more than 160 years of dedicated stove design and manufacturing experi- ence. Quality control has always been at the heart of the production process and detailed measures have been put into place at all key stages of the build.
- Page 15 IMPORTANT! How to heat safely for the environ- ment and yourself! • Use only dry wood Use only dry (max. 20% moisture content) and untreated wood. The fuel must be split and 8 - 12 cm thick. • Light Light with dry kindling (use 1 - 2 kg). Leave the door ajar and stay close to the stove during the lighting phase.
