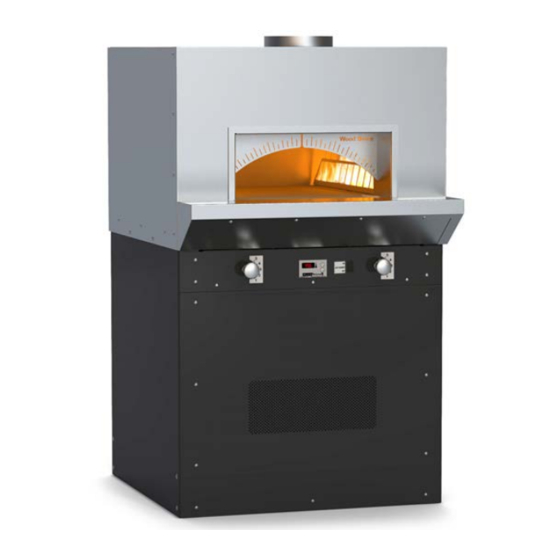

PHOENIX
Gas-Fired Stone Hearth Oven
Commercial Dual Burner Model
wood stone corporation
1801 w. bakerview rd.
bellingham, wa 98226 usa
Installation and
Operation Manual
PHOENIX 4343
WS-PX-4343-RFG-LR
PHOENIX 4355
WS-PX-4355-RFG-LR
PHOENIX 4355
WS-PX-4836-RFG-LR
t. +1.360.650.1111
f. +1.360.650.1166
woodstone-corp.com
Revised July 2015
Doc no: M0030.03
Advertisement
Table of Contents
Related Manuals for Wood Stone PHOENIX 4343 WS-PX-4343-RFG-LR
Summary of Contents for Wood Stone PHOENIX 4343 WS-PX-4343-RFG-LR
- Page 1 PHOENIX 4343 PHOENIX WS-PX-4343-RFG-LR PHOENIX 4355 Gas-Fired Stone Hearth Oven WS-PX-4355-RFG-LR Commercial Dual Burner Model PHOENIX 4355 WS-PX-4836-RFG-LR wood stone corporation woodstone-corp.com 1801 w. bakerview rd. t. +1.360.650.1111 Revised July 2015 bellingham, wa 98226 usa f. +1.360.650.1166 Doc no: M0030.03...
-
Page 2: Table Of Contents
INTERLOCK DIAGRAM 30 LIMITED WARRANTY 31 wood stone corporation 1801 w. bakerview rd. -
Page 3: Phoenix Dual Burner Oven
PHOENIX DUAL BURNER OVEN Phoenix Dual Burner Oven Installation and Operation Manual INSTALLATION AND OPERATION MANUAL FOR THE WOOD STONE DUAL BURNER PHOENIX NATURAL GAS OR PROPANE FUELED DUAL BURNER STONE HEARTH OVEN WS-PX-4343-RFG-LR, WS-PX-4355-RFG-LR AND WS-PX-4836-RFG-LR ADDITIONAL COPIES AVAILABLE UPON REQUEST... -
Page 4: Cautions And Warnings
CAUTIONS AND WARNINGS Phoenix Dual Burner Oven Installation and Operation Manual INSTALLATION AND OPERATION MANUAL FOR THE WOOD STONE PHOENIX NATURAL GAS (NG) OR PROPANE (LP) FUELED DUAL BURNER STONE HEARTH OVEN WS-PX-4343-RFG-LR-(NG OR LP), WS-PX-4355-RFG-LR-(NG OR LP) ADDITIONAL COPIES AVAILABLE UPON REQUEST... - Page 5 This appliance should be serviced by qualified personnel at least every 12 months, or sooner if heavy use is expected. SAVE THE INSTRUCTIONS wood stone corporation 1801 w. bakerview rd. t. +1.360.650.1111 bellingham, wa 98226 usa f.
-
Page 6: Px-4343-Lr Specifications
42 1/4 in - 1070 mm 151,000 NG - 151,000 LP RODUCTION OR USE IN PART OR AS A WHOLE E WRITTEN PERMISSION OF WOOD STONE IS WS-BL-4343 42 1/4 in - 1080 mm 42 1/4 in - 1070 mm... -
Page 7: Px-4355-Lr Specifications
GAS INLET: LE PROPERTY OF WOOD STONE CORPORATION PRODUCTION OR USE IN PART OR AS A WHOLE 120VAC, 4A E WRITTEN PERMISSION OF WOOD STONE IS LE PROPERTY OF WOOD STONE CORPORATION GAS INLET: WS-BL-4343 42 1/4 in - 1080 mm... -
Page 8: Px-4836-Lr Specifications
ATION CONTAINED IN THIS DRAWING IS THE 120VAC, 4A GAS INLET: ROPERTY OF WOOD STONE CORPORATION 120VAC, 4A 120VAC, 4A RITTEN PERMISSION OF WOOD STONE IS ROPERTY OF WOOD STONE CORPORATION PERTY OF WOOD STONE CORPORATION 3/4" NPT WS-BL-4343 42 1/4 in - 1080 mm... -
Page 9: Placing The Oven
1801 w. bakerview rd. t. +1.360.650.1111 bellingham, wa 98226 usa f. +1.360.650.1166 An ongoing program of product improvement may require us to change info@woodstone-corp.com or visit woodstone-corp.com... -
Page 10: Installation Clearances
CLEARANCES 1. The Wood Stone Phoenix oven must have a minimum 25 mm (1") clearance to combustibles from all sides, 152 mm (6") clearance to combustibles from the top and 152 mm (6") from the flue collar. If building a facade that will contact the oven, use completely non-combustible materials Any facade wall built 152 mm (6") to either side of the doorway and... -
Page 11: Oven Venting
The following are the manufacturer’s recommendations for venting Wood Stone Phoenix model ovens It is never appropriate to use “B vent” in any part of an exhaust system connected to a Wood Stone oven All duct material must be manufactured to the... -
Page 12: Lifting The Oven
USING THE OPTIONAL LIFTING SYSTEM An optional Lifting System is available from Wood Stone to facilitate tipping the oven body onto its back or side (as shown below) When turned on its side, the upper oven portion of Bistro or Phoenix models 4343, 4355 and 4836 will be approximately 32 inches wide This will allow for easier access through small passages Note: The 3030 is 30"... - Page 13 LIFTING THE OVEN Phoenix Dual Burner Oven Phoenix Dual Burner Oven Installation and Operation Manual Installation and Operation Manual 10. Once the oven is on the other side of the passageway, attach strap to the clevises at the Lifting Holes on the Crosspiece and, with a gantry crane, lift the oven straight Remove pallet jack...
-
Page 14: Exploded Parts Diagram
Panel Side Panel Control Box Front Panel Side Panel Toe Kick wood stone corporation 1801 w. bakerview rd. t. +1.360.650.1111 bellingham, wa 98226 usa f. +1.360.650.1166 An ongoing program of product improvement may require us to change info@woodstone-corp.com or visit woodstone-corp.com specifications without notice. -
Page 15: Assembly
Carriage bolts 95 x 25mm (3/8 x 1") 3030 only: 95 x 19mm (3/8 x 3/4") wood stone corporation 1801 w. bakerview rd. t. +1.360.650.1111 bellingham, wa 98226 usa f. +1.360.650.1166 An ongoing program of product improvement may require us to change info@woodstone-corp.com or visit woodstone-corp.com... - Page 16 1801 w. bakerview rd. t. +1.360.650.1111 bellingham, wa 98226 usa f. +1.360.650.1166 An ongoing program of product improvement may require us to change info@woodstone-corp.com or visit woodstone-corp.com...
- Page 17 1801 w. bakerview rd. t. +1.360.650.1111 bellingham, wa 98226 usa f. +1.360.650.1166 An ongoing program of product improvement may require us to change info@woodstone-corp.com or visit woodstone-corp.com...
- Page 18 Mantle Install the cover plate using the 4 screws provided Mantle Faceplate Cover Screws wood stone corporation 1801 w. bakerview rd. t. +1.360.650.1111 bellingham, wa 98226 usa f. +1.360.650.1166 An ongoing program of product improvement may require us to change info@woodstone-corp.com or visit woodstone-corp.com...
- Page 19 Lower tab of Burner Guard fits into the front of the burner opening wood stone corporation 1801 w. bakerview rd. t. +1.360.650.1111 bellingham, wa 98226 usa f. +1.360.650.1166 An ongoing program of product improvement may require us to change info@woodstone-corp.com or visit woodstone-corp.com...
-
Page 20: Utility Connections
ANSI/NFPA 70, or the Canadian Electrical Code, CSA C22.2, as applicable. An electrical diagram is provided inside the bottom cover of the Control Box, and at the end of this manual wood stone corporation 1801 w. bakerview rd. - Page 21 The oven should be bolted to the floor using the holes provided at the base of the stand NOTE: Rear panel must be installed for the proper functioning of the oven. wood stone corporation 1801 w. bakerview rd. t. +1.360.650.1111 bellingham, wa 98226 usa f.
-
Page 22: Storage Box Installation
DATE: 6/11/2013 Bistro Commercial Series - 4343 General Arrangement File Location: \\woodstone.net\dfs\CAD\0_Ovens\z_Be nA_Prelim\Bistro_Box\WS-BL-4343.dft wood stone corporation 1801 w. bakerview rd. t. +1.360.650.1111 bellingham, wa 98226 usa f. +1.360.650.1166 An ongoing program of product improvement may require us to change info@woodstone-corp.com or visit woodstone-corp.com specifications without notice. -
Page 23: Controller
(see Burner Disable Switch Use this switch to disable one of the at right) burners (specify which burner will be disabled at time of order) wood stone corporation 1801 w. bakerview rd. t. +1.360.650.1111 bellingham, wa 98226 usa f. +1.360.650.1166 An ongoing program of product improvement may require us to change info@woodstone-corp.com or visit woodstone-corp.com... -
Page 24: Initial Start-Up
NOTE: Small “crazing” cracks will occur with normal heating and cooling They will not affect the performance or durability of the oven If cracks of 3 mm (1/8") wide or more develop, contact Wood Stone for evaluation FLAME HEIGHT INDICATOR... -
Page 25: Oven Operation
OVEN INTERIOR Wood Stone recommends the use of long-handled brushes for sweeping up surface debris that will accumulate on the floor of the oven during use Use a natural fiber brush—always brushing away from the radiant burner well For deeper cleaning, use a... -
Page 26: Daily Maintenance
GAS-FIRED OVEN THERMAL CLEANING If a Wood Stone gas-fired oven is operated at low temperatures below 274 °C (525 °F), you may notice a buildup on the oven floor If you operate the oven below 232 °C (450 °F), you may also notice some buildup on the interior walls and/or ceiling of the oven To remove any buildup that has accumulated inside of the oven, simply turn the radiant flame to its highest setting Monitor the hearth floor temperature displayed on the controller When the floor reaches 343 °C (650 °F), lower the flame slightly so as... -
Page 27: Troubleshooting Guide
Check that any wall switches external to the oven that control oven power are turned on Check that any interlocks external to the oven are turned on 2. If controller still does not turn on, please contact Wood Stone for assistance Flame does not light 1. -
Page 28: 120 Vac Electrical Diagram
White DIAG #: WD075 Rev. 1 Bellingham, WA +1(360)650-1111 www.woodstone-corp.com DATE: 11/12/2014 wood stone corporation 1801 w. bakerview rd. t. +1.360.650.1111 bellingham, wa 98226 usa f. +1.360.650.1166 An ongoing program of product improvement may require us to change info@woodstone-corp.com or visit woodstone-corp.com specifications without notice. -
Page 29: 240 Vac Electrical Diagram
White DIAG #: WD078 Rev. 0 Bellingham, WA +1(360)650-1111 www.woodstone-corp.com DATE: 7/17/2014 wood stone corporation 1801 w. bakerview rd. t. +1.360.650.1111 bellingham, wa 98226 usa f. +1.360.650.1166 An ongoing program of product improvement may require us to change info@woodstone-corp.com or visit woodstone-corp.com specifications without notice. -
Page 30: Interlock Diagram
Any interruption of the power to the oven will cause the oven (including all burners and pilots) to shut off, and it will be necessary to restart the oven by pressing the start switch once power is restored For additional interlock options, see the Wood Stone Interlock Options supplement in the Manuals section on the website, woodstone-corp.com, or contact your distributor for additional information wood stone corporation 1801 w. -
Page 31: Limited Warranty
LIMITATIONS OF LIABILITY In the event of warranty claim or otherwise, the sole obligation of Wood Stone shall be the repair and/or replacement, at the option of Wood Stone, of the appliance or component or part thereof Such repair or replacement shall be at the expense of Wood Stone with...
