BISTRO LINE

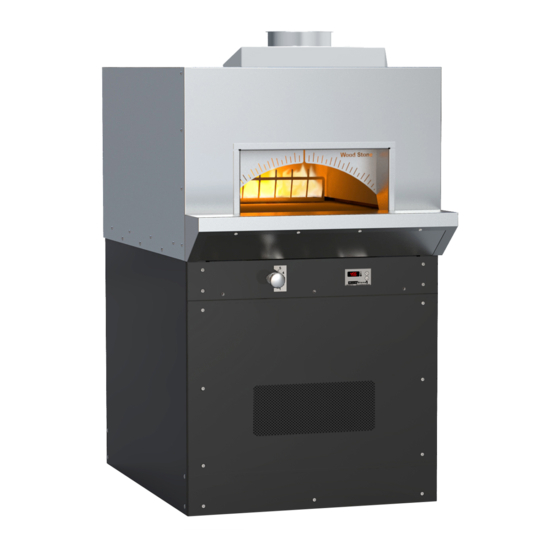

Wood-Fired Stone Hearth Oven
Commercial Internal Transition Models
wood stone corporation
1801 w. bakerview rd.
bellingham, wa 98226 usa
Installation and
Operation Manual
BISTRO 4343
WS-BL-4343-W
BISTRO 4355
WS-BL-4355-W
tf. 800.988.8103
t. 360.650.1111
f. 360.650.1166
woodstone-corp.com
Revised April 2015
Doc no: M0026.01
Advertisement
Table of Contents
Related Manuals for Wood Stone BISTRO 4343 WS-BL-4343-W
Summary of Contents for Wood Stone BISTRO 4343 WS-BL-4343-W
- Page 1 Operation Manual BISTRO LINE BISTRO 4343 WS-BL-4343-W Wood-Fired Stone Hearth Oven BISTRO 4355 Commercial Internal Transition Models WS-BL-4355-W wood stone corporation tf. 800.988.8103 woodstone-corp.com 1801 w. bakerview rd. t. 360.650.1111 Revised April 2015 bellingham, wa 98226 usa f. 360.650.1166 Doc no: M0026.01...
-
Page 2: Table Of Contents
240 VAC ELECTRICAL DIAGRAM � � � � � � � � � 32 LIMITED WARRANTY � � � � � � � � � � � � � � � � � 33 wood stone corporation tf. 800.988.8103 1801 w. bakerview rd. -
Page 3: Bistro Line
BISTRO LINE Wood-Fired Bistro Installation & Operation Manual INSTALLATION AND OPERATION MANUAL FOR THE WOOD STONE WOOD-FIRED BISTRO LINE WOOD-FIRED STONE HEARTH COOKING EQUIPMENT COMMERCIAL INTERNAL TRANSITION MODELS WS-BL-4343-W AND WS-BL-4355-W ADDITIONAL COPIES AVAILABLE UPON REQUEST wood stone corporation tf. 800.988.8103 1801 w. -
Page 4: Warnings & Cautions
WARNINGS & CAUTIONS Wood-Fired Bistro Installation & Operation Manual INSTALLATION AND OPERATION MANUAL FOR THE WOOD STONE BISTRO OVEN WOOD-FIRED STONE HEARTH OVEN RETAIN THIS MANUAL FOR FUTURE REFERENCE Additional copies of this manual at woodstone-corp�com� For prompt responses to service/maintenance questions, call us at @ 1-800-988-8103�... - Page 5 SAVE THE INSTRUCTIONS Wood Stone’s Wood-Fired Bistro ovens have been tested and approved by Intertek Testing Services and are ETL listed to UL Subject 2162, ULC-S627-00, UL 737, CSA 2.17-M91 and to NSF/ANSI Standard 4 - 2009.
-
Page 6: Bl-4343 Specifications
IMPORTANT: This model must be vented as a solid fuel appliance� Refer to data plate when installing� wood stone corporation tf. 800.988.8103 1801 w. bakerview rd. t. 360.650.1111 bellingham, wa 98226 usa f. -
Page 7: Bl-4355 Specifications
IMPORTANT: This model must be vented as a solid fuel appliance� Refer to data plate when installing� wood stone corporation tf. 800.988.8103 1801 w. bakerview rd. t. 360.650.1111 bellingham, wa 98226 usa f. -
Page 8: Moving The Oven
Once you have moved the oven to where it will be installed, go the ASSEMBLY & CONNECTIONS sections for instructions regarding electrical and gas connections. Make sure the pallet jack wheels do not contact the underside of the fork wood stone corporation tf. 800.988.8103 pocket when lifting to avoid damaging the stand. -
Page 9: Installation Clearances
CLEARANCES 1. The Wood Stone Bistro oven must have a minimum 1-inch clearance to combustibles from all sides, 6-inch clearance to combustibles from the top, and 6-inch clearance from the exhaust transition and flue collar. Any facade wall built 6 inches to either side of the doorway and above must be of non-combustible construction�... -
Page 10: Venting
300 °F, 450 °F for units burning solid fuel� Use a stack or curb mounted fan� Wood Stone does not recommend the use of an in-line fan�... -
Page 11: Hood Specifications
HOOD SPECIFICATIONS Wood-Fired Bistro Installation & Operation Manual BL-4343, 4355 HOOD SPECIFICATIONS Wood Stone Hoods by Gaylord Required CFM - 625 CFM Static Pressure - 0.80" W.C. Duct Collar - 7" x 7" I.D. wood stone corporation tf. 800.988.8103 1801 w. bakerview rd. - Page 12 VENTING Wood-Fired Bistro Installation & Operation Manual 10" OD flue collar Wood Stone solid-fuel ovens should be vented in accordance with NFPA 96 and/ or all pertinent national, regional and local codes concerning such solid-fuel appliances� Check venting plans with the authority having jurisdiction before proceeding with installation�...
-
Page 13: Disassembly
Washer Bolt Carriage bolt Washer & nut not shown wood stone corporation tf. 800.988.8103 1801 w. bakerview rd. t. 360.650.1111 bellingham, wa 98226 usa f. 360.650.1166 An ongoing program of product improvement may require us to change info@woodstone-corp.com or visit woodstone-corp.com... - Page 14 Disassemble the stand if necessary� Follow the assembly instructions in the ASSEMBLY section to reassemble the oven� wood stone corporation tf. 800.988.8103 1801 w. bakerview rd. t. 360.650.1111 bellingham, wa 98226 usa f.
-
Page 15: Lifting The Oven
USING THE OPTIONAL LIFTING SYSTEM An optional Lifting System is available from Wood Stone to facilitate tipping the oven body onto its back or side (as shown below)� When turned on its side, the upper oven portion of Bistro or Phoenix models 4343, 4355 will be approximately 32 inches wide� This will allow for easier access through small passages�... - Page 16 LIFTING THE OVEN Bistro Installation and Operation Manual 10. Once the oven is on the other side of the passageway, attach strap to the clevises at the Lifting Holes on the Crosspiece and, with a gantry crane, lift the oven straight up�...
-
Page 17: Exploded Parts View
Discard once removed.) All parts shown below, rear panel included, provided with the oven (except the shipping panel) MUST be installed to ensure the safe and proper operation of the oven. wood stone corporation tf. 800.988.8103 1801 w. bakerview rd. -
Page 18: Assembly
2. Use the 3/8" x 1" carriage bolts to assemble the stand� Be sure to use the washers provided and to tighten nuts and bolts securely� Carriage bolts 3/8 x 1" wood stone corporation tf. 800.988.8103 1801 w. bakerview rd. t. 360.650.1111 bellingham, wa 98226 usa f. - Page 19 800.988.8103 1801 w. bakerview rd. t. 360.650.1111 bellingham, wa 98226 usa f. 360.650.1166 An ongoing program of product improvement may require us to change info@woodstone-corp.com or visit woodstone-corp.com...
- Page 20 6. Attach the control box to the oven using (4) 1/4-20 screws� The control box should be oriented so temperature readout is reading right side up� (4) 1/4-20 screws wood stone corporation tf. 800.988.8103 1801 w. bakerview rd. t. 360.650.1111 bellingham, wa 98226 usa f.
- Page 21 Washer Bolt Carriage bolt Washer & nut not shown wood stone corporation tf. 800.988.8103 1801 w. bakerview rd. t. 360.650.1111 bellingham, wa 98226 usa f. 360.650.1166 An ongoing program of product improvement may require us to change info@woodstone-corp.com or visit woodstone-corp.com...
- Page 22 10. Run a bead of high temperature silicone (provided) along visible joints where the mantle and the oven intersect—in the front and on both sides of the oven (right side not shown)� wood stone corporation tf. 800.988.8103 1801 w. bakerview rd. t. 360.650.1111 bellingham, wa 98226 usa f.
-
Page 23: Utility Connections
The oven should be bolted to the floor using the holes provided at the base of the stand� NOTE: Rear panel MUST be installed. wood stone corporation tf. 800.988.8103 1801 w. bakerview rd. -
Page 24: Storage Box Installation
DATE: 6/11/2013 Bistro Commercial Series - 4343 General Arrangement File Location: \\woodstone.net\dfs\CAD\0_Ovens\z_Be nA_Prelim\Bistro_Box\WS-BL-4343.dft wood stone corporation tf. 800.988.8103 1801 w. bakerview rd. t. 360.650.1111 bellingham, wa 98226 usa f. 360.650.1166 An ongoing program of product improvement may require us to change info@woodstone-corp.com or visit woodstone-corp.com... -
Page 25: Controller
Display will off� read “LO” when the temperature is below 100 °F� wood stone corporation tf. 800.988.8103 1801 w. bakerview rd. t. 360.650.1111 bellingham, wa 98226 usa f. 360.650.1166 An ongoing program of product improvement may require us to change info@woodstone-corp.com or visit woodstone-corp.com... -
Page 26: Initial Start-Up
Never use any type of flammable liquid or fuel to start a fire in a Wood Stone oven. Doing so could cause a dangerous situation and/or damage to the oven ceramic. -
Page 27: Daily Operation
They should be retained in the closed container until all cinders have thoroughly cooled� Wood Stone’s stainless steel ash shovel and Double Compartment Ash Dolly disposal system is a safe and convenient way to dispose of ash� See specifications in the Tools and Accessories section on woodstone-corp.com or call your dealer or Wood Stone for details�... -
Page 28: Daily Maintenance
MUST BE CLEANED AT LEAST MONTHLY. DO NOT POUR OR SPRAY LIQUIDS ONTO THE OVEN DECK OR THE OVEN INTERIOR AS THIS CAN DAMAGE THE CERAMIC AND WILL VOID THE WARRANTY. wood stone corporation tf. 800.988.8103 1801 w. bakerview rd. t. 360.650.1111 bellingham, wa 98226 usa f. -
Page 29: Wood Burning
The frequency of inspection and cleaning will depend on hours of use and type and quality of wood used as fuel� Only use hardwood species dried to a moisture content of 20% or less� See Wood Stone’s FUELWOOD FACTS section in this manual�... -
Page 30: Fuelwood Facts
Wet wood is the most common operational difficulty associated with wood-fired cooking equipment� Wood Stone’s optional Mini-Ligno E Wood Moisture Meter can save you from paying for water when you thought you were paying for wood (see the Tools &... -
Page 31: 120 Vac Electrical Diagram
DIAG #: WD090 Rev. 0 one-corp.com DATE: 12/15/2014 See equipment data plate for correct voltage of your oven. wood stone corporation tf. 800.988.8103 1801 w. bakerview rd. t. 360.650.1111 bellingham, wa 98226 usa f. 360.650.1166 An ongoing program of product improvement may require us to change info@woodstone-corp.com or visit woodstone-corp.com... -
Page 32: 240 Vac Electrical Diagram
DIAG #: WD052 Rev. 0 Bellingham, WA +1(360)650-1111 www.woodstone-corp.com DATE: 3/27/2014 See equipment data plate for correct voltage of your oven. wood stone corporation tf. 800.988.8103 1801 w. bakerview rd. t. 360.650.1111 bellingham, wa 98226 usa f. 360.650.1166 An ongoing program of product improvement may require us to change info@woodstone-corp.com or visit woodstone-corp.com... -
Page 33: Limited Warranty
LIMITATIONS OF LIABILITY In the event of warranty claim or otherwise, the sole obligation of Wood Stone shall be the repair and/or replacement, at the option of Wood Stone, of the appliance or component or part thereof� Such repair or replacement shall be at the expense of Wood Stone with the exception of travel over 100 miles or two hours, overtime, and holiday charges which shall be at the expense of the purchaser�...
