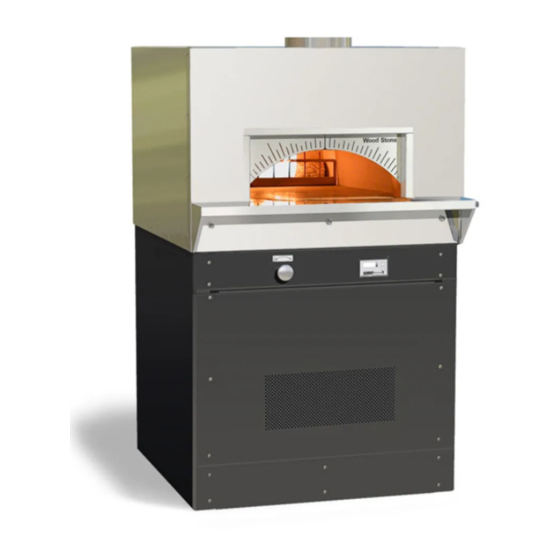

Wood Stone PHOENIX 3030 Installation And Operation Manual

Phoenix oven stone hearth oven gas-fired, gas/wood combination models
Hide thumbs Also See for PHOENIX 3030:
Table of Contents

Advertisement

Quick Links

Installation and
Operation Manual
PHOENIX OVEN
Stone Hearth Oven
Gas-Fired, Gas/Wood Combination Models
PHOENIX 3030 WS-PX-3030-RFG
PHOENIX 4343 WS-PX-4343-RFG-(W)
PHOENIX 4355 WS-PX-4355-RFG-(W)
PHOENIX 4836 WS-PX-4836-RFG
WOOD STONE CORPORATION
1801 W. Bakerview Rd.
Bellingham, WA 98226 USA
www.woodstone-corp.com
Tel +1.360.650.1111
Fax +1.360.650.1166
DOC NO M0029.09
REVISED SEPTEMBER 2017

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PHOENIX 3030 and is the answer not in the manual?

Questions and answers

Related Manuals for Wood Stone PHOENIX 3030

Summary of Contents for Wood Stone PHOENIX 3030

  • Page 1 Installation and Operation Manual PHOENIX OVEN Stone Hearth Oven Gas-Fired, Gas/Wood Combination Models PHOENIX 3030 WS-PX-3030-RFG PHOENIX 4343 WS-PX-4343-RFG-(W) PHOENIX 4355 WS-PX-4355-RFG-(W) PHOENIX 4836 WS-PX-4836-RFG WOOD STONE CORPORATION 1801 W. Bakerview Rd. Tel +1.360.650.1111 Bellingham, WA 98226 USA Fax +1.360.650.1166 www.woodstone-corp.com...

  • Page 2: Table Of Contents

    � � � � 200-240 VAC Wire Diagram � � � � � � � � � � � Limited Warranty M0029.09 SEPTEMBER 2017 WOOD STONE CORPORATION info@woodstone-corp.com 1801 W. Bakerview Rd. +1.360.650.1111 E-MAIL An ongoing program of product improvement may woodstone-corp.com...

  • Page 3: Phoenix

    PHOENIX Phoenix Installation and Operation Manual INSTALLATION AND OPERATION MANUAL FOR THE WOOD STONE PHOENIX STONE HEARTH COOKING EQUIPMENT COMMERCIAL INTERNAL TRANSITION MODELS WS-PX-3030-RFG-(NG, LP) WS-PX-4343-RFG-(W)-(NG, LP) WS-PX-4355-RFG-(W)-(NG, LP) WS-PX-4836-RFG-(NG, LP) ADDITIONAL COPIES AVAILABLE UPON REQUEST Shown: WS-PX-4343-RFG M0029.09 SEPTEMBER 2017 WOOD STONE CORPORATION info@woodstone-corp.com...

  • Page 4: Cautions & Warnings

    CAUTIONS & WARNINGS Phoenix Installation and Operation Manual WOOD STONE PHOENIX GAS OVEN INSTALLATION AND OPERATING INSTRUCTIONS RETAIN THIS MANUAL FOR FUTURE REFERENCE Additional copies of this manual are available at woodstone-corp�com� For prompt responses to service/maintenance questions, call your local distributor�...

  • Page 5: Specifications

    GAS INLET: 3/4" NPT ATION CONTAINED IN THIS DRAWING IS THE HE INFORMATION CONTAINED IN THIS DRAWING IS THE 6" 55,000 BTU, NG ITHOUT THE WRITTEN PERMISSION OF WOOD STONE IS M0029.09 SEPTEMBER 2017 WOOD STONE CORPORATION 150mm PERTY OF WOOD STONE CORPORATION SOLE PROPERTY OF WOOD STONE CORPORATION 9 3/4"...

  • Page 6: Px-4343

    Y REPRODUCTION OR USE IN PART OR AS A WHOLE MAY REQUIRE US TO CHANGE SPECIFICATIONS S TO CHANGE SPECIFICATIONS 110mm 80,500 BTU, NG LEGEND: HOUT THE WRITTEN PERMISSION OF WOOD STONE IS LEGEND: WITHOUT NOTICE. WITHOUT NOTICE. 68,000 BTU, LP M0029.09 SEPTEMBER 2017...

  • Page 7: Px-4355

    120VAC, 4A 120VAC, 4A ATION CONTAINED IN THIS DRAWING IS THE THE INFORMATION CONTAINED IN THIS DRAWING IS THE 80,500 BTU, NG WITHOUT THE WRITTEN PERMISSION OF WOOD STONE IS 10 1/2" info@woodstone-corp.com 6" 68,000 BTU, LP 1801 W. Bakerview Rd.

  • Page 8: Px-4836

    E INFORMATION CONTAINED IN THIS DRAWING IS THE 200mm ION OR USE IN PART OR AS A WHOLE 4 1/4" HOUT THE WRITTEN PERMISSION OF WOOD STONE IS SOLE PROPERTY OF WOOD STONE CORPORATION 110mm TTEN PERMISSION OF WOOD STONE IS...

  • Page 9: Installation Clearances

    CLEARANCES a. The Wood Stone Phoenix oven must have a minimum 25 mm (1") clearance to combustibles from all sides, 152 mm (6") clearance to combustibles from the top and 152 mm (6") from the flue collar. If building a facade that will contact the oven, use completely non-combustible materials�...

  • Page 10: Moving & Placing The Oven

    CRANE. PX-4343 The oven arrives with Pickeyes attached� When craning a Wood Stone oven, use a Spreader Bar with a fig. 1 two-legged sling rigged on each end� The spreader bar should be of a sufficient length to keep the sling from contacting the oven, and oriented as shown in fig 1�...

  • Page 11: Venting

    All of the combustion products and cooking vapors from the Phoenix 4343 and 4355 vent through a 25�4 cm (10-inch) diameter flue collar located on top of the oven, at the front of the unit� The Phoenix 3030 vents through a 20�3 mm (8-inch) flue collar� The oven can be connected to a power ventilated chimney, or placed under a hood�...

  • Page 12: Lifting The Oven

    USING THE OPTIONAL LIFTING SYSTEM An optional Lifting System is available from Wood Stone to facilitate tipping the oven body onto its back and lifting it� When turned on its back, the upper oven portion of Phoenix models 4343, 4355 and 4836 will be approximately 32 inches wide� This will allow for easier access through small passages�...
  • Page 13 LIFTING THE OVEN Phoenix Installation and Operation Manual 10. Once the oven is on the other side of the passageway, attach strap to the clevises at the Lifting Holes on the Crosspiece and, with a gantry crane, lift the oven straight up�...

  • Page 14: Exploded Parts Diagram

    All parts shown below, rear panel included, provided with the oven (except the shipping panel) MUST be installed to ensure the safe and proper operation of the oven. M0029.09 SEPTEMBER 2017 WOOD STONE CORPORATION info@woodstone-corp.com 1801 W. Bakerview Rd. +1.360.650.1111...

  • Page 15: Assembly

    9�5 x 25 mm (3/8 x 1") long carriage Carriage bolts bolts� 9�5 x 25mm (3/8 x 1") 3030 only: 9�5 x 19mm (3/8 x 3/4") M0029.09 SEPTEMBER 2017 WOOD STONE CORPORATION info@woodstone-corp.com 1801 W. Bakerview Rd. +1.360.650.1111 E-MAIL An ongoing program of product improvement may woodstone-corp.com...
  • Page 16 M0029.09 SEPTEMBER 2017 WOOD STONE CORPORATION info@woodstone-corp.com 1801 W. Bakerview Rd. +1.360.650.1111 E-MAIL An ongoing program of product improvement may woodstone-corp.com...
  • Page 17 1/4-20 screws� The control box should be oriented so the knob is on the left side of the control box� (4) 1/4-20 screws M0029.09 SEPTEMBER 2017 WOOD STONE CORPORATION info@woodstone-corp.com 1801 W. Bakerview Rd. +1.360.650.1111 E-MAIL An ongoing program of product improvement may woodstone-corp.com...
  • Page 18 Refer to control box image on the following page for additional detail. NOTE: Once oven is assembled and installed, be sure to leak-check all gas connections� M0029.09 SEPTEMBER 2017 WOOD STONE CORPORATION info@woodstone-corp.com 1801 W. Bakerview Rd. +1.360.650.1111 E-MAIL An ongoing program of product improvement may woodstone-corp.com...
  • Page 19 Carriage bolt Washer & nut not shown Washer Bolt M0029.09 SEPTEMBER 2017 WOOD STONE CORPORATION info@woodstone-corp.com 1801 W. Bakerview Rd. +1.360.650.1111 E-MAIL An ongoing program of product improvement may woodstone-corp.com Bellingham, WA 98226 USA +1.360.650.1166...
  • Page 20 The log set pieces fit onto the studs on the burner (right side not shown)� guard, behind the opening in the guard, so the logs sit at the rear of the burner opening� M0029.09 SEPTEMBER 2017 WOOD STONE CORPORATION info@woodstone-corp.com 1801 W. Bakerview Rd. +1.360.650.1111 E-MAIL An ongoing program of product improvement may woodstone-corp.com...

  • Page 21: Utility Connections

    National Electrical Code, ANSI/NFPA 70, or the Canadian Electrical Code, CSA C22.2, as applicable. n Electrical Diagram is provided inside the bottom cover of the Control Box, and at the end of this manual. M0029.09 SEPTEMBER 2017 WOOD STONE CORPORATION info@woodstone-corp.com 1801 W. Bakerview Rd.
  • Page 22 Wood Stone recommends that the Phoenix be equipped with a manual, individual shutoff valve, located between the oven and the main gas supply, and that this shutoff valve (supplied by others) be left readily accessible� Wood Stone also recommends that inspection and maintenance of the burners and gas piping connections of this appliance be performed at regularly scheduled intervals and only by professional gas appliance service agencies�...
  • Page 23 The oven should be bolted to the floor using the holes provided at the base of the stand� NOTE: Rear panel MUST be installed for the proper functioning of the oven. M0029.09 SEPTEMBER 2017 WOOD STONE CORPORATION info@woodstone-corp.com 1801 W. Bakerview Rd. +1.360.650.1111...

  • Page 24: Storage Box Installation

    DATE: 6/11/2013 Bistro Commercial Series - 4343 General Arrangement File Location: \\woodstone.net\dfs\CAD\0_Ovens\z_Be nA_Prelim\Bistro_Box\WS-BL-4343.dft M0029.09 SEPTEMBER 2017 WOOD STONE CORPORATION info@woodstone-corp.com 1801 W. Bakerview Rd. +1.360.650.1111 E-MAIL An ongoing program of product improvement may woodstone-corp.com Bellingham, WA 98226 USA +1.360.650.1166...

  • Page 25: Disassembly

    Carefully bend the remaining length of tube damage while moving the from the pilot up inside the burner assembly to main body. protect it. M0029.09 SEPTEMBER 2017 WOOD STONE CORPORATION info@woodstone-corp.com 1801 W. Bakerview Rd. +1.360.650.1111 E-MAIL An ongoing program of product improvement may woodstone-corp.com...
  • Page 26 LIFTING THE OVEN section� Disassemble the stand if necessary� Follow the assembly instructions in the ASSEMBLY section to reassemble the oven� M0029.09 SEPTEMBER 2017 WOOD STONE CORPORATION info@woodstone-corp.com 1801 W. Bakerview Rd. +1.360.650.1111 E-MAIL An ongoing program of product improvement may woodstone-corp.com...

  • Page 27: Controller

    30 °C (100 °F)� Flame Height Control Knob Controller Use this knob to raise/lower the flame to control the oven temperature. M0029.09 SEPTEMBER 2017 WOOD STONE CORPORATION info@woodstone-corp.com 1801 W. Bakerview Rd. +1.360.650.1111 E-MAIL An ongoing program of product improvement may woodstone-corp.com Bellingham, WA 98226 USA +1.360.650.1166...

  • Page 28: Initial Start-Up

    NOTE: Small “crazing” cracks will occur with normal heating and cooling� They will not affect the performance or durability of the oven� If cracks of 3 mm (1/8") wide or more develop, contact Wood Stone for evaluation� FLAME HEIGHT INDICATOR...

  • Page 29: Daily Operation

    Make sure the night door is removed� Push I/O button and turn the Radiant Flame to its highest setting using the Flame Height Control Knob� Heat-up times will vary, the longer your oven is off the cooler it will get� On average your Wood Stone oven depending on size and configuration should heat up between 43–65 °C (110–150 °F) an hour with Radiant Flame all the way up�...

  • Page 30: Maintenance

    GAS-FIRED OVEN THERMAL CLEANING If a Wood Stone gas-fired oven is operated at low temperatures below 274 °C (525 °F), you may notice a buildup on the oven floor� If you operate the oven below 232 °C (450 °F), you may also notice some buildup on the interior walls and/or ceiling of the oven�...

  • Page 31: Troubleshooting Guide

    Check that any wall switches external to the oven that control oven power are turned on� Check that any interlocks external to the oven are turned on� 2. If controller still does not turn on, please contact Wood Stone for assistance� Flame does not light 1.

  • Page 32: Wood Burning

    “green” wood, will cause a build-up of creosote residue throughout the exhaust system� (See the FUELWOOD FACTS section of this manual, or consult Wood Stone for information on what types of wood can be used for oven fuel�) The fire should be ignited a couple of hours before the oven needs to be at cooking temperature�...
  • Page 33 The interior floor and dome of the oven do not require creosote or soot removal� The oven flue and exhaust system will require inspection and cleaning� The exhaust system must be inspected and cleaned per the manufacturer’s and or local code official’s recommendations� Wood Stone recommends cleaning and inspection at least monthly on any ventilation system serving solid fuel equipment.

  • Page 34: Fuelwood Facts

    Wet wood is the most common operational difficulty associated with wood-fired cooking equipment� Wood Stone’s optional Mini-Ligno E Wood Moisture Meter can save you from paying for water when you thought you were paying for wood (see the Tools &...

  • Page 35: 100-120 Vac Wire Diagram

    WD070 Rev. 1 Bellingham, WA +1(360)650-1111 www.woodstone-corp.com DATE: 2/2/2017 See equipment data plate for correct voltage of your oven� M0029.09 SEPTEMBER 2017 WOOD STONE CORPORATION info@woodstone-corp.com 1801 W. Bakerview Rd. +1.360.650.1111 E-MAIL An ongoing program of product improvement may woodstone-corp.com Bellingham, WA 98226 USA +1.360.650.1166...
  • Page 36 100-120 VAC, 50-60 Hz wired by others As specified on equipment data plate See equipment data plate for correct voltage of your oven� M0029.09 SEPTEMBER 2017 WOOD STONE CORPORATION info@woodstone-corp.com 1801 W. Bakerview Rd. +1.360.650.1111 E-MAIL An ongoing program of product improvement may woodstone-corp.com...

  • Page 37: 200-240 Vac Wire Diagram

    WD077 Rev. 1 Bellingham, WA +1(360)650-1111 www.woodstone-corp.com DATE: 2/2/2017 See equipment data plate for correct voltage of your oven� M0029.09 SEPTEMBER 2017 WOOD STONE CORPORATION info@woodstone-corp.com 1801 W. Bakerview Rd. +1.360.650.1111 E-MAIL An ongoing program of product improvement may woodstone-corp.com Bellingham, WA 98226 USA +1.360.650.1166...
  • Page 38 As specified on equipment data plate See equipment data plate for correct voltage of your oven� M0029.09 SEPTEMBER 2017 WOOD STONE CORPORATION info@woodstone-corp.com 1801 W. Bakerview Rd. +1.360.650.1111 E-MAIL An ongoing program of product improvement may woodstone-corp.com...

  • Page 39: Limited Warranty

    LIMITATIONS OF LIABILITY In the event of warranty claim or otherwise, the sole obligation of Wood Stone shall be the repair and/or replacement, at the option of Wood Stone, of the appliance or component or part thereof� Such repair or replacement shall be at the expense of Wood Stone with the exception of travel over 100 miles or two hours, overtime, and holiday charges which shall be at the expense of the purchaser�...
  • Page 40 WOOD STONE CORPORATION 1801 W. Bakerview Rd. Tel +1.360.650.1111 Bellingham, WA 98226 USA Fax +1.360.650.1166 www.woodstone-corp.com An ongoing program of product improvement may require us to change specifications without notice. M0029.09 SEPTEMBER 2017...
