Installation and
Operation Manual

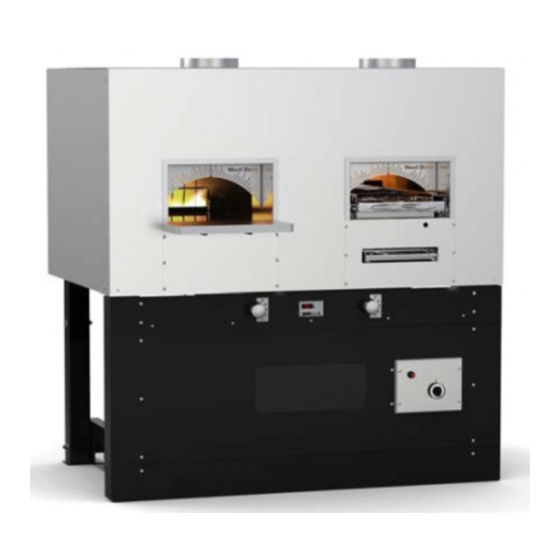

DESIGNER SERIES 2
Stone Hearth Oven
Gas-Fired, Gas/Wood Combination
with Broiler Option Models
DESIGNER SERIES 2 4048 WS-DS2-4048
DESIGNER SERIES 2 6348 WS-DS2-6348
DESIGNER SERIES 2 7248 WS-DS2-7248
DESIGNER SERIES 2 5757 WS-DS2-5757
WOOD STONE CORPORATION
1801 W. Bakerview Rd.
Bellingham, WA 98226 USA
www.woodstone-corp.com
Tel +1.360.650.1111
Fax +1.360.650.1166
DOC NO M0079.07
REVISED OCTOBER 2017
Advertisement
Table of Contents
Related Manuals for Wood Stone 4048
Summary of Contents for Wood Stone 4048
- Page 1 Operation Manual DESIGNER SERIES 2 Stone Hearth Oven Gas-Fired, Gas/Wood Combination with Broiler Option Models DESIGNER SERIES 2 4048 WS-DS2-4048 DESIGNER SERIES 2 6348 WS-DS2-6348 DESIGNER SERIES 2 7248 WS-DS2-7248 DESIGNER SERIES 2 5757 WS-DS2-5757 WOOD STONE CORPORATION 1801 W. Bakerview Rd.
-
Page 2: Table Of Contents
Troubleshooting Guide � � � � � � � � Electrical Diagrams � � � � � � � � � � Limited Warranty info@woodstone-corp.com M0079.07 OCTOBER 2017 WOOD STONE CORPORATION 800.988.8103 TOLL FREE E-MAIL woodstone-corp.com 1801 W. Bakerview Rd. 360.650.1111... - Page 3 DESIGNER SERIES 2 Designer Series 2 w/ Optional Broiler Installation and Operation Manual INSTALLATION AND OPERATION MANUAL FOR THE WOOD STONE DESIGNER SERIES OVEN NATURAL GAS OR PROPANE FUELED STONE HEARTH OVEN DESIGNER SERIES MODELS WS-DS2-(4048, 6348, 7248, 5757)-(RFG)-(CISB)-(NG, LP)-(W)
-
Page 4: Cautions & Warnings
Designer Series 2 w/ Optional Broiler Installation and Operation Manual INSTALLATION AND OPERATING INSTRUCTIONS FOR THE WOOD STONE DESIGNER SERIES 2 OVEN WITH BROILER OPTION RETAIN THIS MANUAL FOR FUTURE REFERENCE Additional copies of this manual at woodstone-corp�com� For prompt responses to service/maintenance questions, call us at @ 1-800-988-8103�... - Page 5 This product must be installed by a licensed plumber or gas fitter when installed within the Commonwealth of Massachusetts. SAVE THE INSTRUCTIONS Wood Stone’s Designer Series ovens have been tested and approved by Intertek Testing Services and are ETL listed to ANSI Z83.11:2016 Ed. 4 / CSA 1.8:2016 Ed. 4, UL Subject 2162, UL 737, ULC-S627-00 and to NSF/ANSI 4:2016.
-
Page 6: Ds2-4048
800.988.8103 TOLL FREE E-MAIL 225,000 BTU, NG SOLE PROPERTY OF WOOD STONE CORPORATION SOLE PROPERTY OF WOOD STONE CORPORATION HOUT THE WRITTEN PERMISSION OF WOOD STONE IS 200,000 BTU, LP woodstone-corp.com 1801 W. Bakerview Rd. GAS INLET: 3/4" NPT 360.650.1111... -
Page 7: Ds2-6348
ANY REPRODUCTION OR USE IN PART OR AS A WHOLE MAY REQUIRE US TO CHANGE SPECIFICATIONS MAY REQUIRE US TO CHANGE SPECIFICATIONS LEGEND: LEGEND: 225,000 BTU, NG WITHOUT THE WRITTEN PERMISSION OF WOOD STONE IS info@woodstone-corp.com M0079.07 OCTOBER 2017 WITHOUT NOTICE. WITHOUT NOTICE. WOOD STONE CORPORATION 800.988.8103... -
Page 8: Ds2-7248
Program Of Product Improvements May Require Us To Change Specifications Without Notice THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF WOOD STONE CORPORATION ANY REPRESENTATION OR USE IN PART OR AS A THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF WOOD STONE CORPORATION ANY REPRESENTATION OR USE IN PART OR AS A... -
Page 9: Ds2-5757
DS2 5757 DIMENSIONS ARE IN INCHES DIMENSIONS ARE IN INCHES OLERANCES: LINEAR ±1/2 [±10mm], ANGULAR ±2° info@woodstone-corp.com M0079.07 OCTOBER 2017 WOOD STONE CORPORATION 800.988.8103 TOLL FREE E-MAIL General Arrangement OLERANCES: LINEAR ±1/2 [±10mm], ANGULAR ±2° TOLERANCES: LINEAR ±1/2 [±10mm], ANGULAR ±2°... -
Page 10: Unloading & Moving The Oven
FORKLIFT. The Wood Stone Designer Series DS2-6348 and DS2-7248 ovens weigh approximately 4,500 lbs� and are top-heavy� Use a forklift with adequate fork lengths and lifting capacity� When using a forklift, always use the forklift pockets on either side of the oven�... -
Page 11: Installation Clearances
1. The Wood Stone Designer Series Oven must have a minimum 1-inch clearance to combustibles from all sides, 7 inch clearance to combustibles from the top� If building a facade that will contact the oven, use completely non-combustible materials�... -
Page 12: Venting
300 °F, 450 °F for units burning solid fuel� Use a stack or curb mounted fan� Wood Stone does not recommend the use of an in- line fan�... - Page 13 Frequent, regularly scheduled, thorough flue cleaning is the best way to minimize the risk of flue fires� Wood Stone recommends cleaning and inspection at least monthly on any ventilation system serving solid fuel equipment.
-
Page 14: Gas Specifications
Wood Stone recommends that the Designer Series oven be equipped with a manual, individual shutoff valve, located between the oven and the main gas supply, and that this shutoff valve (supplied by others) be left readily accessible� Wood Stone also recommends that inspection and maintenance of the burners and gas piping connections of this appliance be performed at regularly scheduled intervals and only by professional gas appliance service agencies�... - Page 15 The appliance must be isolated from the gas supply piping system by closing its individual manual shutoff valve (supplied by others) during any pressure testing of the gas supply piping system at test pressure, equal to or less than 1/2 psi (14" W�C�) (3�45 kPa)� info@woodstone-corp.com M0079.07 OCTOBER 2017 WOOD STONE CORPORATION 800.988.8103 TOLL FREE E-MAIL woodstone-corp.com 1801 W.
-
Page 16: Utility Connections
The electrical connection is generally located on the front left side of the oven, and can be connected through any side of the oven� The electrical location is fixed, not specifiable, but is easy to access from any direction� info@woodstone-corp.com M0079.07 OCTOBER 2017 WOOD STONE CORPORATION 800.988.8103 TOLL FREE E-MAIL woodstone-corp.com 1801 W. -
Page 17: Oven Controller
Press to turn read “LO” when the display on and temperature is below off� 38 °C (100 °F)� info@woodstone-corp.com M0079.07 OCTOBER 2017 WOOD STONE CORPORATION 800.988.8103 TOLL FREE E-MAIL woodstone-corp.com 1801 W. Bakerview Rd. 360.650.1111 An ongoing program of product improvement may Bellingham, WA 98226 USA 360.650.1166... -
Page 18: Lighting The Broiler
TO TURN BROILER OFF remains lit when knob Push in Gas Control Knob and turn to released� OFF position and release� info@woodstone-corp.com M0079.07 OCTOBER 2017 WOOD STONE CORPORATION 800.988.8103 TOLL FREE E-MAIL woodstone-corp.com 1801 W. Bakerview Rd. 360.650.1111 An ongoing program of product improvement may Bellingham, WA 98226 USA 360.650.1166... -
Page 19: Initial Oven Start-Up
INITIAL OVEN START-UP NOTE: The ceramic materials used in the construction of your Wood Stone oven will absorb moisture if exposed to high humidity or damp conditions during shipment from the factory or extended periods of storage before installation� Occasionally, through the course of the Initial Start-Up, as the oven heats up it is possible that you will see some water dripping from the sides of the oven as moisture is driven out of the ceramic�... -
Page 20: Daily Oven Operation
DURING THE DAY Wood Stone recommends the use of long-handled brushes for sweeping up surface debris that will accumulate on the floor of the oven during use� Use a natural fiber brush—always brushing away from the radiant burner well� For deeper cleaning, use a brass bristled brush�... -
Page 21: Maintenance
OVEN INTERIOR Wood Stone recommends the use of long-handled brushes for sweeping up surface debris that will accumulate on the floor of the oven during use� Use a natural fiber brush—always brushing away from the radiant burner well� For deeper cleaning, use a brass bristled brush�... -
Page 22: Troubleshooting Guide
1. Is gas turned on to the oven? Is gas shut-off valve turned all the way on? Burner flame does not light 2. Debris in burner� Burner may require cleaning� Contact Wood Stone for assistance� 3. Damaged igniter or gas valve� Contact your local distributor for assistance�... -
Page 23: Electrical Diagrams
ELECTRICAL DIAGRAMS Designer Series 2 w/ Optional Broiler Installation and Operation Manual 2 RADIANT BURNER TYPE 4 CONTROLLER 120 VAC Dual RFG XFMR Junction CB 4A Pink White Left Radiant White 110-120 VAC 50/60Hz wired by others Temperature Controller Thermo Brown Couple Control Panel Type 4... -
Page 24: Limited Warranty
In the event of warranty claim or otherwise, the sole obligation of Wood Stone shall be the repair and/or replacement, at the option of Wood Stone, of the appliance or component or part thereof� Such repair or replacement shall be at the expense of Wood Stone with the exception of travel over 100 miles or two hours, overtime, and holiday charges which shall be at the expense of the purchaser�...
