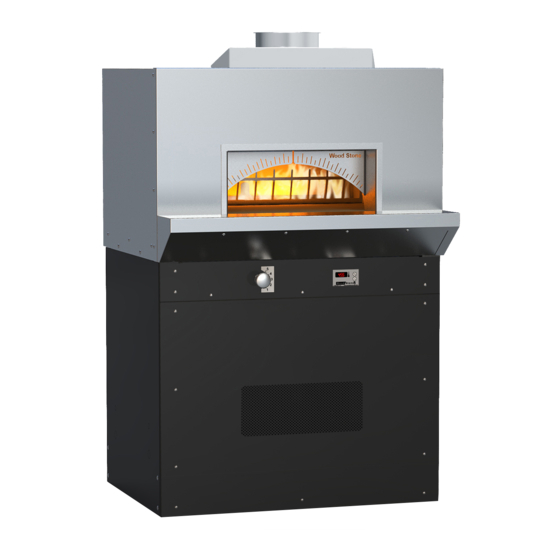

Wood Stone BISTRO 3030 Installation And Operation Manual
Gas-fired stone hearth oven bistro series
Hide thumbs
Also See for BISTRO 3030:
- Installation and operation manual (43 pages) ,
- Installation and operation manual (36 pages) ,
- Installation and operation manual (37 pages)
Table of Contents
Advertisement
Quick Links
BISTRO LINE
Gas-Fired Stone Hearth Oven
Commerical European Models
wood stone corporation
1801 w. bakerview rd.
bellingham, wa 98226 usa
Installation and
Operation Manual
BISTRO 3030
WS-BL-3030-RFG-CE
BISTRO 4343
WS-BL-4343-RFG-(W)-CE
BISTRO 4355
WS-BL-4355-RFG-(W)-CE
CUSTOM MODELS
WS-CS-REC-8-RFG-CE
t. +1.360.650.1111
f. +1.360.650.1166
woodstone-corp.com
Revised February 2015
Doc no: M0027.02
Advertisement
Table of Contents
Related Manuals for Wood Stone BISTRO 3030
Summary of Contents for Wood Stone BISTRO 3030
- Page 1 Installation and Operation Manual BISTRO 3030 WS-BL-3030-RFG-CE BISTRO LINE BISTRO 4343 WS-BL-4343-RFG-(W)-CE Gas-Fired Stone Hearth Oven BISTRO 4355 Commerical European Models WS-BL-4355-RFG-(W)-CE CUSTOM MODELS WS-CS-REC-8-RFG-CE wood stone corporation woodstone-corp.com 1801 w. bakerview rd. t. +1.360.650.1111 Revised February 2015 bellingham, wa 98226 usa f.
-
Page 2: Table Of Contents
ELECTRICAL DIAGRAM � � � � � � � � � � � � � � � � 33 LIMITED WARRANTY � � � � � � � � � � � � � � � � � 34 wood stone corporation 1801 w. bakerview rd. -
Page 3: Bistro Line Ce
BISTRO LINE CE Bistro CE Installation and Operation Manual INSTALLATION AND OPERATION MANUAL FOR THE WOOD STONE BISTRO WS-BL-3030-RFG-CE-(NG,LP), WS-BL-4343-RFG-(W)-CE-(NG, LP) AND WS-BL-4355-RFG-(W)-CE-(NG, LP) WS-CS-REC-8-RFG-CE-(NG, LP) EUROPEAN MODEL NATURAL GAS OR PROPANE FUELED STONE HEARTH OVEN THIS APPLIANCE IS FOR PROFESSIONAL USE BY QUALIFIED PERSONNEL. THIS APPLIANCE MUST BE INSTALLED BY QUALIFIED PERSONS IN ACCORDANCE WITH THE REGULATIONS IN FORCE. -
Page 4: Bl-3030 Specifications
TION OR USE IN PART OR AS A WHOLE REPRODUCTION OR USE IN PART OR AS A WHOLE An ongoing program of product improvement may require us to change 55,000 BTU, NG OUT THE WRITTEN PERMISSION OF WOOD STONE IS 200mm info@woodstone-corp.com or visit woodstone-corp.com 55,000 BTU, NG... -
Page 5: Bl-4343 Specifications
ANY REPRODUCTION OR USE IN PART OR AS A WHOLE CTION OR USE IN PART OR AS A WHOLE 200mm 80,500 BTU, NG WITHOUT THE WRITTEN PERMISSION OF WOOD STONE IS 80,500 BTU, NG An ongoing program of product improvement may require us to change 80,500 BTU, NG 41 3/4"... -
Page 6: Bl-4355 Specifications
BL-RFG-CE, BL-RFG-W-CE, 80,500 BTU, NG 80,500 BTU, NG 1060mm RITTEN PERMISSION OF WOOD STONE IS HOUT THE WRITTEN PERMISSION OF WOOD STONE IS HOUT THE WRITTEN PERMISSION OF WOOD STONE IS 68,000 BTU, LP 68,000 BTU, LP 68,000 BTU, LP Revised February 2015. -
Page 7: Cs-Rec-8 Specifications
THE INFORMATION CONTAINED IN THIS DRAWING IS THE 200mm ODUCTION OR USE IN PART OR AS A WHOLE 4 1/4" WITHOUT THE WRITTEN PERMISSION OF WOOD STONE IS SOLE PROPERTY OF WOOD STONE CORPORATION 110mm bellingham, wa 98226 usa f. +1.360.650.1166... -
Page 8: Installation Clearances
CLEARANCES a. The Wood Stone Phoenix oven must have a minimum 25 mm (1") clearance to combustibles from all sides, 152 mm (6") clearance to combustibles from the top and 152 mm (6") from the flue collar. If building a facade that will contact the oven, use completely non-combustible materials�... -
Page 9: Oven Venting
The above statement taking precedence, Wood Stone Corporation recommends the following two venting options: 1. The Wood Stone Bistro ovens can be vented as a Type A appliance (with no flue connection), designed to be installed under an exhaust hood (canopy)� The hood must be a Type 1 (grease rated) hood connected to a (grease-rated) duct system�... -
Page 10: Moving The Oven
1801 w. bakerview rd. t. +1.360.650.1111 bellingham, wa 98226 usa f. +1.360.650.1166 An ongoing program of product improvement may require us to change info@woodstone-corp.com or visit woodstone-corp.com... -
Page 11: Lifting The Oven
USING THE OPTIONAL LIFTING SYSTEM An optional Lifting System is available from Wood Stone to facilitate tipping the oven body onto its back and lifting it� When turned on its back, the upper oven portion of Bistro models 4343, 4355 and REC-8 will be approximately 32 inches wide� This will allow for easier access through small passages�... - Page 12 LIFTING THE OVEN Bistro CE Installation and Operation Manual 10. Once the oven is on the other side of the passageway, attach strap to the clevises at the Lifting Holes on the Crosspiece and, with a gantry crane, lift the oven straight up�...
-
Page 13: Exploded Parts Diagram
Discard once removed.) All parts shown below, rear panel included, provided with the oven (except the shipping panel) MUST be installed to ensure the safe and proper operation of the oven. wood stone corporation 1801 w. bakerview rd. t. +1.360.650.1111 bellingham, wa 98226 usa f. -
Page 14: Assembly
9�5 x 25 mm (3/8 x 1") long carriage Carriage bolts bolts� 9�5 x 25mm (3/8 x 1") 3030 only: 9�5 x 19mm (3/8 x 3/4") wood stone corporation 1801 w. bakerview rd. t. +1.360.650.1111 bellingham, wa 98226 usa f. +1.360.650.1166 An ongoing program of product improvement may require us to change info@woodstone-corp.com or visit woodstone-corp.com... - Page 15 1801 w. bakerview rd. t. +1.360.650.1111 bellingham, wa 98226 usa f. +1.360.650.1166 An ongoing program of product improvement may require us to change info@woodstone-corp.com or visit woodstone-corp.com...
- Page 16 6. Attach the control box to the oven using (4) 1/4-20 screws� The control box should be oriented so the knob is on the left side of the control box� (4) 1/4-20 screws wood stone corporation 1801 w. bakerview rd. t. +1.360.650.1111 bellingham, wa 98226 usa f. +1.360.650.1166 An ongoing program of product improvement may require us to change info@woodstone-corp.com or visit woodstone-corp.com...
- Page 17 Install the wing nut onto the stud and tighten to secure the burner tray in place� Front tabs Wing nut wood stone corporation 1801 w. bakerview rd. t. +1.360.650.1111 bellingham, wa 98226 usa f. +1.360.650.1166 An ongoing program of product improvement may require us to change info@woodstone-corp.com or visit woodstone-corp.com...
- Page 18 (3 for BL-3030_CE and 4 for BL-4343-CE or BL-4355-CE)� wood stone corporation 1801 w. bakerview rd. t. +1.360.650.1111 bellingham, wa 98226 usa f. +1.360.650.1166 An ongoing program of product improvement may require us to change info@woodstone-corp.com or visit woodstone-corp.com...
- Page 19 The log set pieces fit onto the studs on the burner guard, behind the opening in the guard, so the logs sit at the rear of the burner opening� wood stone corporation 1801 w. bakerview rd. t. +1.360.650.1111 bellingham, wa 98226 usa f.
-
Page 20: 3030 Technical Data
11�2 17�4 17�4 17�4 17�4 let from the gas valve (mbar) wood stone corporation 1801 w. bakerview rd. t. +1.360.650.1111 bellingham, wa 98226 usa f. +1.360.650.1166 An ongoing program of product improvement may require us to change info@woodstone-corp.com or visit woodstone-corp.com specifications without notice. -
Page 21: 4343/4355 Technical Data
G30 @ 28-30mbar, 37mbar, 50mbar - I - SE, CH, AT, DK, FI, DE, NL, NO, HU, PL, SI, FR, CY, LT, SK, MT, and CZ B/P(28-30/37/50) wood stone corporation 1801 w. bakerview rd. t. +1.360.650.1111 bellingham, wa 98226 usa f. -
Page 22: Utility Connections
The front and rear panels MUST be installed to ensure proper operation and the structural integrity of the stand� The Wood Stone Bistro is equipped with a 3/4-inch N�P�T� (19mm) female gas connection� The gas supply should be consistent with the gas type and volume specified on the equipment data plate�... -
Page 23: Storage Box Installation
DATE: 6/11/2013 Bistro Commercial Series - 4343 General Arrangement File Location: \\woodstone.net\dfs\CAD\0_Ovens\z_Be nA_Prelim\Bistro_Box\WS-BL-4343.dft wood stone corporation 1801 w. bakerview rd. t. +1.360.650.1111 bellingham, wa 98226 usa f. +1.360.650.1166 An ongoing program of product improvement may require us to change info@woodstone-corp.com or visit woodstone-corp.com specifications without notice. -
Page 24: Controller
Flame Height Control Knob Controller Use this knob to raise/lower the flame to control the oven temperature. wood stone corporation 1801 w. bakerview rd. t. +1.360.650.1111 bellingham, wa 98226 usa f. +1.360.650.1166 An ongoing program of product improvement may require us to change info@woodstone-corp.com or visit woodstone-corp.com... -
Page 25: Initial Start-Up
NOTE: Small “crazing” cracks will occur with normal heating and cooling� They will not affect the performance or durability of the oven� If cracks of 3 mm (1/8") wide or more develop, contact Wood Stone for evaluation� SECOND DAY 1. -
Page 26: Daily Operation
Use a natural fiber brush—always brushing away from the radiant burner well� For deeper cleaning, use a brass bristled brush� The oven floor can be then cleaned with a damp rag wrapped around the brass bristled brush head� (Wood Stone offers an assortment of oven brushes available through your dealer�... - Page 27 (optional) stainless steel Night Heat Retention Door in place� This option is for heat retention only, and should only be used when the appliance is turned off� wood stone corporation 1801 w. bakerview rd. t. +1.360.650.1111 bellingham, wa 98226 usa f.
-
Page 28: Daily Maintenance
GAS-FIRED OVEN THERMAL CLEANING If a Wood Stone gas-fired oven is operated at low temperatures below 274 °C (525 °F), you may notice a buildup on the oven floor� If you operate the oven below 232 °C (450 °F), you may also notice some buildup on the interior walls and/or ceiling of the oven� To remove any buildup that has accumulated inside of the oven, simply turn the radiant flame to its highest setting�... -
Page 29: Wood Burning
“green” wood, will cause a build-up of creosote residue throughout the exhaust system� (See the FUELWOOD FACTS section of this manual, or consult Wood Stone for information on what types of wood can be used for oven fuel�) The fire should be ignited a couple of hours before the oven needs to be at cooking temperature�... - Page 30 The interior floor and dome of the oven do not require creosote or soot removal� The oven flue and exhaust system will require inspection and cleaning� The exhaust system must be inspected and cleaned per the manufacturer’s and or local code official’s recommendations� Wood Stone recommends cleaning and inspection at least monthly on any ventilation system serving solid fuel equipment.
-
Page 31: Fuelwood Facts
Wet wood is the most common operational difficulty associated with wood-fired cooking equipment� Wood Stone’s optional Mini-Ligno E Wood Moisture Meter can save you from paying for water when you thought you were paying for wood (see the Tools &... -
Page 32: Troubleshooting Guide
Display reads “OPEN” 2. Damaged thermocouple - call your local distributor� Please contact your local distributor should service be necessary, or if you have any questions about your oven. wood stone corporation 1801 w. bakerview rd. t. +1.360.650.1111 bellingham, wa 98226 usa f. -
Page 33: Electrical Diagram
White DIAG #: WD071 Rev. 0 Bellingham, WA +1(360)650-1111 www.woodstone-corp.com DATE: 12/8/2014 wood stone corporation 1801 w. bakerview rd. t. +1.360.650.1111 bellingham, wa 98226 usa f. +1.360.650.1166 An ongoing program of product improvement may require us to change info@woodstone-corp.com or visit woodstone-corp.com specifications without notice. -
Page 34: Limited Warranty
LIMITATIONS OF LIABILITY In the event of warranty claim or otherwise, the sole obligation of Wood Stone shall be the repair and/or replacement, at the option of Wood Stone, of the appliance or component or part thereof� Such repair or replacement shall be at the expense of Wood Stone with the exception of travel over 100 miles or two hours, overtime, and holiday charges which shall be at the expense of the purchaser�...
