Wood Stone Bistro 3030 Installation And Operation Manual

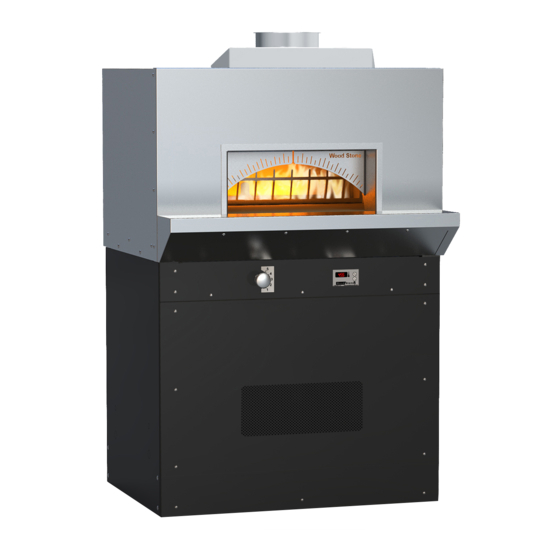

Bistro series gas-fired stone hearth oven
Hide thumbs Also See for Bistro 3030:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Operation & Installation Manual
Bistro series
Gas-Fired Stone Hearth Oven
Commercial External Transition Models
Wood stone Corporation
1801 W. Bakerview Rd.
Bellingham, WA 98226 USA
Installation and
Operation Manual
Bistro 3030
WS-BL-3030-RFG
Bistro 4343
WS-BL-4343-RFG, WS-BL-4343-RFG-W
Bistro 4355
WS-BL-4355-RFG, WS-BL-4355-RFG-W
Toll Free (800) 988-8103
Tel (360) 650-1111
Fax (360) 650-1166
www.woodstone-corp.com
Revised February 2010

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Bistro 3030 and is the answer not in the manual?

Questions and answers

Related Manuals for Wood Stone Bistro 3030

Summary of Contents for Wood Stone Bistro 3030

  • Page 1 Installation and Operation Manual Bistro 3030 Bistro series WS-BL-3030-RFG Bistro 4343 Gas-Fired Stone Hearth Oven WS-BL-4343-RFG, WS-BL-4343-RFG-W Commercial External Transition Models Bistro 4355 WS-BL-4355-RFG, WS-BL-4355-RFG-W www.woodstone-corp.com Toll Free (800) 988-8103 Wood stone Corporation Tel (360) 650-1111 1801 W. Bakerview Rd.

  • Page 2: Table Of Contents

    Contents Bistro Installation and Operation Manual TablE oF ConTEnTs BISTRO lIne ---------------------------------------------------------------------------------- BISTRO 3030 SpecIFIcATIOnS ----------------------------------------------------------------- BISTRO 4343 SpecIFIcATIOnS ----------------------------------------------------------------- BISTRO 4355 SpecIFIcATIOnS ----------------------------------------------------------------- InSTAllATIOn cleARAnceS ------------------------------------------------------------------- MOvInG THe Oven ---------------------------------------------------------------------------- explOded pARTS vIeW -----------------------------------------------------------------------...

  • Page 3: Bistro Line

    Bistro Line Bistro Installation and Operation Manual InsTallaTIon anD oPERaTIon ManUal FoR ThE WooD sTonE bIsTRo naTURal Gas oR PRoPanE FUElED sTonE hEaRTh ovEn WS-BL-3030-RFG-(NG or LP), WS-BL-4343-RFG-(NG or LP), WS-BL-4355-RFG-(NG or LP), WS-BL-3030-RFG-(NG or LP)-W, WS-BL-4343-RFG-(NG or LP)-W, WS-BL-4355-RFG-(NG or LP)-W CoMMERCIal EXTERnal TRansITIon MoDEls This appliance is for professional use by qualified personnel.
  • Page 4 Bistro Line Bistro Installation and Operation Manual WooD sTonE bIsTRo Gas ovEn InsTallaTIon anD oPERaTInG InsTRUCTIons Do noT ThRoW ThIs ManUal aWaY RETaIn ThIs ManUal FoR FUTURE REFEREnCE Additional copies of this manual and prompt responses to service/maintenance questions are available from Wood Stone @ 1-800-988-8103.

  • Page 5: Bistro 3030 Specifications

    Bistro 3030 specifications Bistro 3030 speCiFiCations Bistro Installation and Operation Manual Front view side view Rear view Top view UtiLities speCiFiCations Electrical- 120 vAc, 2 amp 50/60 Hz Gas-3/4 inch gas inlet (female threaded) Optional- 240 vAc, 1 amp 50/60 Hz...

  • Page 6: Bistro 4343 Specifications

    (provided) to route gas and actual Weight: 1650 lbs. electrical supplies. shipping Weight: 2100 lbs. Refer to data plate when installing. Wood stone Corporation Toll Free (800) 988-8103 1801 W. Bakerview Rd. Tel (360) 650-1111 Bellingham, WA 98226 USA...

  • Page 7: Bistro 4355 Specifications

    (provided) to route gas and actual Weight: 2200 lbs. electrical supplies. shipping Weight: 2500 lbs. Refer to data plate when installing Wood stone Corporation Toll Free (800) 988-8103 1801 W. Bakerview Rd. Tel (360) 650-1111 Bellingham, WA 98226 USA...

  • Page 8: Installation Clearances

    ClEaRanCEs a. The Wood Stone Bistro oven should have a minimum 1-inch clearance to combustibles from all sides, 6-inch clearance to combustibles from the top, and 6-inch clearance from the exhaust transition and flue collar. If building a facade that will contact the oven, use completely non-combustible materials.

  • Page 9: Moving The Oven

    Make sure the pallet jack wheels do not contact the underside of the fork pocket when lifting to avoid damaging the stand. Wood stone Corporation Toll Free (800) 988-8103 1801 W. Bakerview Rd.
  • Page 10 If you received the oven disassembled and need to move it through a narrow door or passageway, follow the instructions below... If your oven was originally shipped assembled, the optional lifting system is available from Wood Stone. 1. Use a forklift or other suitable lifting means to set the oven body onto blocks as shown.
  • Page 11 DanGER: never attempt to move the oven in this manner on any type of incline or sloped floor. ConTInUE To ThE EXPloDED DIaGRaM anD assEMblY/REassEMblY InsTRUCTIons Wood stone Corporation Toll Free (800) 988-8103 1801 W. Bakerview Rd. Tel (360) 650-1111...

  • Page 12: Exploded Parts View

    PaRTs shoWn abovE anD PRovIDED WITh ThE ovEn (EXCEPT ThE shIPPInG PanEl) MUsT bE InsTallED To EnsURE ThE saFETY anD PRoPER oPERaTIon oF ThE ovEn Wood stone Corporation Toll Free (800) 988-8103 1801 W. Bakerview Rd. Tel (360) 650-1111...

  • Page 13: Assembly

    On 3030 Models only: Use 3/8"x 3/4" long carriage bolts to attach the sides instead of the 3/8"x 1" long carriage bolts. Wood stone Corporation Toll Free (800) 988-8103 1801 W. Bakerview Rd. Tel (360) 650-1111...
  • Page 14 Use the washers provided and tighten all nuts securely. Be sure to use the forklift pockets when lifting the body of the oven. Bistro 3030 models - forklift pockets are on the front only and do not extend all the way through the oven.
  • Page 15 6. Attach the control Box to the oven using (4) 1/4-20 screws. The control box should be oriented so the knob is on the left side of the control box. Wood stone Corporation Toll Free (800) 988-8103 1801 W. Bakerview Rd. Tel (360) 650-1111...
  • Page 16 Sv-2 Gas valve. plug in igniter connect the burner. wires from the burner here. Attach flexible pilot tube here. Tighten the fitting firmly. Wood stone Corporation Toll Free (800) 988-8103 1801 W. Bakerview Rd. Tel (360) 650-1111 Bellingham, WA 98226 USA...
  • Page 17 Wood stone Corporation Toll Free (800) 988-8103 1801 W. Bakerview Rd. Tel (360) 650-1111...
  • Page 18 ConTInUED on FolloWInG PaGE Wood stone Corporation Toll Free (800) 988-8103 1801 W. Bakerview Rd. Tel (360) 650-1111...

  • Page 19: Assembly-Connections

    The installation must conform with local codes, or in the absence of local codes with the national Fuel Gas code, AnSI 223.1, natural Gas Installation code, cAn/cGA-B149.1, as applicable. Wood stone Corporation Toll Free (800) 988-8103 1801 W. Bakerview Rd.
  • Page 20 The oven should be bolted to the floor using the holes provided at the base of the stand. Wood stone Corporation Toll Free (800) 988-8103 1801 W. Bakerview Rd.

  • Page 21: Disassembly

    Wood stone Corporation Toll Free (800) 988-8103 1801 W. Bakerview Rd. Tel (360) 650-1111 Bellingham, WA 98226 USA...
  • Page 22 5. Remove the control box from the oven. Wood stone Corporation Toll Free (800) 988-8103 1801 W. Bakerview Rd. Tel (360) 650-1111 Bellingham, WA 98226 USA Fax (360) 650-1166 An ongoing program of product improvement may require us to change Info@www.woodstone-corp.com or visit www.woodstone-corp.com...
  • Page 23 Step 1 on page 9. For Bistro 3030 models- forklift pockets are on the front only and do not extend all the way through the oven.

  • Page 24: Venting

    The following are the manufacturer’s requirements for venting Wood Stone Bistro line ovens. It is never appropriate to use “B vent” in any part of an exhaust system connected to a Wood Stone oven. All ducting material must be manufactured to the specifications of a grease duct.
  • Page 25 VentinG Bistro Installation and Operation Manual flue collar WOOD STONE OVENS MUST BE VENTED IN ACCORDANCE WITH NFPA 96 AND ALL RELEVANT NATIONAL, REGIONAL AND LOCAL CODES CONCERNING SUCH APPLIANCES; CHECK VENTING PLANS WITH THE AUTHORITY HAVING JURISDICTION BEFORE PROCEEDING WITH INSTALLATION.

  • Page 26: Operation

    2-4 hours. The oven can be left at this setting all night. Night Door The night door should be removed whenever the oven is turned 'ON'. Wood stone Corporation Toll Free (800) 988-8103 1801 W. Bakerview Rd. Tel (360) 650-1111...
  • Page 27 Make sure the night door is removed. push I/O button and turn the radiant flame to its highest setting. Oven should reach the desired cooking temperature within two hours. Use the flame height knob to control the amount of heat in the oven. Go to www.woodstone-corp.com for detailed information on cooking in your Wood Stone oven. ClEanInG ThE ovEn 1.

  • Page 28: Daily Maintenance

    Bistro Installation and Operation Manual ovEn InTERIoR Wood Stone recommends the use of a brass bristled brush for sweeping aside excess food particles that will accumulate on the floor of the oven during use. The oven floor can be cleaned with a damp rag.

  • Page 29: Controller

    'lO' when the temperature is below100 F. FlaME hEIGhT ConTRol knob ConTRollER Use this knob to raise/lower the flame to control the oven temperature. Wood stone Corporation Toll Free (800) 988-8103 1801 W. Bakerview Rd. Tel (360) 650-1111 Bellingham, WA 98226 USA...

  • Page 30: Troubleshooting Guide

    2. damaged thermocouple - call Wood Stone. Please contact Wood Stone at 1-800-988-8103 should service be necessary, or if you have any questions about your oven. Our office hours are 8am to 4:30pm Pacific Standard Time. Follow the recorded instructions for Emergency Service if you require assistance during non-business hours.

  • Page 31: 120 V Electrical Diagram

    120 v electrical Diagram 120 V eLeCtriCaL diaGraM Bistro Installation and Operation Manual bIsTRo MoDEls WITh hoT sURFaCE IGnITIon Models produced after April 2005 Wood stone Corporation Toll Free (800) 988-8103 1801 W. Bakerview Rd. Tel (360) 650-1111 Bellingham, WA 98226 USA...
  • Page 32 Bistro Installation and Operation Manual bIsTRo MoDEls produced Before April 2005 120 vaC PoWER sUPPlY OR AS SpecIFIed On eqUIpMenT dATA plATe Wood stone Corporation Toll Free (800) 988-8103 1801 W. Bakerview Rd. Tel (360) 650-1111 Bellingham, WA 98226 USA...

  • Page 33: 240 V Electrical Diagram

    240 v electrical diagram 240 V eLeCtriCaL diaGraM Bistro Installation and Operation Manual bIsTRo 240 vaC MoDEls Wood stone Corporation Toll Free (800) 988-8103 1801 W. Bakerview Rd. Tel (360) 650-1111 Bellingham, WA 98226 USA Fax (360) 650-1166 An ongoing program of product improvement may require us to change Info@www.woodstone-corp.com or visit www.woodstone-corp.com...

  • Page 34: Interlock Diagram

    Wood Stone and may affect the oven warranty and cause damage to the oven controls.

  • Page 35: Limited Warranty

    In the event of warranty claim or otherwise, the sole obligation of Wood Stone shall be the repair and/or replacement, at the option of Wood Stone, of the appliance or component or part thereof. Such repair or replacement shall be at the expense of Wood Stone with the exception of travel over 100 miles or two hours, overtime, and holiday charges which shall be at the expense of the purchaser.
