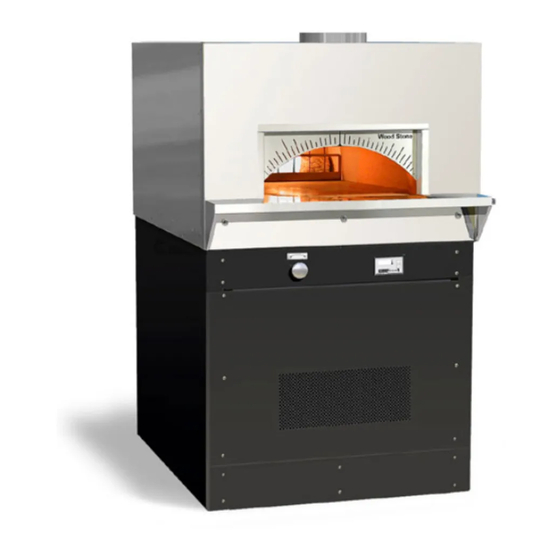

Phoenix oven, stone hearth oven
Hide thumbs
Also See for PHOENIX 4343 PITA OVEN WS-BL-4343-RFG-LR:
- Service manual (32 pages) ,
- Installation and operation manual (32 pages)
Table of Contents
Advertisement
Quick Links
Installation and
Operation Manual
PHOENIX OVEN
Stone Hearth Oven
Dual Radiant Flame Burners, Gas-Fired Models
PHOENIX 4343 PITA OVEN
PHOENIX 4355 PITA OVEN
PHOENIX 4836 PITA OVEN
WOOD STONE CORPORATION
1801 W. Bakerview Rd.
Bellingham, WA 98226 USA
www.woodstone-corp.com
WS-BL-4343-RFG-LR
WS-BL-4355-RFG-LR
WS-BL-4836-RFG-LR
Tel +1.360.650.1111
Fax +1.360.650.1166
DOC NO M0030.07
REVISED APRIL 2017
Advertisement
Table of Contents
Related Manuals for Wood Stone PHOENIX 4343 PITA OVEN WS-BL-4343-RFG-LR
Summary of Contents for Wood Stone PHOENIX 4343 PITA OVEN WS-BL-4343-RFG-LR
- Page 1 Dual Radiant Flame Burners, Gas-Fired Models PHOENIX 4343 PITA OVEN WS-BL-4343-RFG-LR PHOENIX 4355 PITA OVEN WS-BL-4355-RFG-LR PHOENIX 4836 PITA OVEN WS-BL-4836-RFG-LR WOOD STONE CORPORATION 1801 W. Bakerview Rd. Tel +1.360.650.1111 Bellingham, WA 98226 USA Fax +1.360.650.1166 www.woodstone-corp.com DOC NO M0030.07...
-
Page 2: Table Of Contents
INTERLOCK DIAGRAM � � � � � � � � � � � � � � � 30 LIMITED WARRANTY � � � � � � � � � � � � � � � � 31 M0030.07 APRIL 2017 WOOD STONE CORPORATION info@woodstone-corp.com 1801 W. Bakerview Rd. -
Page 3: Dual Burner Phoenix Oven
DUAL BURNER PHOENIX OVEN Dual Burner Phoenix Installation and Operation Manual INSTALLATION AND OPERATION MANUAL FOR THE WOOD STONE DUAL BURNER PHOENIX NATURAL GAS OR PROPANE FUELED DUAL BURNER STONE HEARTH OVEN WS-PX-4343-RFG-LR, WS-PX-4355-RFG-LR AND WS-PX-4836-RFG-LR ADDITIONAL COPIES AVAILABLE UPON REQUEST Shown: WS-PX-4343-RFG-LR M0030.07 APRIL 2017... -
Page 4: Cautions & Warnings
CAUTIONS & WARNINGS Dual Burner Phoenix Installation and Operation Manual INSTALLATION AND OPERATION MANUAL FOR THE WOOD STONE PHOENIX NATURAL GAS (NG) OR PROPANE (LP) FUELED DUAL BURNER STONE HEARTH OVEN WS-PX-4343-RFG-LR-(NG OR LP), WS-PX-4355-RFG-LR-(NG OR LP) ADDITIONAL COPIES AVAILABLE UPON REQUEST RETAIN THIS MANUAL FOR FUTURE REFERENCE Additional copies of this manual are available at woodstone-corp�com�... - Page 5 This appliance should be serviced by qualified personnel at least every 12 months, or sooner if heavy use is expected. SAVE THE INSTRUCTIONS M0030.07 APRIL 2017 WOOD STONE CORPORATION info@woodstone-corp.com 1801 W. Bakerview Rd. +1.360.650.1111 E-MAIL An ongoing program of product improvement may woodstone-corp.com...
-
Page 6: Px-4343-Lr Specifications
42 1/4 in - 1070 mm 151,000 NG - 151,000 LP RODUCTION OR USE IN PART OR AS A WHOLE E WRITTEN PERMISSION OF WOOD STONE IS WS-BL-4343 42 1/4 in - 1080 mm 42 1/4 in - 1070 mm... -
Page 7: Px-4355-Lr Specifications
105,000 NG - 100,000 LP GAS INLET: LE PROPERTY OF WOOD STONE CORPORATION PRODUCTION OR USE IN PART OR AS A WHOLE 120VAC, 4A E WRITTEN PERMISSION OF WOOD STONE IS LE PROPERTY OF WOOD STONE CORPORATION GAS INLET: 3/4" NPT WS-BL-4343... -
Page 8: Px-4836-Lr Specifications
RMATION CONTAINED IN THIS DRAWING IS THE 120VAC, 4A GAS INLET: ROPERTY OF WOOD STONE CORPORATION 120VAC, 4A 120VAC, 4A RITTEN PERMISSION OF WOOD STONE IS ROPERTY OF WOOD STONE CORPORATION PERTY OF WOOD STONE CORPORATION 3/4" NPT WS-BL-4343 42 1/4 in - 1080 mm... -
Page 9: Moving & Placing The Oven
USING A CRANE PX-4343-LR The oven arrives with Pickeyes attached� When craning a Wood Stone oven, use a Spreader Bar with a fig. 1 two-legged sling rigged on each end� The spreader bar should be of a sufficient length to keep the sling from contacting the oven, and oriented as shown in fig. -
Page 10: Installation Clearances
CLEARANCES 1. The Wood Stone Phoenix oven must have a minimum 25 mm (1") clearance to combustibles from all sides, 152 mm (6") clearance to combustibles from the top and 152 mm (6") from the flue collar. If building a facade that will contact the oven, use completely non-combustible materials�... -
Page 11: Venting
The following are the manufacturer’s recommendations for venting Wood Stone Phoenix model ovens� It is never appropriate to use “B vent” in any part of an exhaust system connected to a Wood Stone oven� All duct material must be manufactured to the specifications of a grease duct�... -
Page 12: Lifting The Oven
USING THE OPTIONAL LIFTING SYSTEM An optional Lifting System is available from Wood Stone to facilitate tipping the oven body onto its back or side (as shown below)� When turned on its side, the upper oven portion of Bistro or Phoenix models 4343, 4355 and 4836 will be approximately 32 inches wide�... - Page 13 LIFTING THE OVEN Dual Burner Phoenix Installation and Operation Manual 10. Once the oven is on the other side of the passageway, attach strap to the clevises at the Lifting Holes on the Crosspiece and, with a gantry crane, lift the oven straight up�...
-
Page 14: Exploded Parts Diagram
Discard once removed.) Rear Panel Side Panel Control Box Front Panel Side Panel Toe Kick M0030.07 APRIL 2017 WOOD STONE CORPORATION info@woodstone-corp.com 1801 W. Bakerview Rd. +1.360.650.1111 E-MAIL An ongoing program of product improvement may woodstone-corp.com Bellingham, WA 98226 USA +1.360.650.1166... -
Page 15: Assembly
Carriage bolts 9�5 x 25mm (3/8 x 1") 3030 only: 9�5 x 19mm (3/8 x 3/4") M0030.07 APRIL 2017 WOOD STONE CORPORATION info@woodstone-corp.com 1801 W. Bakerview Rd. +1.360.650.1111 E-MAIL An ongoing program of product improvement may woodstone-corp.com... - Page 16 M0030.07 APRIL 2017 WOOD STONE CORPORATION info@woodstone-corp.com 1801 W. Bakerview Rd. +1.360.650.1111 E-MAIL An ongoing program of product improvement may woodstone-corp.com...
- Page 17 M0030.07 APRIL 2017 WOOD STONE CORPORATION info@woodstone-corp.com 1801 W. Bakerview Rd. +1.360.650.1111 E-MAIL An ongoing program of product improvement may woodstone-corp.com Bellingham, WA 98226 USA +1.360.650.1166...
- Page 18 Mantle� Install the cover plate using the 4 screws provided� Mantle Faceplate Cover Screws M0030.07 APRIL 2017 WOOD STONE CORPORATION info@woodstone-corp.com 1801 W. Bakerview Rd. +1.360.650.1111 E-MAIL An ongoing program of product improvement may woodstone-corp.com...
- Page 19 Lower tab of Burner Guard fits into the front of the burner opening M0030.07 APRIL 2017 WOOD STONE CORPORATION info@woodstone-corp.com 1801 W. Bakerview Rd. +1.360.650.1111 E-MAIL An ongoing program of product improvement may woodstone-corp.com...
-
Page 20: Utility Connections
ANSI/NFPA 70, or the Canadian Electrical Code, CSA C22.2, as applicable. An electrical diagram is provided inside the bottom cover of the Control Box, and at the end of this manual� M0030.07 APRIL 2017 WOOD STONE CORPORATION info@woodstone-corp.com 1801 W. Bakerview Rd. - Page 21 The oven should be bolted to the floor using the holes provided at the base of the stand� NOTE: Rear panel must be installed for the proper functioning of the oven. M0030.07 APRIL 2017 WOOD STONE CORPORATION info@woodstone-corp.com 1801 W. Bakerview Rd. +1.360.650.1111...
-
Page 22: Storage Box Installation
DATE: 6/11/2013 Bistro Commercial Series - 4343 General Arrangement File Location: \\woodstone.net\dfs\CAD\0_Ovens\z_Be nA_Prelim\Bistro_Box\WS-BL-4343.dft M0030.07 APRIL 2017 WOOD STONE CORPORATION info@woodstone-corp.com 1801 W. Bakerview Rd. +1.360.650.1111 E-MAIL An ongoing program of product improvement may woodstone-corp.com Bellingham, WA 98226 USA +1.360.650.1166... -
Page 23: Controller
Use this switch to disable one of the at right)� burners (specify which burner will be disabled at time of order)� M0030.07 APRIL 2017 WOOD STONE CORPORATION info@woodstone-corp.com 1801 W. Bakerview Rd. +1.360.650.1111 E-MAIL An ongoing program of product improvement may woodstone-corp.com... -
Page 24: Initial Start-Up
NOTE: Small “crazing” cracks will occur with normal heating and cooling� They will not affect the performance or durability of the oven� If cracks of 3 mm (1/8") wide or more develop, contact Wood Stone for evaluation� FLAME HEIGHT INDICATOR... -
Page 25: Oven Operation
OVEN INTERIOR Wood Stone recommends the use of long-handled brushes for sweeping up surface debris that will accumulate on the floor of the oven during use� Use a natural fiber brush—always brushing away from the radiant burner well� For deeper cleaning, use a brass bristled brush�... -
Page 26: Daily Maintenance
GAS-FIRED OVEN THERMAL CLEANING If a Wood Stone gas-fired oven is operated at low temperatures below 274 °C (525 °F), you may notice a buildup on the oven floor� If you operate the oven below 232 °C (450 °F), you may also notice some buildup on the interior walls and/or ceiling of the oven�... -
Page 27: Troubleshooting Guide
Check that any interlocks external to the oven are turned on� 2. If controller still does not turn on, please contact Wood Stone for assistance� 1. Check gas is turned on to the oven, and gas shut-off valve is turned all Flame does not light the way on�... -
Page 28: 100-120 Vac Electrical Diagram
Yellow Brown White DIAG #: WD075 Rev. 2 Bellingham, WA +1(360)650-1111 www.woodstone-corp.com DATE: 2/2/2017 M0030.07 APRIL 2017 WOOD STONE CORPORATION info@woodstone-corp.com 1801 W. Bakerview Rd. +1.360.650.1111 E-MAIL An ongoing program of product improvement may woodstone-corp.com Bellingham, WA 98226 USA +1.360.650.1166... -
Page 29: 200-240 Vac Electrical Diagram
Yellow Brown White DIAG #: WD078 Rev. 1 Bellingham, WA +1(360)650-1111 www.woodstone-corp.com DATE: 2/2/2017 M0030.07 APRIL 2017 WOOD STONE CORPORATION info@woodstone-corp.com 1801 W. Bakerview Rd. +1.360.650.1111 E-MAIL An ongoing program of product improvement may woodstone-corp.com Bellingham, WA 98226 USA +1.360.650.1166... -
Page 30: Interlock Diagram
Any interruption of the power to the oven will cause the oven (including all burners and pilots) to shut off, and it will be necessary to restart the oven by pressing the start switch once power is restored� For additional interlock options, see the Wood Stone Interlock Options supplement in the Manuals section on the website, woodstone-corp.com, or contact your distributor for additional information�... -
Page 31: Limited Warranty
LIMITATIONS OF LIABILITY In the event of warranty claim or otherwise, the sole obligation of Wood Stone shall be the repair and/or replacement, at the option of Wood Stone, of the appliance or component or part thereof� Such repair or replacement shall be at the expense of Wood Stone with the exception of travel over 100 miles or two hours, overtime, and holiday charges which shall be at the expense of the purchaser�... - Page 32 WOOD STONE CORPORATION 1801 W. Bakerview Rd. Tel +1.360.650.1111 Bellingham, WA 98226 USA Fax +1.360.650.1166 www.woodstone-corp.com An ongoing program of product improvement may require us to change specifications without notice. M0030.07 APRIL 2017...
