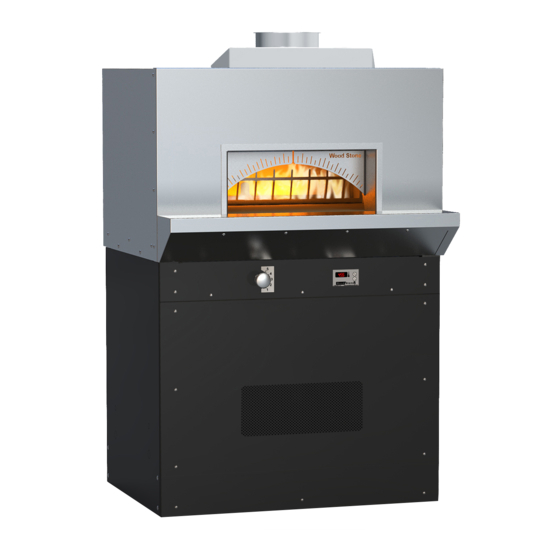

Wood Stone Bistro 3030 Installation And Operation Manual

Wood Stone Bistro 3030 Installation And Operation Manual

Bistro series, stone hearth

Advertisement

BiStro SerieS
Gas-Fired Stone Hearth Oven
Commercial European Models
Wood Stone Corporation
1801 W. Bakerview Rd.
Bellingham, WA 98226 USA
Installation and
Operation Manual
BiStro 3030
WS-BL-3030-RFG-CE
BiStro 4343
WS-BL-4343-RFG-CE, WS-BL-4343-RFG-W-CE
BiStro 4355
WS-BL-4355-RFG-CE, WS-BL-4355-RFG-W-CE
CUStoM ModeLS
WS-CS-REC-11-RFG-CE
Tel (360) 650-1111
Fax (360) 650-1166
www.woodstone-corp.com
Revised August 2010

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Bistro 3030 and is the answer not in the manual?

Questions and answers

Summary of Contents for Wood Stone Bistro 3030

  • Page 1 Installation and Operation Manual BiStro 3030 BiStro SerieS WS-BL-3030-RFG-CE BiStro 4343 Gas-Fired Stone Hearth Oven WS-BL-4343-RFG-CE, WS-BL-4343-RFG-W-CE BiStro 4355 Commercial European Models WS-BL-4355-RFG-CE, WS-BL-4355-RFG-W-CE CUStoM ModeLS WS-CS-REC-11-RFG-CE Wood Stone Corporation www.woodstone-corp.com 1801 W. Bakerview Rd. Tel (360) 650-1111 Revised August 2010...
  • Page 2 This page intentionally left blank >...
  • Page 3: Table Of Contents

    TABLE OF CONTENTS Bistro Installation and Operation Manual TABLE OF CONTENTS BISTRO lIne ----------------------------------------------------------------------------------- BISTRO 3030 SPeCIFICATIOnS ------------------------------------------------------------------ BISTRO 4343 SPeCIFICATIOnS ------------------------------------------------------------------ BISTRO 4355 SPeCIFICATIOnS ------------------------------------------------------------------ InSTAllATIOn CleARAnCeS -------------------------------------------------------------------- MOVInG THe OVen ----------------------------------------------------------------------------- ------------------------------------------------------------------------11 eXPlODeD PARTS VIeW ------------------------------------------------------------------------------------12 ASSeMBlY ------------------------------------------------------------------------------18...
  • Page 4: Bistro Line

    Bistro line BISTRO LINE Bistro Installation and Operation Manual INSTALLATION AND OPERATION MANUAL FOR ThE WOOD STONE BISTRO WS-BL-3030-RFG-CE-(NG,LP), WS-BL-4343-RFG-CE-(NG,LP) AND WS-BL-4355-RFG-CE-(NG,LP) EUROPEAN MODEL NATURAL GAS OR PROPANE FUELED STONE hEARTh OvEN INTERNAL TRANSITION MODELS. INCLUDES RFG-W MODELS. ThiS AppliAnce iS FoR pRoFeSSionAl USe By qUAliFied peRSonnel. ThiS AppliAnce mUST Be inSTAlled By qUAliFied peRSonS in AccoRdAnce WiTh The RegUlATionS in FoRce.
  • Page 5: Bistro 3030 Specifications

    BISTRO 3030 SPECIFICATIONS BiStro 3030 SpeCifiCationS Bistro Installation and Operation Manual Front view Side view Rear view Top view UtiLitieS SpeCifiCationS inlet pressure (mbar) en 437 gas group and | 3B/p(30) B/p(50) 2ell 3B/p(30) 3B/p(50) declared input (kW) 16.1 16.1 13.6 13.6...
  • Page 6: Bistro 4343 Specifications

    VentinG inforMation: The Bistro must be vented as a Type A or Type B Shipping Weight: 930 Kg appliance, and in accordance with all applicable codes. Wood Stone Corporation 1801 W. Bakerview Rd. Tel (360) 650-1111 Bellingham, WA 98226 USA...
  • Page 7: Bistro 4355 Specifications

    VentinG inforMation: The Bistro must be vented as a Type A or Type B Shipping Weight: 1134 Kg appliance, and in accordance with all applicable codes. Wood Stone Corporation 1801 W. Bakerview Rd. Tel (360) 650-1111 Bellingham, WA 98226 USA...
  • Page 8: Installation Clearances

    CLEARANCES a. The Wood Stone Bistro oven must have a minimum 25 mm clearance to combustibles from all sides, 155 mm clearance to combustibles from the top, and 155 mm clearance from the exhaust transition and flue collar. If building a facade that will contact the oven, use completely non-combustible materials.
  • Page 9: Moving The Oven

    Install a clevis in the top hole of each side piece of the tipping assembly. Use these for attachment of a lifting strap or chain. Wood Stone Corporation 1801 W. Bakerview Rd. Tel (360) 650-1111 Bellingham, WA 98226 USA...
  • Page 10 CONTINUE TO ThE ExPLODED DIAGRAM AND ASSEMBLy / REASSEMBLy INSTRUCTIONS. Wood Stone Corporation 1801 W. Bakerview Rd. Tel (360) 650-1111 Bellingham, WA 98226 USA...
  • Page 11: Exploded Parts View

    All parts shown above and provided with the oven (except the shipping panel) mUST be installed to ensure the safety and proper operation of the oven. Wood Stone Corporation 1801 W. Bakerview Rd. Tel (360) 650-1111 Bellingham, WA 98226 USA...
  • Page 12: Assembly

    3030 models only: Use 3/8"x 3/4"(9.5 mm x 19 mm) long carriage bolts as shown (upper 2 holes on each side) instead of the 3/8"x 1" (9.5 mm x 25 mm) long carriage bolts. Wood Stone Corporation 1801 W. Bakerview Rd.
  • Page 13 25mm) carriage bolts. Use the washers provided and tighten all nuts securely. Be sure to use the forklift pockets when lifting the body of the oven. Bistro 3030 models - forklift pockets are on the front only and do not extend all the way through the oven.
  • Page 14 6. Attach the Control Box to the oven using 4) 1/4- 20 (6.35mm diameter) screws. The control box should be oriented so the knob is on the left side of the control box. Wood Stone Corporation 1801 W. Bakerview Rd. Tel (360) 650-1111 Bellingham, WA 98226 USA...
  • Page 15 8. Install the burner tray. Slip front tabs of the burner tray over the lip of the burner while the rear tab of the burner tray slips over the threaded stud at the back of the burner. Install the wing nut onto the stud and tighten to secure the burner tray in place. Wood Stone Corporation 1801 W. Bakerview Rd. Tel (360) 650-1111...
  • Page 16 Install the cover plate using the screws provided (3 for Bl- 3030 and 4 for Bl-4343/Bl-4355) Wood Stone Corporation Toll Free (800) 988-8103 1801 W. Bakerview Rd. Tel (360) 650-1111...
  • Page 17 The logset pieces fit onto the studs on the burner guard, behind the opening in the guard, so the logs sit at the rear of the burner opening. Wood Stone Corporation Toll Free (800) 988-8103 1801 W. Bakerview Rd.
  • Page 18: Technical Data

    @ 28-30mbar, 37mbar, 50mbar - i - Se, ch, AT, dK, Fi, de, nl, no, hU, pl, Si, FR, cy, lT, SK, mT, B/p(28-30/37/50) and cZ Wood Stone Corporation 1801 W. Bakerview Rd. Tel (360) 650-1111 Bellingham, WA 98226 USA...
  • Page 19 (mbar) 11.2 11.2 17.4 17.4 17.4 17.4 Wood Stone Corporation 1801 W. Bakerview Rd. Tel (360) 650-1111 Bellingham, WA 98226 USA Fax (360) 650-1166 An ongoing program of product improvement may require us to change Info@woodstone-corp.com or visit www.woodstone-corp.com specifications without notice.
  • Page 20: Utilities

    Dataplate. Have a qualified gas installer provide the hookup and test all fittings and pipe connections for leaks. Wood Stone recommends that the oven be equipped with an individual shutoff valve and that this individual shutoff valve (supplied by others) be left easily accessible.
  • Page 21: Oven Venting

    1. The Wood Stone Bistro ovens can be vented as a Type A appliance (with no flue connection), designed to be installed under an exhaust hood (canopy). The hood must be a Type 1 (grease rated) hood connected to a (grease rated) duct system.
  • Page 22: Initial Startup

    The floor temperature is continuously displayed by the controller. This reading is being taken by a thermocouple about 1 inch (25 mm) below the floor surface, so the actual surface temperature may be somewhat different, and is best measured using a non-contact (IR) thermometer. Wood Stone Corporation 1801 W. Bakerview Rd. Tel (360) 650-1111...
  • Page 23: Daily Oven Operation

    DO NOT OPERATE ThE OvEN WITh DOORS IN PLACE. night door The night door should be removed whenever the oven is turned 'on'. Wood Stone Corporation 1801 W. Bakerview Rd. Tel (360) 650-1111 Bellingham, WA 98226 USA Fax (360) 650-1166 An ongoing program of product improvement may require us to change Info@woodstone-corp.com or visit www.woodstone-corp.com...
  • Page 24: Wood Burning Options

    Ashes can then be disposed of safely. Wood Stone's stainless steel ash shovel and, double compartment ash disposal system is a safe and convenient way to dispose of ash.
  • Page 25: Daily Maintenance

    OvEN INTERIOR Wood Stone recommends the use of a long-handled, brass bristled or natural fiber brush for sweeping aside excess food particles that will accumulate on the floor of the oven during use. The oven floor can be cleaned with a damp rag.
  • Page 26: Controller

    TEMPERATURE SCALE: press and hold this button to switch between celsius and Fahrenheit. TEMPERATURE READOUT: When the power is on, the hearth temperature is displayed in this window. Wood Stone Corporation 1801 W. Bakerview Rd. Tel (360) 650-1111 Bellingham, WA 98226 USA...
  • Page 27: Ce Electrical Diagram

    CE ELECTRICAL DIAGRAM Bistro Installation and Operation Manual WS-BL-3030, WS-BL-4343 AND WS-BL-4355 CE MODELS 230 vAc 50/60 hz (wired by others) Wood Stone Corporation 1801 W. Bakerview Rd. Tel (360) 650-1111 Bellingham, WA 98226 USA Fax (360) 650-1166 An ongoing program of product improvement may require us to change Info@woodstone-corp.com or visit www.woodstone-corp.com...
  • Page 28: Troubleshooting Guide

    3. Wind blowing into the oven, or other venting issues. 1. Thermocouple is not plugged into control box. Display reads 'OPen' 2. Damaged thermocouple - call Wood Stone. please contact your local distributor should service be necessary, or if you have any questions about your oven.
  • Page 29: Limited Warranty

    LIMITATIONS OF LIABILITy: In the event of warranty claim or otherwise, the sole obligation of Wood Stone shall be the repair and/or replacement, at the option of Wood Stone, of the appliance or component or part thereof. Such repair or replacement shall be at the expense of Wood Stone with the exception of travel over 100 miles or two hours, overtime, and holiday charges which shall be at the expense of the purchaser.
