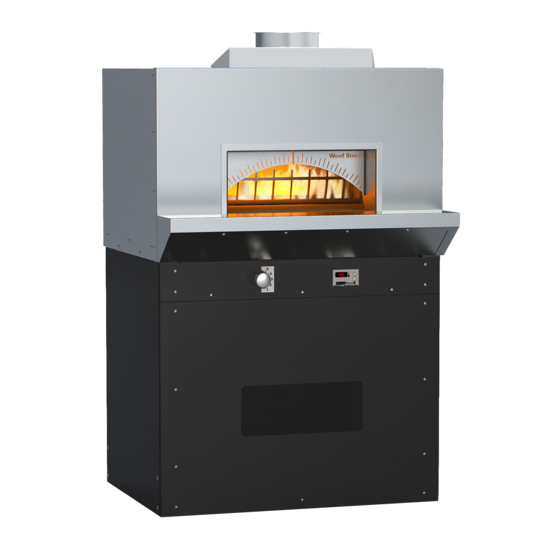

PHOENIX OVEN
Stone Hearth Oven
Radiant Flame, Gas-Fired Models
wood stone corporation
1801 w. bakerview rd.
bellingham, wa 98226 usa
Installation and
Operation Manual
PHOENIX 3030
WS-PX-3030-RFG
PHOENIX 4343
WS-PX-4343-RFG-(W)
PHOENIX 4355
WS-PX-4355-RFG-(W)
PHOENIX 4836
WS-PX-4836-RFG
t. +1.360.650.1111
f. +1.360.650.1166
woodstone-corp.com
Revised January 2015
Part no: 9500-0219
Doc no: M0029.04
Advertisement
Table of Contents
Related Manuals for Wood Stone PHOENIX 3030 WS-PX-3030-RFG
Summary of Contents for Wood Stone PHOENIX 3030 WS-PX-3030-RFG
- Page 1 PHOENIX OVEN WS-PX-4343-RFG-(W) Stone Hearth Oven PHOENIX 4355 Radiant Flame, Gas-Fired Models WS-PX-4355-RFG-(W) PHOENIX 4836 WS-PX-4836-RFG wood stone corporation woodstone-corp.com 1801 w. bakerview rd. t. +1.360.650.1111 Revised January 2015 bellingham, wa 98226 usa f. +1.360.650.1166 Part no: 9500-0219 Doc no: M0029.04...
-
Page 2: Table Of Contents
200-240 VAC WIRE DIAGRAMS � � � � � � � � � � � � � � �35 LIMITED WARRANTY � � � � � � � � � � � � � � � � � � � � � � �37 wood stone corporation 1801 w. bakerview rd. -
Page 3: Phoenix
PHOENIX Phoenix Installation and Operation Manual INSTALLATION AND OPERATION MANUAL FOR THE WOOD STONE PHOENIX STONE HEARTH COOKING EQUIPMENT COMMERCIAL INTERNAL TRANSITION MODELS WS-PX-3030-RFG-(NG, LP) WS-PX-4343-RFG-(W)-(NG, LP) WS-PX-4355-RFG-(W)-(NG, LP) WS-PX-4836-RFG-(NG, LP) ADDITIONAL COPIES AVAILABLE UPON REQUEST Shown: WS-PX-4343-RFG wood stone corporation 1801 w. -
Page 4: Cautions & Warnings
CAUTIONS & WARNINGS Phoenix Installation and Operation Manual WOOD STONE PHOENIX GAS OVEN INSTALLATION AND OPERATING INSTRUCTIONS RETAIN THIS MANUAL FOR FUTURE REFERENCE Additional copies of this manual are available at woodstone-corp�com� For prompt responses to service/maintenance questions, call your local distributor�... -
Page 5: Front View
HE INFORMATION CONTAINED IN THIS DRAWING IS THE 6" An ongoing program of product improvement may require us to change 55,000 BTU, NG ITHOUT THE WRITTEN PERMISSION OF WOOD STONE IS 150mm PERTY OF WOOD STONE CORPORATION SOLE PROPERTY OF WOOD STONE CORPORATION 9 3/4"... -
Page 6: Px-4343 Specifications
+1.360.650.1166 6" 10 1/2" 80,500 BTU, NG 150mm HOUT THE WRITTEN PERMISSION OF WOOD STONE IS SOLE PROPERTY OF WOOD STONE CORPORATION OF WOOD STONE CORPORATION An ongoing program of product improvement may require us to change 270mm 68,000 BTU, LP 7 3/4"... -
Page 7: Px-4355 Specifications
GAS INLET: 3/4" NPT GAS INLET: 3/4" NPT DUCTION OR USE IN PART OR AS A WHOLE ANY REPRODUCTION OR USE IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF WOOD STONE IS 41 3/4" 68,000 BTU, LP 80,500 BTU, NG 80,500 BTU, NG Revised January 2015. -
Page 8: Px-4836 Specifications
E INFORMATION CONTAINED IN THIS DRAWING IS THE 200mm ION OR USE IN PART OR AS A WHOLE 4 1/4" HOUT THE WRITTEN PERMISSION OF WOOD STONE IS SOLE PROPERTY OF WOOD STONE CORPORATION 110mm bellingham, wa 98226 usa f. +1.360.650.1166... -
Page 9: Installation Clearances
CLEARANCES a. The Wood Stone Phoenix oven must have a minimum 25 mm (1") clearance to combustibles from all sides, 152 mm (6") clearance to combustibles from the top and 152 mm (6") from the flue collar. If building a facade that will contact the oven, use completely non-combustible materials�... -
Page 10: Oven Venting
149 °C (300 °F), 232 °C (450 °F) for units burning solid fuel� Use a stack or curb mounted fan� Wood Stone does not recommend the use of an in-line fan� A static pressure of 0�25 mbar (-0�1 inches) water column is necessary at the oven flue collar to ensure proper flue temperatures at the fan�... -
Page 11: Moving The Oven
1801 w. bakerview rd. t. +1.360.650.1111 bellingham, wa 98226 usa f. +1.360.650.1166 An ongoing program of product improvement may require us to change info@woodstone-corp.com or visit woodstone-corp.com... -
Page 12: Lifting The Oven
USING THE OPTIONAL LIFTING SYSTEM An optional Lifting System is available from Wood Stone to facilitate tipping the oven body onto its back and lifting it� When turned on its back, the upper oven portion of Phoenix models 4343, 4355 and 4836 will be approximately 32 inches wide� This will allow for easier access through small passages�... - Page 13 LIFTING THE OVEN Phoenix Installation and Operation Manual 10. Once the oven is on the other side of the passageway, attach strap to the clevises at the Lifting Holes on the Crosspiece and, with a gantry crane, lift the oven straight up�...
-
Page 14: Exploded Parts Diagram
Discard once removed.) All parts shown below, rear panel included, provided with the oven (except the shipping panel) MUST be installed to ensure the safe and proper operation of the oven. wood stone corporation 1801 w. bakerview rd. t. +1.360.650.1111 bellingham, wa 98226 usa f. -
Page 15: Assembly
9�5 x 25 mm (3/8 x 1") long carriage Carriage bolts bolts� 9�5 x 25mm (3/8 x 1") 3030 only: 9�5 x 19mm (3/8 x 3/4") wood stone corporation 1801 w. bakerview rd. t. +1.360.650.1111 bellingham, wa 98226 usa f. +1.360.650.1166 An ongoing program of product improvement may require us to change info@woodstone-corp.com or visit woodstone-corp.com... - Page 16 1801 w. bakerview rd. t. +1.360.650.1111 bellingham, wa 98226 usa f. +1.360.650.1166 An ongoing program of product improvement may require us to change info@woodstone-corp.com or visit woodstone-corp.com...
- Page 17 6. Attach the control box to the oven using (4) 1/4-20 screws� The control box should be oriented so the knob is on the left side of the control box� (4) 1/4-20 screws wood stone corporation 1801 w. bakerview rd. t. +1.360.650.1111 bellingham, wa 98226 usa f. +1.360.650.1166 An ongoing program of product improvement may require us to change info@woodstone-corp.com or visit woodstone-corp.com...
- Page 18 Refer to control box image on the following page for additional detail. NOTE: Once oven is assembled and installed, be sure to leak-check all gas connections� wood stone corporation 1801 w. bakerview rd. t. +1.360.650.1111 bellingham, wa 98226 usa f. +1.360.650.1166 An ongoing program of product improvement may require us to change info@woodstone-corp.com or visit woodstone-corp.com...
- Page 19 Carriage bolt Washer & nut not shown Washer Bolt wood stone corporation 1801 w. bakerview rd. t. +1.360.650.1111 bellingham, wa 98226 usa f. +1.360.650.1166 An ongoing program of product improvement may require us to change info@woodstone-corp.com or visit woodstone-corp.com specifications without notice.
- Page 20 The log set pieces fit onto the studs on the burner (right side not shown)� guard, behind the opening in the guard, so the logs sit at the rear of the burner opening� wood stone corporation 1801 w. bakerview rd. t. +1.360.650.1111 bellingham, wa 98226 usa f.
-
Page 21: Utility Connections
This appliance must be electrically grounded in accordance with local code, or in the absence of local code, with the national electrical code, ANSI/NFPA 70, or the Canadian Electrical Code, CSA C22.2, as applicable. wood stone corporation 1801 w. bakerview rd. - Page 22 The oven should be bolted to the floor using the holes provided at the base of the stand� NOTE: Rear panel MUST be installed for the proper functioning of the oven. wood stone corporation 1801 w. bakerview rd. t. +1.360.650.1111 bellingham, wa 98226 usa f.
-
Page 23: Storage Box Installation
DATE: 6/11/2013 Bistro Commercial Series - 4343 General Arrangement File Location: \\woodstone.net\dfs\CAD\0_Ovens\z_Be nA_Prelim\Bistro_Box\WS-BL-4343.dft wood stone corporation 1801 w. bakerview rd. t. +1.360.650.1111 bellingham, wa 98226 usa f. +1.360.650.1166 An ongoing program of product improvement may require us to change info@woodstone-corp.com or visit woodstone-corp.com specifications without notice. -
Page 24: Disassembly
Carefully bend the remaining length of tube damage while moving the from the pilot up inside the burner assembly to main body. protect it. wood stone corporation 1801 w. bakerview rd. t. +1.360.650.1111 bellingham, wa 98226 usa f. +1.360.650.1166 An ongoing program of product improvement may require us to change info@woodstone-corp.com or visit woodstone-corp.com... - Page 25 LIFTING THE OVEN section� Disassemble the stand if necessary� Follow the assembly instructions in the ASSEMBLY section to reassemble the oven� wood stone corporation 1801 w. bakerview rd. t. +1.360.650.1111 bellingham, wa 98226 usa f. +1.360.650.1166 An ongoing program of product improvement may require us to change info@woodstone-corp.com or visit woodstone-corp.com...
-
Page 26: Controller
Controller Use this knob to raise/lower the flame to control the oven temperature. Controller wood stone corporation 1801 w. bakerview rd. t. +1.360.650.1111 bellingham, wa 98226 usa f. +1.360.650.1166 An ongoing program of product improvement may require us to change info@woodstone-corp.com or visit woodstone-corp.com... -
Page 27: Initial Start-Up
NOTE: Small “crazing” cracks will occur with normal heating and cooling� They will not affect the performance or durability of the oven� If cracks of 3 mm (1/8") wide or more develop, contact Wood Stone for evaluation� FLAME HEIGHT INDICATOR... -
Page 28: Daily Operation
Make sure the night door is removed� Push I/O button and turn the Radiant Flame to its highest setting using the Flame Height Control Knob� Heat-up times will vary, the longer your oven is off the cooler it will get� On average your Wood Stone oven depending on size and configuration should heat up between 43–65 °C (110–150 °F) an hour with Radiant Flame all the way up�... -
Page 29: Maintenance
GAS-FIRED OVEN THERMAL CLEANING If a Wood Stone gas-fired oven is operated at low temperatures below 274 °C (525 °F), you may notice a buildup on the oven floor� If you operate the oven below 232 °C (450 °F), you may also notice some buildup on the interior walls and/or ceiling of the oven� To remove any buildup that has accumulated inside of the oven, simply turn the Radiant Flame to its highest setting�... -
Page 30: Wood Burning
“green” wood, will cause a build-up of creosote residue throughout the exhaust system� (See the FUELWOOD FACTS section of this manual, or consult Wood Stone for information on what types of wood can be used for oven fuel�) The fire should be ignited a couple of hours before the oven needs to be at cooking temperature�... - Page 31 The interior floor and dome of the oven do not require creosote or soot removal� The oven flue and exhaust system will require inspection and cleaning� The exhaust system must be inspected and cleaned per the manufacturer’s and or local code official’s recommendations� Wood Stone recommends cleaning and inspection at least monthly on any ventilation system serving solid fuel equipment.
-
Page 32: Fuelwood Facts
Wet wood is the most common operational difficulty associated with wood-fired cooking equipment� Wood Stone’s optional Mini-Ligno E Wood Moisture Meter can save you from paying for water when you thought you were paying for wood (see the Tools &... -
Page 33: Vac Wire Diagrams
WD070 Rev. 0 Bellingham, WA +1(360)650-1111 www.woodstone-corp.com DATE: 11/14/2014 See equipment data plate for correct voltage of your oven� wood stone corporation 1801 w. bakerview rd. t. +1.360.650.1111 bellingham, wa 98226 usa f. +1.360.650.1166 An ongoing program of product improvement may require us to change info@woodstone-corp.com or visit woodstone-corp.com... - Page 34 MODELS PRODUCED BEFORE APRIL 2005 100-120 VAC, 50-60 Hz wired by others As specified on equipment data plate See equipment data plate for correct voltage of your oven� wood stone corporation 1801 w. bakerview rd. t. +1.360.650.1111 bellingham, wa 98226 usa f. +1.360.650.1166 An ongoing program of product improvement may require us to change info@woodstone-corp.com or visit woodstone-corp.com...
-
Page 35: Vac Wire Diagrams
WD077 Rev. 0 Bellingham, WA +1(360)650-1111 www.woodstone-corp.com DATE: 12/12/2014 See equipment data plate for correct voltage of your oven� wood stone corporation 1801 w. bakerview rd. t. +1.360.650.1111 bellingham, wa 98226 usa f. +1.360.650.1166 An ongoing program of product improvement may require us to change info@woodstone-corp.com or visit woodstone-corp.com... - Page 36 200-240 VAC as wired by others specified on dataplate As specified on equipment data plate See equipment data plate for correct voltage of your oven� wood stone corporation 1801 w. bakerview rd. t. +1.360.650.1111 bellingham, wa 98226 usa f. +1.360.650.1166 An ongoing program of product improvement may require us to change info@woodstone-corp.com or visit woodstone-corp.com...
-
Page 37: Limited Warranty
LIMITATIONS OF LIABILITY In the event of warranty claim or otherwise, the sole obligation of Wood Stone shall be the repair and/or replacement, at the option of Wood Stone, of the appliance or component or part thereof� Such repair or replacement shall be at the expense of Wood Stone with the exception of travel over 100 miles or two hours, overtime, and holiday charges which shall be at the expense of the purchaser�...
