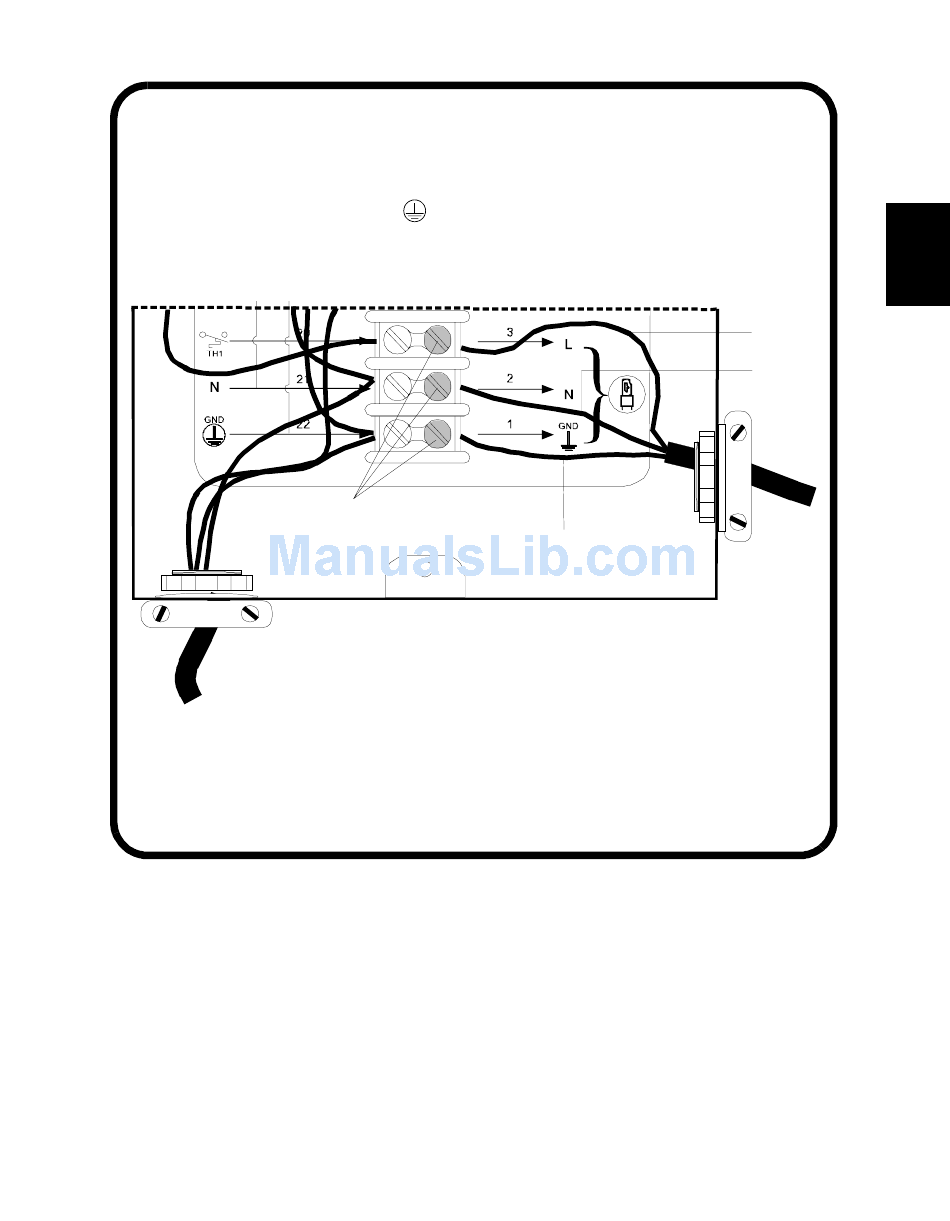

Using a flat head screwdriver, loosen the three Ecodome terminal screws
reserved for the fixture's cable (shaded below).
Insert the fixture's Live, Neutral, and Ground/Earth wires into the
appropriatly-marked terminal. The Ecodome terminals are marked "L" for
Live, "N" for Neutral and "
For more information on the fixture's power cord, consult the fixture's user
manual.
After inserting each wire, tighten its terminal screw to 12 in. lb. (1.36 N-m)
to secure the wire to the terminal block.
When you have finished, tighten the cable clamp screws and replace the
circuit box lid.
®
Ecodome
User Manual
" for Ground/Earth.
terminal screws
Ground
Installing the Fixture
2
Live
Neutral
2-7
