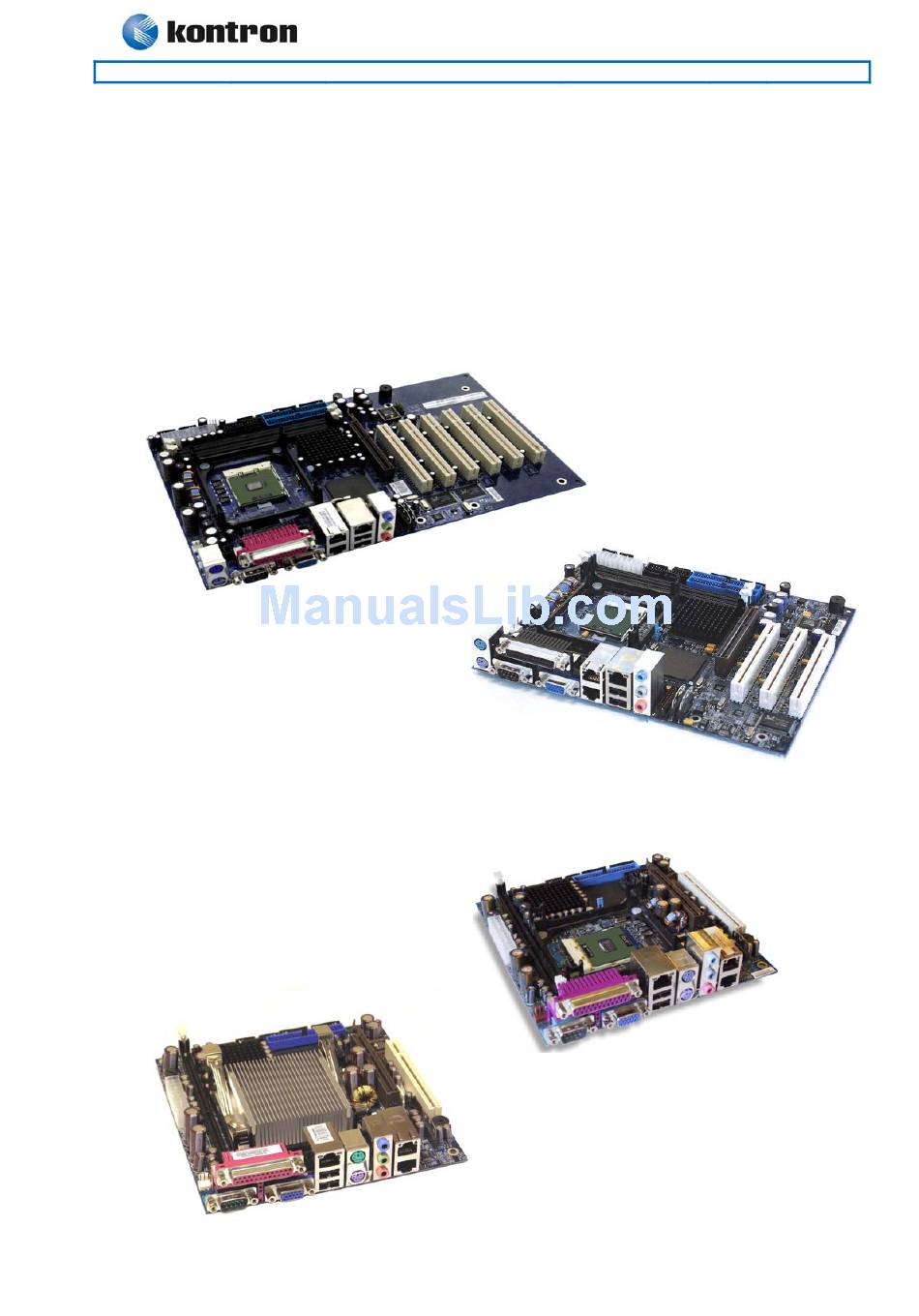

Page 1: User Manual
886LCD-M Family KTD-00474-U Public User Manual Date: 2010-06-22 Page 1 of 81 User Manual for the Mother Boards: 886LCD-M/ATX 886LCD-M/Flex 886LCD-M/mITX 886LCD-M/mITX BGA... -
Page 2: Document Revision History
Brand and product names are trademarks or registered trademarks of their respective owners. Disclaimer: KONTRON Technology A/S reserves the right to make changes, without notice, to any product, including circuits and/or software described or contained in this manual in order to improve design and/or performance. -
Page 3: Life Support Policy
KONTRON Technology Technical Support and Services If you have questions about installing or using your KONTRON Technology Product, check this User’s Manual first – you will find answers to most questions here. To obtain support, please contact your local Distributor or Field Application Engineer (FAE). -
Page 4: Table Of Contents
Recommended Power Supply specifications ................18 886LCD-M Clock Distribution ......................19 CONNECTOR DEFINITIONS........................21 Connector layout..........................22 4.1.1 886LCD-M/Flex...........................22 4.1.2 886LCD-M/ATX ..........................23 4.1.3 886LCD-M/mITX.........................24 Power Connector (ATXPWR) ......................25 Keyboard and PS/2 mouse connectors ..................26 4.3.1 Stacked MINI-DIN keyboard and mouse Connector (MSE & KBD) ...........26 4.3.2... - Page 5 886LCD-M Family KTD-00474-U Public User Manual Date: 2010-06-22 Page 5 of 81 Serial Ports ............................39 4.8.1 Com1 (Port1) DB9 Connector....................39 4.8.2 Com2, Com3 & Com4 Pin Header Connectors................39 Ethernet connectors........................40 4.9.1 Ethernet connector 1 (ETHER1)....................40 4.9.2 Ethernet connector 2/3 (ETHER2/3)...................41 4.10 USB Connector (USB)........................42 4.10.1...
- Page 6 886LCD-M Family KTD-00474-U Public User Manual Date: 2010-06-22 Page 6 of 81 8.3.3 Advanced settings – LAN Configuration..................61 8.3.4 Advanced settings – Floppy Configuration .................62 8.3.5 Advanced settings – SuperIO Configuration ................63 8.3.6 Advanced settings – Hardware Health Configuration ..............64 8.3.7 Advanced settings –...
-
Page 7: Introduction
This manual describes the 886LCD-M/Flex, 886LCD-M/ATX and 886LCD-M/mITX boards made by KONTRON Technology A/S. The boards will also be denoted 886LCD family if no differentiation is required. All boards are to be used with the Intel® Pentium® M & Intel Celeron® M Processors. -
Page 8: Installation Procedure
80poled UDMA cables must be used. If using the IDE_S2 connector care should be taken in correct orientation. The cables that KONTRON provide do not have a key. There is a risk of damaging the HDD or PCB if the cable is not orientated correctly. -
Page 9: Requirement According To En60950
886LCD-M Family KTD-00474-U Public User Manual Date: 2010-06-22 Page 9 of 81 2.2 Requirement according to EN60950 Users of 886LCD boards should take care when designing chassis interface connectors in order to fulfill the EN60950 standard: When an interface/connector has a VCC (or other power) pin, which is directly connected to a power plane like the VCC plane: To protect the external power lines of peripheral devices the customer has to take care about: •... -
Page 10: System Specification
Date: 2010-06-22 Page 10 of 81 3. System specification 3.1 Component main data The table below summarises the features of the 886LCD-M/Flex, 886LCD-M/ATX and 886LCD-M/mITX embedded motherboards. 886LCD-M/Flex: Flex-ATX (190,50mm by 228,60mm) Form factor 886LCD-M/ATX: ATX (190,50mm by 304,00mm) 886LCD-M/mITX: mini ITX (170.18mm by 170.18mm) •... - Page 11 Support depending on board configuration. PXE and RPL netboot supported. Wake On LAN (WOL) supported (on ETH1 only). • Kontron Technology / AMI BIOS (core version) BIOS • Support for Advanced Configuration and Power Interface (ACPI 1.0, 2.0), Plug and...
- Page 12 886LCD-M Family KTD-00474-U Public User Manual Date: 2010-06-22 Page 12 of 81 Environmental Operating: Conditions 0°C – 60°C operating temperature (forced cooling). It is the customer’s responsibility to provide sufficient airflow around each of the components to keep them within allowed temperature range.
-
Page 13: Processor Support Table
Embedded having TDP (Thermal Design Power) 5.5W (other specifications as for ULV Banias and Dothan). 3.3 System Memory support The 886LCD-M/Flex and 886LCD-M/ATX boards have two onboard DIMM sockets (886LCD-M/mITX equipped with one DIMM socket only) and support the following memory features: •... -
Page 14: System Overview
886LCD-M Family KTD-00474-U Public User Manual Date: 2010-06-22 Page 14 of 81 3.4 System overview The block diagram below shows the architecture and main components of the 886LCD boards. The two key ® ® components on the board are the Intel 855GME and Intel 6300ESB (ICH(S)) Embedded Chipsets. -
Page 15: 886Lcd-M Power Distribution & Power State Map
886LCD-M Family KTD-00474-U Public User Manual Date: 2010-06-22 Page 15 of 81 3.5 886LCD-M Power Distribution & Power State Map Battery or ATX PSU +V3.3_ALWAY +V_RTC Ref.: ATXPWR Ref.: +V5_ALWAYS +V5S +V3.3S VCC12 VCC-12 BT1II VCC-12 VCC12 LDO Regulator +V1.8S Ref. - Page 16 886LCD-M Family KTD-00474-U Public User Manual Date: 2010-06-22 Page 16 of 81 +VCC_CORE Processor +VCCP Ref.: +V1.8S BANIAS_ +VCCP +V5S +V1.2S North Bridge +V3.3S +V1.5S Ref.: VCC12 +V2.5 GMCH_ VCC-12 +V3.3S +V1.8S +VCC_CORE +VCCP +V5S +V1.2S +V3.3S +V1.5S +V1.5S +V2.5 +VCCP South Bridge +V1.25S...
-
Page 17: Power Consumption
3.6 Power Consumption This section lists a summary of the power consumption of the 886LCD-M Boards. For additional details, please refer to the Power Supply Characteristics document available from Kontron Technology. The idle/full power consumption of the 886LCD-M is measured under: 1- DOS prompt idle/full CPU load. -
Page 18: Power Consumption, Total
886LCD-M Family KTD-00474-U Public User Manual Date: 2010-06-22 Page 18 of 81 3.6.3 Power Consumption, Total 886LCD-M board (3x1GB LAN) with Pentium M 1600/400MHz (1MB L2 Cache), 256MB DDR RAM (333MHz) Power State CPU Speed Power consumption Full load 1600Mhz 37.0W Idle 1600Mhz... -
Page 19: 886Lcd-M Clock Distribution
886LCD-M Family KTD-00474-U Public User Manual Date: 2010-06-22 Page 19 of 81 3.7 886LCD-M Clock Distribution HO ST C LO C K PAIRS CLK_CPU_BCLK & CLK_CPU_BCLK# 100M Hz Processor CLK_ITP_CPU & CLK_ITP_CPU # R ef.: Banias_ 100M Hz CLK_M CH_BC LK & C LK_M CH_BCLK# 100M Hz North Bridge DR EFSSC LK... - Page 20 886LCD-M Family KTD-00474-U Public User Manual Date: 2010-06-22 Page 20 of 81 C R T V G A R ef.: C R T _ C O M A _ LP T _ D D R M em o ry D A C _D D C A C LK R e f.: D D R 0, M _ C L K _D D R X &...
-
Page 21: Connector Definitions
886LCD-M Family KTD-00474-U Public User Manual Date: 2010-06-22 Page 21 of 81 4. Connector Definitions The following sections provide pin definitions and detailed description of all on-board connectors. The connector definitions follow the following notation: Column Description name Shows the pin-numbers in the connector. The graphical layout of the connector definition tables is made similar to the physical connectors. -
Page 22: Connector Layout
886LCD-M Family KTD-00474-U Public User Manual Date: 2010-06-22 Page 22 of 81 4.1 Connector layout 4.1.1 886LCD-M/Flex IDE_S2 SATA0 IDE_S DDR1 DDR0 SATA1 FRONTPNL IDE_P Clr-CMOS FAN_SYS LVDS AGP/DVO ATXPWR FEATURE CDROM COM2 (Port2) COM3 (SIO Port1) PCI SLOT 3 COM4 PCI SLOT 2 (SIO Port2) -
Page 23: 886Lcd-M/Atx
886LCD-M Family KTD-00474-U Public User Manual Date: 2010-06-22 Page 23 of 81 4.1.2 886LCD-M/ATX IDE_S2 IDE_S SATA0 DDR1 DDR0 IDE_P SATA1 FRONTPNL Clr-CMOS FAN_SYS AGP/DVO LVDS ATXPWR CDROM FEATURE PCI SLOT 6 COM2 PCI SLOT 5 (Port2) PCI SLOT 4... -
Page 24: 886Lcd-M/Mitx
886LCD-M Family KTD-00474-U Public User Manual Date: 2010-06-22 Page 24 of 81 4.1.3 886LCD-M/mITX CF (backside of 886LCD-M/mITX) FAN_SYS Clr-CMOS IDE_S2 SATA0 FRONTPNL LVDS FEATURE SATA1 IDE_P DDR0 AGP/DVO KBDMSE AUDIO CDROM ATXPWR COM3 (SIO Port1) COM4 (SIO Port2) COM2 ETHER2 (Port2) ETHER3... -
Page 25: Power Connector (Atxpwr)
KTD-00474-U Public User Manual Date: 2010-06-22 Page 25 of 81 4.2 Power Connector (ATXPWR) The 886LCD-M/Flex, 886LCD-M/ATX and 886LCD-M/mITX is designed to be supplied from a standard ATX power supply. Power Connector 886LCD-M/Flex, 886LCD-M/ATX and 886LCD-M/mITX Pull Pull Note Ioh/Iol... -
Page 26: Keyboard And Ps/2 Mouse Connectors
886LCD-M Family KTD-00474-U Public User Manual Date: 2010-06-22 Page 26 of 81 4.3 Keyboard and PS/2 mouse connectors Attachment of a keyboard or PS/2 mouse adapter can be done through the stacked PS/2 mouse and keyboard connector (MSE & KBD). Both interfaces utilize open-drain signaling with on-board pull-up. -
Page 27: Display Connectors
886LCD-M Family KTD-00474-U Public User Manual Date: 2010-06-22 Page 27 of 81 4.4 Display Connectors The 886LCD board family provides onboard two basic types of interfaces to a display: Analog CRT interface and a digital interface typically used with flat panels. The digital interface to flat panels can be achieved through the onboard LVDS dual channel interface and/or the DVO port available on the AGP connector. -
Page 28: Lvds Flat Panel Connector (Lvds)
886LCD-M Family KTD-00474-U Public User Manual Date: 2010-06-22 Page 28 of 81 4.4.2 LVDS Flat Panel Connector (LVDS) Note Type Signal Signal Type Note Max. 0.5A +12V +12V Max. 0.5A Max. 0.5A +12V +12V Max. 0.5A Max. 0.5A +12V Max. 0.5A Max. -
Page 29: Agp/Dvo Connector
886LCD-M Family KTD-00474-U Public User Manual Date: 2010-06-22 Page 29 of 81 4.4.3 AGP/DVO connector Note Type Signal Signal Type Note OVRCNT +12V TYPEDET RSVD USB+ USB- INTB INTA AGPCLK RST- GREQ GGNT +3.3V +3.3V RSVD PIPE RSVD ADD_ID0 ADD_ID1 +3.3V +3.3V ADD_ID2... - Page 30 886LCD-M Family KTD-00474-U Public User Manual Date: 2010-06-22 Page 30 of 81 Signal Description – AGP Connector: Signal Description Address Pipelined Read: This signal is asserted by the AGP master to indicate a full width address is to PIPE# be enqueued on by the target using the AD bus. One address is placed in the AGP request queue on each rising clock edge while PIPE# is asserted.
- Page 31 886LCD-M Family KTD-00474-U Public User Manual Date: 2010-06-22 Page 31 of 81 AGP/PCI Signals-Semantics G_FRAME: Frame. FRAME# During PIPE# and SBA Operation: Not used by AGP SBA and PIPE# operations. During Fast Write Operation: Used to frame transactions as an output during Fast Writes.
- Page 32 886LCD-M Family KTD-00474-U Public User Manual Date: 2010-06-22 Page 32 of 81 CBE#[3:0] Command/Byte Enable. During FRAME# Operation: During the address phase of a transaction, the G_CBE[3:0]# signals define the bus command. During the data phase, the G_CBE[3:0]# signals are used as byte enables.
-
Page 33: Parallel Ata Harddisk Interface
886LCD-M Family KTD-00474-U Public User Manual Date: 2010-06-22 Page 33 of 81 4.5 Parallel ATA harddisk interface Two parallel ATA harddisk controllers are available on the board – a primary and a secondary controller. Standard 3½” harddisks or CD-ROM drives may be attached to the primary and secondary controller board by means of the 40 pin IDC connectors, IDE_P and IDE_S. -
Page 34: Ide Hard Disk Connector (Ide_P)
886LCD-M Family KTD-00474-U Public User Manual Date: 2010-06-22 Page 34 of 81 4.5.1 IDE Hard Disk Connector (IDE_P) This connector can be used for connection of two primary IDE drives. Pull Pull Note Ioh/Iol Type Signal Signal Type Ioh/Iol Note RESETA# DA10 DA11... -
Page 35: Ide Hard Disk Connector (Ide_S2)
886LCD-M Family KTD-00474-U Public User Manual Date: 2010-06-22 Page 35 of 81 4.5.3 IDE Hard Disk Connector (IDE_S2) This connector (44-pin 2.0 mm pitch) can be used for connection of up till two secondary IDE drives, but only if no drive(s) is installed via IDE_S socket. Pull Pull Note... -
Page 36: Cf Connector (Cf)
886LCD-M Family KTD-00474-U Public User Manual Date: 2010-06-22 Page 36 of 81 4.5.4 CF Connector (CF) This connector is mounted on the backside of the 886LCD-M/mITX only. If a Compact Flash Disk is used, then no IDE drive can be connected to the IDE_S2 connector. The socket support DMA/UDMA modules. Pull Pull Note... -
Page 37: Serial Ata Harddisk Interface
886LCD-M Family KTD-00474-U Public User Manual Date: 2010-06-22 Page 37 of 81 4.6 Serial ATA harddisk interface Two serial ATA harddisk controllers are available on the board – a primary controller (SATA0) and a secondary controller (SATAB). 4.6.1 SATA Hard Disk Connector (SATA0, SATA1) SATA0: Pull Signal... -
Page 38: Printer Port Connector (Printer)
886LCD-M Family KTD-00474-U Public User Manual Date: 2010-06-22 Page 38 of 81 4.7 Printer Port Connector (PRINTER). The printer port connector is provided in a standard DB25 pinout. The signal definition in standard printer port mode is as follows: Pull Pull Note Ioh/Iol... -
Page 39: Serial Ports
Date: 2010-06-22 Page 39 of 81 4.8 Serial Ports Four RS232C serial ports are available on the 886LCD-M/Flex, 886LCD-M/ATX and 886LCD-M/mITX. The typical interpretation of the signals in the COM ports is as follows: Signal Description Transmitte Data, sends serial data to the communication link. The signal is set to a marking state on hardware reset when the transmitter is empty or when loop mode operation is initiated. -
Page 40: Ethernet Connectors
Page 40 of 81 4.9 Ethernet connectors. The 886LCD-M/Flex, 886LCD-M/ATX and 886LCD-M/mITX boards supports 3 channels of 10/100/1000Mb Ethernet. In order to achieve the specified performance of the Ethernet port, Category 5 twisted pair cables must be used with 10/100MB and Category 5E, 6 or 6E with 1Gb LAN networks. -
Page 41: Ethernet Connector 2/3 (Ether2/3)
886LCD-M Family KTD-00474-U Public User Manual Date: 2010-06-22 Page 41 of 81 4.9.2 Ethernet connector 2/3 (ETHER2/3) The two Ethernet channels in ETHER2/3 are supported by two discrete Ethernet controllers connected to the onboard PCI bus. This connector is not supported on the Engineering sample boards. The pinout of the RJ45’s connector are as follows: Signal Type... -
Page 42: Usb Connector (Usb)
42 of 81 4.10 USB Connector (USB) The 886LCD-M/Flex, 886LCD-M/ATX and 886LCD-M/mITX contains two USB (Universal Serial Bus) ports UHCI Host Controllers. Each Host Controller includes a root hub with two separate USB ports each, for a total of 4 USB ports. -
Page 43: Audio Connector
886LCD-M Family KTD-00474-U Public User Manual Date: 2010-06-22 Page 43 of 81 4.11 Audio Connector 4.11.1 Audio Line-in, Line-out and Microphone Audio Line-in, Line-out and Microphone are available in the stacked audio jack connector. Signal Type Note Line in – Left RING Line in –... -
Page 44: Audio Header (Audio_Head)
886LCD-M Family KTD-00474-U Public User Manual Date: 2010-06-22 Page 44 of 81 4.11.3 AUDIO Header (AUDIO_HEAD) Pull Ioh/ Ioh/ Pull Note Type Signal Signal Type Note AMP-LFE-OUT AMP-CEN-OUT AAGND AAGND SPKR_OUT_L SPKR_OUT_R AAGND AAGND SURR-OUT-L SURR-OUT-R 11 12 AAGND 13 14 AAGND F-FRONT-MIC1 15 16... -
Page 45: Fan Connectors , Fan_Proc And Fan_Sys
886LCD-M Family KTD-00474-U Public User Manual Date: 2010-06-22 Page 45 of 81 4.12 Fan connectors , FAN_PROC and FAN_SYS. The FAN_PROC is used for connection of the active cooler for the CPU. The FAN_SYS can be used to power, control and monitor a fan for chassis ventilation etc. Pull Signal Type... -
Page 46: Front Panel Connector (Frontpnl)
886LCD-M Family KTD-00474-U Public User Manual Date: 2010-06-22 Page 46 of 81 4.15 Front Panel connector (FRONTPNL). Pull Pull Note Ioh/Iol Type Signal Signal Type Ioh/Iol Note USB13_5V USB13_5V USB1- USB3- USB1+ USB3+ 11 12 HD_LED 13 14 SUS_LED 15 16 PWRBTN_IN# RSTIN# 17 18... -
Page 47: Feature Connector (Feature)
General Purpose Inputs / Output. These Signals may be controlled or monitored through GPIO0..7 the use of the KONTRON API (Application Programming Interface) available for Win98, WinXP and Win2000. FAN 3 speed control OUTput. This analogue voltage output signal can be used to FAN3OUT control the Fan’s speed. -
Page 48: Pci Slot Connector
886LCD-M Family KTD-00474-U Public User Manual Date: 2010-06-22 Page 48 of 81 4.17.1 PCI Slot Connector Terminal Note Type Signal Signal Type Note -12V TRST# +12V INTA# INTB# INTC# INTD# REQ2# CLKC REQ3# +5V (I/O) GNT2# CLKD CLKA GNT3# RST# CLKB +5V (I/O) GNT0#... -
Page 49: Signal Description -Pci Slot Connector
886LCD-M Family KTD-00474-U Public User Manual Date: 2010-06-22 Page 49 of 81 4.17.2 Signal Description –PCI Slot Connector SYSTEM PINS Clock provides timing for all transactions on PCI and is an input to every PCI device. All other PCI signals, except RST#, INTA#, INTB#, INTC#, and INTD#, are sampled on the rising edge of CLK and all other timing parameters are defined with respect to this edge. - Page 50 886LCD-M Family KTD-00474-U Public User Manual Date: 2010-06-22 Page 50 of 81 ARBITRATION PINS (BUS MASTERS ONLY) Request indicates to the arbiter that this agent desires use of the bus. This is a point to point signal. Every REQ# master has its own REQ# which must be tri-stated while RST# is asserted. Grant indicates to the agent that access to the bus has been granted.
-
Page 51: 886Lcd-M Pci Irq & Int Routing
The BIOS option of “PCI riser Support” is for support of another type of dual PCI Riser module having one PCI slot IDSEL / IRQs signals routed straight through and the other PCI slot routing: IDSEL=AD19, INT_PIRQ#H, INT_PIRQ#E, INT_PIRQ#F, INT_PIRQ#G. Such a Riser card to be is not available from Kontron at present time. -
Page 52: Onboard Connectors
Molex 22-23-2061 Molex 22-01-2065 CDROM Foxconn HF1104E Molex 50-57-9404 Molex 70543-0038 SATA0 Molex 67491-0020 Molex 67489-8005 SATA1 Kontron KT 821035 (cable kit) ATXPWR FoxConn HM2510E Molex 39-01-2205 COM2 Foxconn HL20051 Molex 90635-1103 COM3 Kontron KT 821016 (cable kit) COM4 Kontron... -
Page 53: System Ressources
886LCD-M Family KTD-00474-U Public User Manual Date: 2010-06-22 Page 53 of 81 6. System Ressources 6.1 Memory map Address range (hex) Size Description 00000000- 0007FFFF 512 Kbytes Conventional memory 00080000- 0009FBFF 127 Kbyte Extended conventional memory 0009FC00- 0009FFFF 1 Kbyte Extended BIOS data 000A0000- 000AFFFF... -
Page 54: Interrupt Usage
886LCD-M Family KTD-00474-U Public User Manual Date: 2010-06-22 Page 54 of 81 6.3 Interrupt Usage Notes • • IRQ0 • IRQ1 • IRQ2 • • • • • 1, 2 IRQ3 • • • • • 1, 2 IRQ4 • •... -
Page 55: I/O Map
886LCD-M Family KTD-00474-U Public User Manual Date: 2010-06-22 Page 55 of 81 6.4 I/O Map Address (hex) Size Description 0020- 0021 Programmable interrupt controller 0040- 0043 System Timer 0060- 0060 Standard keyboard 0061- 0061 System speaker 0070- 0071 System CMOS/Real time clock 0170- 01F7 Secondary Parallel ATA IDE Channel... -
Page 56: Overview Of Bios Features
7. Overview of BIOS features This Manual section details specific BIOS features for the 886LCD-M boards. The 886LCD-M boards are based on the AMI BIOS core version 8.10 with Kontron BIOS extensions. 7.1 System Management BIOS (SMBIOS / DMI) SMBIOS is a Desktop Management Interface (DMI) compliant method for managing computers in a managed network. -
Page 57: Bios Configuration / Setup
886LCD-M Family KTD-00474-U Public User Manual Date: 2010-06-22 Page 57 of 81 8. BIOS Configuration / Setup 8.1 Introduction The BIOS Setup is used to view and configure BIOS settings for the 886LCD-M board. The BIOS Setup is accessed by pressing the DEL key after the Power-On Self-Test (POST) memory test begins and before the operating system boot begins. -
Page 58: Advanced Menu
886LCD-M Family KTD-00474-U Public User Manual Date: 2010-06-22 Page 58 of 81 8.3 Advanced Menu BIOS SETUP UTILITY Main Advanced PCIPnP Boot Security Chipset Power Exit Configure CPU. Advanced Settings Warning: Setting wrong values in below sections May cause system to malfunction. >... -
Page 59: Advanced Settings - Ide Configuration
886LCD-M Family KTD-00474-U Public User Manual Date: 2010-06-22 Page 59 of 81 8.3.2 Advanced settings – IDE Configuration BIOS SETUP UTILITY Advanced Select IDE Mode. IDE Configuration IDE Configuration [P-ATA Only] P-ATA Only: S-ATA Running Enhanced [Yes] 4 P-ATA & 2 S-ATA P-ATA Channel Selection [Both] S-ATA Ports Definition... - Page 60 886LCD-M Family KTD-00474-U Public User Manual Date: 2010-06-22 Page 60 of 81 BIOS SETUP UTILITY Advanced Primary IDE Master Select the type of devices connected to Device :Hard Disk the system Vendor :ST340014A Size :40.0GB LBA Mode :Supported Block Mode :16Sectors PIO Mode Async DMA...
-
Page 61: Advanced Settings - Lan Configuration
886LCD-M Family KTD-00474-U Public User Manual Date: 2010-06-22 Page 61 of 81 Feature Options Description ATA(PI) 80Pin Cable Select the mechanism for detecting 80Pin ATA Host & Device, Detection Host, Cable Device P-ATA1 Cable Detection Force the board to operate as if a 40Pin ATA Disable, Force cable or 80Pin ATA cable is installed on the... -
Page 62: Advanced Settings - Floppy Configuration
886LCD-M Family KTD-00474-U Public User Manual Date: 2010-06-22 Page 62 of 81 8.3.4 Advanced settings – Floppy Configuration BIOS SETUP UTILITY Advanced Select the type of Floppy Configuration floppy drive connected Floppy A [Disabled] to the system Floppy B [Disabled] <- Select Screen Select Item... -
Page 63: Advanced Settings - Superio Configuration
886LCD-M Family KTD-00474-U Public User Manual Date: 2010-06-22 Page 63 of 81 8.3.5 Advanced settings – SuperIO Configuration BIOS SETUP UTILITY Advanced Enable onboard Floppy Configure Win627THF Super IO Chipset Controller for use at OnBoard Floppy Controller [Disabled] parallel port Serial Port1 Address [3F8/IRQ4] Serial Port2 Address... -
Page 64: Advanced Settings - Hardware Health Configuration
886LCD-M Family KTD-00474-U Public User Manual Date: 2010-06-22 Page 64 of 81 8.3.6 Advanced settings – Hardware Health Configuration BIOS SETUP UTILITY Advanced Disable = Full Speed Hardware Health Event Monitoring System Temperature :37ºC/98ºF Thermal: Does regulate CPU Temperature :43ºC/109ºF fan speed according to External Temperature Sensor :N/A... -
Page 65: Advanced Settings - Voltage Monitor
886LCD-M Family KTD-00474-U Public User Manual Date: 2010-06-22 Page 65 of 81 8.3.7 Advanced settings – Voltage Monitor BIOS SETUP UTILITY Advanced Enable Hardware Health Voltage Monitor Monitoring Device. Requested Core :1.484 V VcoreA :1.431 V VcoreB :1.483 V +3.3Vin :3.290 V +5Vin :4.985 V... -
Page 66: Advanced Settings - General Acpi Configuration
886LCD-M Family KTD-00474-U Public User Manual Date: 2010-06-22 Page 66 of 81 8.3.9 Advanced settings – General ACPI Configuration BIOS SETUP UTILITY Advanced Select the ACPI state General ACPI Configuration used for System Suspend mode [S1 & S3 (STR)] Suspend. Repost Video on S3 Resume [No] S4BIOS Support... -
Page 67: Advanced Settings - Advanced Acpi Configuration
886LCD-M Family KTD-00474-U Public User Manual Date: 2010-06-22 Page 67 of 81 8.3.10 Advanced settings – Advanced ACPI Configuration BIOS SETUP UTILITY Advanced Enable RSDP pointers Advanced ACPI Configuration to 64-bit Fixed System ACPI 2.0 Features [No] Description Tables. ACPI APIC support [Enabled] APIC ACPI SCI IRQ [Disabled]... -
Page 68: Advanced Settings - Remote Access Configuration
886LCD-M Family KTD-00474-U Public User Manual Date: 2010-06-22 Page 68 of 81 8.3.11 Advanced settings – Remote Access Configuration BIOS SETUP UTILITY Advanced Enable RSDP pointers Configure Remote Access type and parameters to 64-bit Fixed System Remote Access [Enabled] Description Tables. Serial port number [ICH COM1] Serial Port Mode... -
Page 69: Advanced Settings - Usb Configuration
886LCD-M Family KTD-00474-U Public User Manual Date: 2010-06-22 Page 69 of 81 8.3.12 Advanced settings – USB Configuration BIOS SETUP UTILITY Advanced Enables USB host USB Configuration controllers. Module Version – 2.24.0-11.4 USB Devices Enabled : 1 Drive USB Function [All USB Ports] Legacy USB Support [Enabled]... -
Page 70: Advanced Settings - Usb Mass Storage Device Configuration
886LCD-M Family KTD-00474-U Public User Manual Date: 2010-06-22 Page 70 of 81 8.3.13 Advanced settings – USB Mass Storage Device Configuration BIOS SETUP UTILITY Advanced Enables USB host USB Mass Storage Device Configuration controllers. USB Mass Storage Reset Delay [20 Sec] Device #1 JetFlash TS256MJF2L Emulation Type... -
Page 71: Pcipnp Menu
Reserved: can be used for legacy ISA PCI Riser Support Disabled as default and also when using the Disabled, PCI Slot3, Kontron 820982 Riser card. PCI Slot2, Setup if using a PCI Riser card as described in PCI Slot1 section “886LCD-M PCI IRQ & INT routing”. -
Page 72: Boot Menu
886LCD-M Family KTD-00474-U Public User Manual Date: 2010-06-22 Page 72 of 81 8.5 Boot Menu BIOS SETUP UTILITY Main Advanced PCIPnP Boot Security Chipset Power Exit Configure Settings Boot Settings during System Boot. > Boot Settings Configuration > Boot Device Priority <- Select Screen Auto adjust Boot Priority... - Page 73 886LCD-M Family KTD-00474-U Public User Manual Date: 2010-06-22 Page 73 of 81 Note: List of errors: <INS> Pressed Primary Master Hard Disk Error PCI I/O conflict Timer Error S.M.A.R.T HDD Error PCI ROM conflict Interrupt Controller-1 error Cache Memory Error PCI IRQ conflict Keyboard/Interface Error DMA Controller Error...
-
Page 74: Security Menu
886LCD-M Family KTD-00474-U Public User Manual Date: 2010-06-22 Page 74 of 81 8.6 Security Menu BIOS SETUP UTILITY Main Advanced PCIPnP Boot Security Chipset Power Exit Install or Change the Security Settings password. Supervisor Password :Installed User Password :Installed Change Supervisor Password Change User Password Clear User Password Boot Sector Virus Protection... - Page 75 886LCD-M Family KTD-00474-U Public User Manual Date: 2010-06-22 Page 75 of 81 Supervisor Password protection (setup Supervisor before User) Super- visor BIOS User Access control Full Date&Time * Supervisor PSW CMOS (most) View User Limit None * = also: Quick Boot Quiet Boot Repost Video on S3 Resume Active State Power-Management...
-
Page 76: Chipset Menu
886LCD-M Family KTD-00474-U Public User Manual Date: 2010-06-22 Page 76 of 81 8.7 Chipset Menu BIOS SETUP UTILITY Main Advanced PCIPnP Boot Security Chipset Power Exit Intel Montara-GML Advanced Chipset Settings NorthBridge chipset configuration options. Warning: Setting wrong values in below sections may cause system to malfunction. -
Page 77: Advanced Chipset Settings - Southbridge Configuration
886LCD-M Family KTD-00474-U Public User Manual Date: 2010-06-22 Page 77 of 81 8.7.2 Advanced Chipset Settings – SouthBridge Configuration BIOS SETUP UTILITY Chipset Enable / Disable the ICH4 IOAPIC function. IOAPIC [Enabled] <- Select Screen Extended IOAPIC [Enabled] Select Item OnBoard AC’97 Audio [Enabled] Enter Go to Sub Screen... -
Page 78: Power Menu
886LCD-M Family KTD-00474-U Public User Manual Date: 2010-06-22 Page 78 of 81 8.8 Power Menu BIOS SETUP UTILITY Main Advanced PCIPnP Boot Security Chipset Power Exit Enable/Disable SMI based power management ADVANCED SMI ENABLE CONTROLS and APM support. Power Management/APM [Enabled] Power Button Mode [On/Off]... -
Page 79: Exit Menu
886LCD-M Family KTD-00474-U Public User Manual Date: 2010-06-22 Page 79 of 81 8.9 Exit Menu BIOS SETUP UTILITY Main Advanced PCIPnP Boot Security Chipset Power Exit Exit system setup Exit Options after saving the changes. Save Changes and Exit Discard Changes and Exit F10 Key can be used Discard Changes for this operation. -
Page 80: Ami Bios Beep Codes
886LCD-M Family KTD-00474-U Public User Manual Date: 2010-06-22 Page 80 of 81 8.10 AMI BIOS Beep Codes Boot Block Beep Codes: Number of Description Beeps Insert diskette in floppy drive A: ‘AMIBOOT.ROM’ file not found in root directory of diskette in A: Base Memory error Flash Programming successful Floppy read error... -
Page 81: Os Setup
<Ctrl><Alt><F4> enables display conneted to the ADD card. 10. Warranty KONTRON Technology warrants its products to be free from defects in material and workmanship during the warranty period. If a product proves to be defective in material or workmanship during the warranty period, KONTRON Technology will, at its sole option, repair or replace the product with a similar product.
