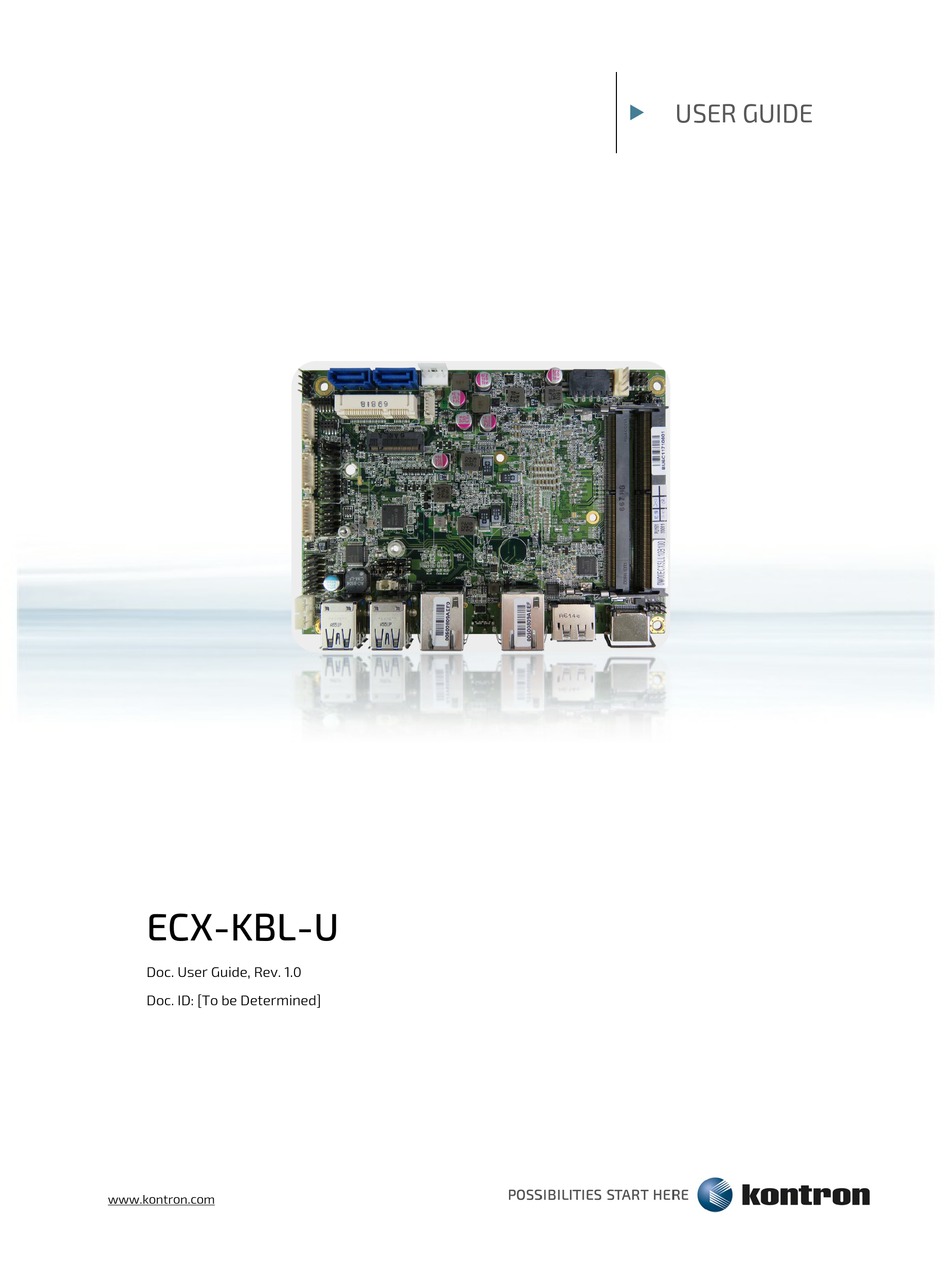

USER GUIDE
ECX-KBL-U
Doc. User Guide, Rev. 1.0
Doc. ID: [To be Determined]
www.kontron.com
// 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ECX-KBL-U and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Kontron ECX-KBL-U

Summary of Contents for Kontron ECX-KBL-U

  • Page 1  USER GUIDE ECX-KBL-U Doc. User Guide, Rev. 1.0 Doc. ID: [To be Determined] www.kontron.com // 1...
  • Page 2 ECX-KBL-U - User Guide, Rev. 1.0 This page has been intentionally left blank www.kontron.com // 2...
  • Page 3 In cases of doubt, please contact Kontron. This user guide is protected by copyright. All rights are reserved by Kontron. No part of this document may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means (electronic, mechanical, photocopying, recording, or otherwise), without the express written permission of Kontron.
  • Page 4 ENVIRONMENTAL DAMAGE (COLLECTIVELY, "HIGH RISK APPLICATIONS"). You understand and agree that your use of Kontron devices as a component in High Risk Applications is entirely at your risk. To minimize the risks associated with your products and applications, you should provide adequate design and operating safeguards.

  • Page 5: Revision History

    If you have any difficulties using this user guide, discover an error, or just want to provide some feedback, contact Kontron support. Detail any errors you find. We will correct the errors or problems as soon as possible and post the revised user guide on our website.

  • Page 6: Symbols

    ECX-KBL-U - User Guide, Rev. 1.0 Symbols The following symbols may be used in this user guide DANGER indicates a hazardous situation which, if not avoided, will result in death or serious injury. WARNING indicates a hazardous situation which, if not avoided, could result in death or serious injury.

  • Page 7: For Your Safety

    Therefore, in the interest of your own safety and of the correct operation of your new Kontron product, you are requested to conform with the following guidelines.

  • Page 8: Lithium Battery Precautions

    General Instructions on Usage In order to maintain Kontron’s product warranty, this product must not be altered or modified in any way. Changes or modifications to the product, that are not explicitly approved by Kontron and described in this user guide or received from Kontron Support as a special handling instruction, will void your warranty.

  • Page 9: Table Of Contents

    ECX-KBL-U - User Guide, Rev. 1.0 Table of Contents Symbols ..........................................6 For Your Safety ........................................7 High Voltage Safety Instructions .................................. 7 Special Handling and Unpacking Instruction ............................7 Lithium Battery Precautions ..................................8 General Instructions on Usage ..................................8 Quality and Environmental Management ..............................

  • Page 10: List Of Tables

    ECX-KBL-U - User Guide, Rev. 1.0 7.7. Audio Connector (CN9) ................................... 38 7.8. Front Panel Pin Header (FP1 & FP2) ..............................39 7.9. Serial COM1 - COM2 Ports (CN6 & CN7) ............................41 7.10. LVDS Flat Panel Connector (LVDS1) ..............................42 7.11.

  • Page 11: List Of Figures

    Table 55: Main Setup Menu Sub-Screens and Functions ........................58 Table 56: List of Acronym ....................................77 List of Figures Figure 1: System Block Diagram ECX-KBL-U ............................17 Figure 2: Top Side ......................................23 Figure 3: Rear Side ......................................25 Figure 4: Connector Panel Side ...................................
  • Page 12 ECX-KBL-U - User Guide, Rev. 1.0 Figure 14: SATA Connector SATA1, SATA2 ............................... 35 Figure 15: HDD Power Output Wafer CN1 ..............................36 Figure 16: USB 2.0 Pin Header CN8................................37 Figure 17: 3W Audio AMP Output Wafer CN10 (Left Channel), CN15 (Right Channel) ............... 38 Figure 18: Audio Input / Output Pin Header CN9 ...........................

  • Page 13: 1/ Introduction

    ECX-KBL-U - User Guide, Rev. 1.0 1/ Introduction This user guide describe the ECX-KBL-U board made by Kontron. This board will also be denoted ECX-KBL-U within this user guide. Use of this user guide implies a basic knowledge of PC-AT hardware and software. This user guide focuses on describing the ECX-KBL-U board's special features and is not intended to be a standard PC-AT textbook.

  • Page 14: 2/ Installation Procedures

     Handle the board only by the edges To get the board running follow these steps. If the board shipped from KONTRON already has components like RAM and CPU cooler mounted, then skip the relevant steps below. Turn off the PSU (Power Supply Unit) Turn off PSU (Power Supply Unit) completely (no mains power connected to the PSU) or leave the Power Connectors unconnected while configuring the board.

  • Page 15: Chassis Safety Standards

    > 7 mm. Do not use washers with teeth, as they can damage the PCB and cause short circuits. 2.2. Chassis Safety Standards Before installing the ECX-KBL-U in the chassis, users must evaluate the end product to ensure compliance with the requirements of the IEC60950-1 safety standard: ...
  • Page 16 ECX-KBL-U - User Guide, Rev. 1.0 www.kontron.com // 16...

  • Page 17: 3/ System Specifications

    ECX-KBL-U - User Guide, Rev. 1.0 3/ System Specifications 3.1. System Block Diagram Figure 1: System Block Diagram ECX-KBL-U www.kontron.com // 17...

  • Page 18: Component Main Data

    ECX-KBL-U - User Guide, Rev. 1.0 3.2. Component Main Data The table below summarizes the features of the ECX-KBL-U single board computer. Table 1: Component Main Data System Processor Intel® Kaby Lake U-Series Processors (TDP = 15 W) Memory 2x DDR4 SO-DIMM memory socket...

  • Page 19: Environmental Conditions

    3.5" ECX (146 x 105 mm / 5.75" x 4.13") 3.3. Environmental Conditions The ECX-KBL-U is compliant with the following environmental conditions. It is the customer's responsibility to provide sufficient airflow around each of the components to keep them within the allowed temperature range.

  • Page 20: Processor Support

    The ECX-KBL-U is designed to support Intel® Kaby Lake U-Series Processors. The BGA CPU is remounted from factory. Kontron has defined the board versions as listed in the following table, so far all based on Embedded CPUs. Other versions are expected at a later date.

  • Page 21: On-Board Graphics Subsystem

    3.7. On-board Graphics Subsystem The ECX-KBL-U supports Intel® Gen 9 / Gen 9.5 HD Graphics technology for high quality graphics capabilities. All ECX- KBL-U versions support three displays pipes. The DP interface supports the DisplayPort 1.2a specification. The PCH supports High-bandwidth Digital Content Protection for high definition content playback over digital interfaces.

  • Page 22: Power Consumption

    ECX-KBL-U - User Guide, Rev. 1.0 Display 1 Display 2 Display 3 Max. Resolution (Px) at 60 Hz Display 1 Display 2 Display 3 LVDS HDMI 1920x1200 4096x2304 3840x2160 Use of DP Adapter Converters (3rd party accessories) can provide HDMI panel support.

  • Page 23: 4/ Connector Locations

    ECX-KBL-U - User Guide, Rev. 1.0 4/ Connector Locations 4.1. Top Side Figure 2: Top Side Table 8: Jumper List Item Designation Description See Chapter MPCIE1 Activity LED Pin Header 7.16.1 Panel & Backlight Power Selection for LVDS1 7.16.2 NGFF M.2 Activity LED Pin Header 7.16.3...
  • Page 24 ECX-KBL-U - User Guide, Rev. 1.0 Item Designation Description See Chapter SATA2 Serial ATA Port-0 SATA Socket HDD Power Output Wafer DC12V Power Input Wafer 7.1.1 P80 Header SIM Interface Wafer for MPCIE1/NGFF M.2 7.15 Digital Input / Output Wafer 7.12...

  • Page 25: Rear Side

    ECX-KBL-U - User Guide, Rev. 1.0 4.2. Rear Side Figure 3: Rear Side Table 10: Rear Side Internal Connector Pin Assignment Item Designation Description See Chapter CN16 LCD Panel Power Connector 7.11 LVDS1 LVDS Panel Connector 7.10 www.kontron.com // 25...

  • Page 26: Connector Panel Side

    ECX-KBL-U - User Guide, Rev. 1.0 4.3. Connector Panel Side Figure 4: Connector Panel Side Table 11: Connector Panel Side Connector List Item Designation Description See Chapter HDMI1 HDMI Port-1 Connector DisplayPort Port-1 Connector CN12 GbE LAN1 RJ-45 Connector CN11...

  • Page 27: 5/ Connector Definitions

    ECX-KBL-U - User Guide, Rev. 1.0 5/ Connector Definitions The following defined terms are used within this user guide to give more information concerning the pin assignment and to describe the connector's signals. Defined Term Description Shows the pin numbers in the connector...

  • Page 28: 6/ I/O-Area Connectors

    ECX-KBL-U - User Guide, Rev. 1.0 6/ I/O-Area Connectors 6.1. HDMI Connector (HDMI1) The HDMI connector is based on standard HDMI type A. Figure 5: HDMI Connector HDMI1 Table 12: Pin Assignment HDMI Connector HDMI1 Signal Description Note TMD_DATA2+ TMD_DATA2-...

  • Page 29: Dp Connector (Dp1)

    ECX-KBL-U - User Guide, Rev. 1.0 6.2. DP Connector (DP1) The DP (DisplayPort) connector is based on standard DP female port. Figure 6: DP Connector DP1 Table 13: Pin Assignment DP Connector DP1 Signal Description Note TX0+ TX0- TX1+ TX1-...

  • Page 30: Ethernet Connectors (Cn11 & Cn12)

    ECX-KBL-U - User Guide, Rev. 1.0 6.3. Ethernet Connectors (CN11 & CN12) The ECX-KBL-U supports two channels of 10/100/1000 Mbit Ethernet, which are based Intel® I219-LM, and Intel® I210-AT controllers respectively. In order to achieve the specified performance of the Ethernet port, Category 5 twisted pair cables must be used with 10/100 MByte and Category 5E, 6 or 6E with 1 Gbit LAN networks.

  • Page 31: Usb Connectors (I/O Area)

    6.4. USB Connectors (I/O Area) The ECX-KBL-U contains an xHCI (Enhanced Host Controller Interface) controller that supports four USB3.0 ports allowing data transfer up to 5Gb/s. Four of the USB3.0 ports are shared with four of the USB2.0 ports (Port 1 - Port 4).

  • Page 32: Table 16: Signal Description

    ECX-KBL-U - User Guide, Rev. 1.0 Table 16: Signal Description Signal Description USBn_TX+, USBn_TX-, Differential pair works as serial differential receive/transmit data lines. USBn_RX+, USBn_RX-, (n= A, B) USBn_D-, USBn_D- +USBn_VCC 5 V supply for external devices. VCC is supplied during power-down to allow wakeup on USB device activity.

  • Page 33: 7/ Internal Connectors

    ECX-KBL-U - User Guide, Rev. 1.0 7/ Internal Connectors 7.1. Power Connector Power connector must be used to supply the board with +12 VDC (±10%). Hot plugging any of the power connector is not allowed. Hot plugging might damage the board. In other words, turn off main supply etc. to make sure all the power lines are turned off when connecting to the motherboard.

  • Page 34: Fan Wafer (Fan1)

    ECX-KBL-U - User Guide, Rev. 1.0 7.2. Fan Wafer (FAN1) The CPU FAN Wafer (FAN1) is used for the connection of the FAN for the CPU. The 4-pin wafer is recommended to be used for driving 4-wire type FAN in order to implement FAN speed control. 3- wire Fan support is also possible, but no fan speed control is integrated.

  • Page 35: Sata (Serial Ata) Disk Interfaces (Sata1 & Sata2)

    ECX-KBL-U - User Guide, Rev. 1.0 7.3. SATA (Serial ATA) Disk Interfaces (SATA1 & SATA2) The SATA connector supplies the data connection for the SATA hard disk and is SATA 3.0 compatible. Figure 14: SATA Connector SATA1, SATA2 Table 22: Pin Assignment SATA1, SATA2...

  • Page 36: Hdd Power Output Wafer (Cn1)

    ECX-KBL-U - User Guide, Rev. 1.0 7.4. HDD Power Output Wafer (CN1) Figure 15: HDD Power Output Wafer CN1 Table 24: Pin Assignment CN1 Signal Note +12V www.kontron.com // 36...

  • Page 37: Usb Connectors (Internal) (Cn8)

    ECX-KBL-U - User Guide, Rev. 1.0 7.5. USB Connectors (Internal) (CN8) USB 2.0 Port 4 and 5 are supplied via the internal pin header (CN8) and / or the M.2 connector (CON1, See Section 7.). Figure 16: USB 2.0 Pin Header CN8...

  • Page 38: Speaker Connector (Cn10 & Cn15)

    ECX-KBL-U - User Guide, Rev. 1.0 7.6. Speaker Connector (CN10 & CN15) The Speaker audio-out interface is available through the wafers CN10 and CN15. These outputs are shared with the audio output (Line-out) signals of the audio pin header CN9. With up to 100 dB Signal-to-Noise Ratio (SNR).

  • Page 39: Front Panel Pin Header (Fp1 & Fp2)

    ECX-KBL-U - User Guide, Rev. 1.0 Signal Note Line-Out_JD# 7.8. Front Panel Pin Header (FP1 & FP2) Figure 19: Front Panel Pin Header FP1 RSTBTN SPKR HLED Table 29: Pin Assignment FP1 Signal Note Reset Button + Speaker + Reset Button -...

  • Page 40: Table 31: Pin Assignment Fp2

    ECX-KBL-U - User Guide, Rev. 1.0 PWRBTN PLED SM_ALERT# BAT_LOW# SM_DATA SM_CLK Table 31: Pin Assignment FP2 Signal Note Power LED + Power Button + Power Button - Power LED - SMB_ALERT# BATLOW# SMBus Data SMBus Clock Table 32: Signal Description...

  • Page 41: Serial Com1 - Com2 Ports (Cn6 & Cn7)

    ECX-KBL-U - User Guide, Rev. 1.0 7.9. Serial COM1 - COM2 Ports (CN6 & CN7) Figure 21: Serial COM CN6, CN7 Table 33: Pin Assignment CN6, CN7 RS232 Signal RS422 Signal Half Duplex Full Duplex Note RS485 Signal RS485 Signal...

  • Page 42: Lvds Flat Panel Connector (Lvds1)

    ECX-KBL-U - User Guide, Rev. 1.0 Signal Description RX+/- Received Data differential pair receives data from the communications link. Power Supply GND signal 7.10. LVDS Flat Panel Connector (LVDS1) The LVDS connector is based on 30-pole connector type JAE JS-1267-30(G1)NH.
  • Page 43 ECX-KBL-U - User Guide, Rev. 1.0 Signal Note TxoutB1+ TxoutB2- TxoutB2+ TxclkB- TxclkB+ TxoutB3- TxoutB3+ DDC_Data VDD_EN DDC_Clock +3.3V / +5V* +3.3V / +5V* +3.3V / +5V* * Panel Power can be selected by JP4. Table 36: Signal Description Signal Description TxoutA0..A3...

  • Page 44: Lcd Panel Power Connector For Lvds1 (Cn16)

    ECX-KBL-U - User Guide, Rev. 1.0 7.11. LCD Panel Power Connector for LVDS1 (CN16) Figure 23: LCD Panel Power Connector CN16 Table 37: Pin Assignment CN16 Signal Note BL_ADJ_PWM BL_ PWM +5V / +12V* +5V / +12V* BL_EN** * Backlight Power can be selected by JP2...

  • Page 45: Digital Input / Output Wafer (Cn5)

    ECX-KBL-U - User Guide, Rev. 1.0 7.12. Digital Input / Output Wafer (CN5) Figure 24: Digital Input / Output Wafer CN5 Table 39: Pin Assignment FP2 Signal Note Table 40: Signal Description Signal Description DI0..3 Digital Input signal DO0..3 Digital Output signal www.kontron.com...

  • Page 46: Mpcie Slot Connector (Mpcie1)

    ECX-KBL-U - User Guide, Rev. 1.0 7.13. mPCIe Slot Connector (MPCIE1) Full-sized Mini-PCI Express V1.2 socket (MPCIE1). Socket MPCIE1 supports mPCIe, mSATA, USB2.0 and SIM-card socket. The SIM-card socket makes it possible to use a 3G/4G-wireless modem in this mPCIe slot. The USB does support WAKE function.
  • Page 47 ECX-KBL-U - User Guide, Rev. 1.0 Signal Note Ground Ground +1.5V Ground SMB_CLK PETn / SATA_TX-* SMB_DATA PETp / SATA_TX+* Ground Ground USB_D- Ground USB_D+ +3.3VSB / +3.3V* Ground +3.3VSB / +3.3V* LED_WWAN# Ground / NC* LED_WLAN# Reserved LED_WPAN# Reserved +1.5V...

  • Page 48: Ngff M.2 Key B Slot Connector (Con1)

    7.14. NGFF M.2 Key B Slot Connector (CON1) The ECX-KBL-U supports M.2 modules in format 2242 with Key B. The M.2 specification enables one SATA3.0 (6 Gb/s), one USB2.0 and SIM-card socket to be exposed through the same slot. The SIM-card socket makes it possible to use a 3G/4G-wireless modem in this M.2 slot.
  • Page 49 ECX-KBL-U - User Guide, Rev. 1.0 Signal Note GPIO5 CONFI0 GPIO6 GPIO11 GPIO7 GPIO12 GPIO10 GPIO8 PETn1/USB30TX- UIM RESET PETp1/USB30TX+ UIM CLK UIM DATA PERn1/USB30RX+ UIM PWR PERp1/USB30RX- DEVSLP GPIO0 PETn0/SATAB+ GPIO1 PETp0/SATAB- GPIO2 GPIO3 PERn0/SATAA- GPIO4 PERp0/SATAA+ PERST CLKREQ...

  • Page 50: Sim Card Connector (Cn4)

    ECX-KBL-U - User Guide, Rev. 1.0 Signal Note COEX ANTCTL COEX ANTCTL SIM DETECT PER1- SUSCLK CONFIG1 +3.3V +3.3V +3.3V CONFIG2 7.15. SIM Card Connector (CN4) Figure 27: SIM Interface Wafer CN4 Table 43: Pin Assignment CN4 Signal Description UIM_PWR Power +5V or +3.3V...

  • Page 51: Switches And Jumpers

    ECX-KBL-U - User Guide, Rev. 1.0 7.16. Switches and Jumpers The product has several jumpers which must be properly configured to ensure correct operation. Figure 28: Jumper Connector For a three-pin jumper (see Figure 28), the jumper setting is designated “1-2” when the jumper connects pins 1 and 2.

  • Page 52: Panel & Backlight Power Selection For Lvds1 (Jp2)

    ECX-KBL-U - User Guide, Rev. 1.0 7.16.2. Panel & Backlight Power Selection for LVDS1 (JP2) Figure 30: Panel & Backlight Power Selection for LVDS1 (JP2) Table 45: Pin Assignment JP1 Jumper 1 Position Description Pin 1-3 Pin 3-5 Backlight Power = +12V...

  • Page 53: At / Atx Power Mode & Ngff Msata / Mpcie Selection (Jp6)

    ECX-KBL-U - User Guide, Rev. 1.0 Table 47: Pin Assignment JP4 Jumper 1 Position Description Pin 1-3 Pin 3-5 Backlight Enable Voltage = +3.3V Backlight Enable Voltage = +5V Jumper 2 Position Description Pin 2-4 Pin 4-6 Active High Active Low “X”...

  • Page 54: Flash Descriptor Security Override Selection (Jp8)

    ECX-KBL-U - User Guide, Rev. 1.0 Jumper 1 Position Description Pin 1-3 Pin 3-5 SIM Card to NGFF SIM Card to mPCIe Jumper 2 Position Description Pin 2-4 Pin 4-6 S3 USB Power Support S5 USB Power Support “X” = Jumper set (short) and “-” = jumper not set (open) 7.16.7.

  • Page 55: Clear Me Register (Jp10)

    ECX-KBL-U - User Guide, Rev. 1.0 Jumper Position Description Pin 1-2 Enable Clear CMOS RTC content (board does not boot with the jumper in this position) Disabled (default position) “X” = Jumper set (short) and “-” = jumper not set (open) Do not leave the jumper in position 1-2, otherwise if the power is disconnected, the battery will fully deplete within a few weeks.

  • Page 56: 8/ On-Board Connectors & Mating Connector Types

    The Mating connectors / Cables are connectors or cable kits which are fitting the On-board connector. The Kontron cable kits marked with "*" are included in the "ECX-KBL-U Cable & Driver Kit". Table 53: On-Board Connectors & Mating Connector Types...

  • Page 57: 9/ Bios

    Supervisor Password (see Security menu), press <RETURN>, and proceed with step 5. 5. A setup menu will appear. The ECX-KBL-U uEFI BIOS setup program uses a hot key-based navigation system. A hot key legend bar is located on the bottom of the setup screens.

  • Page 58: Setup Menus

    ECX-KBL-U - User Guide, Rev. 1.0 9.2. Setup Menus The Setup utility features shows six menus in the selection bar at the top of the screen:  Main  Advanced  Power  Boot  Security  Save & Exit The Setup menus are selected via the left and right arrow keys.

  • Page 59: Figure 38: Bios Main Menu Screen System Data And Time

    ECX-KBL-U - User Guide, Rev. 1.0 Figure 38: BIOS Main Menu Screen System Data and Time BIOS SETUP UTILITY Main Advanced Power Boot Security Save & Exit Product Information Product Name ECX-KBL-U-7600U BIOS Version R0.05 (x64) BIOS Build Date 12/15/2016 ME FW Version 11.0.0.1202...

  • Page 60: Advanced Setup Menu

    ECX-KBL-U - User Guide, Rev. 1.0 9.2.2. Advanced Setup Menu The Advanced setup menu provides sub-screens and functions for advanced configurations. The following sub- screen functions are included in the menu:  LAN & Audio Configuration  Display Configuration ...

  • Page 61: Figure 39: Bios Advanced Menu

    ECX-KBL-U - User Guide, Rev. 1.0 Figure 39: BIOS Advanced Menu BIOS SETUP UTILITY Main Advanced Power Boot Security Save & Exit Onboard LAN1 Controller [Enabled] Onboard LAN1 Boot [Disabled] Onboard LAN2 Controller [Enabled] Onboard LAN2 Boot [Disabled] Audio Controller [Enabled] →...

  • Page 62: Figure 40: Bios Advanced Menu - Display Configuration

    ECX-KBL-U - User Guide, Rev. 1.0 Figure 40: BIOS Advanced Menu - Display Configuration BIOS SETUP UTILITY Main Advanced Power Boot Security Save & Exit Display Information Primary Display [Auto] UWA Frame Buffer Size [256MB] DVMT Pre-Allocated [64M] → ←: Select Screen...
  • Page 63 ECX-KBL-U - User Guide, Rev. 1.0 Feature Option Description [1366x768 2CH], [1440x900 2CH], [1600x1200 2CH], [1920x1080 2CH] LVDS Panel Color [18Bit], [24Bit] Select the appropriate setup item for LVDS panel color depth. Depth PWM Backlight [By External], [By Select the PWM backlight controller.

  • Page 64: Figure 41: Bios Advanced Menu - Super Io Configuration

    ECX-KBL-U - User Guide, Rev. 1.0 Figure 41: BIOS Advanced Menu - Super IO Configuration BIOS SETUP UTILITY Main Advanced Power Boot Security Save & Exit Super IO Configuration > Serial Port 1 Configuration → ←: Select Screen > Serial Port 2 Configuration ↑...

  • Page 65: Figure 43: Bios Advanced Menu - Super Io Configuration - Serial Port 2 Configuration

    ECX-KBL-U - User Guide, Rev. 1.0 Feature Option Description Serial Port 1 Type [RS232], [RS422], Select an appropriate type for Serial Port 1. [RS485] RS485 Duplex Mode [Half Duplex], [Full Select an appropriate RS485 Duplex Mode. Duplex] RS485 Auto Flow...

  • Page 66: Figure 44: Bios Advanced Menu - Cpu Chipset Configuration

    ECX-KBL-U - User Guide, Rev. 1.0 Figure 44: BIOS Advanced Menu - CPU Chipset Configuration BIOS SETUP UTILITY Main Advanced Power Boot Security Save & Exit CPU Chipset Configuration EIST [Enabled] → ←: Select Screen Hyper-threading [Enabled] ↑ ↓: Select Item...

  • Page 67: Figure 45: Bios Advanced Menu - Sata Configuration

    ECX-KBL-U - User Guide, Rev. 1.0 Figure 45: BIOS Advanced Menu - SATA Configuration BIOS SETUP UTILITY Main Advanced Power Boot Security Save & Exit SATA Configuration SATA Controller(s) [Enabled] → ←: Select Screen SATA Mode Selection [AHCI] ↑ ↓: Select Item...

  • Page 68: Figure 46: Bios Advanced Menu - Usb Configuration

    ECX-KBL-U - User Guide, Rev. 1.0 Figure 46: BIOS Advanced Menu - USB Configuration BIOS SETUP UTILITY Main Advanced Power Boot Security Save & Exit USB Configuration USB Devices: → ←: Select Screen 1 Keyboard, 1 Mouse ↑ ↓: Select Item...

  • Page 69: Figure 47: Bios Advanced Menu - Dio Configuration

    ECX-KBL-U - User Guide, Rev. 1.0 Figure 47: BIOS Advanced Menu - DIO Configuration BIOS SETUP UTILITY Main Advanced Power Boot Security Save & Exit DIO Configuration User Configuration [Disabled] DO_1* [Output Low] DO_2* [Output Low] DO_3* [Output Low] DO_4*...

  • Page 70: Figure 48: Bios Advanced Menu - H/W Monitor

    ECX-KBL-U - User Guide, Rev. 1.0 Figure 48: BIOS Advanced Menu - H/W Monitor BIOS SETUP UTILITY Main Advanced Power Boot Security Save & Exit PC Health Status > Smart FAN Configuration CPU Temperature : +60 C Memory Temperature : +54 C...

  • Page 71: Power Setup Menu

    ECX-KBL-U - User Guide, Rev. 1.0 9.2.3. Power Setup Menu The Power setup menu provides functions and a sub-screen for power configurations. The following sub-screen function is included in the menu:  WatchDog Timer Configuration Figure 49: BIOS Power Setup Menu...

  • Page 72: Figure 50: Bios Power Setup Menu - Watchdog Timer Configuration

    ECX-KBL-U - User Guide, Rev. 1.0 Figure 50: BIOS Power Setup Menu - WatchDog Timer Configuration BIOS SETUP UTILITY Main Advanced Power Boot Security Save & Exit WatchDog Timer Configuration WDT Function [Disabled] → ←: Select Screen ↑ ↓: Select Item Enter: Select +/-: Change Opt.

  • Page 73: Boot Setup Menu

    ECX-KBL-U - User Guide, Rev. 1.0 9.2.4. Boot Setup Menu The boot setup menu lists the for boot device priority order, that is generated dynamically. Figure 51: BIOS Boot Setup Menu BIOS SETUP UTILITY Main Advanced Power Boot Security Save & Exit...

  • Page 74: Security Setup Menu

    The Security setup menu provides information about the passwords and functions for specifying the security settings. The passwords are case-sensitive. The ECX-KBL-U provides no factory-set passwords. If there is already a password installed, the system asks for this first. To clear a password, simply enter nothing and acknowledge by pressing <RETURN>.

  • Page 75: Remember The Password

    ECX-KBL-U - User Guide, Rev. 1.0 9.2.5.1. Remember the password It is highly recommended to keep a record of all passwords in a safe place. Forgotten passwords results in being locked out of the system. If the system cannot be booted because the User Password or the Supervisor Password are not know, contact Kontron Support for further assistance.

  • Page 76: Save & Exit Setup Menu

    ECX-KBL-U - User Guide, Rev. 1.0 9.2.6. Save & Exit Setup Menu The exit setup menu provides functions for handling changes made to the UEFI BIOS settings and the exiting of the setup program. Figure 53: BIOS Boot Setup Menu...

  • Page 77: Appendix A: List Of Acronyms

    ECX-KBL-U - User Guide, Rev. 1.0 Appendix A: List of Acronyms The following table does not contain the complete acronyms used in signal names, signal type definitions or similar. A description of the signals is included in the I/O Connector and Internal connector chapters within this user guide.

  • Page 78: About Kontron

    Kontron is a listed company. Its shares are traded in the Prime Standard segment of the Frankfurt Stock Exchange and on other exchanges under the symbol "KBC". For more information, please visit: www.kontron.com...
