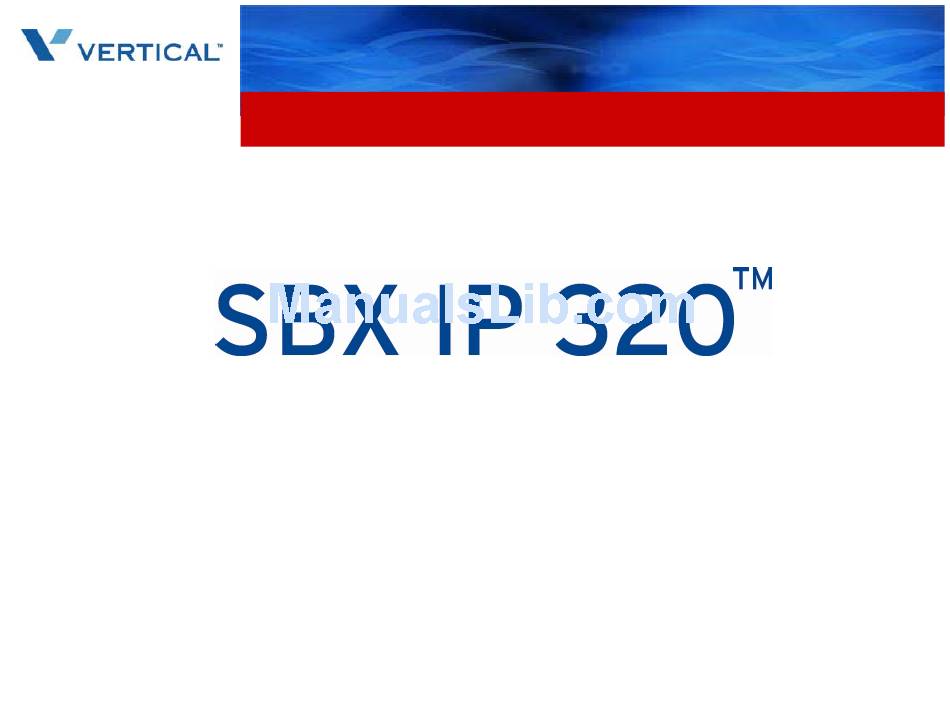

SBX IP 320 – 4024 Digital Telephone
End User Training
SEU-4024

Advertisement

loading
Need help?

Need help?

Do you have a question about the SBX IP 320 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vertical SBX IP 320

Summary of Contents for Vertical SBX IP 320

  • Page 1 SBX IP 320 – 4024 Digital Telephone End User Training SEU-4024...
  • Page 2 Module Attachments This module has documents attached for your reference. To download the attachment(s): Click the open sidebar button Click the paperclip icon button Click attachment(s) to download to your PC...
  • Page 3 Objectives SBX IP 320 4024 Digital Telephone: • Know your phone • Make & receive calls • Phone Book • Phone Features • User Programming Features • Voicemail...
  • Page 4 Knowing Your Phone User friendly/Easy to Navigate Call Log feature 24 Programmable Feature Keys Wall mountable 4024 - 24 Button Phone...
  • Page 5 Knowing Your Phone 3 Soft Buttons Handset LCD Display Visual Ringing Indicator Earphone-Jack Socket (along left edge) Trans/Pgm Button Flexible Buttons Speaker (Loop Buttons) Speed Button Call Back Button DND/FWD Button Volume Button Menu Button Speaker Button Hold/Save Button Hands-free Microphone Phonebook Button (Operates like the Speed Button)
  • Page 6 Knowing Your Phone Volume Button adjusts audio levels Hold/Save allows you to place a call on hold and keep the party connected...
  • Page 7 Knowing Your Phone Callback used to notify a busy station with a call back request activates “do not ring” this phone mode...
  • Page 8 Knowing Your Phone Speed used to access speed dial, redial, flexible programming TRANS/PGM used for conference and transfer...
  • Page 9 Knowing Your Phone Soft Buttons used with fixed and flexible features Speaker toggles speakerphone mode and handset mode...
  • Page 10 Knowing Your Phone Menu used to move to the desired option, press the up arrow at top edge of Navigation button. Phone Book used to save a phone number and make calls with saved information...
  • Page 11 Call Handling...
  • Page 12 How to Dial For an internal or intercom call… • Pick up your handset • Press the speakerphone button • Dial the station number, for example extension 103 The phone will ring… it’s that easy!
  • Page 13 How to Dial To dial an outside number, you will need to 9 1 5 0 2 first dial a dialing service number Usually, this is the number “9” for an outside line. However, it may be different so you should check with your administrator •...
  • Page 14 Answering a call Handset Speaker Phone...
  • Page 15 Making & Receiving Calls REVIEW • To dial just pick up the phone or hit the speakerphone button • To call an internal user, just dial their extension • To call an external user, dial 9 (or whatever dialing service you use) and the number •...
  • Page 16 Navigating the Phone Book...
  • Page 17 Navigation Button Above is a magnified view of the Navigation button, note its directional arrows and location on the phone to the left.
  • Page 18 Phone Book Press the [OK] soft button or press OK on the navigation button. Use the volume UP/DOWN button or the navigation button to select the desired number, then press the [SEND] soft button to call. Begin speaking.
  • Page 19 Phone Book Press the [OK] soft button or press OK on the navigation button. Use the volume UP/DOWN button or the navigation button to select the desired number, then press the [SEND] soft button to call. Begin speaking.
  • Page 20 Phone Book Press the [OK] soft button or press OK on the navigation button. Use the volume UP/DOWN button or the navigation button to select the desired number, then press the [SEND] soft button to call. Begin speaking.
  • Page 21 Features and Functions –Monitor, Join, Drop –Call back –Transfer, Conference, Mute –Record, Flash, ACNR –Call Forwarding –Redial –Call Waiting –Do Not Disturb –Speed Dialing –Pickup Groups –Paging & Parking...
  • Page 22 Soft Buttons Soft Buttons used with fixed and flexible features...
  • Page 23 Using Features while on a call...
  • Page 24 Soft Buttons...
  • Page 25 Navigation Buttons...
  • Page 26 Barge-in Monitor MSG: Press to leave your station number or message. CAMP-ON: Press to send a call waiting tone to a busy station (indicating that they have a call waiting). FLASH: Press to disconnect the line and re-seize. : Use the menu button and navigate to more options...
  • Page 27 Monitor, Join and Drop MONITOR: Press to listen to existing conversation (Barge-In Feature) JOIN: Press to join the conversation during Monitor DROP: Press to drop the conversation...
  • Page 28 Call Back Message: Press to request call back.
  • Page 29 Transfer / Conference / Mute TRANS: Press to transfer a call to another station. CONF: Press to initiate a conference call. MUTE: Press to mute the handset, speakerphone, or headset microphone. Press the [SPEAKER] button to re- activate the microphone.
  • Page 30 Record / Flash / ACNR RECORD: Press to record the current conversation. (if outfitted) FLASH: Press to disconnect the line and re-seize. ACNR: Press to set automatic called number redial.
  • Page 31 Conference Dial the desired station number. (e.g.100) Station 100 answers the call. Press the [CONF] button.
  • Page 32 Conference Dial the phone number of the next desired station (e.g.104).
  • Page 33 Conference Station 104 answers the call. Press the [CONF] button twice. A 3-party conference is now established.
  • Page 34 Voice Over To answer second (waiting) call, press the flashing [HOLD/SAVE] button. Whenever the [HOLD/SAVE] button is pressed, the call is switched between first and second call.
  • Page 35 Functions when you’re not on a call...
  • Page 36 Off Hook FWD: Press the [FWD] button to forward calls to another station, Voicemail, etc. CONF: Press the [CONF] button to initiate a conference call. REDIAL: Press the [REDIAL] button to call the last number dialed.
  • Page 37 Redial Press the [REDIAL] soft button. Press the [OK] button to call the number listed or, press the down navigation key to view and scroll through more recently dialed numbers. When the party answers, begin talking.
  • Page 38 Call Forward 1. Press Speaker 2. Press DND FWD button.
  • Page 39 Call Forward – Internal Options 0: Follow-me forward Enter follow-me station # 1: Unconditional 2: Busy 3: No answer 4: Busy/No answer Enter forward destination STA: station number, 100-132. HUNT: Hunt group, 620-629. VMIB: # (Forward to VMIU)
  • Page 40 Call Forward – External Options 5: Outside forward – Unconditional with Speed Bin 6: Outside forward – No Answer with Speed Bin 8: Outside forward – Unconditional with Telephone Number 9: Outside forward – No Answer with Telephone Number...
  • Page 41 Using Do Not Disturb DND: Press to block all incoming calls.
  • Page 42 Speed Dial 1. Press [SPEED] button. 2. Dial speed bin number or press SPEED to search by name. (Station speed bin: 000-099, System speed bin: 2000-2499) 3. Press OK to enter the dial by station / system speed name option...
  • Page 43 Pickup Groups Press the [PICKUP] button. Start talking.
  • Page 44 Paging MEET ME: Press to answer a paging request.
  • Page 45 Parking and Retrieving Calls A call can be parked in a parking location and the call can be retrieved by dialing the location number. (The call can also be picked up by another extension.). To park a call: Press [TRANS/PGM] and dial the Park Location(601-608). To retrieve a parked call at any station: Dial the Park Location (601-608).
  • Page 46 User Programming Features...
  • Page 47 Flexible Button Programming 1. Press the [TRANS/PGM] button. 2. Press the flexible button to be programmed. 3. Enter the desired feature code from Numbering Plan Code table in the SBX IP 320 User Guide. 4. Press the [HOLD/SAVE] button to save.
  • Page 48 Name Display on My Phone 1. Press the [TRANS/PGM] button. 2. Dial "74". 3. Enter your name, see Entering character table on page 59 of the SBX IP 320 Users Guide. 4. Press the [HOLD/SAVE] button.
  • Page 49 Call Log Received Call: Received call list * Dialed Call: Dialed call list LOST CALL : Missed call list* * CLI (Calling Line ID) mandatory and CLI M-Wait feature must be enabled in Admin Program Press either the [OK] soft button or OK on the navigation button.
  • Page 50 Call Log Press either the [OK] soft button or OK on the navigation button. Note: BACK returns you to the previous screen...
  • Page 51 Call Log Press either the [OK] soft button or OK on the navigation button. Press either the [OK] soft button or OK on the navigation button. Note: BACK returns you to the previous screen...
  • Page 52 Call Log Press either the [OK] soft button or OK on the navigation button. Press the [SELECT] button to select the following functions: ANSWER, DEL CUR, DEL ALL, SAVE, NAME/TEL. BACK returns you to the previous screen Press [ANSWER] to call the displayed number.
  • Page 53 Call Log Call Log Press [DEL CUR] to erase the currently displayed number. This screen appears next.
  • Page 54 Call Log Press [DEL ALL] to erase all numbers. Press the [HOLD] button to confirm the "delete all" function. All numbers are erased.
  • Page 55 Calling Line Identification Press the [SAVE] button to save the CLI. Press the [HOLD] button or OK on the navigation button to register the number in a speed dial bin.
  • Page 56 Checking Name for a Telephone Number To check the name of the selected number, press the [NAME/TEL] button. To check the associated number if a name is displayed, press the [NAME/TEL] button.
  • Page 57 User Menu Levels...
  • Page 58 Station User Program Menu/Display Soft Buttons used with fixed and flexible features Trans/PGM Navigate the LCD using Volume or Menu Buttons Use the Dial pad to enter selected options...
  • Page 59 SBX IP 320 Menu User Levels [1] Ring [2] Class of Service (COS) [3] Authorization / Mobile-Extension [4] Time / Conf-Room [5] Message [6] Announcement [7] Supplementary [*] System...
  • Page 60 SBX IP 320 Menu User Levels Level [1] Ring 1) Station Ring Type - dial (1-4) 2) Answer Mode - dial (1-3); HTP 3) SMS Message Display 4) Unblock Mode - dial 1, ON; dial 0, OFF 5) SMS / Notice Display - (Invalid) 6) Scroll Speed - (Invalid) 7) Earphone-Microphone Headset - dial 1, ON;...
  • Page 61 SBX IP 320 Menu User Levels Level [2] COS 1) COS Down 2) COS Restore 3) Walking COS - enter COS override code 4) COS Change - (Invalid) 5) SMS Inbox (000/000) - (Invalid) 6) Del All SMS Messages - (Invalid)
  • Page 62 SBX IP 320 Menu User Levels Level [3] Authorization / Mobile-Extension 1) Auth Register - (Invalid) 2) Auth Change - enter current password 3) Reg Mobile-Ext - (Access Denied) 4) Active Mobile-Ext - (Access Denied) 5) Reg Mobile-Ext CLI - (Access Denied) 6) Active Mobile Hunt - (Access Denied) 7) MW to Mobile-Ext - dial 1, ON;...
  • Page 63 SBX IP 320 Menu User Levels Level [4] Time / Conf-Room 1) Set Wake Up Time - dial HH:MM 2) Wake Up Disable - dial HH:MM 3) Activate Conf-Room - dial 1-9 and password 4) De-activate Conf-Room - dial 1-9 and password 5) Call Cover Attributes 1) Call Coverage Mode - dial 1, ON;...
  • Page 64 SBX IP 320 Menu User Levels Level [5] Message 1) Set Pre-selected Message - enter Message number 2) Set Custom Message - enter Message 00 Note: Please see the SBX IP 320 Phone User Guide for additional information.
  • Page 65 SBX IP 320 Menu User Levels Level [6] Announcement 1) Record User Greeting 2) Listen Time / Date 3) Listen Station Number 4) Listen Station Status 5) Record Page Message 6) Erase User Greeting 7) Erase Page Message 8) Outbound Notify - dial 1, ON; dial 0, OFF...
  • Page 66 SBX IP 320 Menu User Levels Level [7] Supplementary 1) LCD Display Language 2) MPB Version Display 3) BGM - dial 00-08 4) Register Station Name - enter name 5) Speaker/Headset - dial 1, Speaker; dial 0, Headset 6) Headset Ring Mode - dial 1, S; dial 2, H; dial 3, both...
  • Page 67 SBX IP 320 Menu User Levels Level [*] System [#] Enter Admin [1] Relocation Out [0] Hotdesk Login [*] Hotdesk Logout...
  • Page 68 Checking Voicemail...
  • Page 69 Checking your Voicemail PICKUP: To listen to voicemail messages...
  • Page 70 Checking Voicemail NEXT: Press to move to the next message. REPEAT: Press to repeat the current message. DELETE: Press to erase the current message. Note: Voice mail messages can be transferred to another station by dialing the station number while the message is playing.
  • Page 71 Checking Voicemail ADD: Press to tag the current message with your comment before forwarding. REWIND: Press to repeat part of current message. CALLBK: Press to request a call back to the caller who left message.
  • Page 72 Voicemail Options To record a personal greeting: 1. Press the [TRANS/PGM] button and dial "61". 2. Press # to start recording. To forward my phone to voice mail: 1. Press the [SPEAKER] button 2. Press the [DND/FWD] button 3. Dial the type of forwarding you want: 1 = Unconditional 2 = Busy 3 = No Answer...
  • Page 73 Summary • Know your phone • Make & receive calls • Phone Book • Phone Features • User Programming Features • Voicemail...
  • Page 74 End of Module This concludes the SBX IP 320 4024 Digital Phone End User Training Thanks for your participation!
