Vertical IP2007 Application Note

Application Note – Upgrading Software on the IP2007 IP Phone
Xcelerator IP 07006
This Application Note addresses the process for upgrading the software on the IP2007 IP Phone.
Prior to upgrading the IP2007 phone, you will need to have access to a TFTP (Trivial File
Transfer Protocol) server. We recommend using either solarwinds TFTP server
(www.solarwinds.net) or the open source TFTP server PumpKIN from Kevlar
(www.sharewareplaza.com/PumpKIN-download_32878.html).
Step 1: Setup the TFTP server on the Internet or on the local LAN with the IP2007 phones.
Step 2: Using your web browser, connect to the phone to upgraded by entering the IP address of
the IP2007 into the address bar of the browser. Once connected to the IP2007 phone, enter the
admin name and password. The default admin name is admin (lower case) and the default
password is 1234.

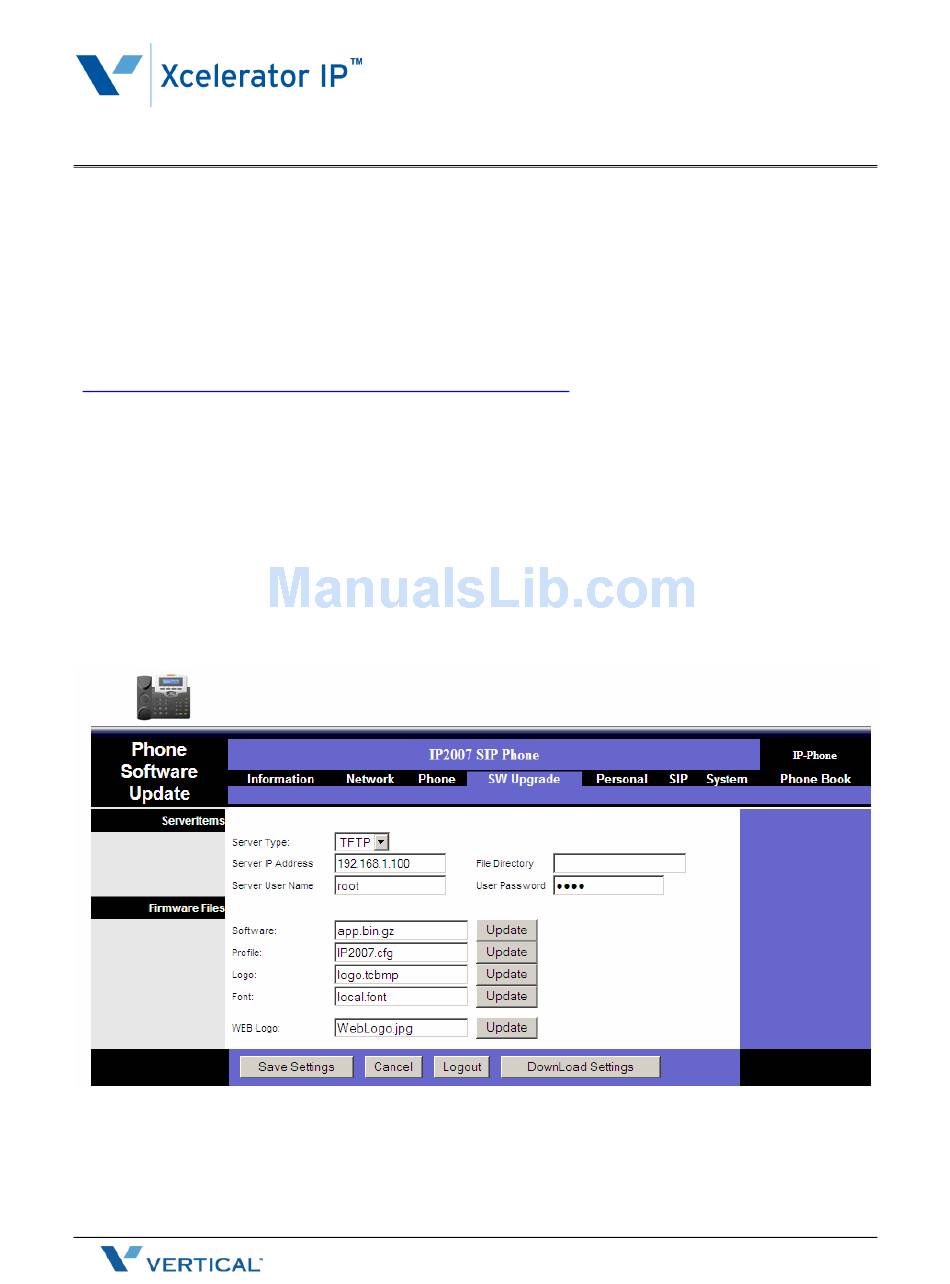

Step 3: Once you have logged into the IP2007 phone, click on the SW Upgrade tab. You will see
the following screen:
1 of 2 July 2007
