Phone Buttons & Features
Button/Feature
Used to...
speak to a caller when using a headset instead of
1 Headphone Jack
holding the handset.
answer/make internal or external calls.
2 Handset
hear the other party during a call without using the
3 Speaker
handset or headset (hands-free mode).
display phone status information, dialing directories,
4 LCD Display
and test message information.
5 Soft Buttons (3)
work in conjunction with fixed and flexible features
options that appear on the display.
6 Ring LED
indicate when the phone is ringing.
7 Pre-Programmed/
access external line calls, pre-assigned features, or
Flexible Buttons
user defined feature code assignments.
(24)
used to speak to a caller when in speaker mode.
8 Microphone (MIC)
access speed dialing, saved number redial, and last
9 SPEED Button
number redial. Button is also used to access
flexible button programming.
activate a "do not ring this phone" mode. When DND
DND Button
is active, this button is red.
Note: When you make a Forward call setting (other
than forwarding to voice mail), this light will
Flash. You can press it to easily cancel those
Forward settings.
TRANS/PGM Button set up a conference call or transfer a call.
initiate a call back request for another busy station.
CALL BACK Button
navigate through (and make selections on) the
10 Nav Button
display/menus.
decrease (-) or increase (+) the volume level of the
11 VOLUME Button
speaker or handset while on a call.
12 HOLD/SAVE Button put a call on hold or save the current User
Programming setting.
dial phone numbers and make entries on the display.
13 Dialpad
toggle between speaker (or headset) mode and
14 SPEAKER Button
handset mode. You can also use this button to exit
any menu screen.
Note: The button LED is lit red when the
Speakerphone mode is active.
Issue 2.0 - September 2008

Voice Mail Features

for SBX IP 320 Systems
Q u i c k
R e f e r e n c e
3
2
1
14
13
11
12

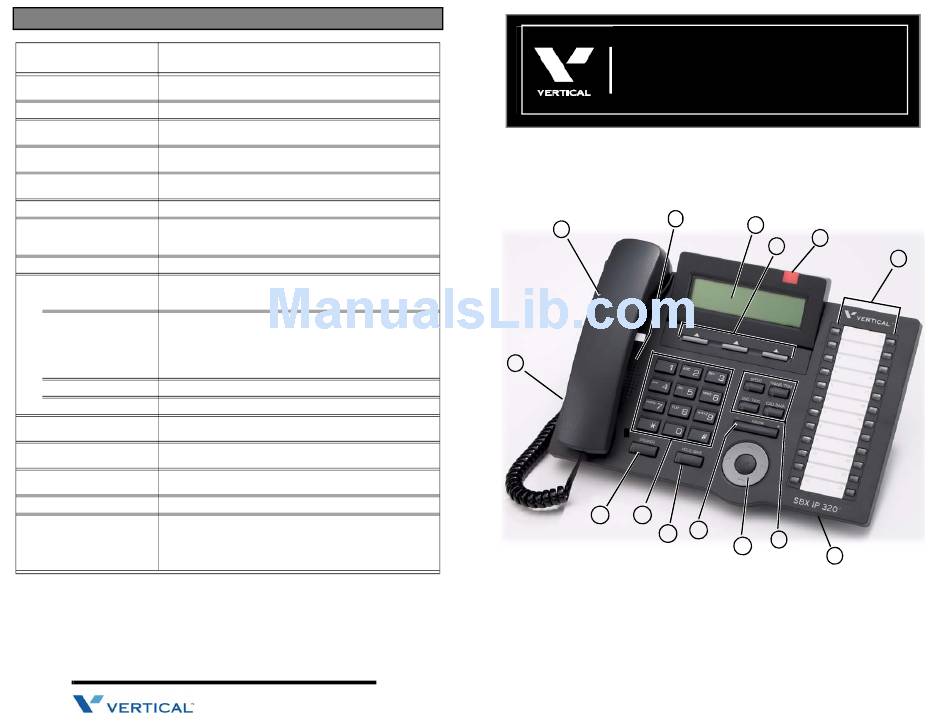

24-Button
Digital Phone
G u i d e
4
6
5
9
10
8
See back page for descriptions.
7
