Application Note – Configuring a Remote IP2007 Phone
Xcelerator IP 07001
This Application Note addresses the steps required to install a remote IP2007 phone
with Xcelerator IP.

Programming Xcelerator IP

To program a remote phone you must be connected to the Xcelerator IP gateway using
Internet Explorer 6.0 or higher. After opening Internet Explorer, enter either the default
IP address of the Xcelerator IP or the user configured IP address into the address bar
and press Return. The default IP address is 192.168.1.1.
Once Xcelerator has been accessed, you will prompted for a username and password;
both the default username and password are admin (lower case for both entries).
Enter programming mode by clicking on the "Advanced Setup" option that appears on
the start up screen.

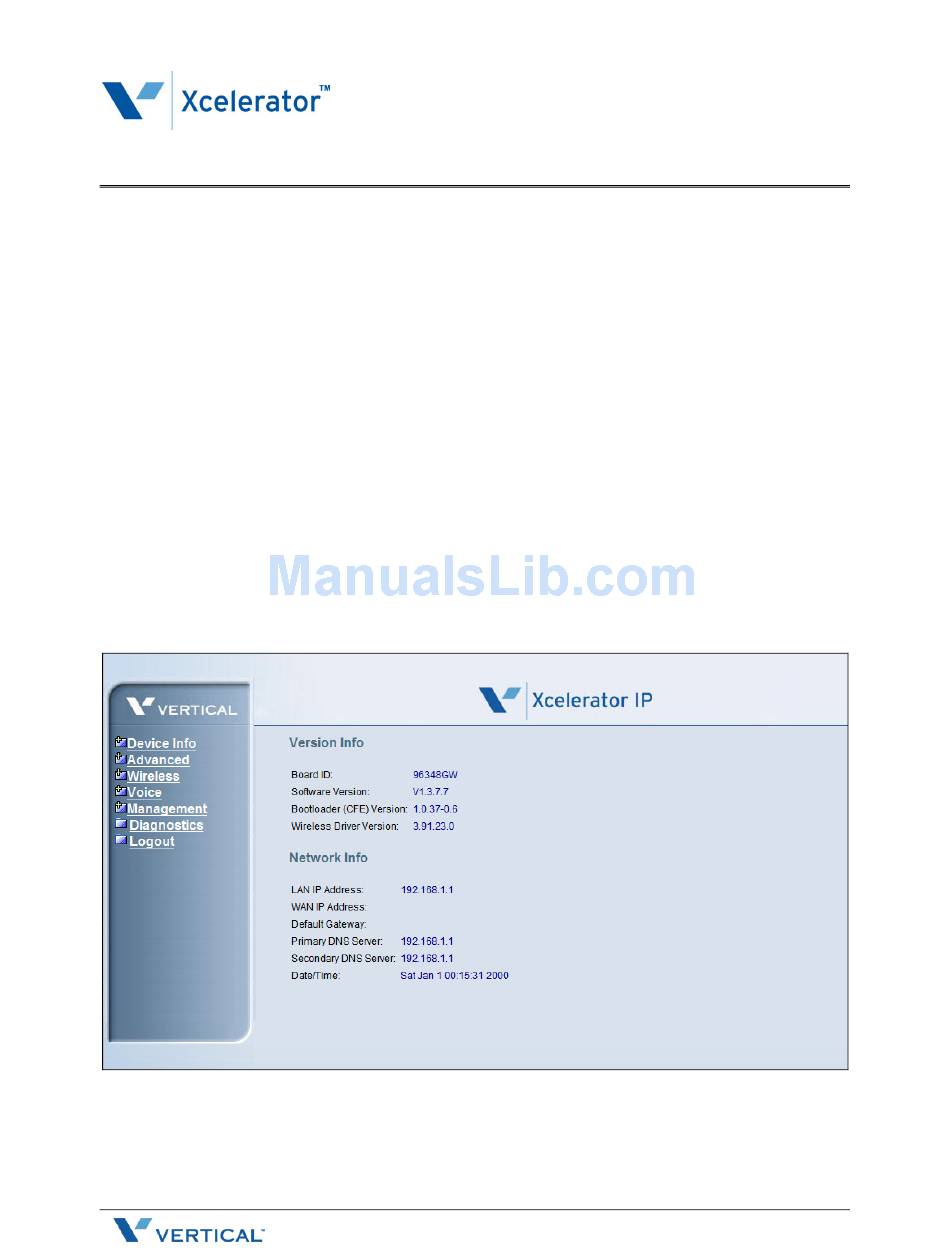

The main set up screen will appear as depicted in Figure 1 below:
Figure 1
May 2007

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IP2007 and is the answer not in the manual?

Questions and answers

Related Manuals for Vertical IP2007

Summary of Contents for Vertical IP2007

  • Page 1 Application Note – Configuring a Remote IP2007 Phone Xcelerator IP 07001 This Application Note addresses the steps required to install a remote IP2007 phone with Xcelerator IP. Programming Xcelerator IP To program a remote phone you must be connected to the Xcelerator IP gateway using Internet Explorer 6.0 or higher.
  • Page 2 The Phone Extensions screen will look like this: Figure 2 To add the remote IP2007 phone, enter the Phone Number (value = 100 to 125) and Password in the next available vacant row. As depicted in the following screen shot, you will note that extension 120 was entered in row 4, which was the next available row.
  • Page 3 After opening Internet Explorer, enter the IP address of the IP2007 phone. Once the IP address is entered in the address bar and the IP2007 has been accessed, you will be prompted to enter the username and password for the IP2007 phone. The default username is admin and the default admin password is 1234.
  • Page 4 Xcelerator IP. The Device Info page is the first screen displayed once you enter Advanced Settings. Enter the name the user wishes to have shown on the IP2007 phone display in the User Name field. Enter the phone number you set up in the Phone Extension field of Xcelerator IP web admin in the Phone Number field of the IP2007.
  • Page 5 Authorized ID and Authorized Password fields. Save the changes to the phone. This completes the programming of the IP2007 phone for an individual remote IP2007 phone. These programming steps must be completed for each remote IP2007 phone. If you have any questions, please contact Vertical Customer Support for assistance.
