Vertical IP2007 Quick Reference Manual

6
IP2007 Phone
for Xcelerator IP Systems
Q u i c k R e f e r e n c e G u i d e
1 2 2 3 4
13

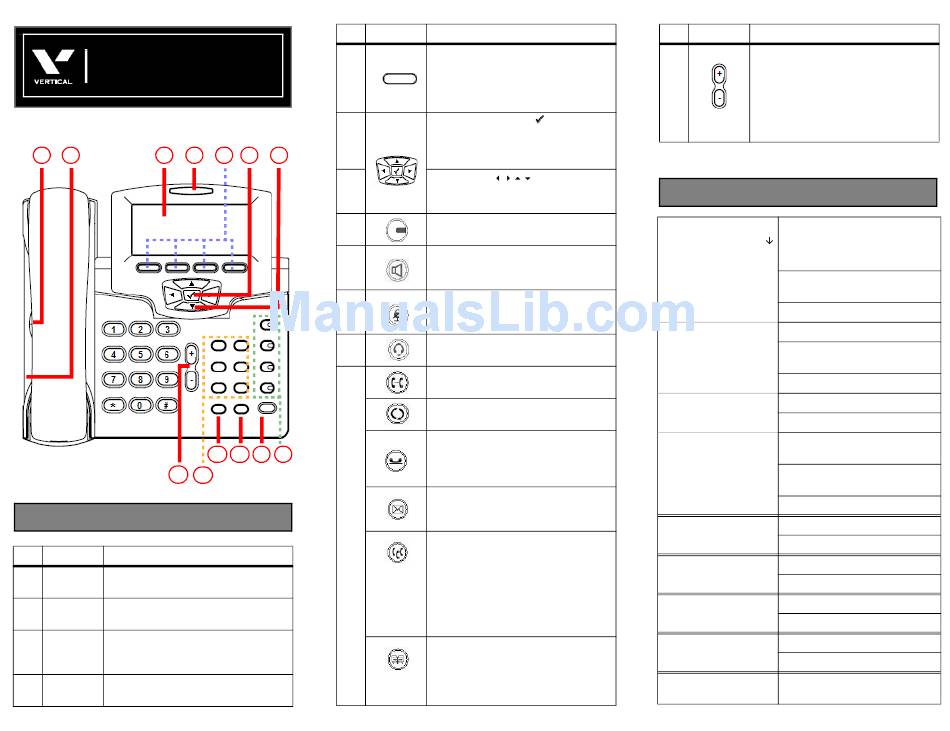

IP Phone Keys & Features
No. Item Function
1 Speaker The Speaker is used for handsfree
dialing and conversation.
2 Headset The RJ-9 / 2.5mm jack is on the
Port bottom left side of your IP phone.
3 Graphic The LCD Screen displays your phone
LCD settings, a phone number, or status
of a call.
4 Message The Message LED flashes when you
Wait Light receive a new message.
No.
5
6
5 6 7
7
8
9
10
11
12
9
11 8
10
12
Item Function
The 4 Soft Keys are used to select
menu items and to control the LCD
screen. Each key's function depends
on the corresponding content
displayed on the LCD.
The OK/Checkmark ( ) on the
Navigator Control key is used to
confirm a setting for your IP phone,
or the phone number you dialed.
The arrows ( ) on the
Navigator Control key are used to
scroll to items on the LCD screen.
The 1, 2, 3, 4 keys are used to
select a CO line or Trunk Group.
The SPEAKER key is used to
activate/de-activate the handsfree
dialing or talking feature.
The MUTE key is used to activate/
de-activate the voice transmission
from your IP phone.
The HEADSET key is used to
activate/de-activate a Headset.
The XFR key is used to transfer a
call to another IP phone.
The REDIAL key is used to redial
the last number you dialed.
The HOLD key is used to place the
current call on hold. Pressing the
HOLD key again will return the caller
to the original conversation.
The MESSAGE key is used to access
the Voice Mail system to retrieve
your voice messages.
The CONFERENCE key is used to
establish a conference call.
- Pressing the Conference key will
place the current call on hold and
allow you to dial a 2nd number.
- Pressing the Conference key
again will return the caller to the
original conversation.
The PHONEBOOK key is used to
access your Phonebook. The LCD
screen will prompt you to: 1) place
a call to a previously stored number
or, 2) edit your Phonebook entries.
No. Item Function
13 The VOLUME CONTROL key is
used to control the volume.
- When phone is idle -- the Ringer
volume can be adjusted.
- When talking -- the volume for
the Handset/Speaker/Headset
can be adjusted.
Feature Access Codes
CALL FORWARD
(via Auto Attendant)
Busy Call Fwd *22 + Extension number
*22 + * + VM PSWD + * +
outside phone number
To cancel ... **22
Direct Call Fwd *21 + Extension number
*21 + * + VM PSWD + * +
outside phone number
To cancel ... **21
Direct Call Fwd to VM *24
To cancel ... **24
No Answer Call Fwd *23 + Extension number + * +
Time
*23 + * + VM PSWD + * +
outside phone number + Time
To cancel ... **23
Do Not Disturb *4
(Auto Attendant)
To cancel ... **4
Call Waiting *98
(Auto Attdnt & Phone)
To cancel ... **98
Page Allow/Deny *99
(Phone)
To cancel ... **99
Phone Lock/Unlock *97 + VM PSWD
(Phone)
To cancel ... **97 + VM PSWD
Trunk/Group *70 + Trunk/Group No. (1-4)
Programming (Phone)
