Summary of Contents for CYP CSDI-12SR

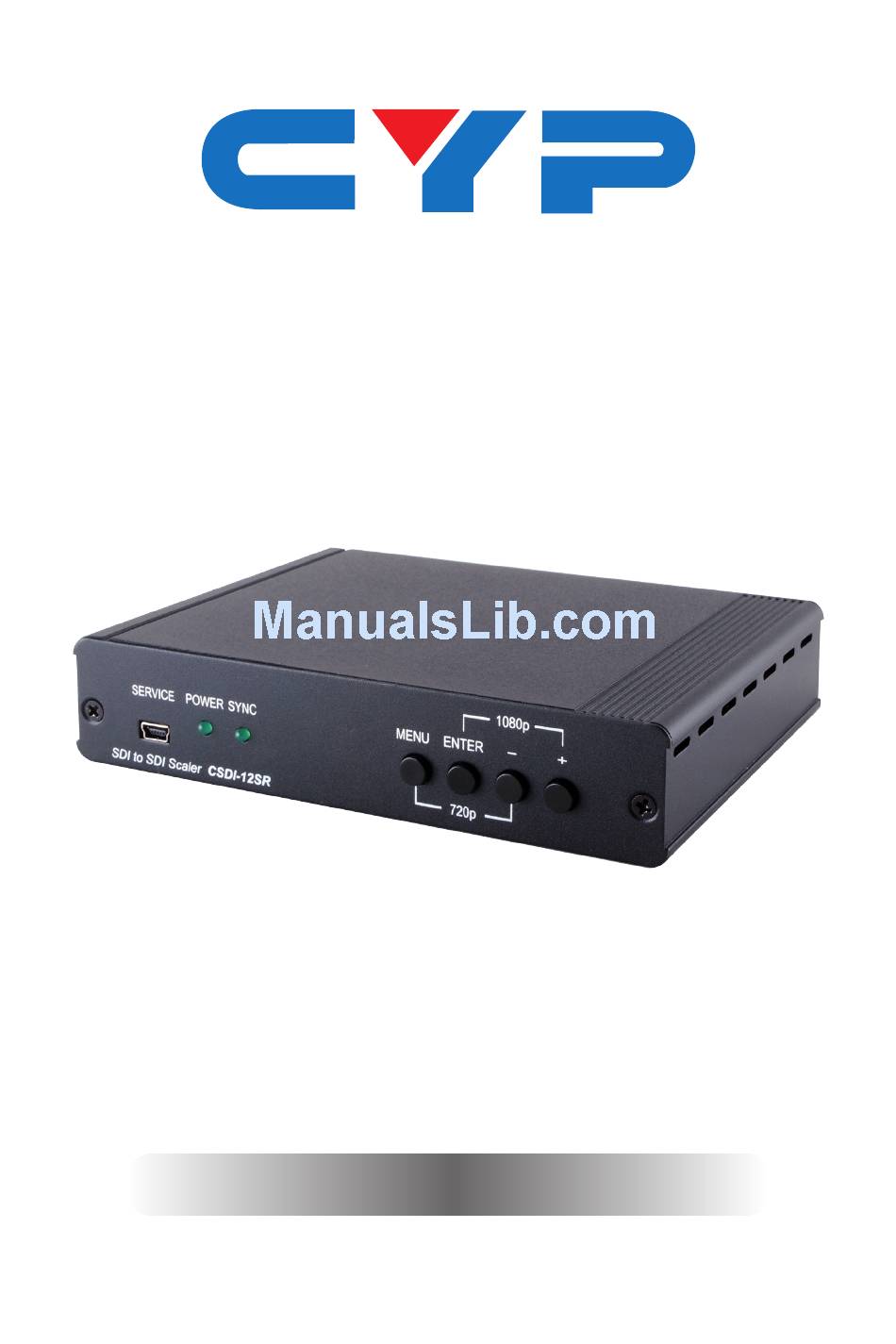

- Page 1 CSDI-12SR 1 by 2 SDI to SDI Scaler Operation Manual Operation Manual...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
-
Page 4: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Front Panel ........3 6.2 Rear Panel .........4 6.3 OSD Menu and Function List ...5 6.4 Input support timing table....7 6.5 Output support timing table ...8 6.6 USB Firmware update procedure ...8... -
Page 6: Introduction
1. INTRODUCTION The 1 by 2 SDI to SDI Scaler allows SD, HD, 3G-SDI signals to be shown on SDI display. It is easier for professional to distribute and extend their SDI signal. Through the front panel, the user can easy to bring up the OSD (On Screen Display) to select benefits settings. -
Page 7: Features
5. FEATURES • One SDI input to two SDI outputs with scaler functions • Supports SD-SDI, HD-SDI and 3G-SDI input/output signals with auto- detection • SDI interface operates at bitrates of 2.970Gbps, 2.970/1.001Gbps, 1.485Gbps, 1.485/1.001Gbps and 270Mbps • Scale any SDI input signals to any SDI output signals follow by SDI standard •... -
Page 8: Operation Controls And Functions
SYNC MENU ENTER 720p SDI to SDI Scaler CSDI-12SR SERVICE: This slot is to connect with mini USB B type cable for firmware update only. Power LED indicator: The power LED will illuminate when power is SYNC LED indicator: The LED will illuminate when the SDI port is connected and detected to the input source. -
Page 9: Rear Panel
6.2 Rear Panel SDI OUT DC 5V SDI IN SDI IN: Connect to the SDI output of the SDI source device. SDI 1&2 OUT: Connect to the SDI displays. DC 5V: Plug the 5V DC power supply into the unit and connect the adaptor to an AC outlet. -
Page 10: Osd Menu And Function List
6.3 OSD Menu and Function List The OSD IN/OUT is showing the input/output timing, if the input did not connect to the source the input OSD will display “No Signal”. MAIN MENU Sub Menu Adjustments Default 480I59 , 576I50 , 720P50 , 720P59 , 720P60 , 1080P23 , 1080P24 , 1080P25 , 1080P29 ,... - Page 11 LEFT-TOP , RIGHT-TOP , POSITION RIGHT-BTM LEFT-TOP , LEFT-BTM , CENTER TRANSPARENCY 0~15 OSD SETTINGS MENU TIMEOUT 5~50, OFF(*3) INFO. TIMEOUT 5~50, OFF ON , OFF , INFO. DISPLAY INFO INFO EXIT AUTO SYNC-OFF(*4) ON , OFF MIRROR-V ON , OFF ADVANCED FREEZE ONLY, FREEZE+...
-
Page 12: Input Support Timing Table
NOTE: *1 ASPECT RATIO: 9 F ULL - Full fills the screen. 9 16:9 TV, 16:10TV, 4:3TV – Select the corrected Aspect ratio to match the display. 9 KEEP RATIO: The ratio will depend on the output timing. For example: The output timing is 1080p@60Hz (16:9) and display is 4:3, then the image will become Letter box (black bars above and below it). -
Page 13: Output Support Timing Table
NOTE: ¾ When input source is 1080sF@23.98/24Hz, the output will not support 480i/576i and the OSD timing selection will become blank for those two timings. ¾ When the input source is 1080sF@25/29.97/30Hz, the OSD input timing will show 1080i@50/59.94/60Hz. 6.5 Output support timing table Output timing SD-SDI 480i@59Hz... -
Page 14: Connection Diagram
7. CONNECTION DIAGRAM SDI Camera SDI OUT DC 5V SDI IN SDI Display / Monitor 8. SPECIFICATIONS SMPTE Standard 425M Level A& B, 424M, 292M, 259M-C SDI Transmission Rates 2.970Gbps, 2.970/1.001Gbps, 1.485Gbps, 1.485/1.001Gbps and 270Mbps Video Bandwidth 148.5MHz/link Input port 1 x BNC(SDI/HD/3G-SDI) Output ports 2 x BNC(SDI/HD/3G-SDI) -
Page 15: Acronyms
SDI cable Distance 3G/HD/SD-SDI up to 100/200/300 meters with BELDEN 1694A Cable ESD Protection Human body model: ±8kV (air-gap discharge) ±4kV (contact discharge) Power Supply 5VDC/2.6A (US/EU standards, CE/FCC/UL certified) Dimensions 145(W) x 112.5(D) x 30(H)/Jacks Excluded 145(W) x 131(D) x 30(H)/Jacks Included Weight Chassis Material Aluminum... - Page 16 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw MPM-CSDI12SR...
