CYP CSC-6015 Operation Manual

CYP CSC-6015 Operation Manual

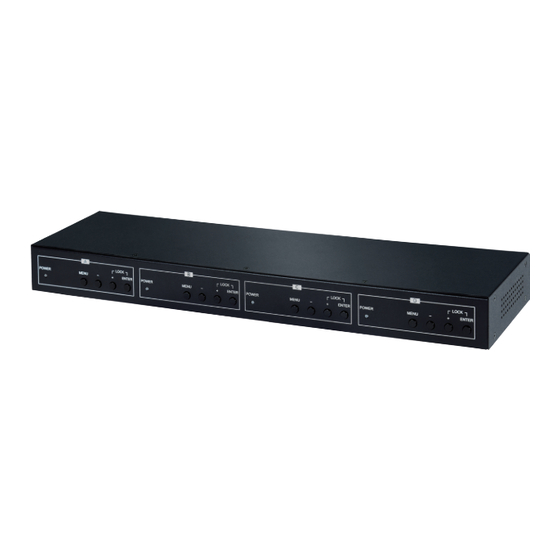

4k uhd+ hdmi to hdmi scaler quad-set

Advertisement

Quick Links

CSC-6015
4K UHD
HDMI to HDMI Scaler
+
Quad-Set
Operation Manual
Operation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CSC-6015 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for CYP CSC-6015

  • Page 1 CSC-6015 4K UHD HDMI to HDMI Scaler Quad-Set Operation Manual Operation Manual...
  • Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
  • Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
  • Page 5: Table Of Contents

    CONTENTS 1. Introduction ............1 2. Applications .............1 3. Package Contents ..........1 4. System Requirements ........2 5. Features ............2 6. Operation Controls and Functions ....3 6.1 Front Panel ..........3 6.2 Rear Panel ..........4 6.3 OSD Menu ..........5 6.4 EDID Management ........9 7.
  • Page 6: Introduction

    1. INTRODUCTION This HDMI to HDMI Scaler Quad-Set is designed to convert and scale a wide range of HDMI sources for output to an equally wide array of HDMI resolutions with 4 independent scaling units in a single case. Input sources are supported at resolutions up to and including 4K@60Hz (4:4:4, 8-bit).
  • Page 7: System Requirements

    4. SYSTEM REQUIREMENTS • HDMI source equipment such as media players, video game consoles or set-top boxes. • HDMI receiving equipment such as HDTVs, monitors or audio amplifiers. • The use of “Premium High Speed HDMI” cables is highly recommended. 5.
  • Page 8: Operation Controls And Functions

    6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel LOCK LOCK LOCK LOCK POWER MENU – ENTER POWER MENU – ENTER POWER MENU – ENTER POWER MENU – ENTER Note: The functionality of scaling units A, B, C, and D is identical, however each unit is controlled, and operates, independently.
  • Page 9: Rear Panel

    6.2 Rear Panel AUDIO AUDIO AUDIO AUDIO DC 5V HDMI OUT HDMI IN SERVICE HDMI OUT HDMI IN SERVICE HDMI OUT HDMI IN SERVICE HDMI OUT HDMI IN SERVICE Note: The functionality of scaling units A, B, C, and D is identical, however each unit is controlled, and operates, independently.
  • Page 10: Osd Menu

    6.3 OSD Menu LEVEL 1 LEVEL 2 LEVEL 3 Output Resolution 800×600@60Hz 1024×768@60Hz 1280×768@60Hz 1360×768@60Hz 1280×800@60Hz 1440×900@60Hz 1280×1024@60Hz 1400×1050@60Hz 1680×1050@60Hz 1600×1200@60Hz 1920×1200@60Hz (RB) 720×480p@60Hz 720×576p@50Hz 1280×720p@50Hz 1280×720p@60Hz 1920×1080i@50Hz 1920×1080p@50Hz 1920×1080i@60Hz 1920×1080p@60Hz 3840×2160p@24Hz 3840×2160p@25Hz 3840×2160p@30Hz 3840×2160p@50Hz (Y420) 3840×2160p@60Hz (Y420) 3840×2160p@50Hz 3840×2160p@60Hz Bypass...
  • Page 11 LEVEL 1 LEVEL 2 LEVEL 3 Auto Output Color Format Format HDMI Bypass Color Space Auto YUV444 YUV422 YUV420* Color Depth Auto 8-bit 10-bit 12-bit 16-bit 0~100 (27) Output Image Adjust Brightness 0~100 (67) Contrast 0~100 (50) Saturation 0~100 (50) 0~100 (60) Sharpness Full...
  • Page 12 LEVEL 1 LEVEL 2 LEVEL 3 Unmute Output Audio Control HDMI Audio Mute Unmute Ext Audio Mute Audio Information 1~60 Sec (3 Sec) HDMI Information Notify Always Never Input Information Output Information Int FHD 2CH EDID Control Mode Int FHD MCH Int UHD 2CH Int UHD MCH Int UHD...
  • Page 13 LEVEL 1 LEVEL 2 LEVEL 3 0~7 (3) OSD Setting Transparency Panel Size Normal Large Auto Panel Color Green Blue Gray Font Color White Yellow Cyan Green Magenta Blue Black Free Run Color Green Blue Black Default System Setting FW Version FW Update Factory Mode Notes:...
  • Page 14: Edid Management

    6.4 EDID Management Within the EDID Control section of the OSD menu are 2 menu items, “Mode” & “User”, along with a details section displaying the content of the currently selected EDID. (1) Mode The current EDID may be changed by selecting and changing the Mode option.
  • Page 15: Connection Diagram

    7. CONNECTION DIAGRAM Set-top Box Satellite Receiver Set-top Box Satellite Receiver HDMI HDMI HDMI HDMI Input Input Input Input Power Supply AUDIO AUDIO AUDIO AUDIO DC 5V HDMI OUT HDMI IN SERVICE HDMI OUT HDMI IN SERVICE HDMI OUT HDMI IN SERVICE HDMI OUT HDMI IN...
  • Page 16: Specifications

    8. SPECIFICATIONS 8.1 Technical Specifications Video Bandwidth 600MHz/18Gbps Input Ports 4×HDMI Output Ports 4×HDMI 4×3.5mm (Stereo) Control Interfaces 4×USB Type-A HDMI Cable Length 10m (1080p@60Hz, 12-bit) 3m (4K@60Hz, 4:4:4, 8-bit) Power Supply 5V/6A DC (US/EU standards, CE/FCC/UL certified) ESD Protection Human Body Model: ±8kV (Air Discharge) ±4kV (Contact Discharge)
  • Page 17: Video Specifications

    8.2 Video Specifications Bypassed Scaled Supported PC Resolutions (Hz) Input Output Output 640×480 60, 72, 75, 85   800×600 56, 60, 72, 75, 85 60Hz   1024×768 60, 75, 85 60Hz   1280×768 60, 70, 75, 85 60Hz ...
  • Page 18: Acronyms

    9. ACRONYMS ACRONYM COMPLETE TERM Digital Visual Interface EDID Extended Display Identification Data Gbps Gigabits per second High-Definition HDCP High-bandwidth Digital Content Protection HDMI High-Definition Multimedia Interface LPCM Linear Pulse-Code Modulation On-Screen Display SVGA Super Video Graphics Array (800×600@60Hz) Ultra-High-Definition Universal Serial Bus...
  • Page 20 CYPRESS TECHNOLOGY CO., LTD. www.cypress.com.tw...
