i3 International Ax73RM-series Quick Start Manual

5MP Infrared Outdoor IP Dome Camera w/ Motorized Lens
SAFETY
When installing your Ax73RM camera be sure to avoid:
• excessive heat, such as direct sunlight or heating appliances
• contaminants such as dust and smoke
• strong magnetic fields
• sources of powerful electromagnetic radiation such as radios or TV transmitters
• moisture and humidity
• areas with mechanical vibrations
• fluorescent lamps or objects that reflect light
• unstable light sources as this may cause flickering
• temperatures below -40° Celsius or -40° Fahrenheit and above 50° Celsius or 122°
.
Fahrenheit
For more details on installation and operation, please refer to the CD
•
provided.

POWER SUPPLY

Ensure the supplied voltage meets the power consumption requirements of this camera
before powering the camera on. Incorrect voltage may cause irreparable damage to the
video camera and will effectively void the camera warranty.
CLEANING
• For maximum optical clarity, the camera dome or lens must remain clean. Use a soft,
dry cloth to remove finger prints or dust from the dome cover.
• Use a blower to remove dust from the lens.
• Clean the body with a soft, dry cloth. If it is very dirty, use a cloth dampened with a
small quantity of neutral detergent, then wipe dry.
• Do not use volatile solvents such as alcohol, benzene, or thinners, as they may dam-
age the surface finishes.
SERVICING
To avoid electrical shock and to preserve the product warranty, DO NOT disasemble the
camera. Refer servicing to qualified personnel only.

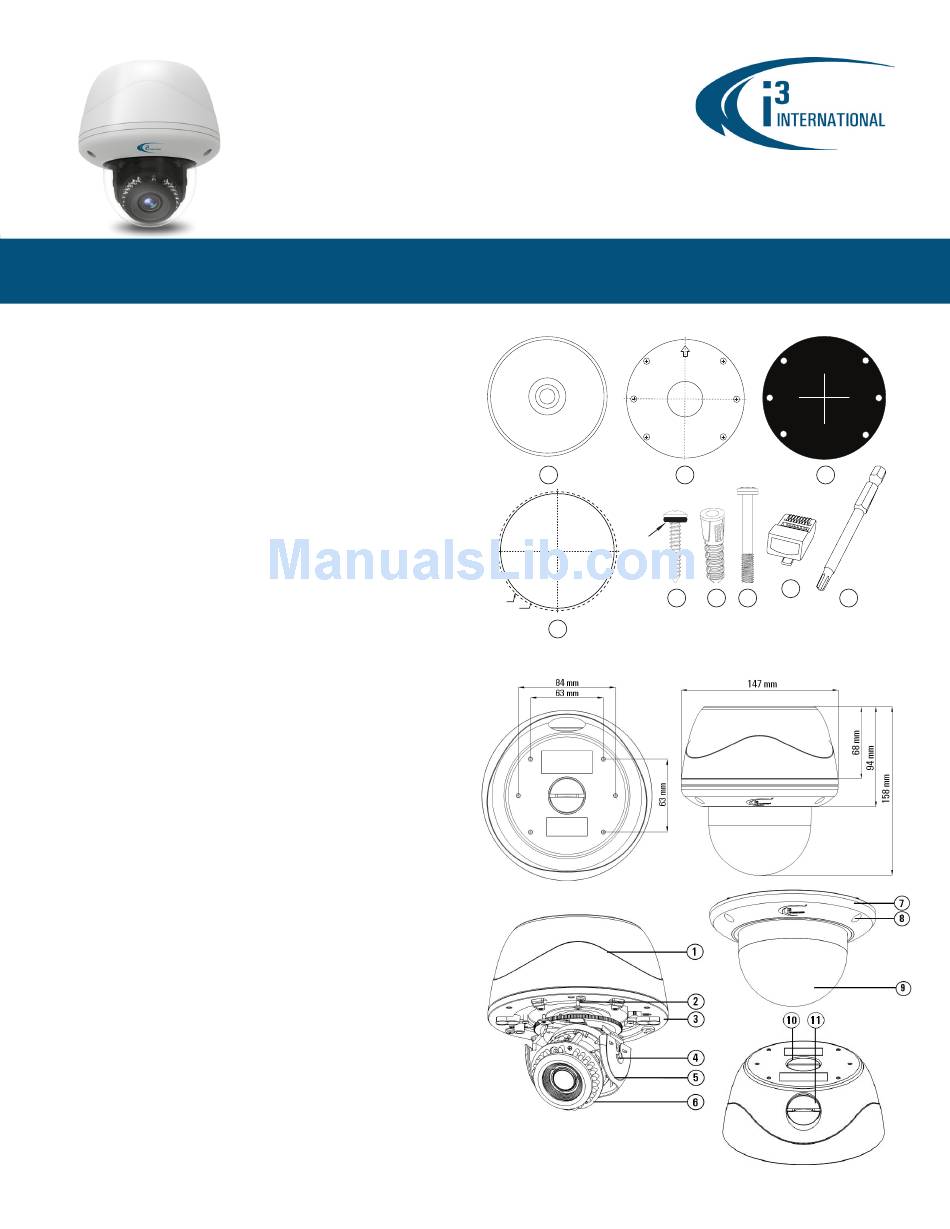

PACKAGE CONTENTS

Ensure that the items received match those listed on the order form and the packing slip.
In addition to this manual and a fully assembled camera, the dome camera packing box
includes:
1. User Manual and Annexxus Finder CD x1
2. Surface Mount template x1
3. Rubber gasket x1. Use in all outdoor installations.
4. Flush Mount template x1
5. Round Head Screw (Tapping Type) with O-ring x4
6. Plastic Anchor x4
7. Long Screws for Flush Mount w/Back Box installations x3
8. Standard RJ45 Connector x2
9. Security torx bit x1
i3-TRNG-CAMS-Ax73RM-QuickGuide.indd

Quick Start Guide

ACCESSORIES (not to scale)
User Guide
IP Finder
1
O-ring
GUIDE PATTERN
CUT LINE
CAMERA OUTLINE
4

CAMERA PARTS AND DEFINITIONS

Ax73RM-series
Lens Direction
GUIDE PATTERN
2 3
8
5 6 7
Rev.
9
141202
