i3 International Ax68R Quick Start Manual

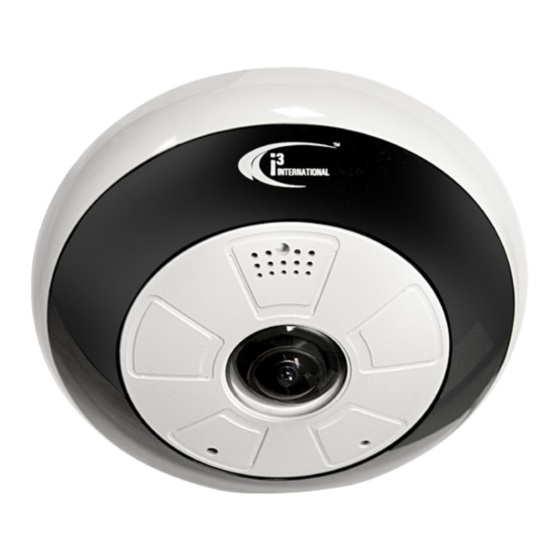

3MP/6MP Infrared Outdoor IP 360-degree Fisheye Camera
SAFETY
When installing your Ax68/78 camera be sure to avoid:
• excessive heat, such as direct sunlight or heating appliances
• contaminants such as dust and smoke
• strong magnetic fields
• sources of powerful electromagnetic radiation such as radios or TV transmitters
• moisture and humidity
• areas with mechanical vibrations
• fluorescent lamps or objects that reflect light
• unstable light sources as this may cause flickering
• temperatures below -30° Celsius or -22° Fahrenheit and above 60° Celsius or 140°
Fahrenheit.
POWER SUPPLY
Ax68/78 Power consumption requirement: DC 12V / PoE (IEEE 802.3af).
Ensure the supplied voltage meets the power consumption requirements of this camera
before powering the camera on. Incorrect voltage may cause irreparable damage to the
video camera and will effectively void the camera warranty.
PoE power is supported.
CLEANING
• For maximum optical clarity, the camera dome or lens must remain clean. Use a soft,
dry cloth to remove finger prints or dust from the dome cover.
• Use a blower to remove dust from the lens.
• Clean the body with a soft, dry cloth. If it is very dirty, use a cloth dampened with a
small quantity of neutral detergent, then wipe dry.
• Do not use volatile solvents such as alcohol, benzene, or thinners, as they may
damage the surface finishes.
SERVICING
To avoid electrical shock and to preserve the product warranty, DO NOT disassemble the
camera. Refer servicing to qualified personnel only.
PACKAGE CONTENTS
Ensure that the items received match those listed on the order form and the packing slip.
In addition to this manual and a fully assembled camera, the dome camera packing box
includes:
A. Waterproof RJ45 connector (x1 package with 4 pcs).
Use to protect RJ45 cable connector from the elements.
B. Waterproof tape. Use to protect DC12V power connector from moisture.
C. Plastic Anchor x4
D. Round Head Screw (Tapping Type) x4
E. Surface Mount template x1
Waterproof tape
e Waterproof tape
pe Waterproof ta
f tape Waterproo
oof tape Waterpr
proof tape Water
A B
Scan this QR code or visit ftp.i3international.com to view and
download the full User Manual for this camera. Also available for
download is the AnnexxusConfigurationTool or ACT program
used to locate and configure your cameras with your SRX-Pro soft-
ware. This program is already installed in SRX-Pro v3.3.3.69 and
higher. Please contact our Technical Support team if you have any
questions or concerns regarding camera installation or you require
software services or support. Technical support can be reached by
email at: support@i3international.com or by phone toll free
1.877.877.7241.
i3-TRNG-CAMS-Ax68/78-QSG.indd
1
TOP
Drill Template
Hole A : for cables routed through the ceiling
Screw hole 1 : for Mounting Base
1
C D
QR Code to Complete
User Manual / ACT

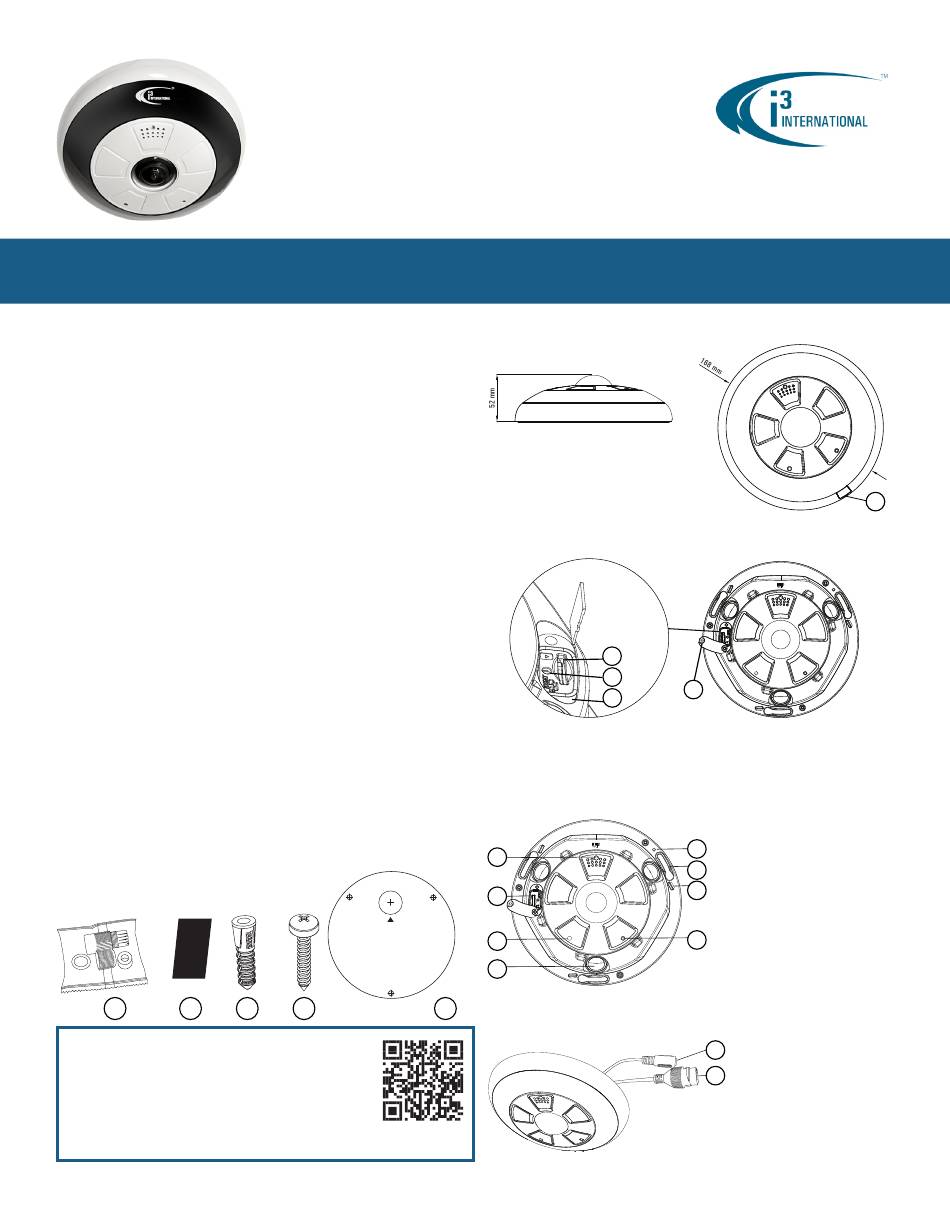

CAMERA PARTS AND DEFINITIONS,
DISASSEMBLING THE CAMERA
Ax68/78 Camera Side view, with
camera cover attached
Ax68/78 Camera, Top view, with camera cover
attached. Lift the safety lock screw cover to reveal
the safety lock screw (1). Use a Phillips screwdriver to
loosen the lock screw, then grip the camera cover and flex
on one side, towards the center. Lift UP to remove.
Camera module with camera cover removed.
Use a Phillips screwdriver to remove the SD card panel cover (2).
to expose microSD card slot (3) and the RESET pin hole (4).
Rubber gasket is provided for an airtight seal and moisture protection (5).
6
7
1
8
9
E
Camera module with camera cover removed.
Quick Start Guide
Ax68R/78R
3
4
2
5
6. Built-in speaker
10
7. MicroSD card slot
Insert a micro SDHC card
11
for backup/emergency
12 recording and/or storage.
RESET pin hole
Use a sharp object to
Press the Reset button, the
13
camera will be rebooted.
8. Light sensor for day/night
switching
9. IR LEDs x3
10. Camera cover lock screw
hole
11. Mounting screw hole/
slot x3
12. Camera cover clips x3
14
13. Built-in microphone
14. DC12V Power connector.
15
Use the included waterproof
tape to protect the
connector from moisture.
15. RJ45 Network connector
(PoE supported)
1
Rev. 180129
