i3 INTERNATIONAL INC.
1.866.840.0004
www.i3international.com
Please read this guide carefully before you install your Ax47DC.
Keep this guide for future reference.
U.S.A. i3 America Inc.
4450 Witmer Industrial Estates Unit 4
Niagara Falls, NY 14305

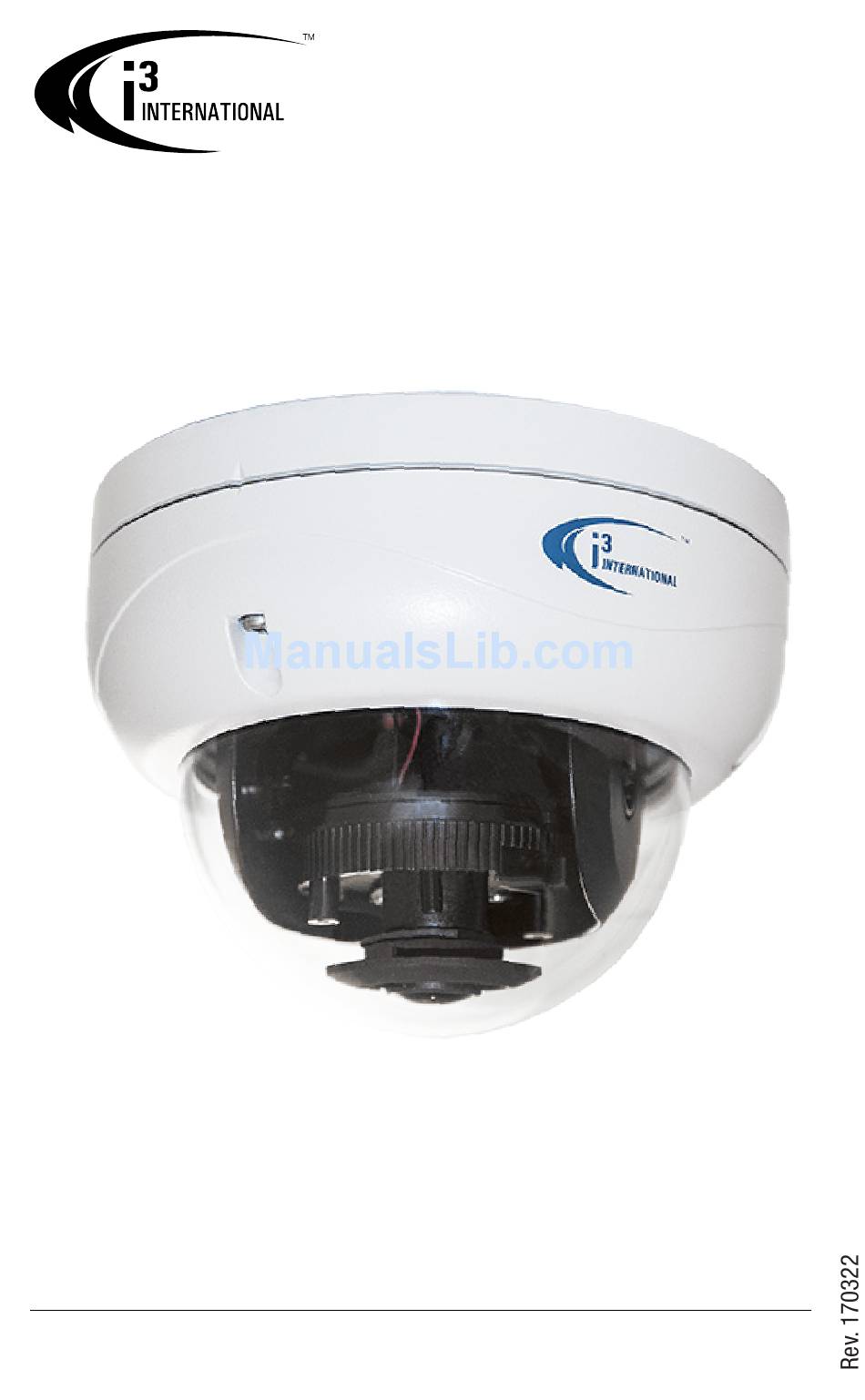

Ax47DC
User Manual
Canada 780 Birchmount Road,
Unit 16, Scarborough,
ON, M1K 5H4
Advertisement
Table of Contents
Related Manuals for i3 International Ax47DC
Summary of Contents for i3 International Ax47DC
-
Page 1: User Manual
Ax47DC User Manual Please read this guide carefully before you install your Ax47DC. Keep this guide for future reference. i3 INTERNATIONAL INC. 1.866.840.0004 U.S.A. i3 America Inc. Canada 780 Birchmount Road, 4450 Witmer Industrial Estates Unit 4 Unit 16, Scarborough, www.i3international.com... - Page 2 Neither i3 International Inc. nor its dealers or distributors shall be liable to any person or entity with respect to any liability, loss, or damage, caused or alleged to have been caused directly or indirectly by this information.
-
Page 3: Table Of Contents
Configuring Door Count in SRX-Pro Advanced Camera Setup via IE Basic Setup Camera Settings (Primary Streaming only) Network settings Video Setup Camera Settings Triple Video Streaming Stream 1 (Primary Streaming) Stream 2 (Secondary Streaming) / Stream 3 (Third Streaming) i3-TRNG-CAMS-Ax47DC-UM.indd Rev. 170322... - Page 4 Advance Settings Video Adjustment Motion Detection (edge) Motion Setting Motion Zone Area Setting Store to SD Card On Screen Display Sending E-mail by MOTION Privacy Zone (edge) Privacy Zone Setting Privacy Zone List Exposure Exposure Mode > Auto Exposure Exposure Mode > Manual Exposure Day Night Setting SD Card (edge recording) SD Card Setting...
-
Page 5: Introduction
The Ax47DC camera is designed specifically for indoor Door Counting applications in combination with i3’s SRX-Pro and CMS. The Ax47DC camera is backed by i3’s superior 3-year parts and 1-year labor warranty policy as well as 2-for-1 policy. Please read i3’s Limited Warranty for more information: http://i3international.com/tools/media/medialibrary/PDF/Polices/limited_product_warranty.pdf... -
Page 6: Warnings And Operation Notes
Please read this guide carefully before you install the camera. Keep this guide for future reference. If the camera needs to be modified or repaired, contact a certified i3 International Dealer/Installer. When serviced by unauthorized technician, the camera warranty will be voided. -
Page 7: Power
Clean the camera housing with a soft and dry cloth. For more stubborn marks, use a cloth dampened with a small quantity of neutral detergent, then wipe dry. • CAUTION: Do not use volatile solvents such as alcohol, benzene or thinners, as they may damage the surface finish. i3-TRNG-CAMS-Ax47DC-UM.indd Rev. 170322... -
Page 8: Unpacking
*Note: Based on installation location and surface type, supplied screws and anchors may not be adequate. Mounting hardware is site-specific and may need to be supplied by the installer. 3.1 Accessories (not to scale) 3-Ø4.5 holes ( for plastic anchor ) Cable hole Logo Direction i3-TRNG-CAMS-Ax47DC-UM.indd Rev. 170322... -
Page 9: Dimensions & Parts Identification
4. Dimensions & Parts Identification Ax47DC dome camera is designed for indoor installation in commercial environment specifically for Door Counting installations. The camera installation must comply with installation requirements (see Installation section for more information). 110.97 mm i3-TRNG-CAMS-Ax47DC-UM.indd Rev. 170322... -
Page 10: Installation
Ax61BB (Back Box 3/4” & 1/2” NPT). Use for pendant mount, or pole mount. • DB60 (Goose Neck Bracket 3/4” NTP). Together with the optional DB60CPM bracket, DB60 goose neck bracket has the capability of being pole-mounted. • DB60CPM (Pole Mount bracket for DB60) i3-TRNG-CAMS-Ax47DC-UM.indd Rev. 170322... -
Page 11: Door Count Installation Requirements
5.1 Door Count Installation Requirements For accurate count, Ax47DC installation must comply with all requirements below: 1. Mounting height between 2.43m (8’) and 3.65m (12’) Above Finished Floor (AFF). Reliability decreases outside of this range. 2. Centered on doorway and 1.22m (4’) in from the doorway. -
Page 12: Mounting
5.3 Mounting Ax47DC camera can be surface or T-bar ceiling mounted without additional mounting accessories/brackets. 1. Prepare the surface for mounting. Use supplied guide pattern sticker to drill screw holes on the mounting surface. Insert plastic anchors. If routing cables from the back of the camera, cut a cable hole in the surface. -
Page 13: Axis Lens Position Adjustment
5.4 Axis lens position adjustment Ax47DC dome camera is specifically designed for Door Countring installations in commercial indoor environment. The camera installation must comply with installation requirements. For best door counting accuracy the camera’s tilt position is fixed at 90°. This ensures that the camera is always looking straight down for a most accurate door count. -
Page 14: Surface Mounting
See section 5.4 for info. 9. Use the supplied Torx bit to re-tighten 3 silver screws securing the dome bubble housing to the camera module. i3-TRNG-CAMS-Ax47DC-UM.indd Rev. 170322... -
Page 15: Mounting W/ Ax61Bb Back Box (Optional)
(Optional) rotating the camera base housing to guide the cable and find the mounting holes. Mounting holes for Align holes the Ax47DC cameras are identified with a triangle on the lip of the Ax61BB back box. Ax47DC Camera Use the provided security Torx key... -
Page 16: Connect Camera To Srx-Pro Server
Login / PW: admin / 1234 FW. ver. 5.0.0 Login / PW: i3admin / i3admin FW. ver. 5.2.0, or higher Connection Type 1 (Single camera): Connection Type 2 i3 SRX-Pro Server (Multiple cameras): Via Gigabit Switch i3 SRX-Pro Server i3-TRNG-CAMS-Ax47DC-UM.indd Rev. 170322... -
Page 17: Hardware/Software Requirements
6.1 Hardware/Software Requirements The following requirements must be met to achieve a successful network connection with the Ax47DC IP camera. SRX-Pro Server • i3 SRX-Pro Version 3.3.3 or higher • Latest GiPi adapter is installed. Latest i3 GiPi can be downloaded from: http://i3international.com/software-downloads. -
Page 18: Rtsp Stream Information
If your NVR does not have Annexxus Configuration Tool, download and install it from http://i3international.com/software-downloads website. 7. In ANNEXXUS Configuration Tool window, a list of active network cameras will be displayed. Select your desired camera in the list. i3-TRNG-CAMS-Ax47DC-UM.indd Rev. 170322... -
Page 19: Viewing Camera In Ie Browser
2. Enter the default camera User Name: i3admin and Password: i3admin. 3. Annexxus camera interface will be displayed in the Internet Explorer window. 4. If you have not connected to an Annexxus camera via IE before, you will see the following ActiveX download message. i3-TRNG-CAMS-Ax47DC-UM.indd Rev. 170322... -
Page 20: Adding Annexxus Camera To Srx-Pro Server
7. Repeat Step 1 to launch Internet Explorer for your Annexxus camera again. The camera’s live video stream will now be seen in the Live View screen. If you do not see the camera image on the screen, call i3 International tech support for troubleshooting tips: 1.877.877.7241. - Page 21 You may change resolution and frame rate for the Annexxus camera in the IP Camera tab menu or you may choose to configure the camera’s settings via Web Setup. ( See Section 7.0 for more info) . Remember to configure the video Channel’s recording schedule under SRX-Pro Schedule tab. i3-TRNG-CAMS-Ax47DC-UM.indd Rev. 170322...
-
Page 22: Configuring Door Count In Srx-Pro
1. In SRX-Pro Server, click the Setup button and go to the VisionCount tab. 2. Select the Ax47DC camera in the Channel Selection menu. 3. Select DoorCount in the Analytic Type menu. -
Page 23: Advanced Camera Setup Via Ie
Setup button or Web Setup (SRX-Pro v. 3.3.3.70 and above). Enter the camera User Name and Password. (Default: i3admin / i3admin). If you have not connected to an Annexxus camera via IE before, see Section 6.5 for more info . i3-TRNG-CAMS-Ax47DC-UM.indd Rev. 170322... -
Page 24: Basic Setup
This setting is beneficial for installations with limited bandwidth. • VBR Max bit rate (for H264 codec) / CBR bit rate: Set the video bit rate between to 768. The default value is dependent on the Resolution and Frame Rate. i3-TRNG-CAMS-Ax47DC-UM.indd Rev. 170322... -
Page 25: Network Settings
In these applications the sides of the typical landscape video format image often include unnecessary area, such as walls. This unneeded video data also leads to wasted bandwidth and storage space. Corridor video mode eliminates the unnecessary portions of the field of view in those installations. i3-TRNG-CAMS-Ax47DC-UM.indd Rev. 170322... -
Page 26: Triple Video Streaming
Video Codec: Set the compression mode to MJPEG or H264. • Resolution: Quad VGA (1280×960), HD (1280×720), SVGA (800×600) • Frame Rate: Available frame rate settings: 1, 3, 7.5, 10, 15, 30 fps or choose Custom and enter preferred frame rate manually. i3-TRNG-CAMS-Ax47DC-UM.indd Rev. 170322... -
Page 27: Stream 2 (Secondary Streaming) / Stream 3 (Third Streaming)
ATW (Auto Tracing White Balance): continuously adjusts the camera color » balance in accordance with any change in color temperature. Manual: Set R (Red) Gain and B (Blue) Gain values manually between 0 and » 511, according to your preference. i3-TRNG-CAMS-Ax47DC-UM.indd Rev. 170322... -
Page 28: Video Adjustment
Motion. Note that lower value settings may cause false alarms. Test various Object Size settings to find the one that works best for your installation. i3-TRNG-CAMS-Ax47DC-UM.indd Rev. 170322... -
Page 29: Motion Zone Area Setting
Snapshot: Enable Snapshot check box to save a *.jpg snapshot to the micro SD card each time motion is detected inside the motion detection area. Note: Secondary or Third (recommended) stream in the Video tab must be set to i3-TRNG-CAMS-Ax47DC-UM.indd Rev. 170322... -
Page 30: On Screen Display
MJPEG codec to support this feature. • Enable: Check to enable motion-triggered E-mail. • Subject: Enter the E-mail subject. • Message: Enter E-mail body message. After making any setting adjustments, remember to click the Save button to save any changes made. i3-TRNG-CAMS-Ax47DC-UM.indd Rev. 170322... -
Page 31: Privacy Zone (Edge)
6. Click Apply to save the new privacy zone. Saved privacy zone area will be filled with the solid color selected in the Color Setting. 7. To remove a saved privacy zone area, click on the Privacy Zone name in the list and click Clear. i3-TRNG-CAMS-Ax47DC-UM.indd Rev. 170322... -
Page 32: Exposure
The diagram is an approximate representation of the selected areas. • HLC: Set the Highlight Central 1/6th Left Right Compensation feature to On or Off. HLC feature senses strong sources of light in video (headlights, spotlights) and i3-TRNG-CAMS-Ax47DC-UM.indd Rev. 170322... -
Page 33: Exposure Mode > Manual Exposure
• Defog: Digital Defog function uses built-in video processing algorithm to improve video appearance in foggy conditions. • Gamma Correction: Set Gamma Correction to 0.45 or 1. • Reset Exposure: Reset Exposure settings to factory defaults. i3-TRNG-CAMS-Ax47DC-UM.indd Rev. 170322... -
Page 34: Sd Card (Edge Recording)
After making any setting adjustments, remember to click the Save button to save any changes made. 7.6 SD Card (edge recording) Your Ax47DC camera supports edge video recording to a micro SD card for the purposes of data redundancy. One micro SD card (64GB max) is supported (not supplied with the camera). -
Page 35: Sd Card Status
It is represented as a percentage value. Lower values indicate shorter remaining lifespan and can also be used as an indicator for micro SD replacement. • SD Card Format: Click to format the micro SD card. Click OK in a confirmation window to proceed. i3-TRNG-CAMS-Ax47DC-UM.indd Rev. 170322... -
Page 36: Sd Card Lifespan Notification Setting
Recording/ Schedule tab. • E-mail Subject: Enter the E-mail subject. • E-mail Message: Enter E-mail body message. After making any setting adjustments, remember to click the Save button to save any changes made. i3-TRNG-CAMS-Ax47DC-UM.indd Rev. 170322... -
Page 37: Recording/Schedule (Edge)
Sender Email Address: Enter the email address where the camera emails will be addressed from. • Port: Enter your SMTP Port number • Authentication: Select your SMTP Server authentication method from NO AUTH, SMTP PLAIN, LOGIN and TLS-TTLS. i3-TRNG-CAMS-Ax47DC-UM.indd Rev. 170322... -
Page 38: Email Address List
(enabled). Set the active time period for each enabled day by using the drop-down menus for Start and End Times to select the hours and minutes, respectively. By default, Schedule arming schedule is set to stay active 24/7. i3-TRNG-CAMS-Ax47DC-UM.indd Rev. 170322... -
Page 39: Arming Schedule Setting > Defocus
(enabled). Set the active time period for each enabled day by using the drop-down menus for Start and End Times to select the hours and minutes, respectively. By default, Defocus event detection is set to stay active 24/7. i3-TRNG-CAMS-Ax47DC-UM.indd Rev. 170322... -
Page 40: Arming Schedule Setting > Tamper
Start and End Times to select the hours and minutes, respectively. By default, Tamper event detection is set to stay active 24/7. After making any setting adjustments, remember to click the Save button to save any changes made. i3-TRNG-CAMS-Ax47DC-UM.indd Rev. 170322... -
Page 41: Communication Setup
OSD Camera Name: Turn Camera Name OSD On or Off. Camera Name is configured in the Video setup tab. » OSD Date Time: Turn Camera Date/Time OSD On or Off. Camera date/time settings are configured in the System setup tab. i3-TRNG-CAMS-Ax47DC-UM.indd Rev. 170322... -
Page 42: User Management
Reminder: Whenever a change is made to the Annexxus camera user in the camera’s Advanced Setup > User Management tab, remember to update this information in the IP Setup tab of the SRX-Pro Server. i3-TRNG-CAMS-Ax47DC-UM.indd Rev. 170322... -
Page 43: Adding A User
3. Click Update button. If changing administrative password, you will be asked to log in with the new administrative credentials. Enter updated administrative login/ password and click OK. 4. Click OK in the confirmation message. The new user settings are now saved. i3-TRNG-CAMS-Ax47DC-UM.indd Rev. 170322... -
Page 44: System Setup
Sync Period in hours. Sync frequency can be set to every 1, 6, 12 or 24 hours. Current Version Description: This section contains information on the Camera’s Model Name and Firmware version. Camera’s TV System can be set to NTSC or PAL from the drop-down menu. i3-TRNG-CAMS-Ax47DC-UM.indd Rev. 170322... -
Page 45: Restart/Reset
Click Browser to locate a (*.tar.gz) configuration file to apply new settings to your • camera and click Import File. After making any setting adjustments, remember to click the Save button to save any changes made. i3-TRNG-CAMS-Ax47DC-UM.indd Rev. 170322... -
Page 46: Logs
Time and click Search. Only matching log entries will be displayed. When searching for more than one event type, pie chart report will show a visual representation of the number of each event type within the set time frame. i3-TRNG-CAMS-Ax47DC-UM.indd Rev. 170322... -
Page 47: Specifications
7. Specifications Features/Model Ax47DC Image System Image Sensor Progressive Scan CMOS 1/3” sensor Signal System NTSC/PAL Optical System Iris Control Auto Iris Focal Length 2.1mm F-stop Range (F-number) F1.8 Horizontal FOV (Field of View) 116° (H) ~ 87° (V) Day/Night... - Page 48 INTERNATIONAL INC. 1.866.840.0004 U.S.A. i3 America Inc. Canada 780 Birchmount Road, 4450 Witmer Industrial Estates Unit 4 Unit 16, Scarborough, www.i3international.com Niagara Falls, NY 14305 ON, M1K 5H4...
