Before attempting to connect or operate this product, please read these instructions carefully and save this

manual for future use.

Ax32V Camera Series

Instruction Manual

Need help?

Do you have a question about the Ax32VD14 and is the answer not in the manual?

Questions and answers

Summary of Contents for i3 International Ax32VD14

Page 1 Ax32V Camera Series Instruction Manual CONTENTS INTRODUCTION ..............SPECIFICATIONS ............... INSTALLATION..............Before attempting to connect or operate this product, please read these instructions carefully and save this manual for future use.
Page 2 Annexxus Mini Network Dome Camera User Guide Ax32V Models All rights reserved. No part of this manual may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying, recording, or by any information storage or retrieval system, without the prior written permission of the copyright owner and the publisher.

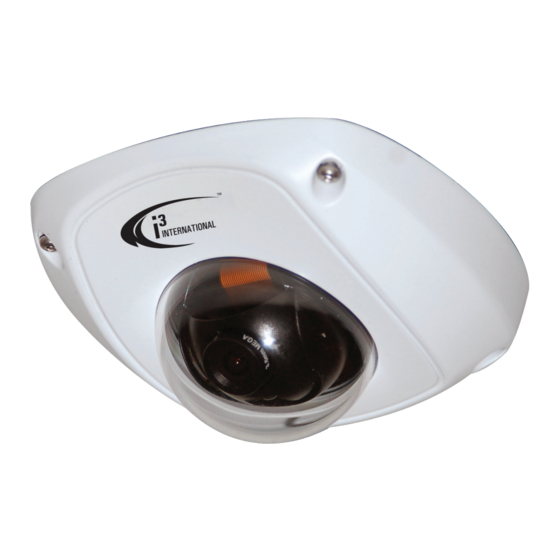

Page 3 1 Introduction Thank you for purchasing an i³ Annexxus Network Camera. The Ax32V models are vandal-proof dome cameras that can be viewed on site or remotely. They come with i³’s Annexxus Web Viewer software which operates on an Internet Explorer web browser platform so is easy to install and offers a range of user-friendly video functions.
Page 4 Ax32V2M series Specifications: Model Ax32V2M series Parameter 2 megapixel CMOS IP Vandal-Proof Indoor Dome Camera Camera Image Sensor 1/3 inch CMOS Electronic Shutter 1/25s ~1/100,000s Min. Illumination Color: 0.5Lux @ F1.2 B / W: 0.1Lux @ F1.2 Lens 4mm, F1.2 Fixed Iris (2.8, 6, 8mm optional) Angle of view: 90°...
Page 5 Ax32VD1 Series Specifications Model Ax32VD1 Series Parameter VGA Real-time CMOS Mini IP Vandal-proof Dome Camera Camera Image Sensor 1/4 inch CMOS Electronic Shutter 1/25s ~1/100,000s Min. Illumination Color: 0.1 Lux @ F1.2 B / W: 0.01Lux @ F1.2 Lens 4mm, F1.2 Fixed Iris(2.8, 6, 8mm optional) Angle of view: 71°...
Page 6 Network camera IP configurations Annexxus Web Viewer Installation and Setup details Annexxus Advanced Setup Note: Internet Explorer version 6.0 or higher is necessary to connect with an i3 International network camera. 2.1 Connecting a network camera Two methods of connecting a network camera and PC are shown below:...
Page 7 5. When connecting for the first time, you may be prompted to install Annexxus 300 Active X control. Click on the banner and select install the following Active X control ‘Annexxus 300’ from ‘I3 International Inc.’... from the context menu.
Page 8 6. In the Internet Explorer - Security Warning window, click Install. 7. The Annexxus Web Viewer screen will be displayed with the Login window. Enter Annexxus Username and Password and click Login. Note The login is case sensitive. The default administrative login is: Username: admin; Password: 1234 8.
Page 9 4. Click the Save button and wait for the "Settings changes have been successfully saved” message window to pop up. Click OK to close the message window. 5. Wait for “Please reboot Annexxus device to apply changes” window to pop up. Click OK. Click Reboot button.
Page 10 The Save button is available to authorized users only. Click it to save any setting changes. To prevent unauthorized users from making changes to the Annexxus device, disable the Save button in the User Management setup tab. The Close button closes the Advanced Setup window. 2.4.1 Device Information Setup The following information about the Annexxus device can be found in the Device Information setup: the number of video channels, sensor inputs, control outputs and internal storage devices...
Page 11 2.4.2 Channels Setup In the Channels Setup, authorized users can perform the following tasks for each selected video channel: • Assign/change channel name. • Display/hide channel name, change the position of the channel name on the video screen. • Display/hide timestamp and day of the week; change the position of the timestamp on the video screen;...
Page 12 Unique IP address must be assigned to each Annexxus unit before installation. Unless this step is completed prior to installation, the customer will be unable to detect Annexxus module on their LAN/WAN network. See Changing IP Address section for instructions on how to change Annexxus IP address.
Page 13 Operator user Operator users will only have access to setup tabs and features that are specified in their user privileges. Operator users cannot add, modify or delete other operator accounts. An operator user can only change his/her own password. 2.4.4.1 Changing Administrator Password To change the administrator password, you must be logged in as Administrator.
Page 14 2. Enter the user name in User Name field. User name may not exceed 16 characters. 3. Enter the password in Password and Re-enter Password fields. The password may only consist of numbers and may not exceed 16 characters. 4. Configure user privileges. The following privileges can be assigned to the operator user(s): User Privilege Privilege Limitation Live Video Viewing...
Page 15 5. Click Save to save changes to all user accounts Deleting Operator User To delete an operator user, do the following: 1. In the User Management setup tab, right-click on the desired Operator account in the left-hand pane and select Delete from the context menu. Note that the user will be deleted immediately and no warning message will be displayed.
Page 16 12. Current User 13. Current Date and Time Note: The Audio Settings panel at the bottom left of the live view screen is disabled, because neither the Ax32V2M series nor the Ax32VD1 series capture sound. Note: The PTZ Control panel on the left side of the live view screen is disabled for the Ax32VD1 series, because this model does not support the PTZ or ePTZ function.
Page 17 Live Backup - This button starts recording a backup video from the live network camera. The video is saved on local media storage. Each backup file will be saved as a separate file. Annexxus Player is needed to play back the *.axv live backup video clips. For more information, see Live Backup section (s.3.4).
Page 18 3.3 Electronic Pan/Tilt/Zoom (ePTZ) - Ax32V2M series only Through the Annexxus Web Viewer, authorized users can control the Electronic Pan/Tilt/Zoom (ePTZ) function of the network camera remotely. The ePTZ function does not apply to the Ax32VD1 series model. Make sure to properly connect the camera according to the Annexxus connections diagram. The network camera ePTZ can be controlled through the Annexxus Web Viewer or through the SRX-Pro/iP-Pro software (see SRX-Pro/iP-Pro software manual for more information).
Page 19 3.3.1 Controlling ePTZ Note: ePTZ does not work in Full Screen mode. Press F11 to exit Full Screen. Using the ePTZ control panel located on the left of the live video dashboard the user can: 1. Change the pan-tilt settings. 2.
Page 20 1. Click the Live Backup button on the main screen . The Live Backup window will be displayed. 2. In the Live Backup window, ensure the Channel 1 box is checked off. 3. Select Storage Location. Click Browse..., locate and select the destination folder on a local or network hard drive, where the *.axv live video backup files will be stored.
Page 21 1. Click the Live Backup button on the main screen The Live Backup window will be displayed. 2. In the Live Backup window, ensure the Channel 1 box is unchecked. If the Channel 1 box remains checked, recording will continue! Click OK. The Live Backup button will return to its normal colours (yellow on black) to indicate that recording has stopped.
Page 22 3. Make a note of the new snapshot File Name. Each snapshot is assigned a random number attached to the end of the file name to distinguish between snapshots taken within the same second. 5. Click OK to save the the *.bmp snapshot. The snapshot files are named according to the following standard: IPADDRESS_CHANNEL_YYYYMMDD_HHMMSS_RANDOMNUMBER.bmp.
Page 23 4.2 Locating Annexxus Devices To launch the Annexxus Finder application, double-click the Annexxus Finder icon on the Desktop. For the Annexxus-series User Guide, click the Annexxus Finder icon in the top left corner of the Annexxus Finder window and select Help Index from the drop-down menu. Launch Annexxus Finder.
Page 24 To reset the device's password: 1. Contact our technical support department at 1.877.877.7241 or by email, at support@i3international.com. 2. Inform our technical support representative that the password for your Annexxus device needs to be reset. Write down the Authorization Code provided to you. 3.
Page 25 5. Wait while the Annexxus Player software is installing onto the local system. In Installation Complete window, click Close. 6. Open Annexxus Player by double clicking the icon 7. Once the Annexxus Player window is open, click File at the top left of the screen, then click Open.
Page 26 Note: the volume slider and mute button on the Annexxus Player viewer do not function when recordings are done with the Ax32V2M series and Ax32VD1 series network cameras because these models do not capture sound. 7. Control the video using the buttons at the bottom of the Annexxus Player viewer: NOTE: The default storage file for snapshots taken with Annexxus Player is not the same as for snapshots with the Annexxus Web Viewer interface.
Page 27 Appendix C- Upgrading Firmware Annexxus cameras and systems are always shipped with the newest available firmware and do not need a firmware update. However, in the unlikely event that the firmware will need to be upgraded in the future, follow the instructions below. Important: Firmware may only be upgraded by the administrative user.
Page 28 13. In the Internet Options window, click Settings under Browsing history. A Temporary Internet Files and History Settings window will be displayed. 14. In the Temporary Internet Files and History Settings window, click View objects. A Download Program Files folder window will be displayed. 15.
