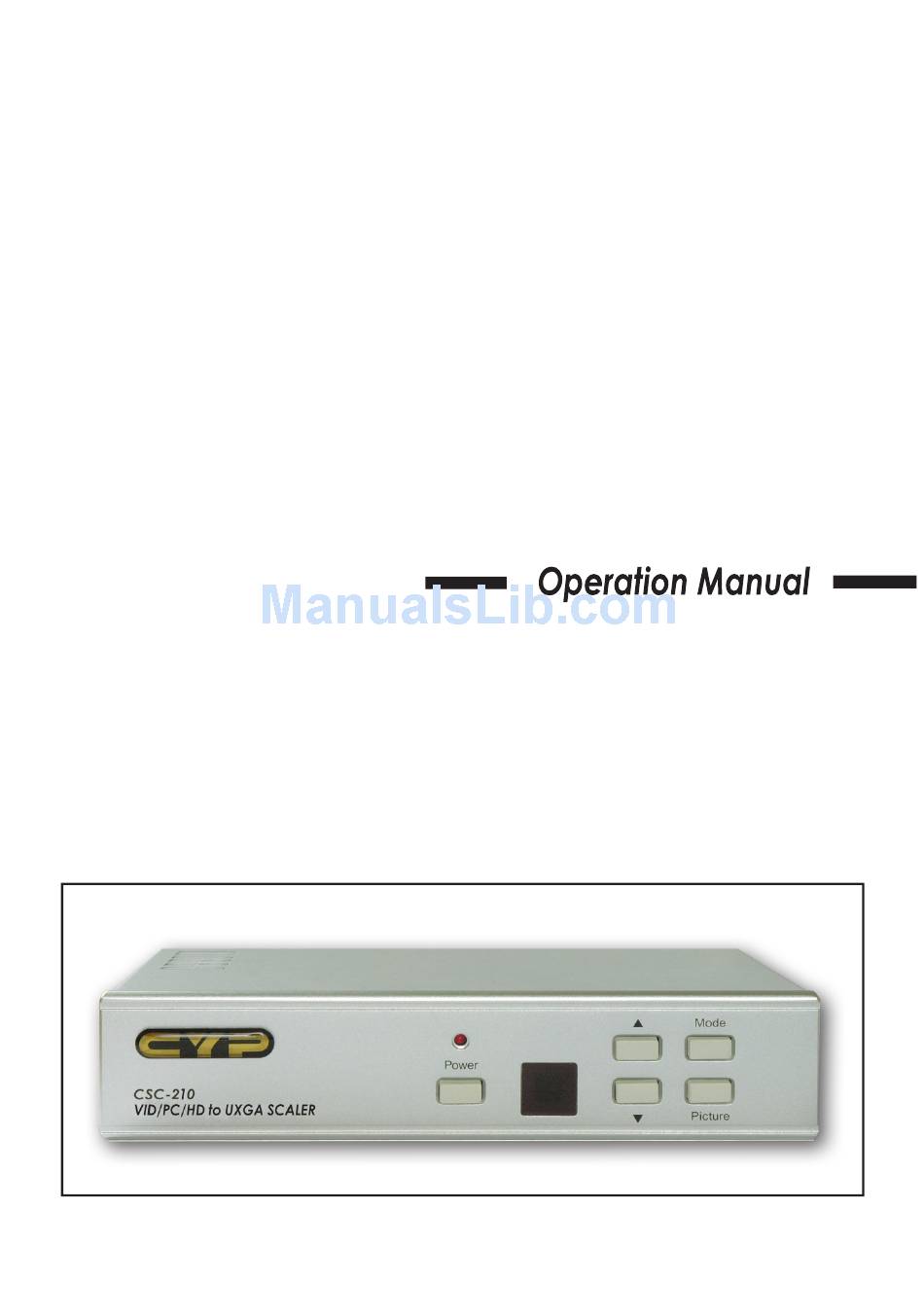

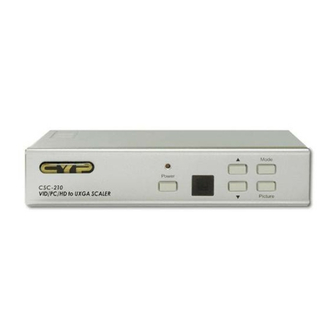

- Page 1 Video/PC/HD UXGA Scaler...
- Page 3 Video Processors. Please visit www.cypress.com.tw to learn more details about these products. This manual includes operation information on the CSC-210 model. Please read this to become familiar with the CSC-210 and keep the manual for possible reference in the future.
- Page 4 OSD display. The front panel controls are shown below. Front Panel Mode Power CSC-210 VID/PC/HD to UXGA SCALER Picture Front Panel 1. Mode: Press the button repeatedly will toggle through the following adjust controls: Source Resolution...
- Page 5 (4). Connecting the hardware Front Panel 2. Picture: Press the button to toggle through picture adjust parameters as follows: ContrastBright Color Hue Detail Contrast Contrast: Press or to adjust contrast level. The range of adjustment is 0~63. Factory default value is 58.
- Page 6 (4). Connecting the hardware Rear Panel INPUT S-VIDEO VIDEO Cb/Pb Cr/Pr DC 12V RS-232 OUTPUT PC IN Rear Panel 1 . Composite Video input: Use a composite video cable to connect the composite video output of the source equipment to the connector labeled "...
- Page 7 (5). Connecting and Installation Control In INPUT S-VIDEO VIDEO Cb/Pb Cr/Pr DC 12V RS-232 OUTPUT PC IN DC Adaptor PC Monitor...
- Page 8 (6). Remote Control 1. Power: Power ON/OFF button. 2. Display: Press the button to enable or disable the on screen display of the resolution information. 3. C-Video: Press the button to select composite video as input source. 4. S-Video: Press the button to select S-Video as input source. 5.
- Page 9 If information for this control method is required,beyond the scope of the instructions provided in this section, please contact Cypress Technology Support, A disk is provided with the CSC-210 containing a sample Windows Control Panel that permits remote control of the unit from a PC via RS-232.
-
Page 10: Command Response
(7). RS-232 Control of the CSC-210 Video Scaler RS-232 transmission format: The communication is at 9600, no parity, 8 bits, 1 stop bit, no flow control * Command / Response codes of RS-232 transmission: Command Response Description "[POWER1]" "[POWER1]" power on(normal) "[POWER0]"... -
Page 11: Specifications
(8). Specifications Computer input RGB with HV Sync Max computer input resolution 1280x1024 Computer input connector type HD 15 Female Computer input signal level RGB @ 0.7V, H&V Sync @ TTL Composite Video @ 1 Vp-p 75 ohm S-Video @ 1 Vp-p 75 ohm Video inputs YPbPr Y : 1 Vpp 75 ohm PbPr : 0.7 Vp-p 75 ohm...
