CYP CSC-107 Operation Manual

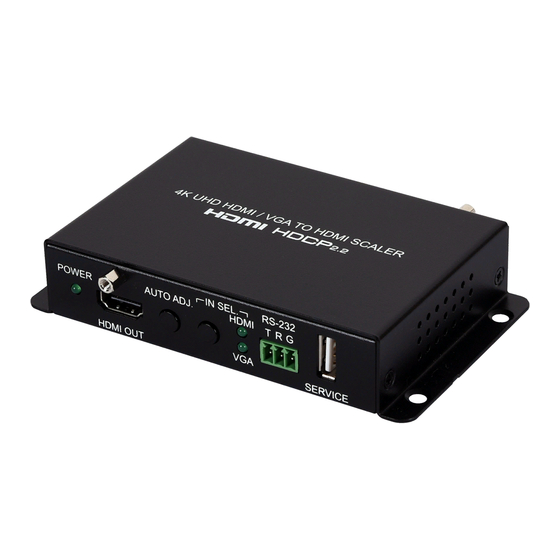

2×1 hdmi/vga to hdmi switching scaler
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
CSC-107
2×1 HDMI/VGA to HDMI Scaler
Operation Manual
Operation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CSC-107 and is the answer not in the manual?

Questions and answers

Related Manuals for CYP CSC-107

Summary of Contents for CYP CSC-107

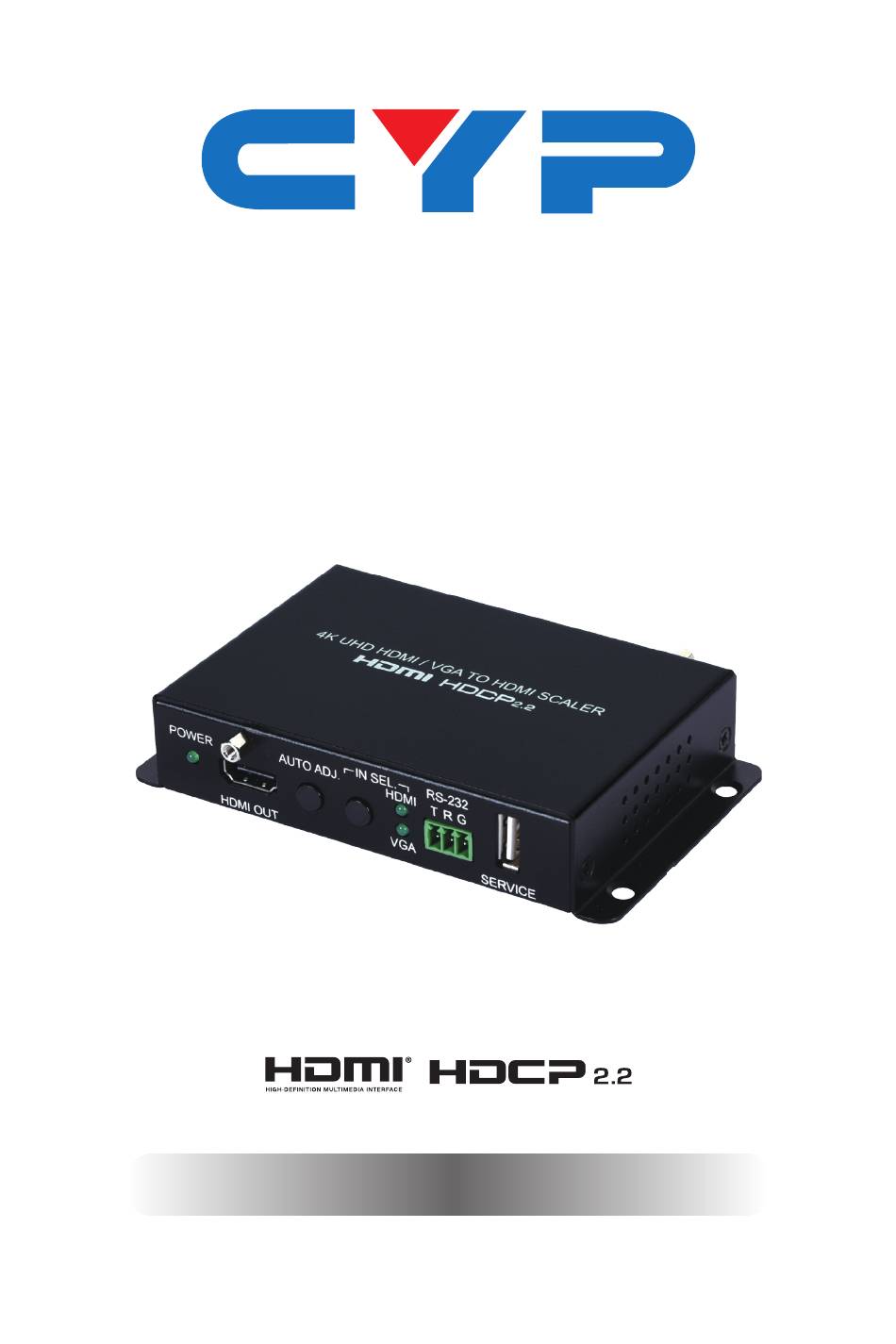

  • Page 1 CSC-107 2×1 HDMI/VGA to HDMI Scaler Operation Manual Operation Manual...
  • Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
  • Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.

  • Page 5: Table Of Contents

    CONTENTS 1. Introduction ............1 2. Applications .............1 3. Package Contents ..........1 4. System Requirements ........2 6. Operation Controls and Functions ....3 6.1 Front Panel ..........3 6.2 Rear Panel ..........4 6.3 RS-232 Pinout and Defaults ...... 5 6.4 RS-232 Commands ........5 7.

  • Page 6: Introduction

    1. INTRODUCTION This compact, yet versatile, 4K UHD HDMI/VGA to HDMI Switching Scaler accepts a wide range of resolutions from 480i up to 1080p/ WUXGA over the VGA input and up to 4K@60Hz (4:4:4) on the HDMI input. With the use of the 3.5mm audio input, stereo audio may be embedded with either source as well.

  • Page 7: System Requirements

    4. SYSTEM REQUIREMENTS • HDMI source equipment such as a media player, video game console or set-top box. • VGA source equipment such as a PC, laptop or set-top box. • HDMI receiving equipment such as an HDTV, monitor or audio amplifier.

  • Page 8: Operation Controls And Functions

    6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel IN SEL. RS-232 AUTO ADJ. POWER HDMI HDMI OUT SERVICE POWER LED: This LED will illuminate to indicate the unit is on and receiving power. HDMI OUT Port: Connect to an HDMI TV, monitor, or amplifier for digital video and audio output.

  • Page 9: Rear Panel

    6.2 Rear Panel HDMI IN VGA IN AUDIO IN DC 5V HDMI IN Port: Connect to HDMI source equipment such as a media player, game console or set-top box. VGA IN Port: Connect to VGA source equipment such as a PC or laptop.

  • Page 10: Rs-232 Pinout And Defaults

    6.3 RS-232 Pinout and Defaults SERIAL PORT DEFAULT SETTINGS 3-pin Terminal Block Baud Rate 19200 Data Bits Parity Bits None Stop Bits Flow Control None 6.4 RS-232 Commands COMMAND Description and Parameters help Show the full command list. ? Show the full command list. help N1...
  • Page 11 COMMAND Description and Parameters set uart 1 baudrate N1 Set the baud rate of the RS-232 port. Available values for N1: [4800 baud] [9600 baud] [19200 baud] [38400 baud] [57600 baud] [115200 baud] set uart 1 stop bit N1 Set the number of stop bits for the RS-232 port. N1 = 1 ~2 [Stop bits] get uart 1 stop bit...
  • Page 12 COMMAND Description and Parameters get uart 1 parity Show the current parity setting of the RS-232 port. set out A route N1 Route the specified input to the HDMI output. Available values for N1: [HDMI input] [VGA input] get out A route Show the current input routed to the HDMI output.
  • Page 13 COMMAND Description and Parameters get in N1 timing string Show the index number and description of the current resolution detected on the specified input. Available values for N1: [HDMI input] [VGA input] set automation event N1 uart A N2 Enable or disable the specified Automation Event's RS-232 response.
  • Page 14 COMMAND Description and Parameters set automation event N1 uart A command N2 Set the RS-232 command string to send when the specified Automation Event is activated. Available values for N1: [Power on] [Out A source active] [Out A source lost] N2 = {ASCII command string} get automation event N1 uart A command...
  • Page 15 COMMAND Description and Parameters get automation event N1 uart A delay Show the delay time for the specified Automation Event's RS 232 response. Available values for N1: [Power on] [Out A source active] [Out A source lost] set automation event N1 uart A wait N2 Set the length of time to wait after an Automation Event's RS 232 response has been activated before ANY other Automation Event can be detected.
  • Page 16 COMMAND Description and Parameters set out A timing N1 Set the output resolution to use on the HDMI output. Available values for N1: [Native] [640x480p60] [800x600p60] [1024x768p60] [1280x768p60] [1280x800p60] [1280x1024p60] [1360x768p60] [1400x1050p60] [1440x900p60] [1600x1200p60] [1680x1050p60] [1920x1200p60 RB] [2560x1600p60 RB] [1920x1080p60] [1280x720p60] [2048x1080p50] [2048x1080p60]...
  • Page 17 COMMAND Description and Parameters [1920x1080p50] [1920x1080p24] [1920x1080p25] [1920x1080p30] [2560x1080p50] [2560x1080p60] [3840x2160p24] [3840x2160p25] [3840x2160p30] [3840x2160p50] [3840x2160p60] [4096x2160p24] [4096x2160p25] [4096x2160p30] [4096x2160p50] [4096x2160p60] get out A timing Show the current resolution used by the HDMI output. set out A contrast N1 Set the contrast level of the HDMI output. N1 = 0 ~ 60 [Contrast] get out A contrast...
  • Page 18 COMMAND Description and Parameters get out A brightness Show the current brightness level of the HDMI output. set out A saturation N1 Set the saturation level of the HDMI output. N1 = 0 ~ 60 [Saturation] get out A saturation Show the current saturation level of the HDMI output.
  • Page 19 COMMAND Description and Parameters set out A aspect ratio N1 Set the aspect ratio of the video shown on the HDMI output. Available values for N1: [Overscan] [Full] [Best fit] [Pan scan] [Letterbox] [Under 2] [Under 1] [Follow In] get out A aspect ratio Show the currently set aspect ratio for the video shown on the HDMI output.
  • Page 20 COMMAND Description and Parameters get out A r gain Show the HDMI output's current red gain level. set out A g gain N1 Set the HDMI output's green gain level. N1 = 0 ~ 1023 [Green gain] get out A g gain Show the HDMI output's current green gain level.
  • Page 21 COMMAND Description and Parameters set in 2 vposition N1 Set the PC vertical position for the VGA input. N1 = 0 ~ 250 [Vertical position] get in 2 vposition Show the current PC vertical position for the VGA input. set out A osd info display N1 Enable or disable the info OSD for the HDMI output.
  • Page 22 COMMAND Description and Parameters set audio out A route N1 Route the specified audio input to the HDMI output. Available values for N1: [Auto] [Analog audio] get audio out A route Show the current audio input routed to the HDMI output. set audio out A volume N1...
  • Page 23 COMMAND Description and Parameters set in 1 hdcp mode N1 Set the HDCP behavior of the HDMI input. Available values for N1: [Disabled] [Follow source] [Follow display] get in 1 hdcp mode Show the current HDCP behavior used by the HDMI input. get in 1 hdcp status...

  • Page 24: Connection Diagram

    7. CONNECTION DIAGRAM PC/Laptop Media Player Audio Input Input HDMI Input HDMI IN VGA IN AUDIO IN DC 5V IN SEL. RS-232 AUTO ADJ. POWER HDMI HDMI OUT SERVICE RS-232 RS-232 Equipped UHDTV PC/Laptop...

  • Page 25: Specifications

    8. SPECIFICATIONS 8.1 Technical Specifications HDMI Bandwidth 18Gbps VGA Bandwidth 165MHz Input Ports 1×HDMI (Type-A) 1×VGA (HD-15) 1×Stereo Audio (3.5mm) Output Port 1×HDMI (Type-A) Control Port 1×RS-232 (3-pin Terminal Block) Service Port 1×USB 2.0 (Type A) Baud Rate 19200 Power Supply 5V/2.6A DC (US/EU standards, CE/FCC/UL certified) ESD Protection (HBM)

  • Page 26: Video Specifications

    8.2 Video Specifications Input Output Supported Resolutions (Hz) HDMI HDMI 720×400p@70/85    640×480p@60/72/75/85    720×480i@60    720×480p@60    720×576i@50    720×576p@50    800×600p@56/60/72/75/85    848×480p@60  ...
  • Page 27 Input Output Supported Resolutions (Hz) HDMI HDMI 1920×1080p@50/60    1920×1200p@60RB    2560×1440p@60RB    2560×1600p@60RB    2048×1080p@24/25/30    2048×1080p@50/60    3840×2160p@24/25/30    3840×2160p@50/60 (4:2:0)    3840×2160p@24, HDR10 ...

  • Page 28: Audio Specifications

    8.3 Audio Specifications 8.3.1 Digital Audio HDMI Input/Output LPCM Max Channels 2 Channels Sampling Rate (kHz) 32, 44.1, 48, 88.2, 96, 176.4, 192 Bitstream Supported Formats None 8.3.2 Analog Audio Analog Input Max Audio Level 2Vrms Impedance 40kΩ Type Unbalanced...

  • Page 29: Cable Specifications

    8.4 Cable Specifications 1080p 4K30 4K60 (4:4:4) (4:4:4) Cable Length 8-bit 12-bit 8-bit 8-bit High Speed HDMI Cable HDMI Input HDMI Output VGA Cable VGA Input 1.5m 1.5m  Bandwidth Category Examples: • 1080p (FHD Video) - Up to 1080p@60Hz, 12-bit color - Data rates lower than 5.3Gbps or below 225MHz TMDS clock •...

  • Page 30: Acronyms

    9. ACRONYMS ACRONYM COMPLETE TERM Analog-to-Digital Converter Audio/Video AVLC Adaptive Visually Lossless Compression Audio/Video Receiver or Recorder Consumer Electronics Control Command-Line Interface Digital Visual Interface EDID Extended Display Identification Data High-Definition HDCP High-bandwidth Digital Content Protection HDMI High-Definition Multimedia Interface High Dynamic Range HDTV High-Definition Television...
  • Page 32 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw MPM-CSC107...
