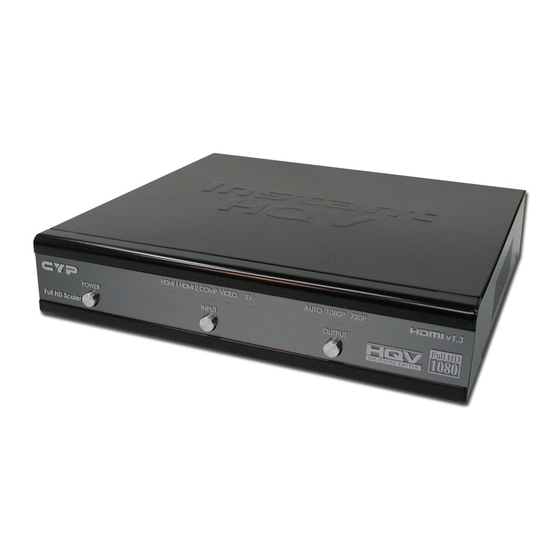

- Page 1 CSO-T2 Instant HQV HD Scaler Operation Manual CSO-T2...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. Introduction ..................2. Features ....................3. Package Contents ................4. Operation Controls and Functions ............ 4.1 Front Panel ..................4.2 Rear Panel ..................5. Remote Control ................... 6. OSD Operation ..................6.1 Input....................6.2 Picture..................6.3 Screen..................6.4 HQV.................... -
Page 3: Introduction
1. Introduction The Instant HQV HD Scaler box allows the user to maximize the full benefits of the today ’ s High Definition DTV. Instant HQV uses the Industry leading HQV Realta Video Processor to convert standard definition content (PAL/ NTSC) into crisp, detailed and artifact resolution of your DTV. -
Page 4: Operation Controls And Functions
4. Operation Controls and Functions 4.1 Front Panel 1 Power: Press to turn ON/OFF the system. The LED will illuminate in green light when power is ON. When power OFF the LED will illuminate in red light. 2 IR sensor 3 Input selection: Press to select input source (HDMI 1/HDMI 2/Component/ Vdieo/S-Video). -
Page 5: Remote Control
5. Remote Control 1 Menu: Press the button to bring up MENU POWER OSD main menu page. 2 Power: Press the button once to CLEANER DETAIL power on the system, press again to enter standby mode. ENTER 3 Cleaner: Press to switch the Noise DEMO A.RATIO Reduction (NR) feature. -
Page 6: Osd Operation
6. OSD Operation Press [MENU]. Press [ ▲ / ▼ ] to highlight an option. Press [ ◄ / ► ] to adjust or press [ ◄ ] return to previously page. Press [Enter] to confirm the selection 6.1 Input Option Description Input... -
Page 7: Screen
Option Description Brightness 0~100 of Brightness levels, the factory default value is 50 Contrast 0~100 of Contrast levels, the factory default value is 50 Color 0~100 of Color levels, the factory default value is 50 0~360 of Hue levels, the factory default value is 180 Sharpness 0~100 of Sharpness levels, the factory default value is 50 Adjust Gamma Correction levels, there are 1.0, 1.8, 2.0,... -
Page 8: Hqv
6.4 HQV Option Description HQV Processing HQV ON/OFF/L 6.5 Setup Option Description Auto/VGA/SVGA/XGA/SXGA/UXGA/WXGA/ Output Mode WSXGA/WUXGA/480P/576P/720P/720P@50/1080i/ 1080i@50/1080p/1080p@24/1080p@50 Output Timing Auto, Analog, Digital Load Profile 1~6 Save Profile 1~6 Reset Press to reset the system back to factory setting Menu Position Center, Top Left, Top Right, Bottom Left, Bottom Right Menu Transparency Select On/Off... -
Page 9: Connection And Installation
7. Connection and Installation 8. Specifications Input ports Composite video + R/L x 1 S-Video + R/L Component + R/L HDMI Output port HDMI Power Supply Component + R/L Dimensions (mm) 5V/5A DC (US/EU standards, CE/FCC/UL certified) Weight(g) 217(W) x 213(D) x 50(H) Chassis Material 1430 Silk Skin Color...
