3.2 Main Status interface
Main status interface display inverters' running status, serial number of inverter, PV voltage, PV current, AC
voltage, AC current, output power, etc.
(*1) Automatically display when error occurs

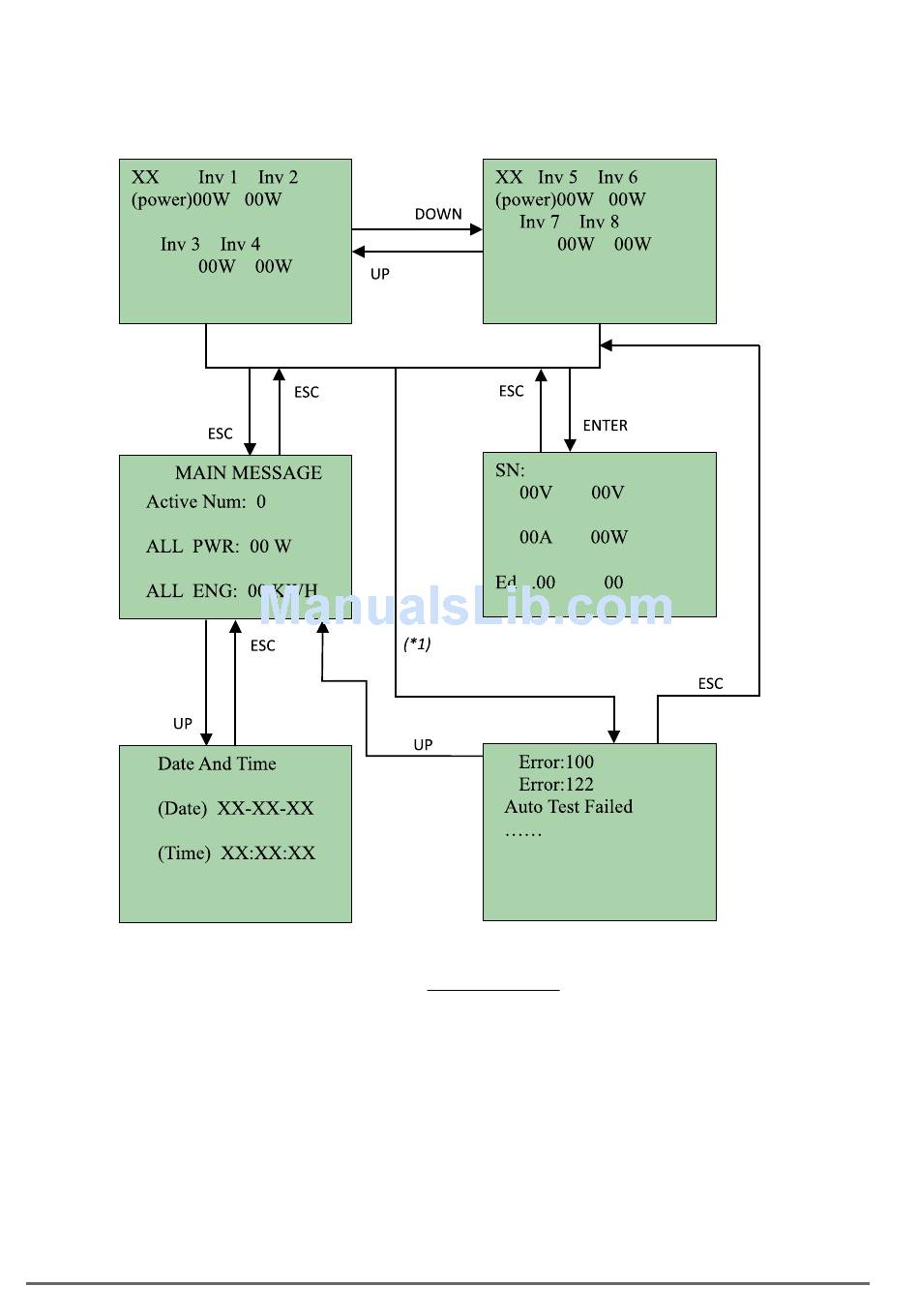

Fig 3.3 Main status interface
All inverters power are display in Main Status interface. Press "UP" and "DOWN" button to select appointed
inverter, then press "ENTER" to check inverter's detailed running parameters, for example, solar panel input
voltage and current, AC output voltage, AC output power, today's energy, total energy produced.
Press "ESC" in Main Status interface can ENTER Main Message interface. "Active Num: x" stand for monitoring
number, "ALL PWR: xx W" stand for inverters' total power, "ALL ENG: xx KWH" stand for total energy produced
by inverters.
