gefran RADIUS Installation & Operation Manual page 12

(1) "UP": select Year, Month, Data, Hour, Minute optional; "DOWN": adjust value; "ENTER": confirm and save.
(2) Role Num: set Bluetooth device number. "ESC" restart.
(3) "UP": select password digit, (4 digit password); "DOWN": adjust value; "Enter": confirm setting.
(4) "ESC" restart Log Light.
1) Press "ENTER" button after selected "SetTime" option to set year, month, day, hour, minute. Select
one to ENTER then press "UP" to move the cursor, and "DOWN" to increase the value.
2) Press "ENTER" in SetUSB option open the USB function, that allow computer reading SD card data
from USB port. Press "ESC" to shutdown USB port.
3) Press "ENTER" button on "SetComm" option to set Bluetooth module number. You must set Blue-
tooth module number in SetComm option before use RADIUS Log Light. Press UP button to increase
the number and DOWN to decrease the number. The Bluetooth module number must be set first, or
there might be monitoring data lost. Press ENTER to reset RADIUS Log Light. Then press ESC to
exit, and RADIUS Log Light will restart and connect to inverters.
4) Press "ENTER" button on "Set BT code" selected to set bluetooth pair code (encryption password),
after set finished, press "ESC" to restart RADIUS Log Light.
12

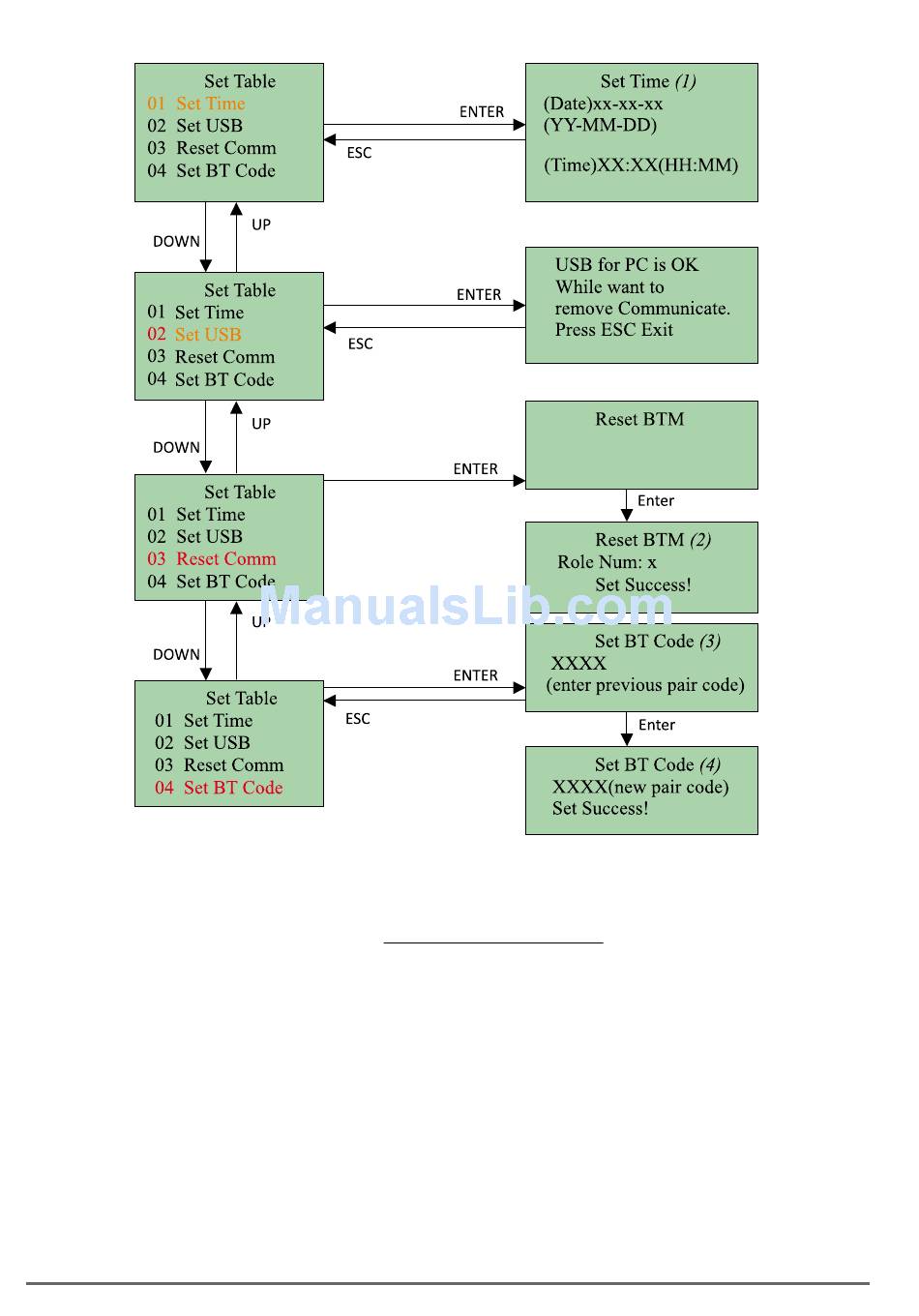

Fig 3.5 Set Table interface and its sub interface
Radius Log Light
