Door Options - Perlick 15" Signature series Installation & Operation Manual

Wine Reserve
the single door unit comes standard with 5 full
extension black vinyl coated wine racks capable of
storing 20 total wine bottles. shelves are removable
and adjustable to accommodate oversized (mag-
num) bottles.
Beverage Center
the single door unit comes standard with two full
extension black vinyl coated wine racks and one
industry exclusive full extension pullout shelf
allowing for storage of both wine and beverages.
shelving positions are adjustable.
Adjusting Full Extension Shelving
1. pull the shelf out to its farthest position. locate
the tabs in the middle of both extenders (figure 4).
press tabs and pull shelf out.
2. Reposition each bracket separately. grasp the
middle of the bracket, pull the front end up and out,
then forward to remove (figure 5).
3. place bracket at the desired position. push the rear
hook into the rear key slot. set front of bracket on
the wall hook.
4. Repeat for other bracket(s).
5. push extenders completely into the unit. align the
shelf grooves with the extenders and slide complete-
ly into the unit.

DOOR OPTIONS

perlick units offer a variety of door panel design
alternatives; solid stainless steel, solid wood overlay,
stainless steel glass, wood overlay glass, solid stain-
less steel drawers and solid wood overlay drawers.
this, together with door swing choices, result in a
variety of possible combinations.
solid stainless steel, stainless steel glass doors and
solid stainless steel drawers are shipped from the
factory with decorative stainless steel panels and
handles in place on the appliance, ready for use.
solid wood overlay, glass wood overlay doors and
solid wood overlay drawers are designed to accept a
10 © 2011 15" Cabinet Installation / Operation Manual

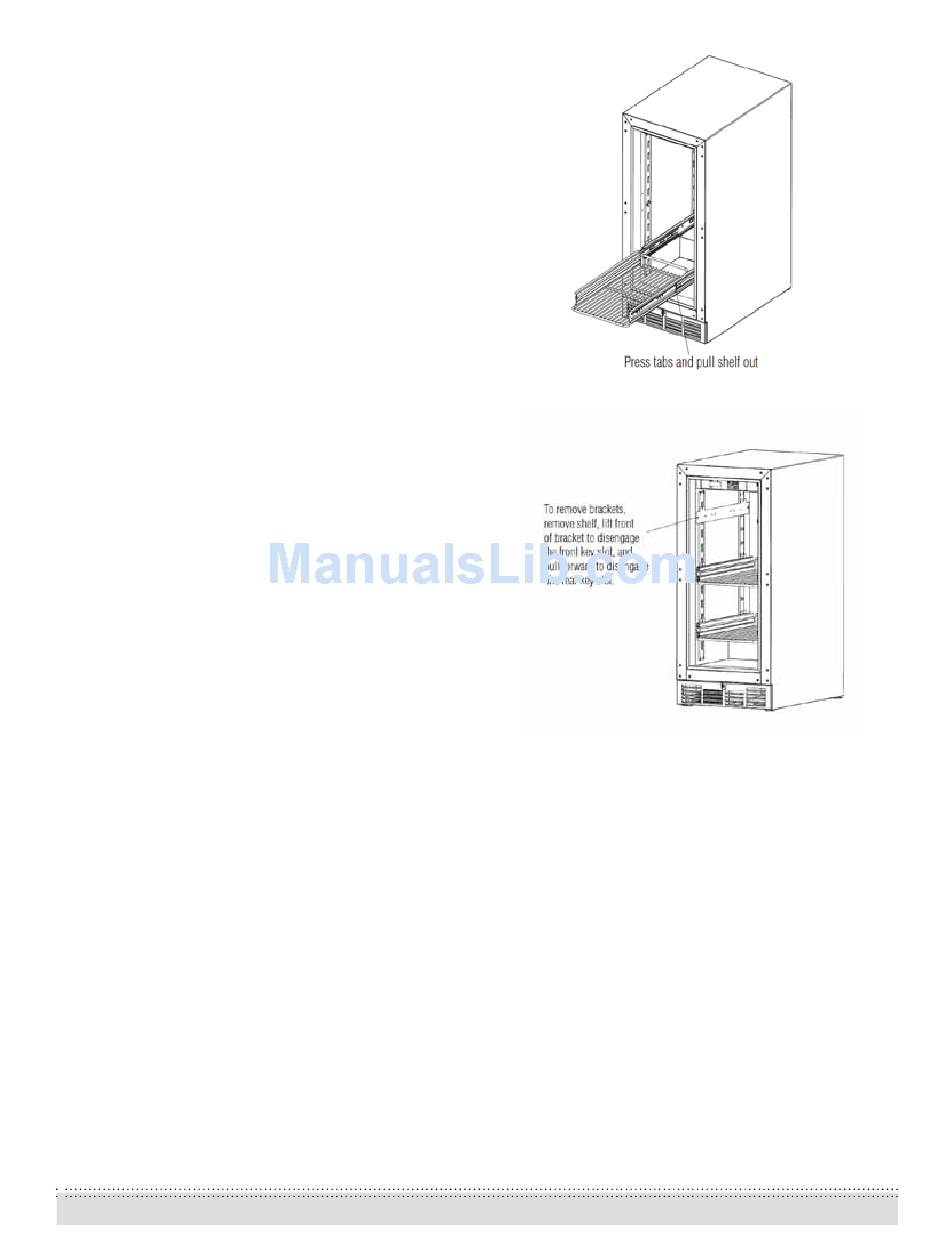

figure 4. sliding shelf extender tabs
figure 5. sliding shelf Mounting Brackets
decorative front panel to match surrounding cabi-
netry and door handles. this panel and door handle
will be provided by the customer.
all perlick units accept any of the above door con-
figurations and are fully hinge reversible and inter-
changeable. see page 11 for Door Reversing Instruc-
tions.
IMPORTANT NOTE: Stainless steel glass or wood
overlay glass doors may sweat in conditions with
relative humidity over 75 percent.
Document No. Z2305
