ANTI-TIP BRACKETS
WARNING
Unit may tip forward if loaded racks/shelves are
all pulled out at the same time. To prevent tipping
and provide a stable installation, the unit must be
secured in place with the anti-tip brackets pro-
vided with the unit. A set of metal anti-tip brackets
are supplied with the unit. The anti-tip brackets,
when properly installed should secure the rear legs
and prevent the unit from tipping forward.
A set of metal anti-tip brackets are supplied with the
unit. The anti-tip brackets, when properly installed,
should secure the rear legs and prevent the unit from
tipping forward. Some installation sites may require
modification to provide a secure surface for attaching
the brackets. Refer to Figure 2 for mounting bracket
locations.

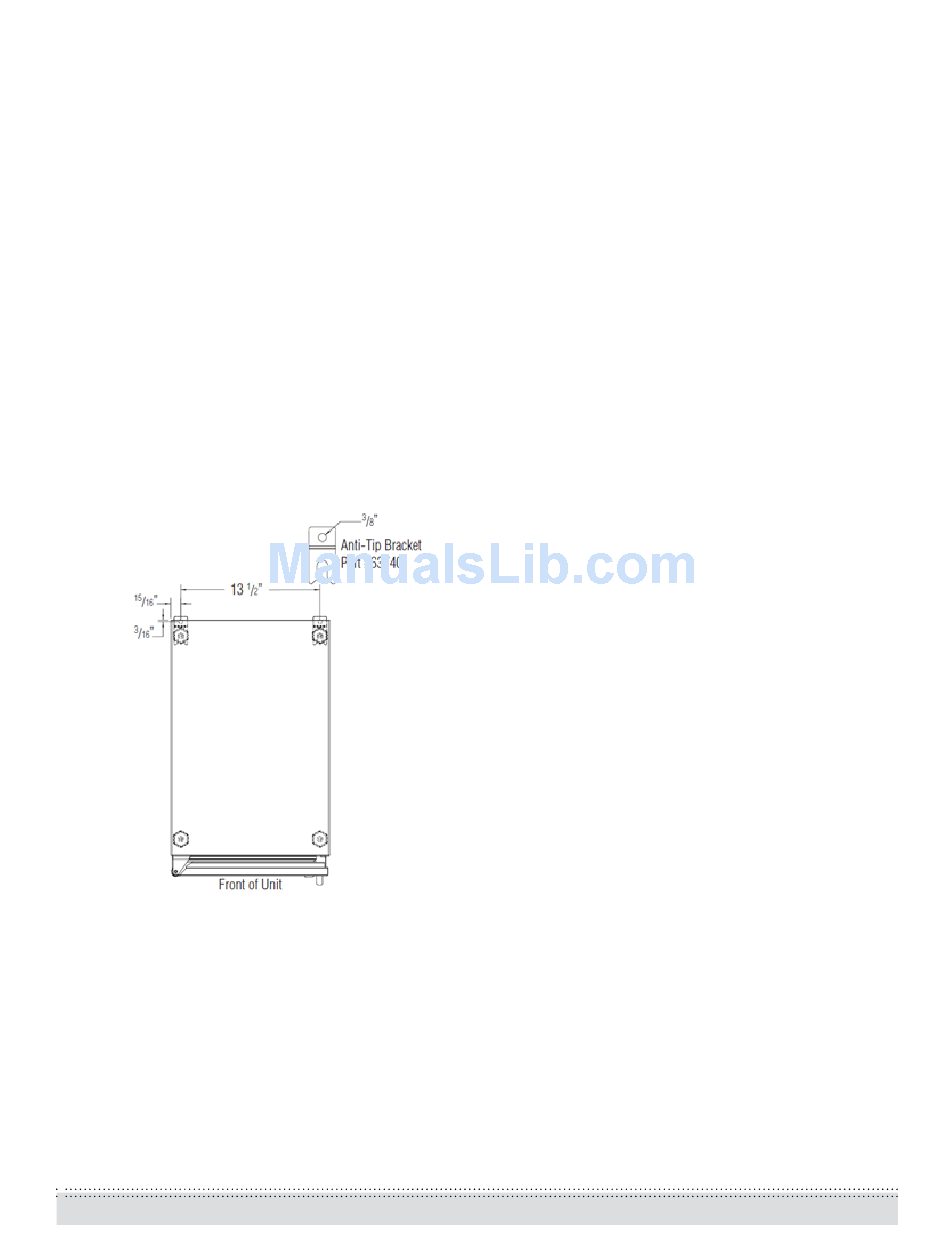

figure 2. anti-tip-Over Mounting
8 © 2011 15" Cabinet Installation / Operation Manual

INSTALLATION

IMPORTANT NOTE: If installing on a concrete
floor, concrete fasteners are required and not
included with the anti-tip kit.
CAUTION
Any finished flooring should be protected with
appropriate material to avoid damage from mov-
ing the unit.
If unit has been laid on its back or sides, place unit
upright and allow minimum of 24 hours before con-
necting power.
Re-install the doors by removing the upper pivot pin
completely, sliding the door onto the lower pivot pin
and re-installing the upper pivot pin and fastening
tightly. Before moving the unit, make sure the door is
secured to the cabinet (tape may be required to hold
the doors closed).
1. plug the unit into the 15 amp grounded out-
let located in the installation opening. With power
applied to the unit, check that the lighting and cool-
ing function operate properly, then turn off power to
the wall outlet at the circuit breaker.
WARNINg
Shut off power to the wall outlet before installing
into the opening.
2. Check that the following are level and square:
• Front face and interior opening
• Installation opening and floor surface
• Countertop bottom front edge
IMPORTANT NOTE: Leveling legs should not ex-
tend more than ¾" from bottom of the cabinet.
IMPORTANT NOTE: The floor under the unit must
be at the same level as the surrounding finished
floor.
3. If all surfaces are level:
a. Measure from the floor to the bottom of the
front edge of the countertop
