WPS-750-BUL-IPH Installation Manual
9.5.3.2.

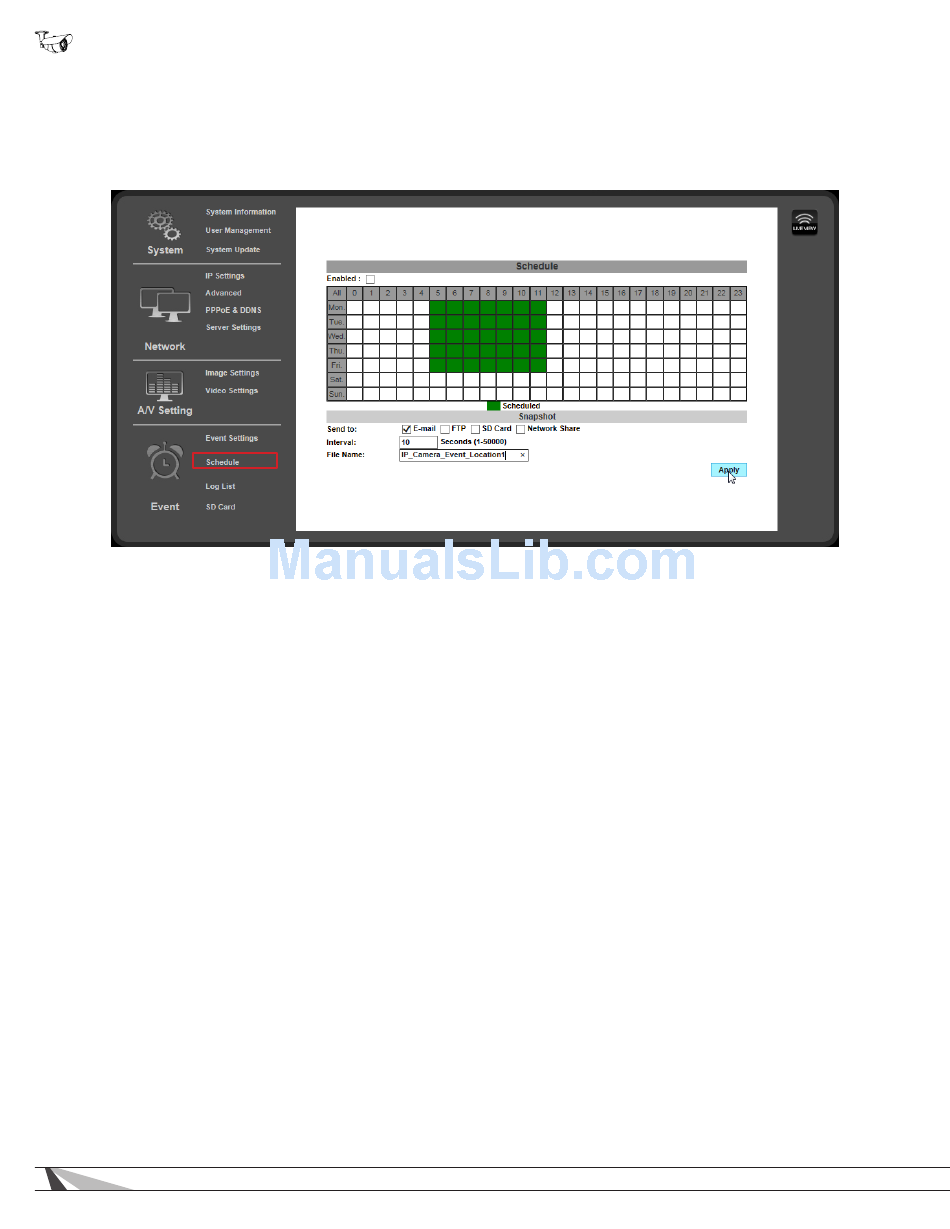

How to Set Up Scheduling for Events

A. Select Schedule under Event on the left side Menu.
B. Select the Enabled check box.
C. Click on the box(es) to enable one-hour blocks of time for the desired Day of week and Time of day.
9.5.3.3.

Set up Snapshot

A. In the Snapshot section, select the delivery method for the Snapshot.
B. Select an Interval between the Snapshots for the selected periods.
Example: when set to 60 seconds, a snapshot will be sent to the selected destinations every 60 seconds.
C. Select a Filename to identify the Snapshot.
D. Select Apply at the bottom of the screen to save the settings.
60
