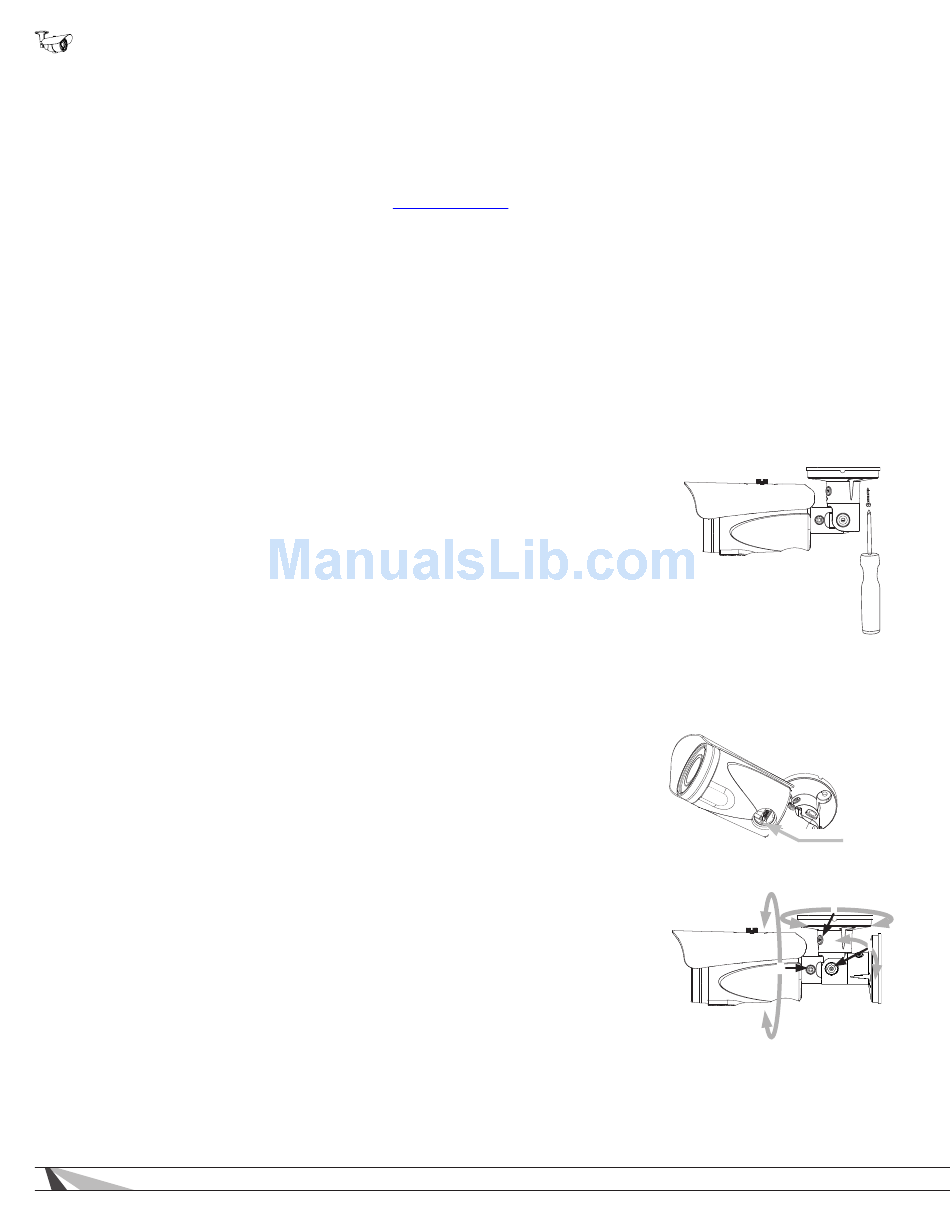

7. Camera Installation Instructions

7.1. Wiring Installation

A. Run a Cat5e/6 cable from the network port to the camera location and terminate
both ends to 568B.
B. (Non-PoE applications only) Run wiring to the camera from the power supply
location. Use the voltage drop calculator at
wire size needed.
C. (Non-PoE applications only) Connect the power supply to the wire at the head end
using electrical connectors (not included), and attach the WPS-ACC-PWR-M to
the wire at the camera location. Be sure to use the correct polarity.
D. (Non-PoE applications only) Connect the power supply to a suitable outlet and
test the voltage at the camera side of the wire using a volt meter. Disconnect the
power supply from the outlet until camera installation is otherwise complete.

7.2. Prepare for Installation

A. Unpack the camera and locate the included hardware, silica packet, and 3mm
Allen wrench.
B. Depending on the mounting location, it may be easier to position the correct field-
of-view before installation. See step 7.4 "Aiming the Camera" below for adjustment
instructions.

7.3. Mount the Camera

7.3.1.

Using Mounting Accessories

A. Mount the accessory according to its instructions.
B. Make wiring connections, and mount the camera.
C. Continue these instructions at 7.4 "Aiming the Camera" below to complete camera
installation.
7.3.2.

Surface Mounting

A. Use the camera mounting base as a template to mark the location of the 3 screws
on the mounting surface.
B. Connect the camera to the wiring and move it into position. Avoid pinching the
wires between the camera and the mounting surface.
C. Use 3 of the included screws to secure the camera and hand-tighten them evenly.

7.4. Connecting the Test Adapter

A. Connect the BNC Test Adapter.
B. Connect a test monitor to the camera's test adapter BNC and power tails. Set the
camera's field-of-view as desired.
C. Connect a power supply to the secondary power connection on the camera (if
main power connection is not active).

7.5. Aiming the Camera

A. Use the 3mm Allen wrench to loosen and tighten each adjustment screw:
• Horizontal rotation (A)
• Swivel left or right (B)
• Tilt viewing angle (C)
12
www.SnapAV.com to determine the
Test Adapter
Connector
B
C
A
