Installing The Control Panel - Dell PowerEdge R530 Owner's Manual

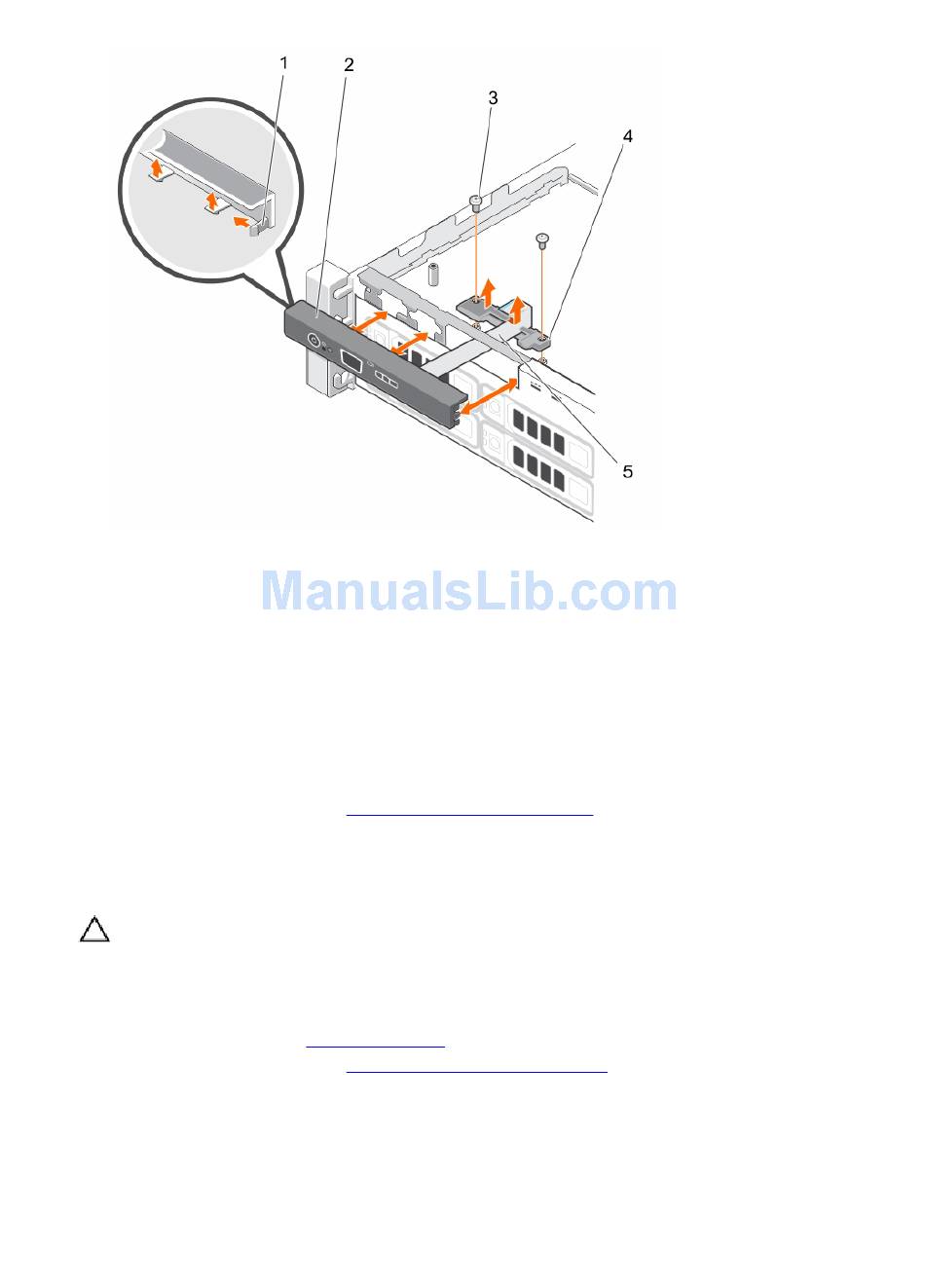

Figure 48. Removing and installing the control panel
a. locks on the control panel (7)
b. control panel
c. cable guide retaining screw (2)
d. cable guide
e. display module cable
Next steps
1. Reconnect the display module cable to the control-panel board
2. Follow the procedure listed in

Installing the control panel

Prerequisites
CAUTION: Many repairs may only be done by a certified service technician. You should only
perform troubleshooting and simple repairs as authorized in your product documentation, or as
directed by the online or telephone service and support team. Damage due to servicing that is
not authorized by Dell is not covered by your warranty. Read and follow the safety instructions
that came with the product.
1. Ensure that you read the
2. Follow the procedure listed in
3. Keep the #2 Phillips screwdriver ready.
120
After working inside your
Safety instructions.
Before working inside your
system.
system.
