Installing The (Optional) Expansion-Card Riser - Dell PowerEdge R530 Owner's Manual

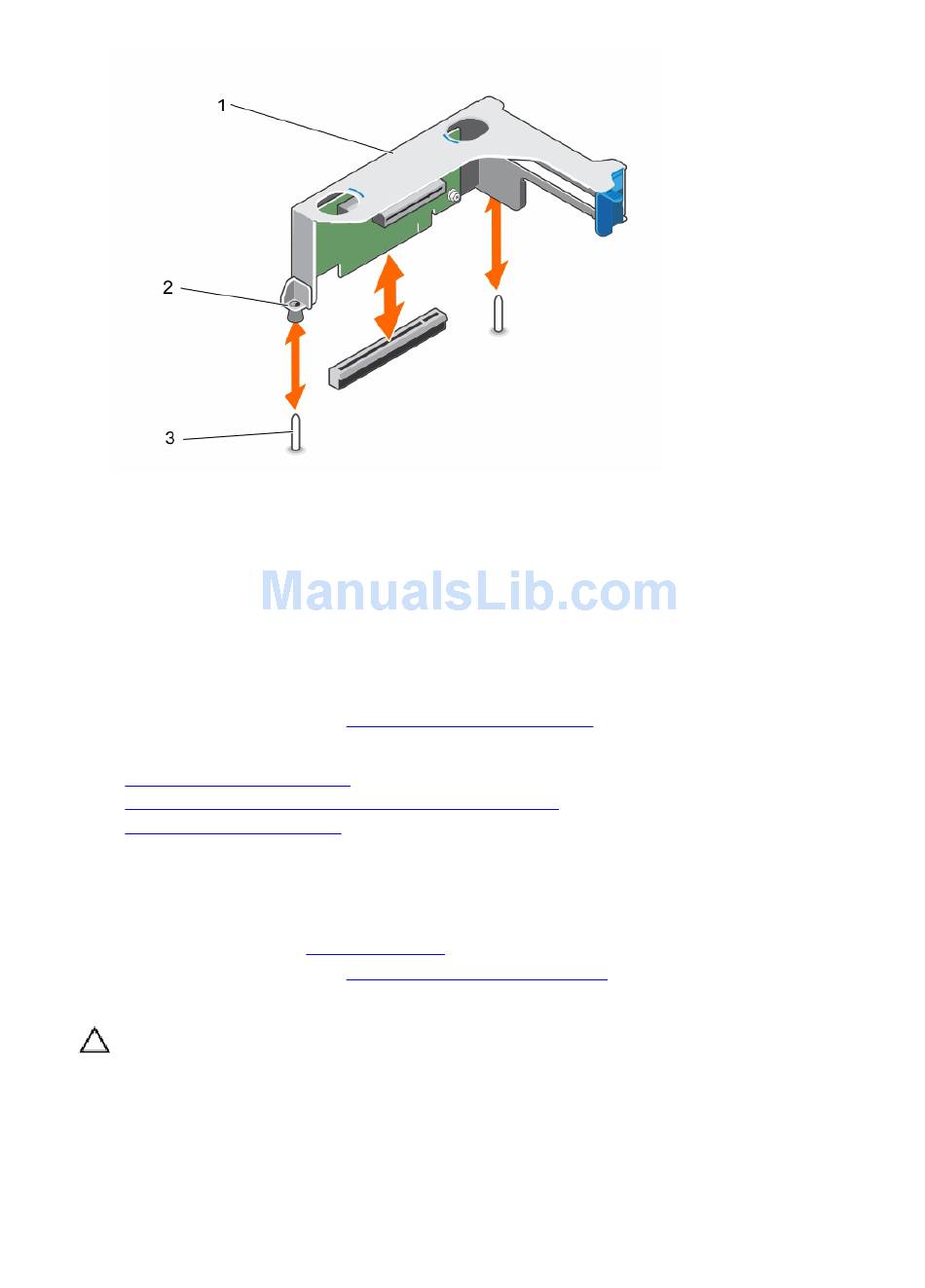

Figure 26. Removing and installing the expansion card riser
1. expansion-card riser cage
3. riser guide on chassis
Next steps
1. If applicable, install an expansion card on the riser.
2. If applicable, reinstall the expansion-card riser.
3. Install the cooling shroud.
4. Follow the procedure listed in
Related Links
Removing the cooling shroud
Installing an expansion card into the expansion-card riser
Installing the cooling shroud

Installing the (optional) expansion-card riser

Prerequisites
1. Ensure that you read the
2. Follow the procedure listed in
3. If applicable, reinstall the expansion card(s) into the expansion-card riser.
CAUTION: Many repairs may only be done by a certified service technician. You should only
perform troubleshooting and simple repairs as authorized in your product documentation, or as
directed by the online or telephone service and support team. Damage due to servicing that is
not authorized by Dell is not covered by your warranty. Read and follow the safety instructions
that came with the product.
78
After working inside your
Safety instructions.
Before working inside your
2. riser guide on riser cage
system.
system.
