Jumpers and connectors

System board jumper settings

For information on resetting the password jumper to disable a password, see
Password.

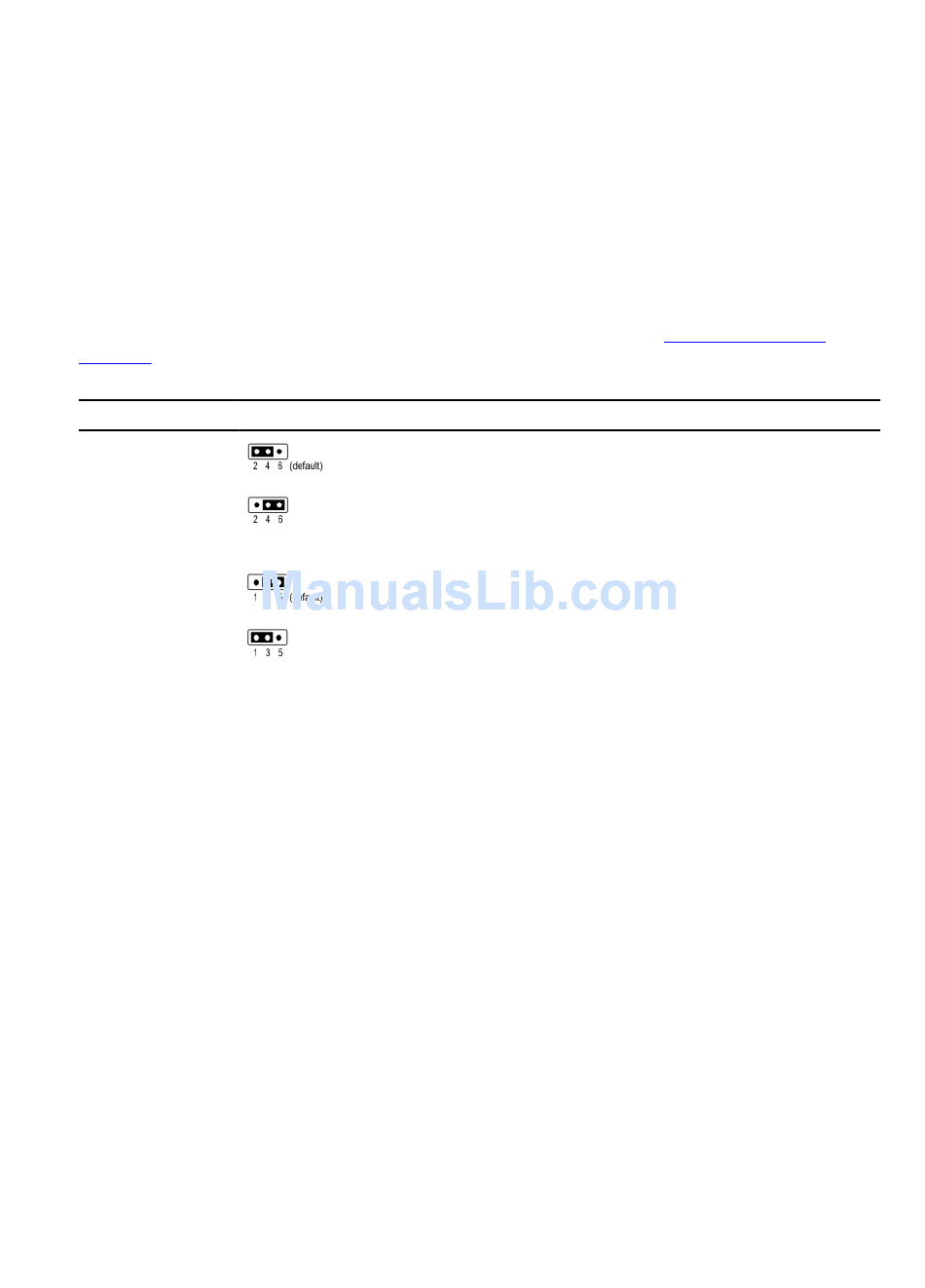

Table 8. System board jumper settings
Jumper Setting
PWRD_EN
NVRAM_CLR
Description
The password reset feature is enabled (pins 2–4).
The password reset feature is disabled (pins 4–6).
The iDRAC local access is unlocked at the next AC
power cycle.
The configuration settings are retained at the next
system boot (pins 3–5).
The configuration settings are cleared at system
boot (pins 1–3).
