Internal Dual Sd Module; Removing An Internal Sd Card - Dell PowerEdge R530 Owner's Manual

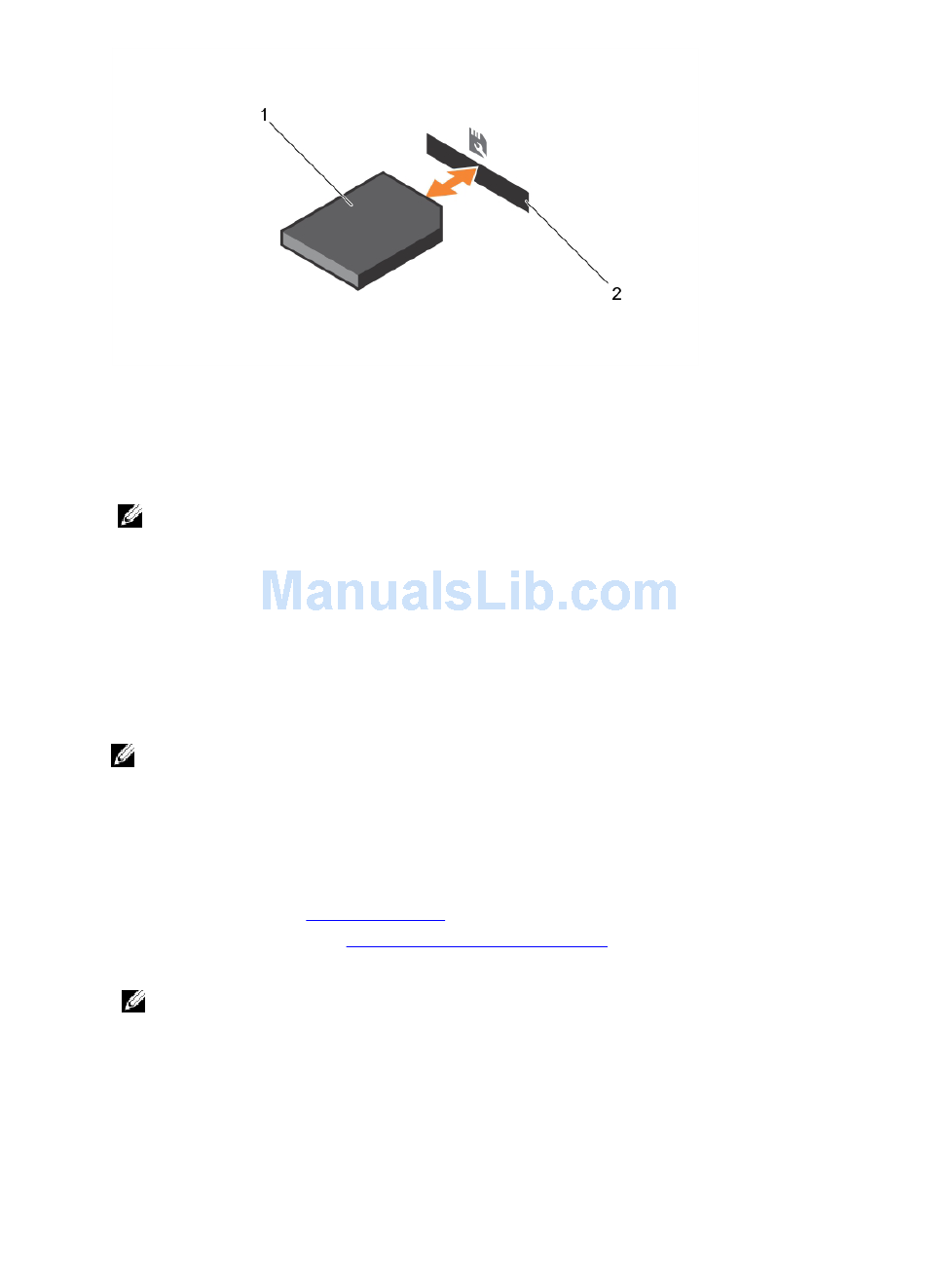

Figure 30. Removing and installing the SD vFlash media card
1. SD vFlash media card
3. To install an SD vFlash media card, insert the contact-pin end of the SD vFlash media card into the
card slot on the module.
NOTE: The slot is keyed to ensure correct insertion of the card.
4. Press the card inward to lock it into the slot.

Internal dual SD module

The Internal Dual SD Module (IDSDM) card provides two SD card slots. This card offers the following
features:
• Dual card operation — maintains a mirrored configuration using SD cards in both slots and provides
redundancy.
NOTE: When the Redundancy option is set to Mirror Mode in the Integrated Devices screen of
System Setup, the information is replicated from one SD card to another.
• Single card operation — single card operation is supported, but without redundancy.

Removing an internal SD card

Prerequisites
1. Ensure that you read the
2. Follow the procedure listed in
3. Remove the cooling shroud.
NOTE: If applicable, close the expansion-card latch on the cooling shroud to release the full
length card.
4. If applicable, disconnect the power or data cables from expansion card (s).
5. If applicable, remove the expansion-card riser
Safety instructions.
Before working inside your
2. SD vFlash media-card slot
system.
85
