Synchronize EDID
By clicking on Synchronize EDID List button the Lightware Matrix Controller
software rereads all EDID information from the connected DA2DVI-Pro. During
normal operation it is not necessary to use this menu function because the
DA2DVI-Pro always reports every status change automatically. No status change
is reported, if you emulate the same EDID on the input or connect the same display
device to DVI OUTPUT 1.
Info: There is always a small delay in responses. So if a new monitor is connected to
DVI OUTPUT 1, its new EDID is not shown immediately but in 2-3 seconds!

4.3.2. Advanced EDID Editor

The Lightware Advanced EDID Editor is integrated into the Lightware Matrix
Controller software. By clicking on the green arrow, the editor area rolls down.
When the user enters the menu for the first time, an empty EDID is loaded into the
editor's memory.
All EDID in the DA2DVI-Pro's memory can be edited in the following way:
1.
2.
For further information, see the user's manual of Advanced EDID Editor.

4.4. Terminal menu

This general-purpose serial terminal is intended mainly for test and debug
purposes. After a successful connection to the DA2DVI-Pro this terminal can be
opened and used via the USB connection. All commands can be used here that
are discussed in section 1.1 and can be typed directly.
Commands are surrounded by framing brackets by default. Every sent command
and every received response gets an arrow (-> or <-) prefix, and has different font
colors in order to help distinguishing.
Page 22 / 43
Right click on the desired EDID to be loaded to the EDID Editor.
In the pop-up menu, click on Edit EDID. The editor area automatically rolls
down, and the EDID is loaded into the editor area.

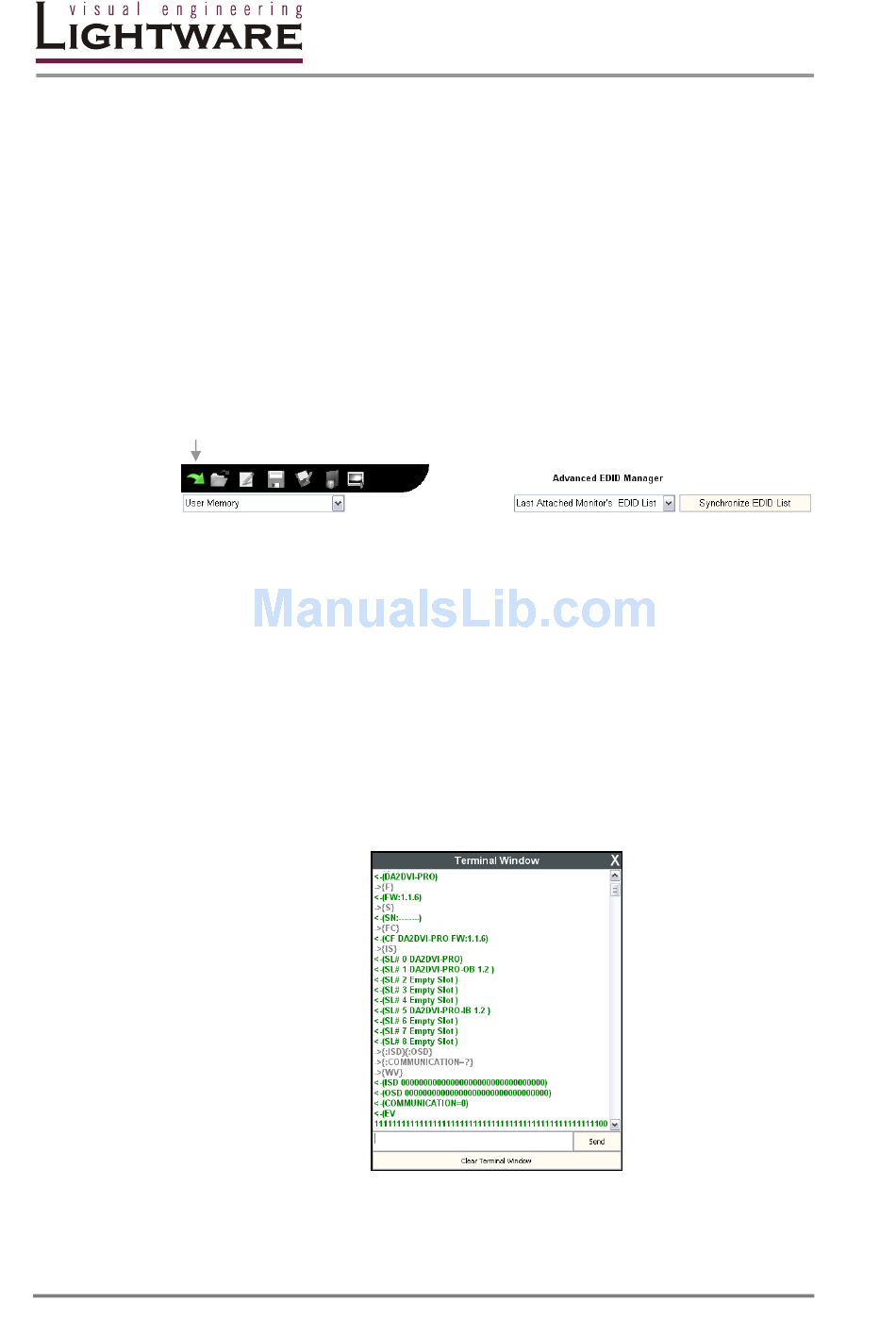

Terminal window
