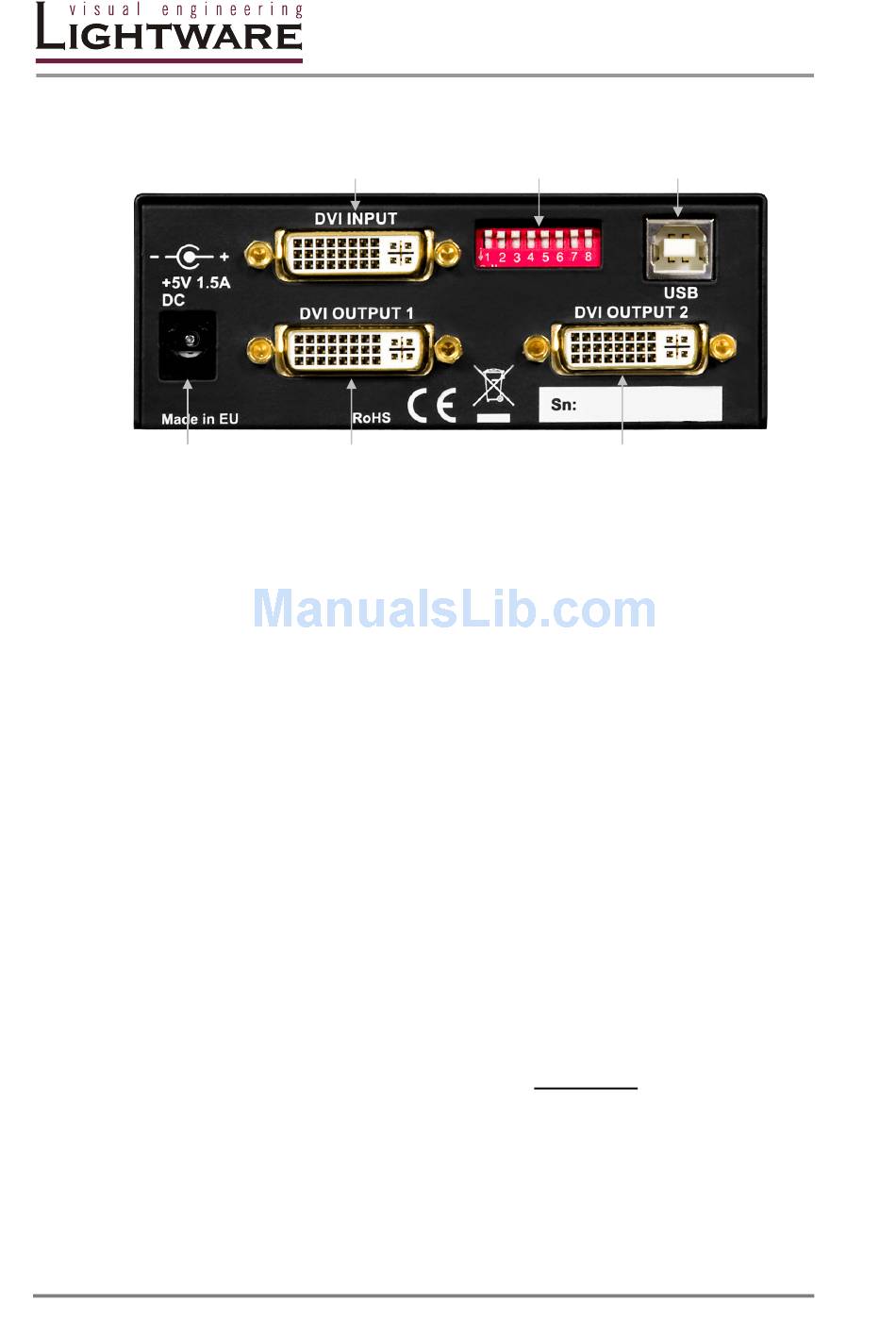

1.7.2. Rear panel view

+5V DC
DVI INPUT
DIP switch
USB connector
+5V DC connector
DVI OUTPUT 1
DVI OUTPUT 2
Page 12 / 43
DVI INPUT
DVI OUTPUT 1
Connect one single link DVI-D or DVI-I cable (only digital pins
are connected internally) between the DVI source and DA2DVI-
Pro. The built-in
compensates for up to 60 meters at 1920x1080p 60 Hz
resolution. For lower resolutions, even longer cables can be
used.
8 circuit DIP switch, which selects the Control Mode, TMDS PLL
Frequency, Deskew value, Pixel PLL enable and Pixel Phase
clock. For more information, please see section 3.
USB Type B female connector for remote control using
Lightware Matrix Controller software. Connect a USB Type A/B
cable between the DA2DVI-Pro and the controlling PC or
laptop.
Connect the output of the supplied +5V power adaptor.
CAUTION! Warranty void if damage occurs due to use of a
different power source.
Connect one single link DVI-D or DVI-I cable (only digital pins
are connected internally) between DA2DVI-Pro and display
device. EDID functions are enabled only on this output.
The output connector is able to supply 500 mA current on pin 14
to power fiber optical DVI extenders like DVI-OPT-TX100.
If a long DVI cable is connected then equalization may be
necessary at the other end of the cable.
Connect one single link DVI-D or DVI-I cable (only digital pins
are connected internally) between DA2DVI-Pro and display
device. EDID functions are not available on this output.
The output connector is able to supply 500 mA current on pin 14
to power fiber optical DVI extenders like DVI-OPT-TX100.
If a long DVI cable is connected then equalization may be
necessary at the other end of the cable.
DIP switch USB connector
DVI OUTPUT 2
automatic cable equalization circuit
