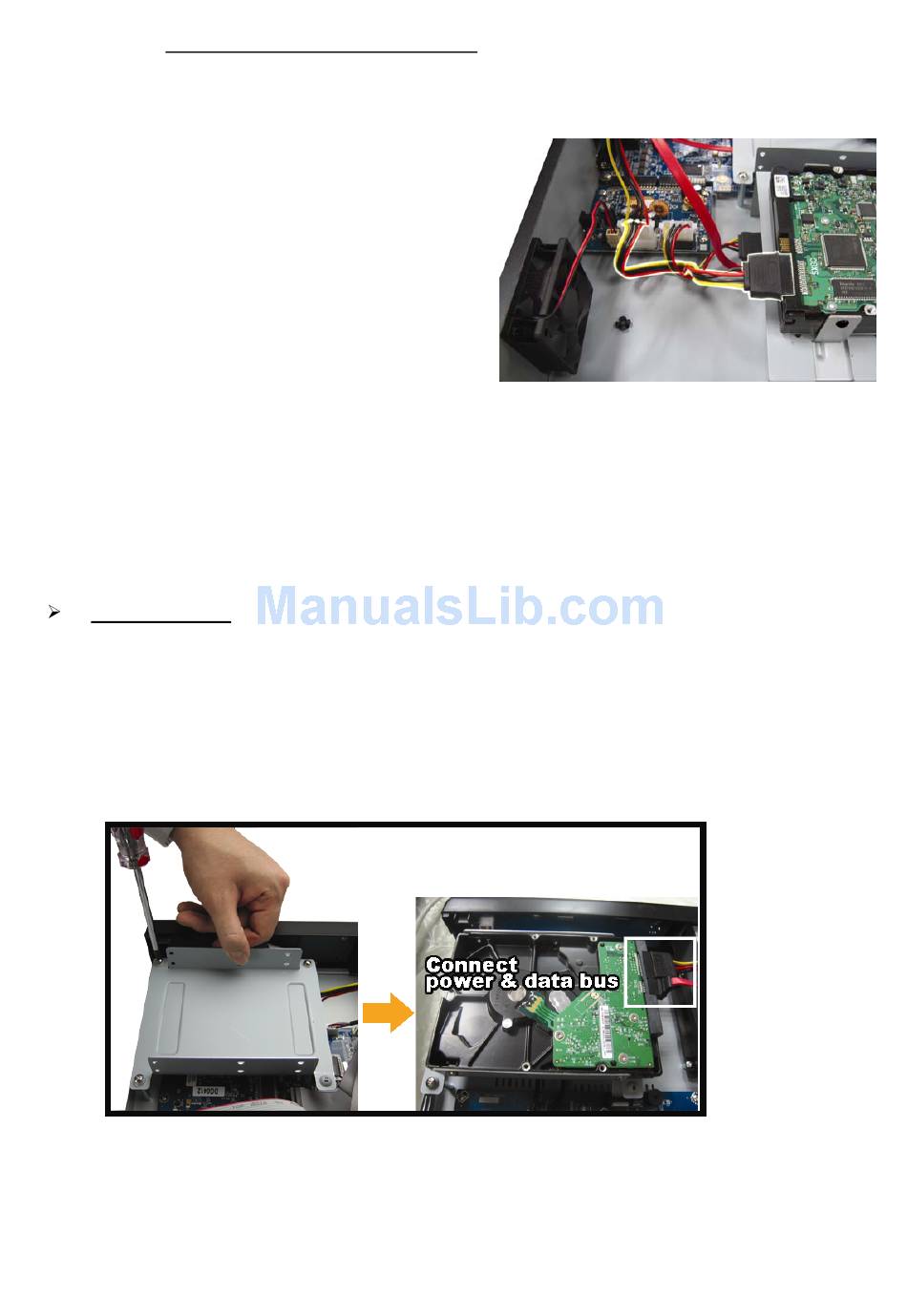

2-2 To install on the second bracket
Connect the power connector and
data bus connector to the HDD.
When connecting the power cable,
make sure the cable is passed
through the power cable of DVD
writer if your DVR is equipped with
a DVD writer. This is to prevent the
HDD power cable from interfering
with the fan spinning.
Align the screw holes of the bracket
with the HDD's screw holes. Make
sure the PCB side of the HDD is
facing up. Then, fasten the HDD to
the bracket.
Step3: Close the upper cover of the DVR, and fasten all the screws you loosened in
Step1.
For 4CH Model
Step1: Remove the screws on the top cover of DVR, and remove the top cover.
Step2: Remove the HDD bracket. Then, with the PCB side facing up, connect the
compatible HDD to the power connector and data bus connector.
Step3: Put the compatible HDD in the bracket, and fasten it with the supplied screws,
two for each side.
Step4: Replace the bracket back to the DVR.
Step5: Replace the top cover and fasten the screws you loosened in Step1.
