H.264 Network DVR Quick Start GUI Display with USB Mouse Control Please read instructions thoroughly before operation and retain it for future reference. For the actual display & operation, please refer to your DVR in hand. a793cneu_798b_c_796b_c_Quick_V1.1...
Page 3
IMPORTANT SAFEGUARD CAUTION RISK OF ELECTRIC SHOCK CAUTION: To reduce the risk of electric shock, do not expose this apparatus to rain or moisture. Only operate this apparatus from the type of power source indicated on the label. The company shall not be liable for any damages arising out of any improper use, even if we have been advised of the possibility of such damages.
TABLE OF CONTENTS 1. GUI DISPLAY WITH USB MOUSE CONTROL................ 1 1.1 Connect USB Mouse ............................1 1.2 Quick Menu Bar ...............................1 1.3 Main Menu ...............................1 Main Menu Structure ............................2 2. FRONT AND REAR PANELS ....................3 2.1 Front Panel ..............................3 2.2 Rear Panel...............................4 3.
1. GUI DISPLAY WITH USB MOUSE CONTROL 1.1 Connect USB Mouse Connect your USB mouse to one of the USB ports on the DVR front panel, and check if there’s a mouse icon ( on the screen, indicating the USB mouse is detected properly. Move your mouse to enter the DVR password with the password keypad.
Main Menu Structure QUICK START GENERAL CHANNEL TITLE EVENT STATUS DATE DISPLAY DCCS DISPLAY (For Selected Models Only) MOUSE SENSITIVITY PRIORITY (For Selected Models Only) RECORD CONFIG TIME SETUP DATE TIME DATE SETUP DATE INFO DISPLAY DATE OF MODE FORMAT DAYLIGHT DAYLIGHT SAVING SYSTEM...

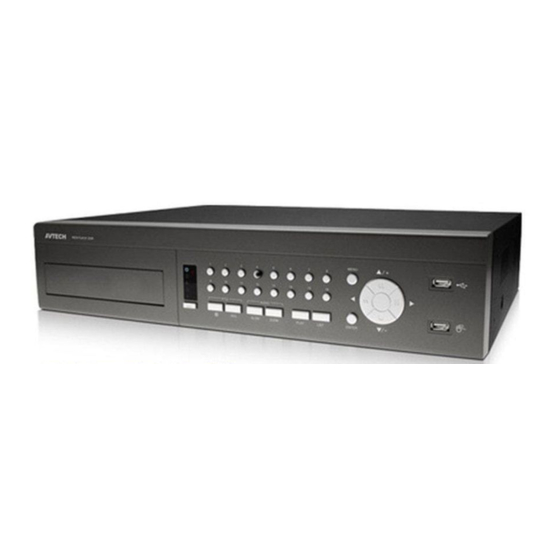

2. FRONT AND REAR PANELS 2.1 Front Panel LED Indicators HDD is reading or recording. An alarm is triggered. Timer recording is on. Under playback status. DVR is powered on. (▲) / (▼) / (◄) / (►) Press ▲ / ▼ / ◄ / ► to move up / down / left / right. In the playback mode: Press “...
14) P.T.Z. ( + SEQ) Press “ ” + “SEQ” at the same time to enter / exit the PTZ control mode. 15) USB port There are two USB ports on the front panel, one for connecting your USB mouse for mouse control, and the other one for connecting your USB flash drive for video backup.
3. BASIC OPERATION 3.1 Live Page Icon Function Icon Function Icon Function Live audio channel (1~4) Playback audio channel (1~4) Audio channel off Digital zoom on Digital zoom off Timer recording Network disconnected Internet connected LAN connected USB mouse connected USB flash drive / device connected No USB device connected Key lock...
Note: There must be at least 8192 images of recorded data for playback to work properly. If not, the device will stop playback. For example, if the IPS is set to 30, the recording time should be at least 273 seconds (8192 images / 30 IPS) for the playback to work properly. Note: During playback, the image size of the recording (FRAME, FIELD or CIF) will be shown on the screen.
When the operator password is entered, will be shown on the status bar of the screen, and the main menu is NOT allowed to access. The operator user level needs to be set in the main menu “SYSTEM” “TOOLS”. To switch between these two user levels, click the current user level icon to switch to the key lock mode, and move your mouse to show the password input keypad, and enter the password of the user level you want.
Page 12
RECORD FIRST: When this option is selected, Full D1 at real-time record on all channels is available, and the VGA output resolution is fixed to 1024 x 768. DISPLAY FIRST: When this option is selected, three VGA output resolutions will be available to choose (1024 x 768 / 1280 x 1024 / 1600 x 1200), but Full D1 real-time recording on all channels will not be available.
APPENDIX DCCS CAMERA CONNECTION (For Selected Models Only) Note: This function is available only for DVR models which support DCCS function. A1 Prerequisites Make sure your cameras support the DCCS function. For details, please check with your distributor or installer. To ensure the signal transmission, the recommended distance between this DVR and cameras should not exceed 200 meters by using 3C2V coaxial cables (112 braids).
A4 Examining Signal Transmission When the DVR is powered on, right-click to display the main menu, and select “ADVANCED CONFIG” “DCCS”. ADVANCED CONFIG CANERA CH1 CH2 CH3 CH4 CH5 CH6 CH7 CH8 CH9 CH10 CH11 DETECTION DIAGNOSTIC START ALERT MENU SETUP NETWORK DISPLAY...
