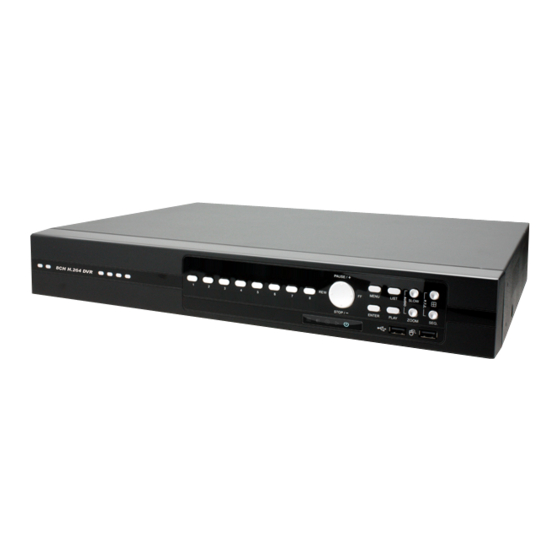

DIGITAL VIDEO RECORDER USER MANUAL Please read instructions thoroughly before operation and retain it for future reference. KD678_677_676_675_AC758D_757_756D_755_CD536_538_manual_V1.1...
Page 2
IMPORTANT SAFEGUARD CAUTION: To reduce the risk of electric shock, do not expose this apparatus to rain or moisture. Only operate this apparatus from the type of power source indicated on the label. The company shall not be liable for any damages arising out of any improper use, even if we have been advised of the possibility of such damages.
SPECIAL NOTES 1. SPECIAL NOTES Remote Surveillance 1). This DVR series supports remote independent operation, and the image transmission per channel is independent at the remote site. Therefore, during the remote surveillance, the image transmission may not be so fluent when you’re viewing four channels or more at the same time. 2).
Page 6
SPECIAL NOTES DVR Battery Replacement DVR time might reset after the disconnecting of the DVR power, for example, caused by a power outage, because the DVR battery is low or even running out of power. For details about battery replacement, please refer to “APPENDIX 9 DVR BATTERY REPLACEMENT” at page...
FRONT AND REAR PANEL 2. FRONT AND REAR PANEL 2.1. Front Panel 1) LED Indicators POWER : DVR is powered on. : HDD is reading or recording. ALARM : An alarm is triggered (Selected models only). TIMER : Timer recording is on. PLAY : Under playback status.
FRONT AND REAR PANEL 13) AUDIO (SEQ + Press SEQ + simultaneously to select the audio channel you want for listening to the live audio (in the live mode) or playback audio (in the playback mode). 14) PTZ (SLOW + ZOOM) Press these two buttons at the same time to enter / exit the PTZ control mode.
Page 9
FRONT AND REAR PANEL For detailed I/O port PIN configuration, please refer to “APPENDIX 1 PIN CONFIGURATION” at page 31. 8) VGA (Selected models only) Connect to a LCD monitor directly. Note: To select the suitable VGA resolution, please go to “ADVANCE” “DISPLAY”...
CONNECTION AND SETUP 3. CONNECTION AND SETUP 3.1. HDD Installation The HDD must be installed before the DVR is turned on. The steps below are for your reference only. The actual installation process may vary depending on different models and situations. For Model 1 ~ 4 Step 1: Loose the screws on the upper cover and open the upper cover of the DVR.
CONNECTION AND SETUP Note: Make sure the HDD power cable is connected to the WHITE jack on the DVR mainboard as shown below. The black jack is reserved for DVD writer installation. Step 3: Close the upper cover of the DVR, and fasten all the screws you loosened in Step 1. Note: When a HDD is connected for the first time and the DVR is turned on, the DVR will automatically detect &...
CONNECTION AND SETUP Press “MENU” and enter the password to go to the menu list. The default admin password is 0000. Move to “DATE” and you can set the date / time / daylight saving in the “DATE” menu list. Note: Please DO NOT change the date or time of your DVR after the recording function is activated.
BASIC OPERATION 4. BASIC OPERATION 4.1 Live Page Depending on the DVR you have, you may see the following live view screen with status icons. Icon Function Icon Function Icon Function Icon Function The 1 live audio The 2 live audio Key lock Key unlock channel...
BASIC OPERATION 4.3. Playback Via DVR Press “PLAY” on the DVR control panel, and the device will playback the latest recorded video. You could only watch 4-channel playback images at the same time. If you want to watch other channels, press button on the front panel to show the next 4-channel display.
BASIC OPERATION Then, click “Play” to immediately start playback. 4.4. Search Via DVR Full Event Search Press “LIST” to show the list for all types of the recorded files. Choose the item you want to see and press “ENTER” to start playback. Search by Time Press “MENU”...
Page 16
BASIC OPERATION panel, click “ Tools) on the miscellaneous control panel to enter the upgrade window. ” ( Step 3. Enter the user name, password, IP address and port number of the DVR. Step 4. In “Update Server”, click “Firmware” or “Language” tab as needed, and click “Add” to select the firmware or OSD files to upgrade.
ADVANCED OPERATION 5. ADVANCED OPERATION 5.1. QUICK SEARCH You can search any specific events by time and directly play the file you find from the DVR. Move to “QUICK SEARCH”, and press “ENTER”. You will see the following submenu items: DATE Select the specific time period (YEAR / MONTH / DAY / HOUR / MIN) that you want to search.
ADVANCED OPERATION PRE-ALARM RECORD Select to enable or disable the pre-alarm function (ON / OFF). When pre-alarm and event recording functions are both activated, the DVR will record 8MB data before an alarm / motion event is triggered. OVERWRITE Select to overwrite previous recorded data in your HDD. When the HDD is full under the O/W recording mode, the DVR will clear 8GB data from the oldest for continuous recording without notice.
ADVANCED OPERATION DETECTION TIMER to change the setting (ON / OFF). When it’s set to “ON”, press “ENTER” to go to its submenu for further settings. DETECTION TIMER PLEASE CONSULT YOUR INSTALLER FOR ADVANCE SETTINGS MOVE SELECT X axis 0 ~ 24 hours. Each time interval within a square is two hours (divided into four 30-minutes). Y axis Monday ~ Sunday.
ADVANCED OPERATION AREA Press “ENTER” to set the detection area. You will see similar screens as the following: Transparent blocks are the area under Press “ENTER” to confirm the start area. Press to choose the width of the detection. detection area. Press to choose the height of the You can also set up multi-detection area.
ADVANCED OPERATION *Pink blocks represent the area that is not being detected while the transparent blocks are the area under detection. There are three detection areas for your choice: Press “ ” or ” ◄” once to broaden the detection area. ▲...
ADVANCED OPERATION RESET DEFAULT Press “ENTER” to reset all settings as default, and select “YES” to confirm or “NO” to cancel. CLEAR HDD Select the HDD you want to clear. Press “ENTER”, and select “YES” to confirm to clear HDD or “NO” to cancel. UPGRADE Before using the USB flash drive, please use your PC to format the USB flash drive as FAT32 format first.
ADVANCED OPERATION PORT The valid number ranges from 1 to 9999. The default value is 80. Typically, the TCP port used by HTTP is 80. However in some cases, it is better to change this port number for added flexibility or security. See the example below: STATIC NETWORK TYPE...
ADVANCED OPERATION 5.7.3. DHCP NETWORK TYPE Select the network type as DHCP. 10) DNS (PRIMARY DNS / SECONDARY DNS) Key in the IP address of the domain name server obtained from your ISP (Internet Service Provider). 11) PORT The valid number ranges from 1 to 9999. The default value is 80. Typically, the TCP port used by HTTP is 80. However in some cases, it is better to change this port number for added flexibility or security.
ADVANCED OPERATION Note: When USB backup starts, it’s not allowed for OSD menu operation or network backup in order to keep the consistency of the video data. Note: You can backup up to 2GB video data for one-time USB backup. To backup more data, please set the time &...
Page 26
ADVANCED OPERATION STEP2: Find the data bus & power cables supplied with the USB DVD writer, and connect them to DVD writer as described in its user manual. Then, plug it into an outlet for power supply. STEP3: Connect the DVD writer to the USB port of the DVR. STEP4: Wait till the DVR shows the message “USB CONNECTED”.
REMOTE OPERATION 6. REMOTE OPERATION You can also control the DVR remotely via the supplied licensed software “Video Viewer” (hereafter called the “Video Viewer”), IE web browser, and Apple’s QuickTime player ONLY when your DVR supports the network function. Note: The buttons and functions described below may differ from the actual ones and are for selected model(s) only.
REMOTE OPERATION Double-click “ ” icon on your PC desktop to enter the control panel. By defaults, the “Address Book” panel will be displayed on the right side of the control panel. Click ” ” (Address Book) ” ” (Add) button to key in the IP address, user name, password, and port number of the DVR you intend to connect.
REMOTE OPERATION Button Function Description For details, please see “Miscellaneous Control” at page 25. Record / Record Stop Click to start / stop the manual recording. Click to take a snapshot of the current view. The snapshot will be Snapshot saved in the path you specified in “Record Setting”.
Page 30
REMOTE OPERATION ‧Hard disk overwriting ‧Pre- / post-alarm record time ‧Record time setting ‧Record path If “Manual” is checked, click “ ” (Record) on the main control panel to start the manual recording immediately, and the recordings will be saved in the specified location. The red text indication “REC” will be shown at the top left corner of the image display view.
REMOTE OPERATION Network Backup Click “ ” (Miscellaneous Control) → “ ” (Backup) to go into the “Backup” page as follows, and you can select a specific time range or event to make a video backup remotely. Note: Before enabling the network backup function, make sure the DVR is not in the playback mode, or the DVR will stop playback.
REMOTE OPERATION 6.2. IE Web Browser Note: The supported PC operation systems are Windows Vista / XP / 2000. Step 4: Key in the IP address used by your DVR in the URL address box, such as 60.121.46.236, and press Enter.
Page 33
REMOTE OPERATION Function Description Quad Sequence Click to display all the channel images with four channels as a group in a sequence. To exit from this display mode, press any other channel display button. Quad Sequence / Full Sequence Full Sequence Click to display each channel one by one, starting from CH1.
REMOTE OPERATION 6.3. QuickTime Player You can also use the QuickTime player to remotely log into the DVR and check the live view only. QuickTime access is only available when the DVR record mode is set to CIF. Note: QuickTime is Apple’s multimedia software. You need to have QuickTime installed in you operation system first, and you can access the DVR to see the live view.
APPENDIX 2 TROUBLESHOOTING APPENDIX 1 PIN CONFIGURATION ‧ For 16CH DVR Siren When the DVR is triggered by alarm or motion, the COM connects with NO and the siren with strobe starts wailing and flashing. Magnetic Contact When the magnetic contact is opened, the alarm will be triggered and the recording is on.
Page 36
APPENDIX 2 TROUBLESHOOTING ‧ For 8CH DVR Siren When the DVR is triggered by alarm or motion, the COM connects with NO and the siren with strobe starts wailing and flashing. Magnetic Contact When the magnetic contact is opened, the alarm will be triggered and the recording is on.
APPENDIX 2 TROUBLESHOOTING APPENDIX 2 TROUBLESHOOTING Please refer to the table below for easy troubleshooting. The table describes some typical problems and also their solutions. Please check them before calling your DVR dealer. FAQ (Frequently ask question) ‧ Questions Solutions No power Check power cord connection.
APPENDIX 3 COMPATIBLE USB FLASH DRIVE LIST APPENDIX 3 COMPATIBLE USB FLASH DRIVE LIST Please upgrade the firmware of the DVR to the latest version to ensure the accuracy of the following table. If the USB flash drive is not supported by the DVR, the “USB ERROR” message will be shown on the screen. Note: Please use your PC to format the USB flash drive as “FAT32”.
APPENDIX 5 COMPATIBLE USB DVD WRITER LIST APPENDIX 5 COMPATIBLE USB DVD WRITER LIST Note: The chipsets listed below are for reference only. To ensure the compatibility, please use the specified models below. MANUFACTURER MODEL CHIPSET BENQ EW200G MediaTek LiteOn DH-20A4P MediaTek SONY...
APPENDIX 7 SPECIFICATIONS APPENDIX 7 SPECIFICATIONS ‧ Model 1 ~ 4 MODEL Model 1 Model 2 Model 3 Model 4 Video System NTSC / PAL (auto detection) Video Input (composite video 16 channels 8 channels signal 1 Vp-p 75Ω BNC) Video Output (composite video Main monitor output signal 1 Vp-p 75Ω...
Page 43
APPENDIX 7 SPECIFICATIONS MODEL Model 1 Model 2 Model 3 Model 4 Backup Device 1. USB DVD writer (optional); 2. USB 2.0 flash drive; 3. Network Front panel * 1 / Front panel * 1 / USB Interface Front panel * 1 Front panel * 1 Back panel * 1 Back panel * 1...
Page 44
APPENDIX 7 SPECIFICATIONS ‧ Model 5 ~ 8 MODEL Model 5 Model 6 Model 7 Model 8 Video System NTSC / PAL (auto detection) Video Input (composite video 16 channels 8 channels signal 1 Vp-p 75Ω BNC) Video Output (composite video Main monitor output signal 1 Vp-p 75Ω...
Page 45
APPENDIX 7 SPECIFICATIONS MODEL Model 5 Model 6 Model 7 Model 8 1. USB DVD writer 1. USB DVD writer 1. DVD writer (optional) 1. DVD writer (optional) (optional) (optional) Backup Device 2. USB 2.0 flash drive 2. USB 2.0 flash drive 2.
APPENDIX 8 RECORDING TIME TABLE APPENDIX 8 RECORDING TIME TABLE The testing environment for this recording time table is normal office, and for reference only. Recording time may vary depending on the following three factors: ‧ Different camera resolution; ‧ Different picture complexity; ‧...
Page 47
APPENDIX 8 RECORDING TIME TABLE For 8CH DVR Record Mode Quality 750GB record time (hour) 750GB record time (day) FRAME BEST 302.66 12.61 435.54 18.15 787.82 32.83 1116.07 46.50 HIGH 405.84 16.91 645.44 26.89 992.06 41.34 1245.85 51.91 NORMAL 487.01 20.29 765.31 31.89...
APPENDIX 9 DVR BATTERY REPLACEMENT APPENDIX 9 DVR BATTERY REPLACEMENT DVR time reset after power failure, for example, caused by a power outage, will cause the disorder of the recorded data, and users may have problems in searching the event clip they want. To keep the DVR time from resetting, a non-chargeable lithium battery, CR2032, is installed in the DVR.
Page 50
安全須知 注 意 注 意 注意: 為減低觸電的可能性,請勿讓此機器暴露在雨中或潮濕的環境下。 請務必使用適當的變壓器。 本公司不負責賠償任何因不當使用本產品所引起的損害。即使本公司已被告知可能的相關風險,使用者仍應自行 承擔不當使用所產生之後果。 圖示說明 此符號用於警告使用者 產品機殼內部有 “危險電壓”,觸碰有可能會造成觸電的可能性。. 此符號用於告知使用者此機器附有操作與維護指示的重要文件。 本公提供的所有無鉛產品皆符合歐盟有害物質使用限制指引 (Restriction of Hazardous Substances, (RoHS)),意即本公司的生產流 程與產品均嚴格遵守無鉛守則,而且不包含該指引內提供的任何有害物質。 此劃叉的滾輪垃圾筒圖示代表在歐盟境內,本產品於丟棄時必須另行收集。此原則適用於您的產品與任何標有此圖示的週邊設備。 請勿隨意丟棄這些產品。請洽詢您當地的經銷商,以得知回收此設備的程序。 此機器的製造符合無線電波干擾的規範。 免責聲明 本公司保留可隨時修改或刪除說明書內容的任何權利。本公司不保證此說明書的內容完全無誤、完整或實用性。產品畫面顯示與操作請以實機為 主。此說明書內容更改以實際產品為準,將不另行通知。 在此提及的產品與公司名稱,也許為其各自擁有者的註冊商標或商稱名稱。 MPEG4 Licensing THIS PRODUCT IS LICENSED UNDER THE MPEG-4 VISUAL PATENT PORTFOLIO LICENSE FOR THE PERSONAL AND NON-COMMERCIAL USE OF A CONSUMER FOR (i) ENCODING VIDEO IN COMPLIANCE WITH THE MPEG-4 VISUAL STANDARD (“MPEG-4 VIDEO”) AND/OR (ii) DECODING MPEG-4 VIDEO THAT WAS ENCODED BY A CONSUMER ENGAGED IN A PERSONAL AND NON-COMMERCIAL ACTIVITY AND/OR WAS OBTAINED FROM A VIDEO PROVIDER LICENSED BY MPEG LA TO PROVIDE MPEG-4...
進階操作 5.8.2. 光碟備份 (僅限特定型號) 光碟備份功能只限有內建 DVD 燒錄機的機種,或者支援外接 USB DVD 燒錄機的機種才能使用。 註:USB DVD 燒錄機為選購配備。如需得知相容 USB DVD 燒錄機列表,請參閱第 33 頁的 “附錄 5 相容 USB DVD 燒錄機表”。 USB DVD 燒錄機 在使用 USB DVD 燒錄機建立光碟備份之前,請先確認: DVR 支援連接 USB DVD 燒錄機,而且 DVR 韌體版本如下: (1) 16 路機種:1055-1015-1010-1023-1007 或更新版本 (2) 8 路機種:1030-1015-1010-1023-1007 或更新機種...
附錄 7 產品規格 附錄 7 產品規格 ‧ Model 1 ~ 4 Model 1 Model 2 Model 3 Model 4 型號 NTSC / PAL (自動偵測) 影像系統 影像輸入 (composite video signal 1 Vp-p 16 路 8 路 75Ω BNC) 影像輸出 (composite video signal 1 Vp-p 主螢幕輸出...
Page 88
附錄 7 產品規格 Model 1 Model 2 Model 3 Model 4 型號 有 (8 MB) 警報前錄影 1. USB DVD 燒錄機 (選購); 2. USB 2.0 隨身碟; 3. 網路 備份裝置 前面板 * 1 / 前面板 * 1 / USB 介面 前面板 * 1 前面板...
Page 89
附錄 7 產品規格 ‧ Model 5 ~ 8 Model 5 Model 6 Model 7 Model 8 型號 NTSC / PAL (自動偵測) 影像系統 影像輸入 (composite video signal 1 Vp-p 16 路 8 路 75Ω BNC) 影像輸出 (composite video signal 1 Vp-p 主螢幕輸出...
Page 90
附錄 7 產品規格 Model 5 Model 6 Model 7 Model 8 型號 1. USB DVD 燒錄機 1. USB DVD 燒錄機 1. DVD 燒錄機 (選購) 1. DVD 燒錄機 (選購) (選購) (選購) 2. USB 2.0 隨身碟 2. USB 2.0 隨身碟 備份裝置 2. USB 2.0 隨身碟 2.
