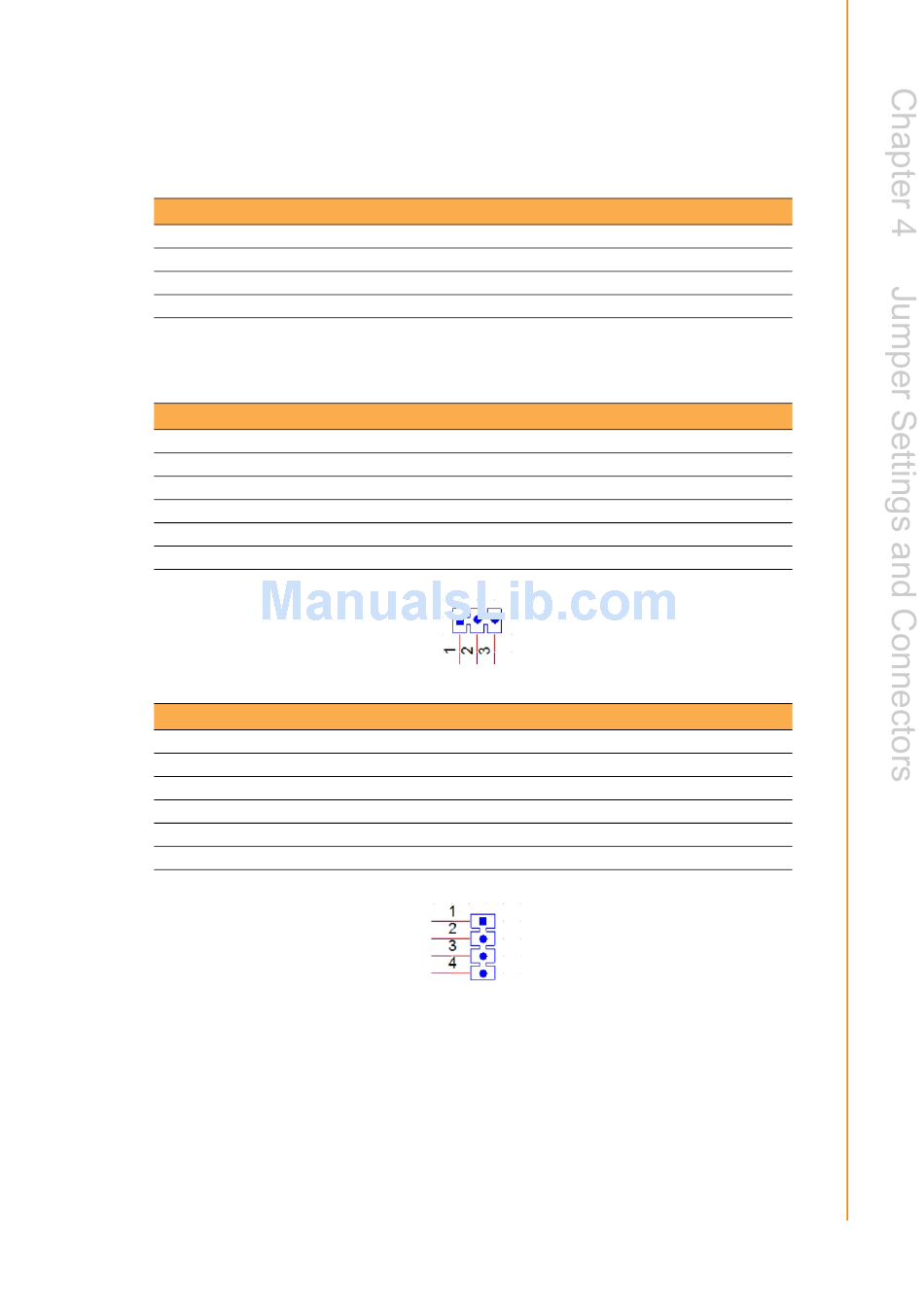

4.2 Jumpers

4.2.1 Jumper List

Table 4.2: Jumper List
JP1
JP3
JP4
CN17

4.2.2 Jumper Settings

Table 4.3: JP1:LCD POWER
Part Number
Footprint
Description
Setting
(1-2)
(2-3)*
Table 4.4: JP3:Clear CMOS
Part Number
Footprint
Description
Setting
(2-3)*
(3-4)
LCD POWER
Clear CMOS
AT/ATX POWER SEL
COM1 RING
1653003100
HD_3x1P_100_D
PIN HEADER 3x1P 2.54mm 180D(M) DIP 205-1x3GS
Function
5V
3.3V
1653004101
HD_4x1P_79_D
PIN HEADER 4x1P 2.0mm 180D(M) DIP 21N12050
Function
Normal
Clear CMOS
23 UTC-315 User Manual
