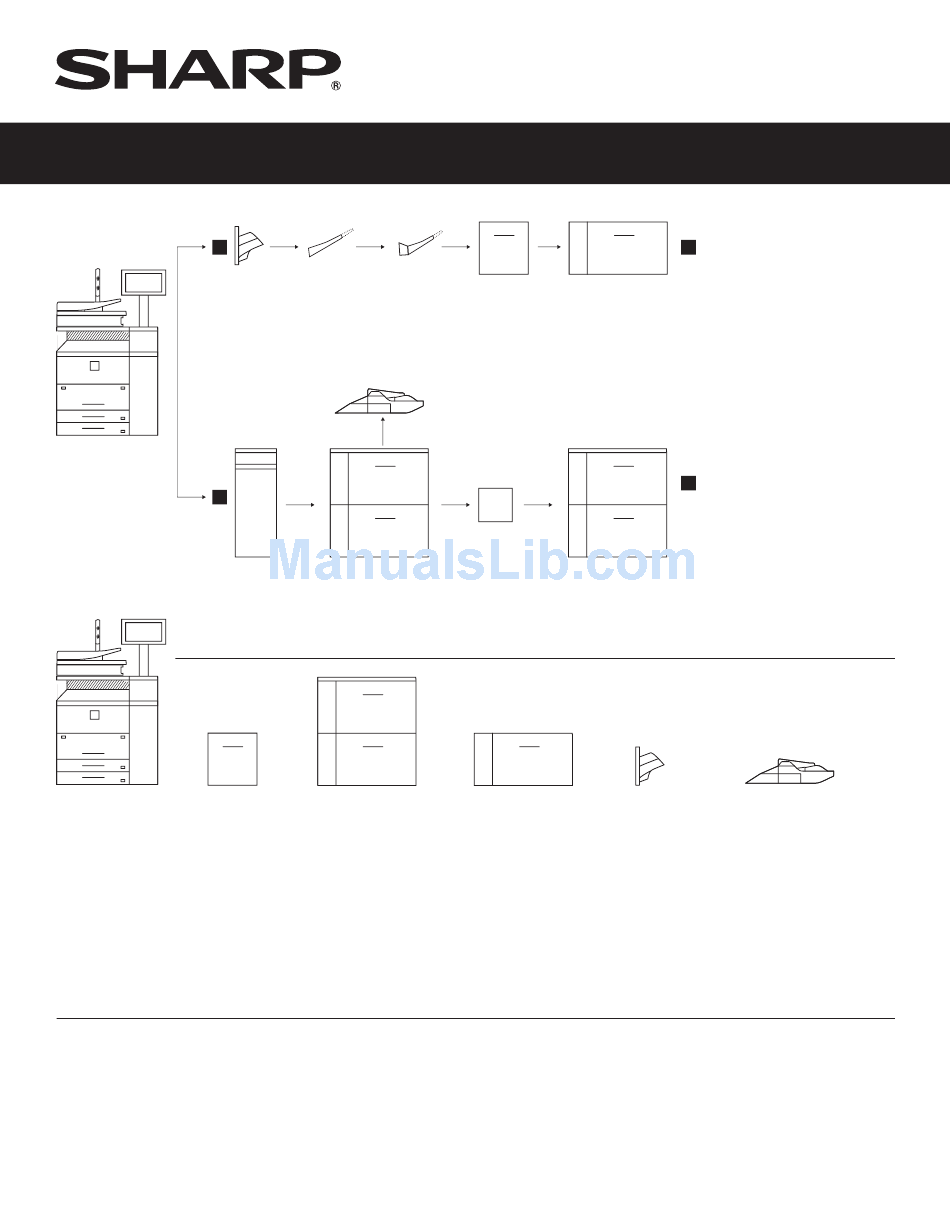

StEP 1: ChooSE PaPEr fEED Configuration
A
MX-MF10*
Multi Bypass
Tray
MX-6500N/7500N
B
* The MX-MF10 is required as
a minimum configuration if the
MX-RB14
MX-RB14 is not selected.
Paper Pass Unit
1. Base Unit
2. MX-LC12
Supported Paper Weights
1. Base Unit (3,000 Sheets)
Upper Drawer (tandem): 16 lb. Bond to 28 lb. Bond (60-105 gsm)
Middle/Lower Drawer: 16 lb. Bond to 100 lb. Bristol (60-220 gsm)
2. MX-LC12 (3,500 Sheets)
16 lb. Bond to 100 lb. Bristol (60-220 gsm)
3. MX-LC13 (5,000 Sheets)
Upper/Lower Drawer: 15 lb. Bond to 110 lb. Cover (55-300 gsm)
Supplies & Accessories
• Black Toner Cartridge
• Cyan Toner Cartridge
• Magenta Toner Cartridge
• Yellow Toner Cartridge
• Black Developer
• Cyan/Magenta/Yellow Developer
© 2013 Sharp Electronics Corporation. All rights reserved.
MX-6500N/7500N C
and
and/or
MX-TR14
MX-LT10
Right Side
Long Paper
Exit Tray
Feeding Tray
MX-MF11
500-sheet
Multi Bypass Tray
and
(not required)
and
MX-LC13
Large Capacity Tray
(2 Drawers; Ledger)
3. MX-LC13
MX-62NTBA
MX-75NTCA
MX-75NTMA
MX-75NTYA
MX-62NVBA
MX-62NVSA
and/or
or
MX-LC12
MX-LCX3N
Large Capacity
Large Capacity
Cassette
Cassette
(Letter)
(Ledger)
and
and
MX-RB17
MX-LC13
LCT Connecting
Large Capacity Tray
Kit (required for
(2 Drawers; Ledger)
2nd MX-LC13)
(not required)
4. MX-LCX3N
4. MX-LCX3N (3,000 Sheets)
16 lb. Bond to 100 lb. Bristol (60-220 gsm)
5. MX-MF10 (100 Sheets)
15 lb. Bond to 110 lb. Cover (55-300 gsm)
6. MX-MF11 (500 Sheets)
15 lb. Bond to 100 lb. Bristol (55-220 gsm)
• Drum
• Toner Collection Container
• 1 20V/15A Power Filter
(for MX-BM50, MX-FN21, MX-FN22,
MX-LC13 and MX-ST10)
• 2 08-240V/20A Power Filter
(for MX-6500N/7500N)
onfiguration Chart
Configuration A
A
These configurations require the MX-MF10.
• The MX-TR14 and MX-LT10 are
not required.
• The MX-LC12 cannot be used with
the MX-LCX3N.
• These items cannot be combined
with items from paper feed
configuration B.
Configuration B
This configuration requires the MX-RB14
B
and MX-LC13.
• An MX-RB17 is required to connect
two MX-LC13 Large Capacity Trays.
• The MX-MF11 can also be added
to the first MX-LC13 but cannot
be used alone.
• These items cannot be combined
with items from paper feed
configuration A.
5. MX-MF10
6. MX-MF11
MX-62NRSA
MX-700HB
AR-D5133NT
MX-E524ZNT
