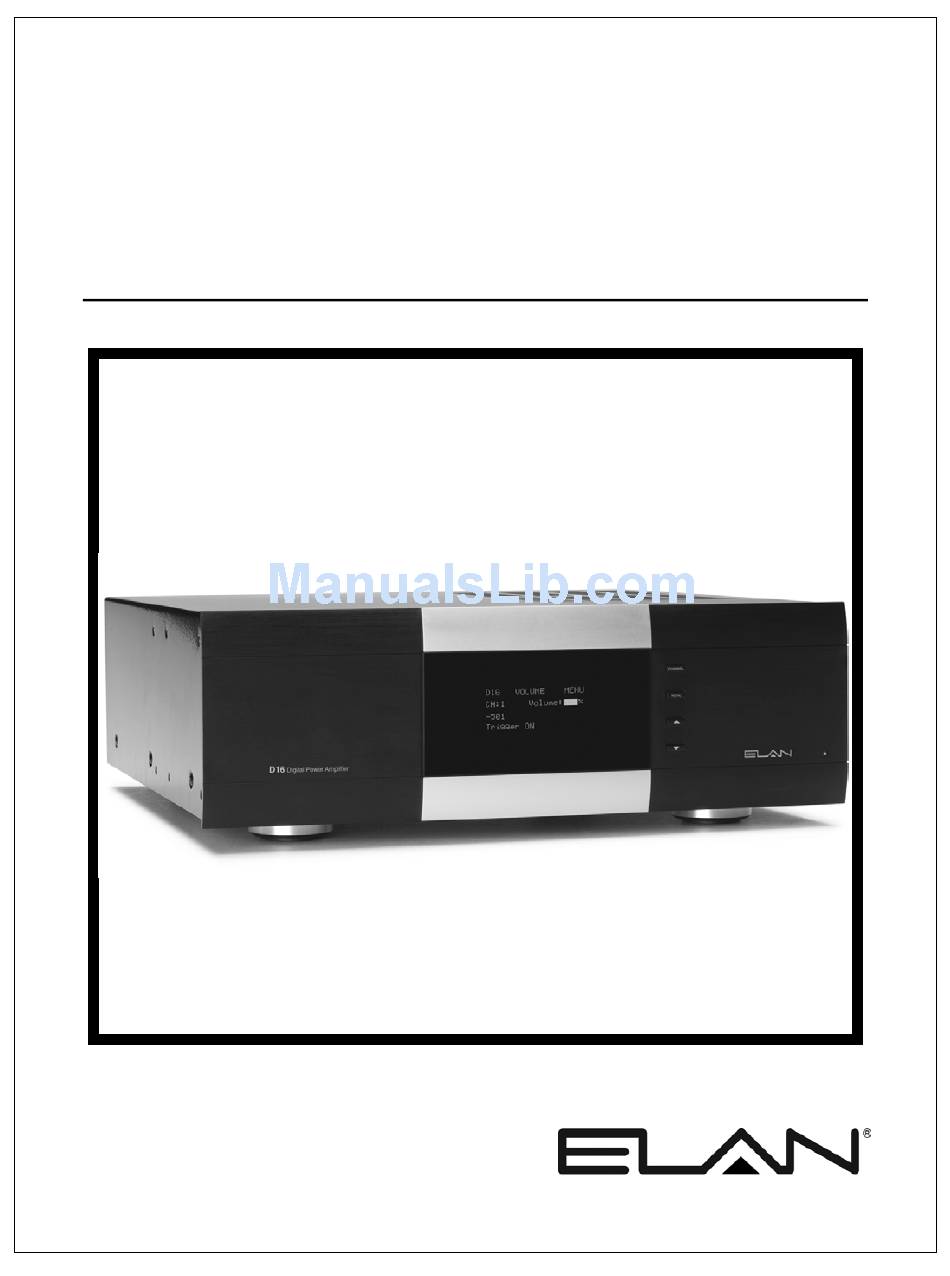

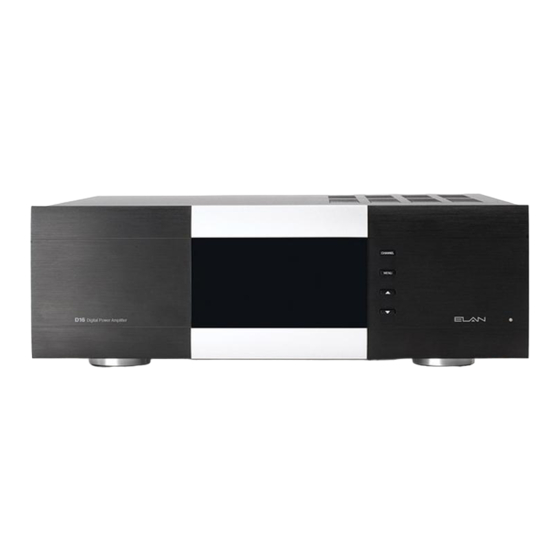

- Page 1 16 Channel Digital Power Amplifier Installation Manual INSTALLATION MANUAL...
-
Page 2: Preface
Purpose of this Manual This manual provides step-by-step installation instructions and connection examples, along with basic user information for installation and ongoing use of the D16 Digital Power Amplifier. This manual is written for the installer of this equipment. Organization The following information is contained in this manual. -
Page 3: Safety Information
Water---- - Do not use the apparatus near water. Cleaning ---- - Unplug the apparatus from the power outlet before cleaning. Use only a dry cloth to clean the apparatus. © ELAN Home Systems 2010 | All rights reserved. Page 2... - Page 4 Consult the dealer or an experienced radio/TV technician for help. CAUTION: Changes or modifications not expressly approved by ELAN Home Systems could void the user’s authority to operate the equipment. © ELAN Home Systems 2010 | All rights reserved. Page 3...
-
Page 5: Table Of Contents
LCD Contrast ......................23 LCD Brightness ......................24 LCD Sleep Timer ......................24 Bus A Input Menu ....................... 25 Bus B Input Menu ....................... 25 Power Saving Menu....................26 © ELAN Home Systems 2010 | All rights reserved. Page 4... - Page 6 Multiple Bus Inputs with Stereo and Mono Outputs............ 48 Stand-Alone Stereo Bussing with Multiple Chassis ............. 50 Multi-Room Stereo Zones ..................52 D16 and S128P Sub-Zones W/O Volume Controls ............. 53 Chapter 5: Troubleshooting ............. 55 Appendix A: IR / VIA!NET Command Set ............61 Appendix B: Rack Mounting ..............
-
Page 7: Chapter 1: Introduction
48 bit signal processing delivering the cleanest and most efficient audio amplification available. Each channel of the D16 has a true power rating of 50 watts @ 8 ohms and 75 watts @ 4 ohms – all channels driven. -
Page 8: D16 Features
• Multiple Bus Inputs The D16 can utilize up to 8 stereo bus inputs to allow sharing a single audio source between multiple speaker outputs (no jumper wires required) • Buffered Loop Outputs... -
Page 9: D16 Functions & Indicators
E L A N H O M E S Y S T E M S INSTALLATION MANUAL D16 Functions & Indicators Front Panel Figure 1-1: D16 Front Panel Controls and Display Item Function Channel Button Cycles through information pertaining to each of the 16 audio channels... -
Page 10: D16 Rear Panel Connections
Replace only with T12.5AL250V Trigger All On Power Cable Connector Used to turn on all amplifier channels at once IEC type C14 Note: All 3.5mm connectors are mono (two conductors) © ELAN Home Systems 2010 | All rights reserved. Page 9... -
Page 11: Chapter 2: Operation & Settings
Chapter 2: Operation & Settings Front Panel Controls The D16 front panel buttons provide control for the initial setup and amplifier status. Any button press activates the front panel display which shows important system information until the display times out. -
Page 12: Up & Down Arrow Buttons
Note: “Channel Locked” - “Output Clipping” - “Input Clipping” and “Fault” status information will only display if that condition is true. The “IR” indicator will display only when the D16 is receiving an ELAN formatted IR signal. © ELAN Home Systems 2010 | All rights reserved. -
Page 13: Fault Menu
WILL NOT cause additional damage. The speaker wires should not be connected to different amplifier channels without first checking for shorts or low impedance on the speakers. © ELAN Home Systems 2010 | All rights reserved. Page 12... -
Page 14: Installer Menu Options
Alternatively, press the CHANNEL button to move forward one channel at a time. The top of the screen displays the mode the amplifier is in, either ELAN MODE or NORMAL MODE, followed by the channel designations of the chassis, I.E. -
Page 15: Normal Mode
TRIGGER and PS (Power Sense) status are also displayed. (See Power Saving Menu on page 26, and Trigger information on pages 39-41.) (Continued on next page) © ELAN Home Systems 2010 | All rights reserved. Page 14... - Page 16 When AVR (Automatic Volume Reduction) is active, AVR is displayed above Volume %. AVR is active whenever the amp is being overdriven. When AVR is active, the D16 turns its volume down until it is not being overdriven. The D16 will return to its normal volume setting when it is no longer being overdriven.
- Page 17 The protection circuits will reset when the output signal conditions have returned to normal. Overdriving the amplifier can damage the amplifier and void the manufacturer's warranty. © ELAN Home Systems 2010 | All rights reserved. Page 16...
-
Page 18: Input Select Menu
• Input 11 + 12 Mono Bus D: Channel's audio is the sum of audio inputs 11 and 12 (Mono) which is Bus D • (Continued on next page) © ELAN Home Systems 2010 | All rights reserved. Page 17... - Page 19 Bus A and All of the Even channels (2, 4, 6, 8, 10, 12, 14, 16) are taken from audio input 2 which is also Bus A. D16 INPUT SELECT MENU Channel:ALL ODD Figure 2-10 Input: 1 Bus A All Channels Selected Channel: ALL EVEN Input: 2 Bus A © ELAN Home Systems 2010 | All rights reserved. Page 18...
-
Page 20: Channel Lock Menu
This menu allows any or all channels to be locked or unlocked after initial set-up selections have been determined. When locked, channel settings cannot be altered even by IR Commands in ELAN mode. Individual channels 1 - 16 options are LOCKED or UNLOCKED. -
Page 21: Ace Menu
MIXED means that some channels are ON and some channels are OFF. Press the CHANNEL button to change the channel. Press UP and DOWN buttons to enable or disable ACE for the selected channel. © ELAN Home Systems 2010 | All rights reserved. Page 20... -
Page 22: Input View Menu
A clipping indicator is located in the bottom left of the screen. The indicator will show if any of the four currently displayed channels are clipping. © ELAN Home Systems 2010 | All rights reserved. Page 21... -
Page 23: Output View Menu
Once the Utility sub-menu has been accessed by cycling through the MAIN Menu functions until you see “UTILITY” at the top of the display, use the CHANNEL button to cycle to the next sub-menu option. Pressing the MENU button will return the D16 to the MAIN Menu options. -
Page 24: Operating Mode Menu
The initial screen shown in the Utility Sub-Menu is the Operating Mode Menu. Use the arrow UP or Down buttons to toggle between Normal and ELAN mode. If you have not allowed for an LCD time-out to reset the Utility sub-menu back to the Operating Mode Menu press the CHANNEL button to cycle through the Utility sub-menu options until you see the screen below. -
Page 25: Lcd Brightness
Use the UP and DOWN arrow buttons to adjust the timeout. The options are one minute, two minutes, five minutes, and disable. UTILITY MENU NORM MODE Figure 2-18 LCD Sleep LCD Sleep Timer Menu Timer : .1 MIN. © ELAN Home Systems 2010 | All rights reserved. Page 24... -
Page 26: Bus A Input Menu
MENU button, use the CHANNEL button to select the BUS B Input menu. Use the UP and DOWN arrow buttons to select the desired input. UTILITY MENU NORM MODE Inputs 9 & 10 Figure 2-20 BUS B: BUS B Input Menu Optical 2 © ELAN Home Systems 2010 | All rights reserved. Page 25... -
Page 27: Power Saving Menu
If a zone is muted on the ELAN A/V Controller, the D16's channels will turn off after 5 minutes of not detecting audio. The D16 audio may drop out in ALL ENABLED mode if the audio being sent to it is at an extremely low level for five minutes. -
Page 28: Firmware Version
Diagnostics Menu The Diagnostics menu provides easy access to current D16 system status. Diagnostics information displayed on the D16’s front panel include the number of times the unit has suffered fault conditions (F) and high temperatures (T) for each channel. -
Page 29: Ambient Temperature
Utility Sub-Menu (Continued) Ambient Temperature This menu displays the current AMBIENT TEMPERATURE of the D16 chassis as well as minimum and maximum temperatures that are logged in memory. Once you have selected the Utility sub-menu by cycling through the MAIN Menu options using the MENU button, use the CHANNEL button to select the Ambient Temperature display. -
Page 30: Restore Defaults
Press the UP and DOWN arrows to select SAVE or NO SAVE. If the correct code has been entered the D16 will save the current settings. If an incorrect code has been entered the bottom line of the display will read, “INVALID PIN, Retry”... -
Page 31: Utility Menu
RESTORE options. Use the UP and DOWN buttons to select the desired option and press CHANNEL to commit the selection. UTILITY MENU NORM MODE Figure 2-28 Restore Defaults Menu B Restore Defaults: FACTORY CANCEL RESTORE © ELAN Home Systems 2010 | All rights reserved. Page 30... -
Page 32: Elan Mode
Mode, Firmware Version, Diagnostics, Ambient Temperature, Save Dealer Defaults, and Restore Defaults. Absolute Max Volume Menu To set the upper gain limits for the D16 press the MENU button to cycle through the setting options until the following screen appears: ELAN MODE... -
Page 33: Minimum Turn-On Volume Menu
E L A N H O M E S Y S T E M S INSTALLATION MANUAL ELAN Mode (Continued) Minimum Turn-On Volume Menu To set the Minimum Turn-On Volume for the D16 press the MENU button to cycle through the setting options until the following screen appears: ELAN MODE MENU... -
Page 34: Utility Sub-Menu Additions (In Elan Mode)
The options are 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, A, B, C, D, E, and F providing a total of 16 chassis. The amplifier will need to be set to an I.D. that is not already being used by another 'D Series' amplifier. © ELAN Home Systems 2010 | All rights reserved. Page 33... -
Page 35: Utility Sub-Menu Additions (In Elan Mode) (Continued)
16 chassis can be used for a total of 256 channels. D16s can have the same channel range settings if you want the D16s to respond to the same IR or VIA!NET Commands. © ELAN Home Systems 2010 | All rights reserved. Page 34... -
Page 36: Chapter 3: Connections
INSTALLATION MANUAL Chapter 3: Connections The D16 has many rear panel connections so it is important to label cables with their destination or source correctly. Use high quality line level RCA connector type cables for source connections to ensure the lowest possible noise and best sound performance. -
Page 37: Bus Inputs
INSTALLATION MANUAL BUS Inputs The D16 BUS Inputs A and B enable custom configuration of listening areas. Large or irregular shaped rooms may be configured for both mono and stereo as coverage is needed. Hallways, passageways, bathrooms and laundry rooms are the most popular areas that can benefit from a mono BUS application. -
Page 38: Bus Outputs
3 / 4, C for 5 / 6, D for 7 / 8, E for 9 / 10, F for 11 / 12, G for 13 / 14, and H for 15 / 16. Digital audio inputs do not “loop out” of the D16. If multiple amplifiers are to be used in Bus mode you should use the analog Bus inputs. -
Page 39: Speaker Binding Post
INSTALLATION MANUAL Speaker Binding Post The D16 is equipped with gold plated, 5-way speaker binding post. This will allow for five methods of speaker wire termination; bare wire, spade lug, pin, single banana and dual banana plug. Label all speaker wires with their destination to ensure easy configuration. To attach speaker wires use the following method: Carefully split the speaker wire insulation at least two inches. -
Page 40: Triggers
When the trigger is not active the channel pairs turn off. If no cables are used, the triggers will be turned on by default. (See note on triggers on 41) Figure 3-6 D16 Zone Trigger Connections © ELAN Home Systems 2010 | All rights reserved. Page 39... -
Page 41: All On Trigger Input
When the trigger is active all channels turn on. When the trigger is not active all channels turn off. (See note on triggers on 41) Figure 3-7 D16 All On Trigger Connections © ELAN Home Systems 2010 | All rights reserved. Page 40... -
Page 42: 12Vdc Trigger Out
Mute, the volume is restored to the previous level, regardless of the preset Min/Max Turn On parameters. (See pages 14, 26, 29, 30, and 32 for additional information.) © ELAN Home Systems 2010 | All rights reserved. Page 41... -
Page 43: Ir Loop Input/Output Connections
The 3.5mm mono IR Loop is located beside the ALL ON trigger. This loop allows IR commands to be sent to each D16 amplifier that is connected. Before the amplifier will respond to IR Commands, the D16 amplifier must be set to ELAN Mode. -
Page 44: Usb Connector
E L A N H O M E S Y S T E M S INSTALLATION MANUAL USB Connector Used to update and configure the D16 firmware. Note: A Standard USB-A to USB-Mini-B cable must be utilized for firmware updates and is not included with the D16. -
Page 45: Chapter 4: Applications
1 and 2. Audio input 1 is routed to output channel 1 and audio input 2 is routed to output channel 2. Volume is adjusted by an ELAN A/V Controller or by another Audio Device. Figure 4-1 Stereo Connections ©... - Page 46 Since Channel Range is set to 17 - 32, you must control the channel's volume using different commands. When a D16 Channel Range is set to 17 - 32, the D16 is the second chassis in a two D16 chassis system.
-
Page 47: Multiple Stereo Inputs
With Channel Range set to Channel All Direct, Audio Input 1 is routed to Channel 1; Audio Input 2 is routed to Channel 2, etc...and Audio Input 16 is routed to Channel 16. Prerequisites: Factory Default the amp and set to ELAN or Normal Mode Channel Range: Set to 1 to 16... -
Page 48: Single Stereo Input With Stereo And Mono Output
Input Select Menu on page 17 With the Input Select Menu set to the above settings, the D16 sums audio input 1 and 2 (Mono) and routes it to channel 3. This eliminates the need to use a “Y” cable. -
Page 49: Multiple Bus Inputs With Stereo And Mono Outputs
Scenario: Zone one has four stereo speaker pairs, zone two has two stereo pairs and two summed mono speakers, zones three and four have a single summed mono speaker each. Prerequisites: Factory Default the amp and set to ELAN or Normal Mode. Input Select Menu:... - Page 50 E L A N H O M E S Y S T E M S INSTALLATION MANUAL Figure 4-4 Multiple Bus Inputs with Stereo and Mono Outputs © ELAN Home Systems 2010 | All rights reserved. Page 49...
-
Page 51: Stand-Alone Stereo Bussing With Multiple Chassis
E L A N H O M E S Y S T E M S INSTALLATION MANUAL Stand-Alone Stereo Bussing with Multiple Chassis Prerequisites First D16 Chassis: Factory Default the amp and set to ELAN Mode. Channel Range: Set to 1 to 16 VIA!NET Address: Set to 0... - Page 52 E L A N H O M E S Y S T E M S INSTALLATION MANUAL Figure 4-5 Multi-Chassis Bussing © ELAN Home Systems 2010 | All rights reserved. Page 51...
-
Page 53: Multi-Room Stereo Zones
Multi-Room Stereo Zones Prerequisites: Factory Default the amp and set to ELAN or Normal Mode. The D16 is designed to easily power up to eight independent stereo zones with any ELAN multi-room controller. This is the standard configuration for most multi-zone audio distribution systems. -
Page 54: D16 And S128P Sub-Zones W/O Volume Controls
Instead of using volume controls to have independent control of the volume in a zone and sub zone, control the Sub-Zone channels of the D16 using IR Commands. Route the VARIABLE out of Zone 1 of the S128P to audio inputs 1 and 2 and route the FIXED out of Zone 1 of the S128P to audio inputs 3 and 4. - Page 55 E L A N H O M E S Y S T E M S INSTALLATION MANUAL Figure 4-7 Sub-Zone with D16 IR Control © ELAN Home Systems 2010 | All rights reserved. Page 54...
-
Page 56: Chapter 5: Troubleshooting
Turn switch ON. Switch is on the back of the unit. power up. 2. Circuit breaker tripped Set circuit breaker. The D16 draws 12 amps of AC current. Ensure that combined current draw of all devices on circuit does not exceed the circuit’s capacity. Audio... - Page 57 Speakers are out of phase Verify that + of amplifier goes to + of speaker bass response low and - of amplifier goes to - of speaker on ALL speaker leads. © ELAN Home Systems 2010 | All rights reserved. Page 56...
- Page 58 Adjust setting on the ABSOLUTE MAX VOLUME Menu. ABSOLUTE MAX VOLUME setting. (See page 31) First notes of audio Power Save enabled Disable Power Save. (See Power Saving Menu on track missing page 26) © ELAN Home Systems 2010 | All rights reserved. Page 57...
- Page 59 Ambient temperature reached f) increase ventilation g) high input AC voltage with high g) spread high output loads (example: outdoor speakers) output demand across multiple amplifiers in multi amp installs. © ELAN Home Systems 2010 | All rights reserved. Page 58...
- Page 60 3. Change settings on the Channel Range Menu. (See page 34) Intermittent control IR flooding. Connect a “talk-back” emitter to the IR out of the D16. from IR controller. Glowing or flickering when no commands are being sent indicates IR flooding. Possible sources: ambient light or plasma / LCD TV flooding.
-
Page 61: Specifications
Loop Output Trigger Dimensions w/Feet (3U w/o Feet 17 W x 5 7/8 H x 17 D 432 W x 149 H x 432 D Weight lbs. 47.6 21.59 © ELAN Home Systems 2010 | All rights reserved. Page 60... -
Page 62: Appendix A: Ir / Via!Net Command Set
INSTALLATION MANUAL Appendix A: IR / VIA!NET Command Set The D16 IR code set includes 16 ALL Channel commands as well as six Scene commands. Additionally, each of the 256 possible individual channels has its own group of 16 commands. - Page 63 IR commands for either channel 3 or channel 4 to affect both channels. Unlink Unlinks stereo pairs (i.e.: 1 & 2, 3 & 4, 5 & 6, etc.) Allows channel pairs to be controlled individually. © ELAN Home Systems 2010 | All rights reserved. Page 62...
-
Page 64: Appendix B: Rack Mounting
INSTALLATION MANUAL Appendix B: Rack Mounting When mounting the D16 in an equipment rack, use the included Rack Mount Brackets for secure mounting and proper ventilation. The D16 requires three rack spaces. Attach the rack mount bracket onto the D16 chassis from the front as shown in Figure A-1. -
Page 65: Limited Warranty
Except as may be expressly provided and authorized in writing by ELAN, ELAN shall not be subject to any other obligations or liabilities whatsoever with respect to equipment manufactured by ELAN or services rendered by ELAN.
