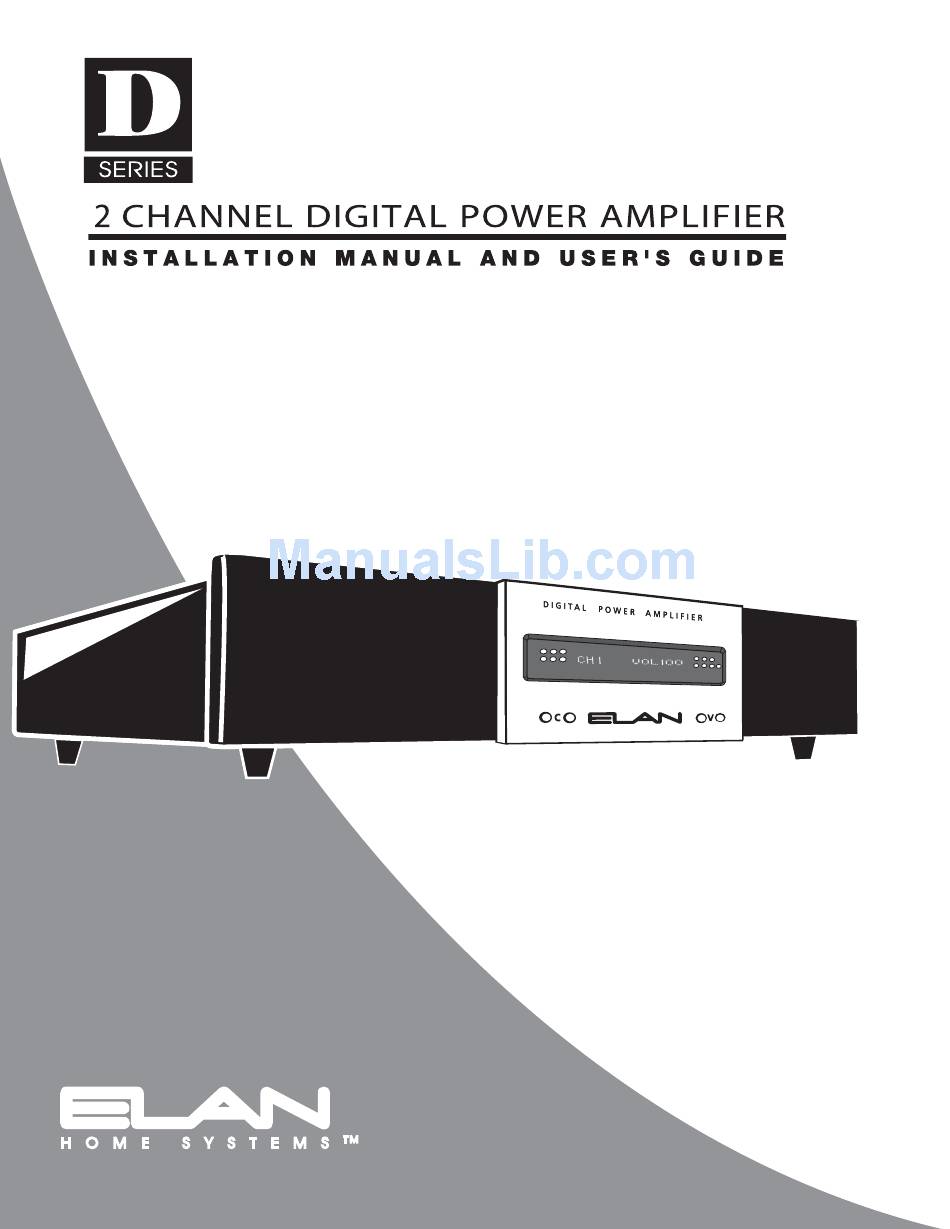

- Page 1 D400/D401 COMPACT, POWERFUL, & VERY COOL.
-
Page 3: Safety Information
—The appliances should be connected to a power supply only of the type described in the operating instruc- tions or as marked on each appliance. If you are not sure of the type of power supply to your home, consult your authorized ELAN dealer or local power company. - Page 4 —Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a remote risk of electrical shock from lightning. Do not use a telephone to report a gas leak if the leak is in the vicinity of the ELAN electronic equipment because of risk of fire or explosion.
-
Page 5: Table Of Contents
Parallel Speaker Outputs ..................... 14 Triggers ......................... 15 3. Setup ..........................16 4. Troubleshooting ......................18 Warranty .........................Back Page 2428 Palumbo Dr. Lexington, KY USA 40509 Voice 859-269-7760 Tech Support 800-622-3526 www.elanhomesystems.com © ELAN Home Systems 2005 • All rights reserved. Page 3... -
Page 6: Introduction
AC Power Considerations to create a low-impedance, high power scenario; The D400 requires 7 Amps of AC currect. When perfect when high volume is required. ‘Class-T’ designing any whole house system using multi- Digital Technology and ACE™... -
Page 7: D400 Front/Rear
Input Impedance ......49k Ohms Input Sensitivity ..0.9V RMS (150W @ 4 Ohms-Vol Max) © ELAN Home Systems 2005 • All rights reserved. Page 5... -
Page 8: Features
ACE sees a consistent clipping Advanced Amplifier Protection trend, it turns the respective channel down by one Each channel of the D400 is coupled to its respec- increment. This action is repeated until no more tive modular speaker terminal via a high-power clipping is detected. -
Page 9: Class 'T' Explained
Class-A, distortion. Class-B, Class-AB, Class-H, Class-G and Class-D are the most common. The D400 uti- Advantages of Class-T Design lizes proprietary Class-T topology from Tripath™. Class-T combines the best attributes of several of... -
Page 10: Connections And Applications
Multiple Stereo Speakers in a Zone The D400 is specifically designed for multi-speak- The D400 is set up to easily power three stereo er applications. This amplifier is two Ohm stable pairs of eight Ohm speakers (or any other combi- and provides three sets of speaker terminals for nation that adds up to more than a two Ohm load). -
Page 11: Multiple Mono Speakers
INSTALLATION MANUAL Multiple Mono Speakers in a Zone Use RCA Y Cables to connect the D400's Input and Buffered Loop Output as shown below to create 6 mono channels. This is particulary useful for large areas where stereo imaging is not possible. -
Page 12: Powering A Passive Subwoofer
E L A N H O M E S Y S T E M S INSTALLATION MANUAL Powering a Passive Subwoofer Connect one pair of the D400's Speaker Outputs to the speaker Input terminals of a passive subwoofer as shown below. Audio... -
Page 13: Powering A Passive Subwoofer W/ Satellite Speakers
INSTALLATION MANUAL Powering a Passive Subwoofer w/ Satellite Speakers The high power capabilities of the D400 make it an excellent chice for subwoofer/ satellite (sub/sat) applications. Run a pair of speaker outputs from the D400 to the subwoofer speaker inputs. Run speaker wire from the subwoofers line-level Outputs to the satellite speakers as shown below.. -
Page 14: System Expansion-Stereo
System Expansion-Stereo ELAN Engineers had flexibility and system expansion in mind when they designed the D400. To add additional stereo rooms or zones to a basic sys- tem, simply add an another D400. To expand zones or subzones to include additional channels of amplification, use the Loop Outputs to send audio to additional D400s or other amplifiers. -
Page 15: System Expansion-Mono
To add additional mono rooms or zones to a basic system, simply add an another D400. Use RCA "Y" cables to combine an audio source's signal to the inputs of D400 #1. Use a mono RCA cable to send that signal to additional amplifiers as shown below. -
Page 16: Volume Controls
D400 if incorrectly configured. Parallel Speaker Outputs The D400 is a two channel amplifier with six speaker output terminals. Each pair of terminals is internally wired in parallel with the other pairs. Speaker outputs 1, 3, and 5 are common; speaker outputs 2, 4, and 6 are common. -
Page 17: Triggers
The ALL ON trigger port automatically un-mutes OUT becomes active. This output sends a the D400 when a 3-24 VDC signal is present and +12VDC 100mA signal to other devices with a mutes it when the signal is absent. The Front Trigger input. -
Page 18: Setup
Please Note: If the user tries to change settings two steps. Follow this procedure for all channels. while in Lockout Mode, the Front Display will read “VOLUME LOCK IS ON”. Page 16 © ELAN Home Systems 2005 • All rights reserved. -
Page 19: Factory Default
E L A N H O M E S Y S T E M S INSTALLATION MANUAL Factory Default When your D400 arrives, it is set to a FACTORY DEFAULT condition. At some point during the life of this amplifier it may be necessary to put the unit back into Factory Default mode. -
Page 20: Troubleshooting
Ensure speakers have an approp- riate power rating for amplifier. 3. Volume Control Miswired Check for Proper Input/Output connections at Volume Control. INPUT Comes from Amplifier, OUTPUT Goes to Speakers. Page 18 © ELAN Home Systems 2005 • All rights reserved. - Page 21 2. Using Incompatible Volume Volume Controls not recommended Control Hum in Speakers When Audio Use Triggers to Mute Audio Inputs Ground Loop When Audio is Not Present is Not Present © ELAN Home Systems 2005 • All rights reserved. Page 19...
- Page 22 D400/D401 E L A N H O M E S Y S T E M S INSTALLATION MANUAL Notes: Page 20 © ELAN Home Systems 2005 • All rights reserved.
-
Page 24: Limited Warranty
Except as may be expressly provided and authorized in writing by ELAN, ELAN shall not be subject to any other obligations or liabilities whatsoever with respect to equipment manufactured by ELAN or services rendered by ELAN.
