Page 3: Organization
Purpose of This Manual This manual provides step-by-step installation instructions and connection examples, along with basic user information for installation and ongoing use of the A2 Two Channel Amplifier. This manual is written for the installer of this equipment. Organization... - Page 4 Do not use a telephone to report a gas leak if the leak is in the vicinity of the ELAN electronic equipment because of risk of fire or explosion. Page II © ELAN Home Systems 2009 • All rights reserved.
- Page 5 When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip over. Disconnect Device —Where the mains plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain operable. ® © ELAN Home Systems 2009 • All rights reserved. Page III...
- Page 6 E L A N H O M E S Y S T E M S INSTALLATION MANUAL Page IV © ELAN Home Systems 2009 • All rights reserved.
-
Page 7: Table Of Contents
System Trigger Out Operations and Settings Chapter 4: ....................19 Troubleshooting Chapter 5: ......................20 Appendix A: Specifications ....................... 22 Appendix B: Rack Mounting ......................23 Warranty ..........................Back Page © ELAN Home Systems 2009 • All rights reserved. Page V... - Page 8 E L A N H O M E S Y S T E M S INSTALLATION MANUAL Items in package: • A2 Power Amplifier • Rack Mount Brackets • Power Cord • Installation Manual Page VI © ELAN Home Systems 2009 • All rights reserved.
-
Page 9: Introduction

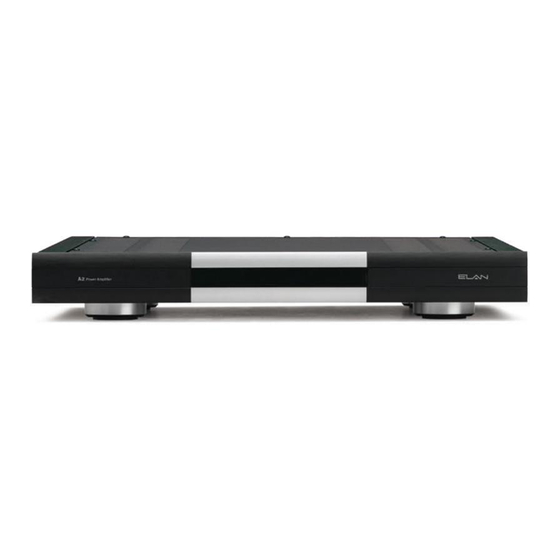

INSTALLATION MANUAL Chapter 1: Introduction Boasting 150 Watts per channel at 2 ohms, the ELAN A2 Power Amplifier is designed and engineered to be the definitive cornerstone component for any high-power application. The A2’s discrete output circuitry easily powers up to three pairs of 8 ohm speakers simultaneously, eliminating the need for speaker selector boxes or load protection devices. -
Page 10: A2 Functions & Indicators
Figure 1-1: A2 Front Panel Table 1-1:Front Panel Item Function Channel Gain Potentiometers (2) Pull-Out Access Door POWER LED - Glows Blue When Power Switch is ON and Unit Plugged In Page 2 © ELAN Home Systems 2009 • All rights reserved. -
Page 11: Rear Panel
INSTALLATION MANUAL A2 Rear BACK Figure 1-2: A2 Rear Panel Table 1-2: Rear Panel Item Function POWER SWITCH POWER CORD SPEAKER OUTPUTS SYSTEM TRIGGER IN/OUT LINE OUTPUTS LINE INPUTS © ELAN Home Systems 2009 • All rights reserved. Page 3... -
Page 12: System Design
Figure 2-1: System Design Pre-Wire Wiring Considerations • Speaker Wires 28-16 AWG Speaker Wire • Audio Cables RCA Patch Cables • Triggers 2 Conductor Wire w/ 3.5mm mono connector Page 4 © ELAN Home Systems 2009 • All rights reserved. -
Page 13: Applications
4 Ohm Speakers Since the A2 Power Amplifier is stable down to a 2 ohm load, it can handle multiple speaker pairs wired in parallel. The following diagrams show the maximum number of speaker pairs that can be connected to the A2. - Page 14 4 Ohm Speakers w/ Volume Controls Since the A2 Power Amplifier is stable down to a 2 ohm load, it can handle multiple speaker pairs wired in parallel. The following diagrams show the maximum number of speaker pairs that can be connected to the A2.
-
Page 15: Analog Audio
6 Ohm Speakers Line Level Analog Audio Output Maximum # of 6 Ohm speaker pairs without Volume Controls 6 Ohm 6 Ohm Speakers Speakers Figure 2-4: 6 Ohm Speaker Example © ELAN Home Systems 2009 • All rights reserved. Page 7... - Page 16 6 Ohm Speakers Speakers Figure 2-5: 6 Ohm Speakers w/ Volume Controls Maximum # of 6 Ohm speaker using Impedance Match Volume Controls Impedance Match 6 Ohm Speaker Pairs Page 8 © ELAN Home Systems 2009 • All rights reserved.
- Page 17 Speakers Speakers Line Level Analog Audio Output Maximum # of 8 Ohm speaker pairs without Volume Controls 8 Ohm 8 Ohm Speakers Speakers Figure 2-6: 8 Ohm Speaker Example © ELAN Home Systems 2009 • All rights reserved. Page 9...
- Page 18 8 Ohm Speakers Speakers Figure 2-7: 8 Ohm Speakers w/ Volume Controls Maximum # of 8 Ohm speaker using Impedance Match Volume Controls Impedance Match 8 Ohm Speaker Pairs Page 10 © ELAN Home Systems 2009 • All rights reserved.
-
Page 19: S66A/ S86A Application
ELAN’s S66A/S86A Integrated Multi-Room Controllers have built-in amplification for six stereo zones as well as six sets of preamp outputs for the addition of sub-zones. The A2 is ideally suited to amplify outdoor subzones using rotary or electronic volume controls if separate volume up/down functionality is desired in the sub-zones as shown in the S66A example below. - Page 20 Each Zone and Sub-Zone Has Independent Volume Control Outdoor Outdoor Speakers Speakers Fixed S66A Maximum # of 8 Ohm speaker pairs without Volume Controls Outdoor Outdoor Speakers Speakers Figure 2-9: S66A Sub-Zones Page 12 © ELAN Home Systems 2009 • All rights reserved.
-
Page 21: S128P Application
ELAN’s S128P Integrated Multi-Room Controller has variable preamp outputs for eight stereo zones as well as eight sets of fixed preamp outputs for the addition of sub-zones. The A2 has the ability to provide high power to large area such as Great Rooms. Use rotary or electronic volume controls if separate volume up/down functionality is desired in the sub-zones. - Page 22 Each Zone and Sub-Zone Has Independent Volume Control Great Room Great Room Speakers Speakers S128P Maximum # of 8 Ohm speaker pairs without Volume Controls Great Room Great Room Speakers Speakers Figure 2-6: S128P Sub-Zones Page 14 © ELAN Home Systems 2009 • All rights reserved.
-
Page 23: Connections
Chapter 3: Connections The A2 has several rear panel connections so it is important to label all cables and wires correctly. Label all input/ output cable and speaker wires with their destination or source. This will save time during installation and any future upgrades to the system. -
Page 24: Line Outputs
Line Ouputs A stereo or monaural audio signal connected to the A2’s main LINE INPUT is routed to the A2’s RCA Line Outputs. This feature is excellent for standalone distributed audio systems where one source (i.e. an A/V Receiver) is providing audio to the entire home, and also for ELAN multi-room applications where a zone’s audio signal needs to be routed... -
Page 25: Speaker Connections
Speaker Binding Post The A2 is equipped with gold plated, 5-way speaker binding posts. This allows five methods of speaker wire termi- nation: bare wire, spade lug, pin, single banana and dual banana plug. Label all speaker wires with their destination to ensure easy configuration. -
Page 26: Triggers
SYSTEM TRIGGER OUT Whenever the A2 is powered ON, the REMOTE TRIGGER OUT becomes active. This output sends a +12VDC 100mA signal to other devices with a Trigger Input. Examples of proper usage of the REMOTE TRIGGER OUT include mut- ing/un-muting other amplifiers, triggering the switched outlets of a Z•Power Controller, or triggering automated... -
Page 27: Chapter 4: Operations And Settings
Chapter 4: Operations & Settings Setting Channel Levels The A2 features independent Level Adjustment Potentiometers for each of its two channels. Use a small Phillips screwdriver to independently adjust each channel of the amplifier for the specific speakers and environmental con- ditions of the area it is powering. -
Page 28: Chapter 5: Troubleshooting
3. Faulty wiring 3. (a) Make sure volume controls are not hooked up backwards. (b) Check for shorts in wiring (see item 2 in “No audio…”). Page 20 © ELAN Home Systems 2009 • All rights reserved. -
Page 29: Technical Support
Technical Support If, after carefully following the steps in the Troubleshooting section, you are unable to resolve issues with the installation or operation of the A2, please call ELAN Technical Support at 1-800-622-ELAN (3526). © ELAN Home Systems 2009 • All rights reserved. -
Page 30: Appendix A: Specifications
Dimensions w/ Feet (1U w/o Feet) 17 W x 2 1/4 H x 11 D (in) 432 W x 58 H x 280 D (mm) Weight 16 lbs/7.2 kg Page 22 © ELAN Home Systems 2009 • All rights reserved. -
Page 31: Appendix B: Rack Mounting
When mounting the A2 amplifier in an equipment rack, use the included rack mount brackets for secure mounting and proper ventilation. The A2 requires one rack space, ensure that one rack space above and below the A6 is left open for proper ventilation. To install the A2 into a standard 19” equipment rack: 1. - Page 32 3. Once the unit is securely mounted, install the entire assembly into a standard 19” equipment rack from the front using four rack screws (not included) as shown in Figure B-3. 19" Equipment Rack Rack Screws Figure B-3 Page 24 © ELAN Home Systems 2009 • All rights reserved.
- Page 33 E L A N H O M E S Y S T E M S INSTALLATION MANUAL Notes: © ELAN Home Systems 2009 • All rights reserved. Page 25...
- Page 34 E L A N H O M E S Y S T E M S INSTALLATION MANUAL Notes: Page 26 © ELAN Home Systems 2009 • All rights reserved.
-
Page 36: Limited Warranty
Limited Warranty ELAN HOME SYSTEMS L.L.C. (“ELAN”) warrants the ELAN A2 Two Channel Amplifier to be free from defects in materials and workmanship for the period of two years (2 years) from date of purchase. If within the applicable warranty period above purchaser discovers that such item was not as warranted above and promptly notifies ELAN in writing, ELAN shall repair or replace the item at the company’s option.
