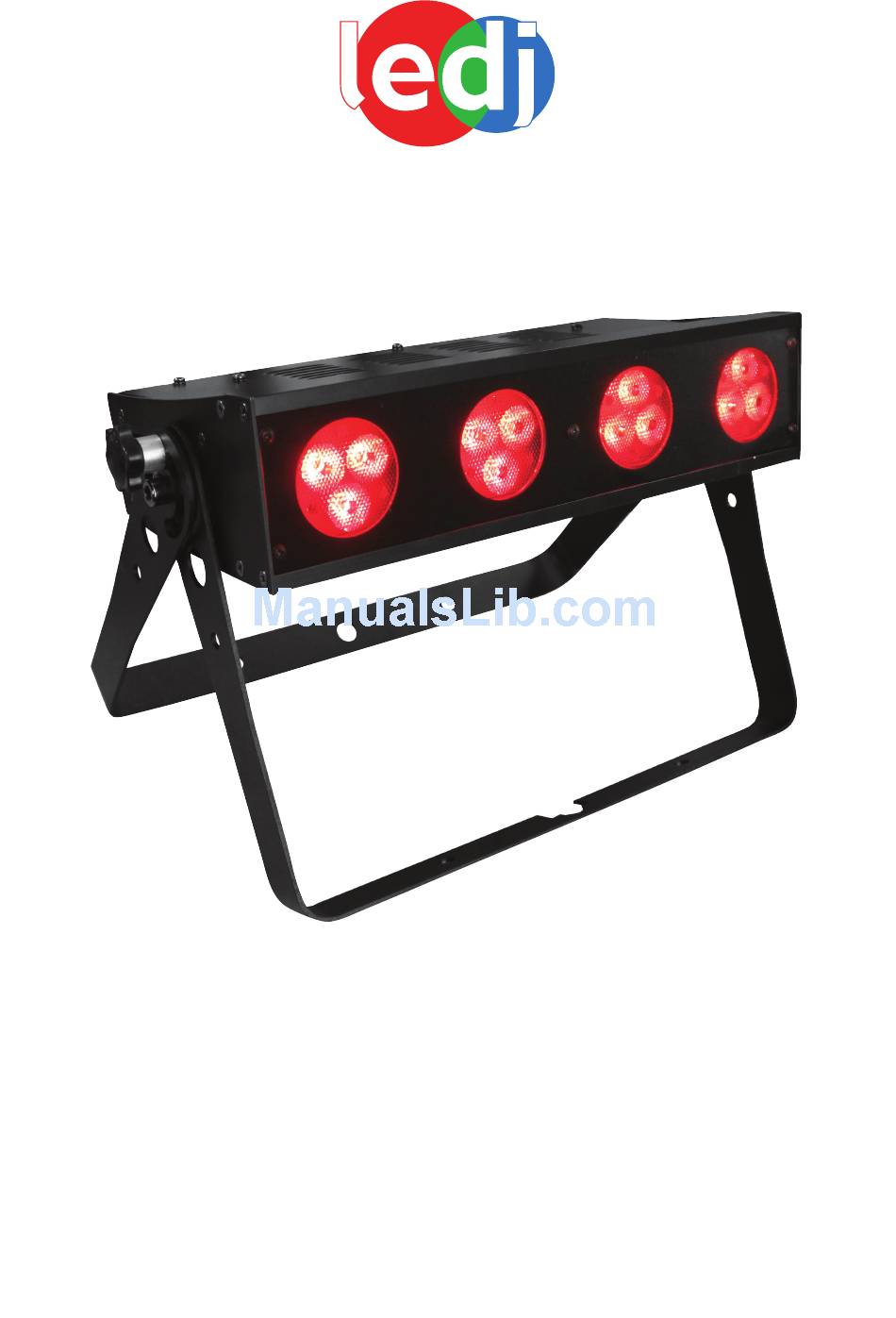

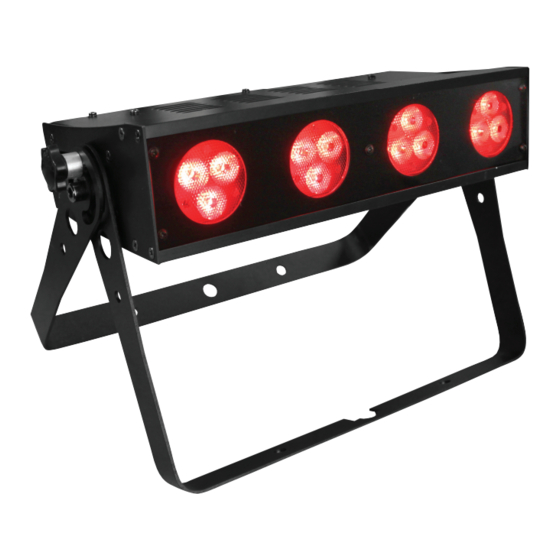

- Page 1 . p r o l i g h t . c o . u k LIGHT BRICK - 12 X 3W TRI-COLOUR (Order code: LEDJ162) USER MANUAL...
-
Page 2: Safety Instructions
LEDJ Light Brick Safety WARNING FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! CAUTION! Keep this equipment away from rain, moisture and liquids. SAFETY INSTRUCTIONS Every person involved with the installation, operation & maintenance of this... -
Page 3: Operating Determinations
THIS UNIT CONTAINS NO USER SERVICEABLE PARTS. • WARRANTY; One year from date of purchase. • LEDJ products are designed and intended for professional use only by competent persons. The products are not suitable for domestic use. OPERATING DETERMINATIONS If this equipment is operated in any other way, than those described in this manual, the product may suffer damage and the warranty becomes void. - Page 4 LEDJ Light Brick Technical specifications You should find inside the LEDJ carton the following items: 1, Light Brick - 12 x 3W tri-colour 2, Instruction manual, 3, Power Cable Technical Specifications: DMX channels: 3/7/10/12 or 16 selectable 12 x 3W tri-colour LEDs...
- Page 5 LEDJ Light Brick Operation 1, DMX Mode To enter the DMX mode, press the “MENU” button to show “SET DMX ADDRESS” on the LCD display. Now press the “ENTER” button and use the “UP” and “DOWN” buttons to set the DMX address from 001-512.
- Page 6 LEDJ Light Brick DMX Charts 7 Channel DMX chart Channel Value Function No function 8-15 Macro 1 16-23 Macro 2 24-31 Macro 3 32-39 Macro 4 40-47 Macro 5 48-55 Macro 6 56-63 Macro 7 64-71 Macro 8 72-79 Macro 9...
- Page 7 LEDJ Light Brick DMX Charts 7 Channel DMX chart cont..Channel Value Function No function 8-15 16-23 Green 24-31 Blue 32-39 Yellow 40-47 Pink 48-55 Turquoise 56-63 Cold white 72-79 Light pink 80-87 Light blue 88-95 Golden yellow 96-103 Light Blue...
- Page 8 LEDJ Light Brick DMX Charts 10 Channel DMX chart: Channel Value Function No function 8-15 Macro 1 16-23 Macro 2 24-31 Macro 3 32-39 Macro 4 40-47 Macro 5 48-55 Macro 6 56-63 Macro 7 64-71 Macro 8 72-79 Macro 9...
- Page 9 LEDJ Light Brick DMX Charts 10 Channel DMX chart cont..: No function 8-15 16-23 Green 24-31 Blue 32-39 Yellow 40-47 Pink 48-55 Turquoise 56-63 Cold white 64-71 Summer yellow/green 72-79 Light pink 80-87 Light blue 88-95 Golden yellow 96-103 Light Blue...
- Page 10 LEDJ Light Brick DMX Charts 16 Channel DMX chart: Channel Value Function No function 8-15 Macro 1 16-23 Macro 2 24-31 Macro 3 32-39 Macro 4 40-47 Macro 5 48-55 Macro 6 56-63 Macro 7 64-71 Macro 8 72-79 Macro 9...
- Page 11 LEDJ Light Brick DMX Charts 16 Channel DMX chart cont..: Channel Value Function No function 8-15 16-23 Green 24-31 Blue 32-39 Yellow 40-47 Pink 48-55 Turquoise 56-63 Cold White 64-71 Summer yellow/green 72-79 Light pink 80-87 Light blue 88-95 Golden yellow...
- Page 12 DATA Cable (DMX cable) requirements (for DMX operation): • The LEDJ Light Brick can be controlled via DMX-512 protocol. The DMX address is set on the back of the unit. Your unit and your DMX controller require a standard 3-pin XLR connector for data input/output (figure 1).
- Page 13 LEDJ Light Brick DMX Setup Notice: • Be sure to follow figures 2 & 3 when making your own cables. Do not connect the cable’s shield conductor to the ground lug or allow the shield conductor to come in contact with the XLR’s outer casing.
- Page 14 LEDJ Light Brick Notes Notes:...
- Page 15 LEDJ Light Brick Notes Notes:...
- Page 16 English Correct Disposal of this Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with seperate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please seperate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources.
