Ledj S-1 User Manual

Professional led light controller
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Table of Contents

www.prolight.co.uk
(Order code: LEDJ126)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S-1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ledj S-1

Summary of Contents for Ledj S-1

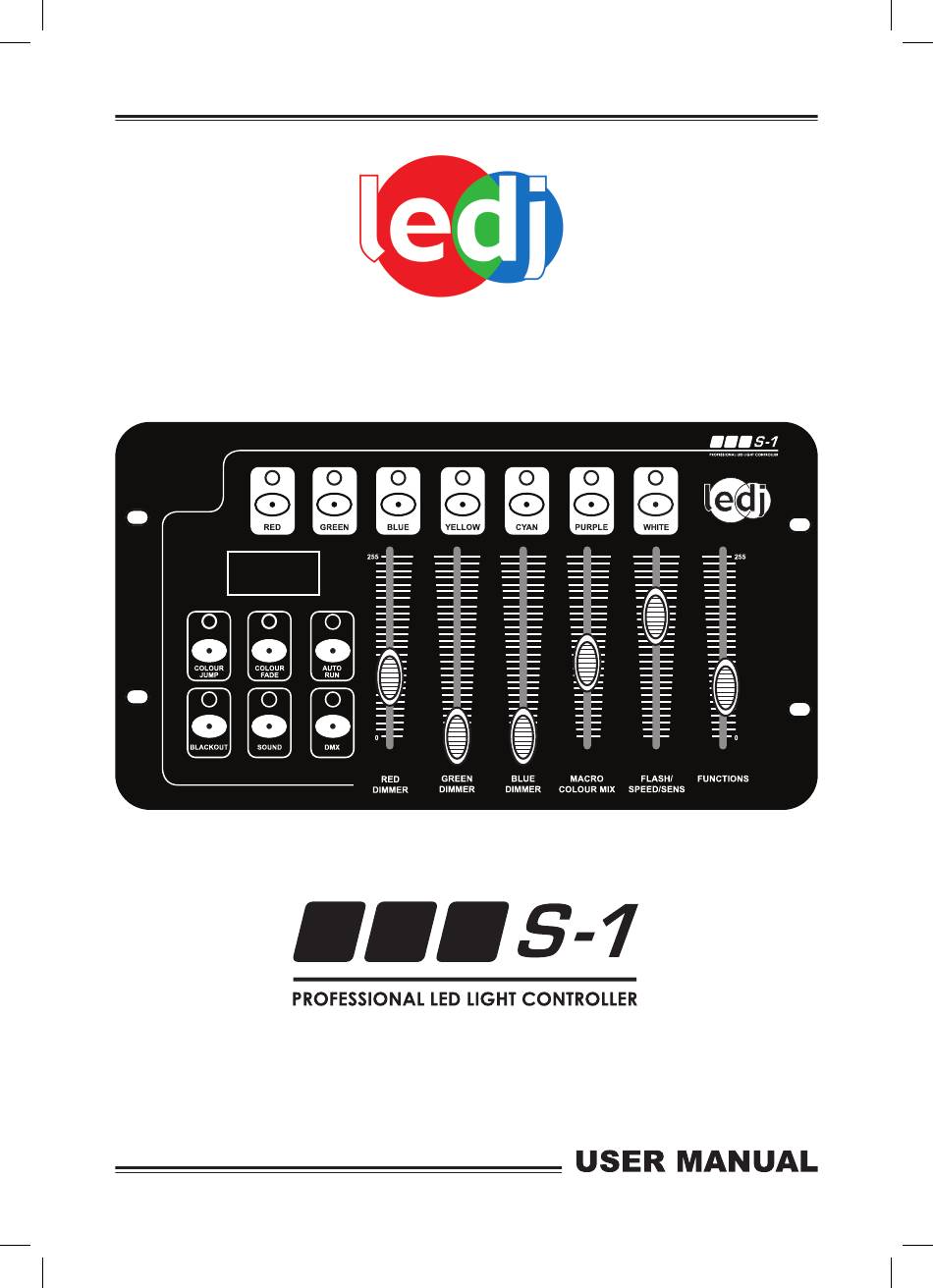

  • Page 1 www.prolight.co.uk (Order code: LEDJ126)
  • Page 3 IMPORTANT: The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual or any unauthorised modification to the equipment. • Never let the power-cable come into contact with other cables. Handle the power-cable and all mains voltage connections with particular caution! • Never remove warning or informative labels from the equipment. • Do not open the equipment and do not modify the equipment. • Do not switch the equipment on and off in short intervals, as this will reduce the system’s life. • Only use the equipment indoors. • Do not expose to flammable sources, liquids or gases. • Always disconnect the power from the mains when equipment is not in use or before cleaning! Only handle the power-cable by the plug. Never pull out the plug by pulling the power-cable. • Make sure that the available voltage is between 220v/240v. • Make sure that the power-cable is never crimped or damaged. Check the equipment and the power-cable periodically. • If the equipment is dropped or damaged, disconnect the mains power supply immediately.

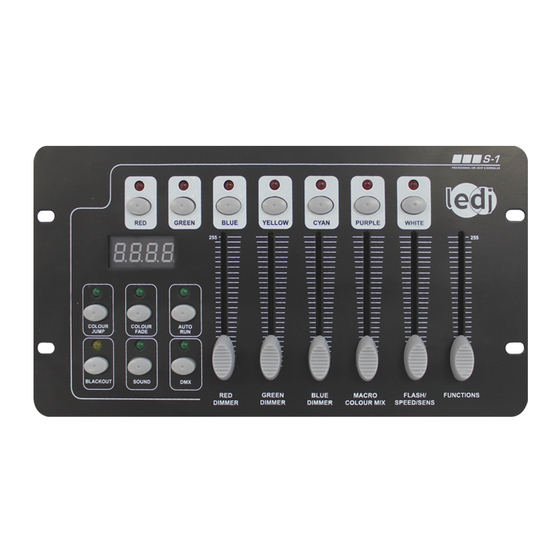

  • Page 4 Over view: Front: Rear:...
  • Page 5 Features: 7 Preset colour buttons for instant colour selection. 6 Buttons for colour jump, colour fade, auto, sound, DMX and blackout. Sound active function with adjustable sensitivity. Blackout, flood & strobe functions. 1, Blackout mode: When you power up your S-1 controller, the LED above the “BLACKOUT” button will illuminate, indicating that the unit is set to blackout mode. To exit the blackout mode simply press any one of the function buttons. 2, Preset colour mode In this mode you can select one of the seven preset colours by pressing one of the designated colour buttons. Or when in DMX mode you can use the “MACRO COLOUR MIX” slider to select static colours. 3, DMX mode To activate this mode first press the ‘DMX” button. You can now use any of the 6 designated sliders to control the Stratos Spot or Wash in conjunction with the 3 and 6 Channel DMX charts overleaf. 4, Sound Active mode To activate this mode, press the “SOUND” button. You will need to adjust the “FLASH/SPEED/ SENS” slider to set the music input sensitivity level. (00 = low, 99 = high). 5, Colour Fade mode To activate this mode, press the “COLOUR FADE” button, then adjust the speed to the desired level using the “FLASH/SPEED/SENS”...
  • Page 6 DMX Charts: The Stratos Spot/Wash has two DMX modes to choose from, 3 channel or 6 Channel. To control the unit in 3 Channel mode, press the mode button on the Stratos Spot or Wash to show a red dot illuminated under the first digit of the DMX address. The unit can now be controlled in 3 channel mode To control the unit in 6 Channel mode, press the mode button on the Stratos Spot or Wash to show to show NO red dot under the first digit of the DMX address. The unit can now be controlled in 6 channel mode...
  • Page 7 Notes:...
